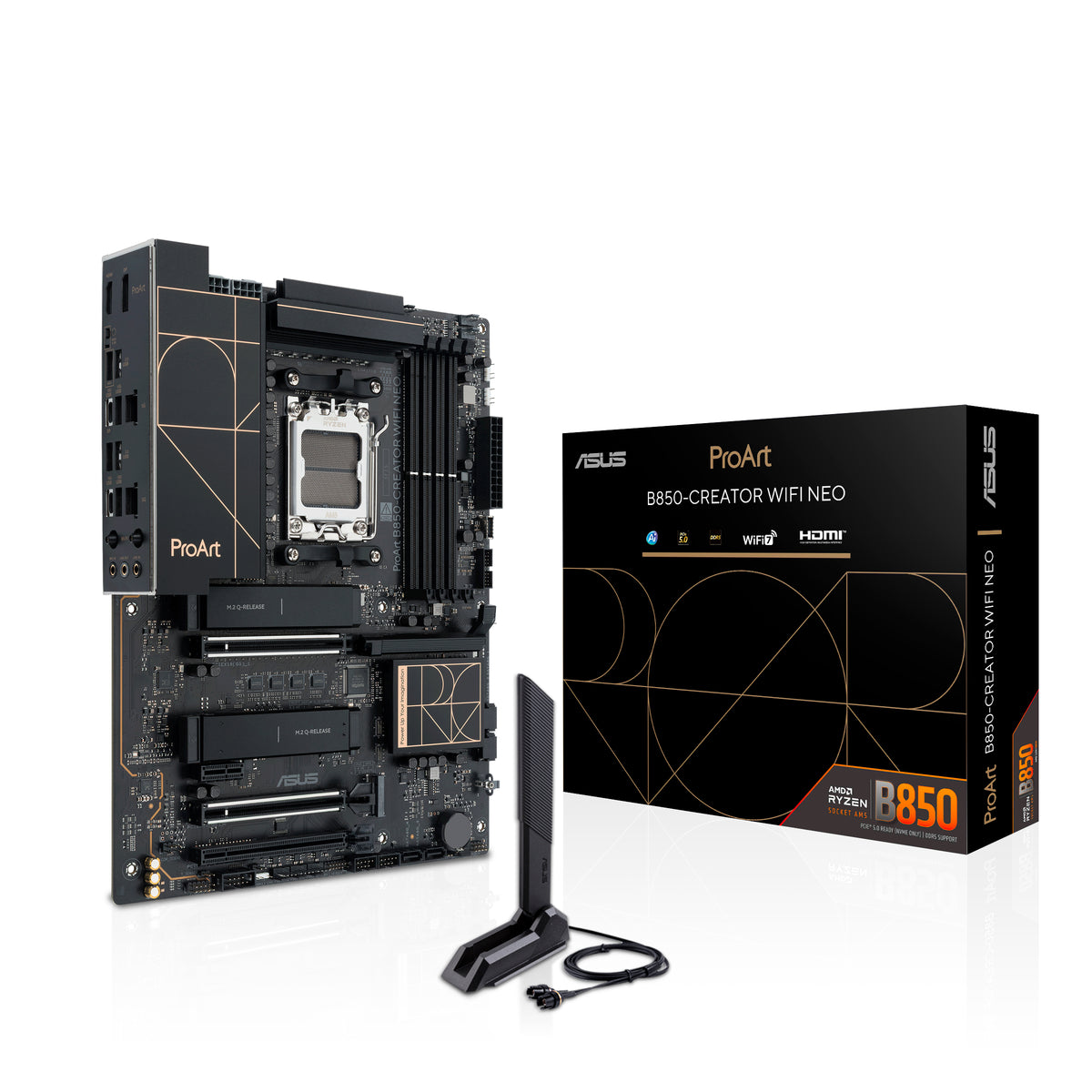

ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX - PROART B850-CREATOR WIFI NEO

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.

• AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• PC ATX AMD B850 Realtek ALC1220P 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
• BIOS type: UEFI AMI 512 Mbit
• 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speed (max)	9000
Unbuffered memory	Y
Maximum internal memory per slot	64
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Y
RAID levels	0,1,5,10
Parallel processing technology support	Not supported
On-board graphics card	N
Maximum resolution	7680 x 4320
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of CPU fan connectors	2
Number of chassis fan connectors	4
Chassis intrusion connector	Y
EPS power connector (8-pin)	Y
Number of EPS power connectors (8-pin)	2
Number of COM connectors	1
TPM connector	Y
Thunderbolt headers	1
Number of water pump connectors	1
Number of temperature sensor headers	1
RGB LED pin header	Y
Number of RGB LED pin headers	3

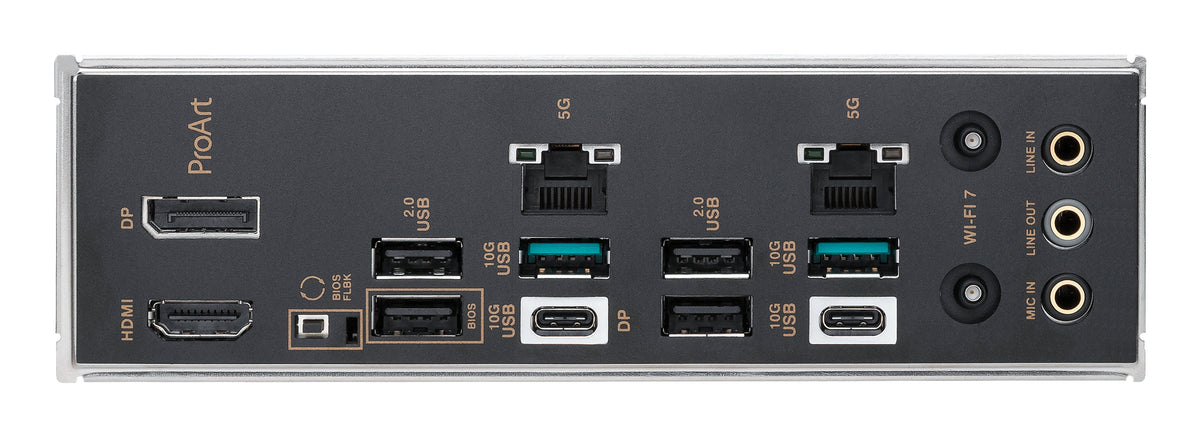

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Line-in	Y
Microphone in	Y
WiFi-AP antenna jack	2
Wi-Fi	Y
Ethernet LAN	Y
Ethernet interface type	5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Bluetooth	Y
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio output channels	7.1
Audio chip	Realtek ALC1220P
Product colour	Black
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 11
PCI Express x4 (Gen 1.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	512
BIOS flashback button	Y
Package width	353
Package depth	273
Package height	68
Package weight	2140
Width	305
Depth	244
Height	48

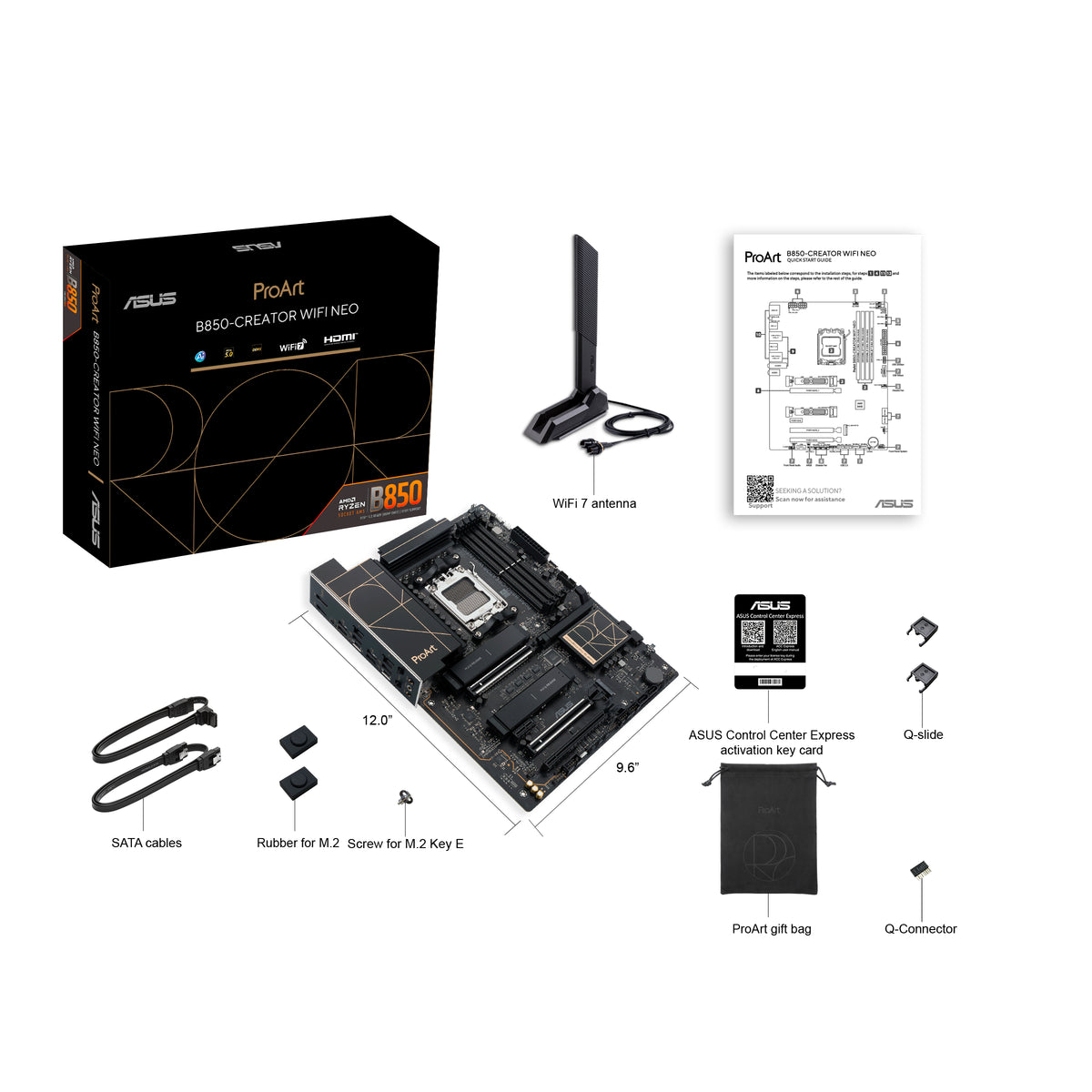

Cables included	SATA
Antenna included	Y
Screws included	Y
mSATA ports quantity	0
Weight	1326
Quick installation guide	Y
