LG  |  SKU: 75TR3DK-B.MUSQ

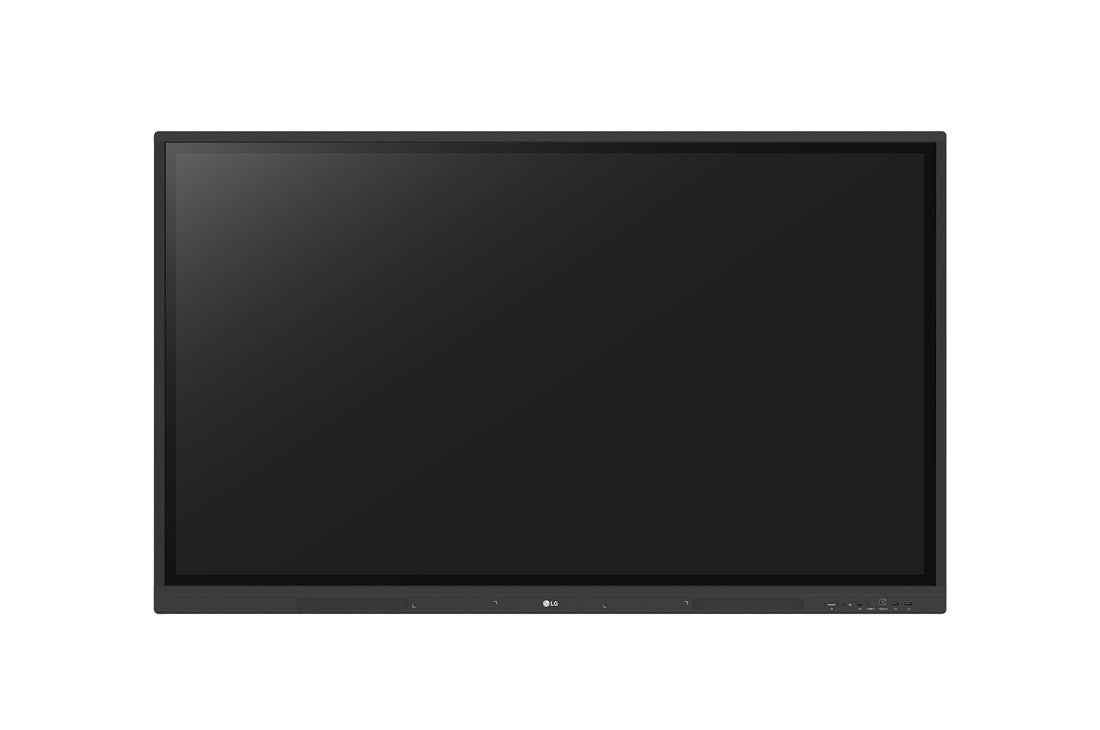

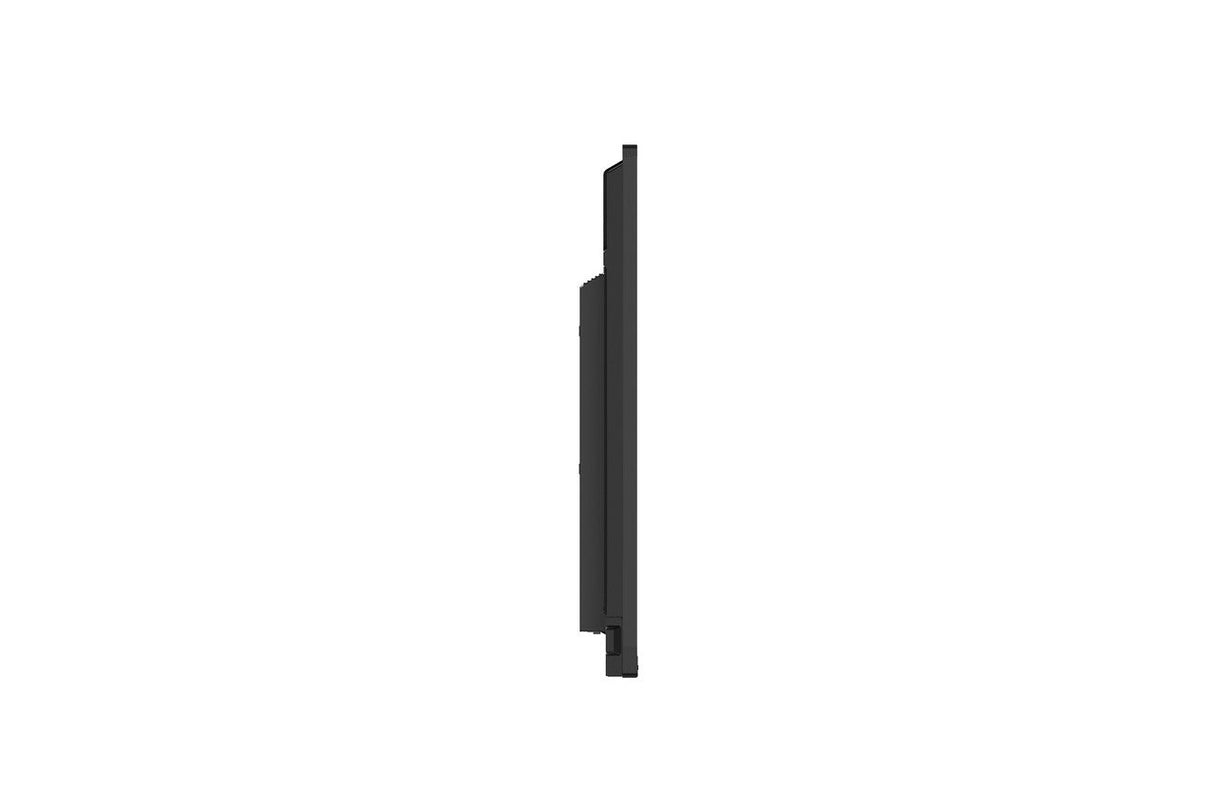

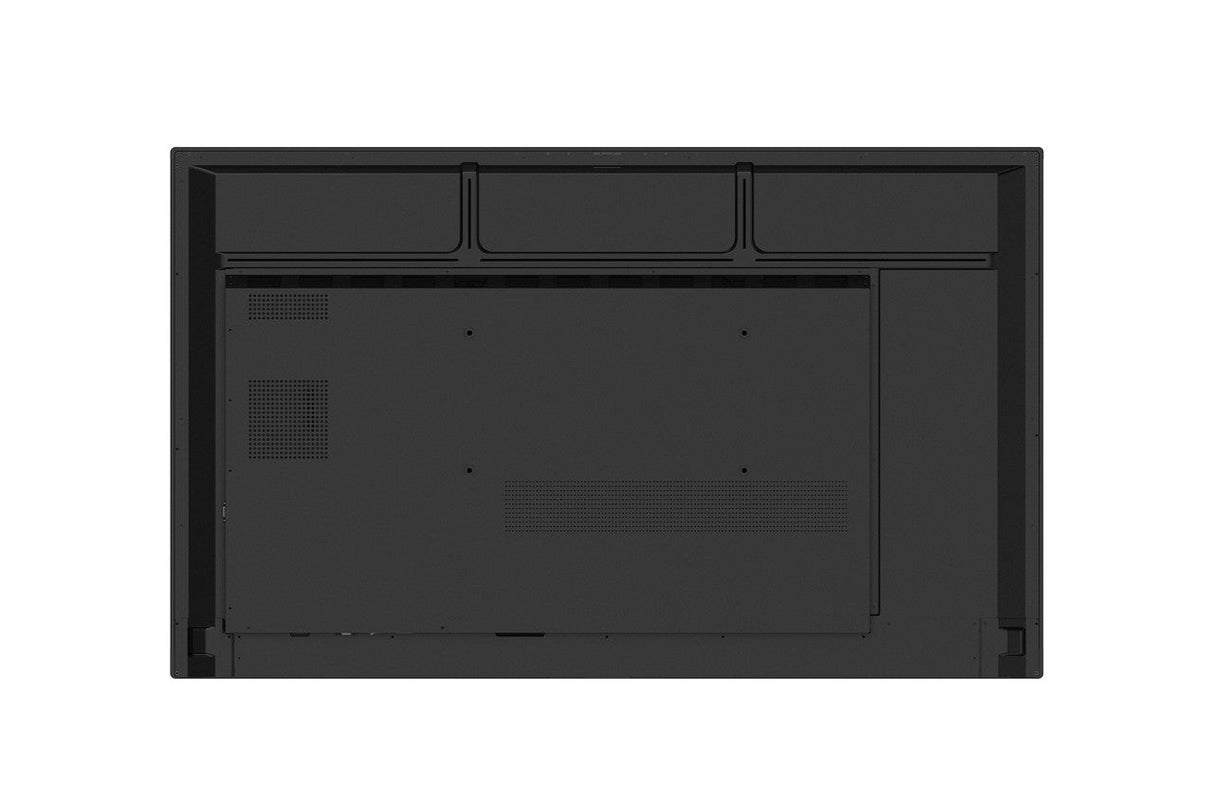

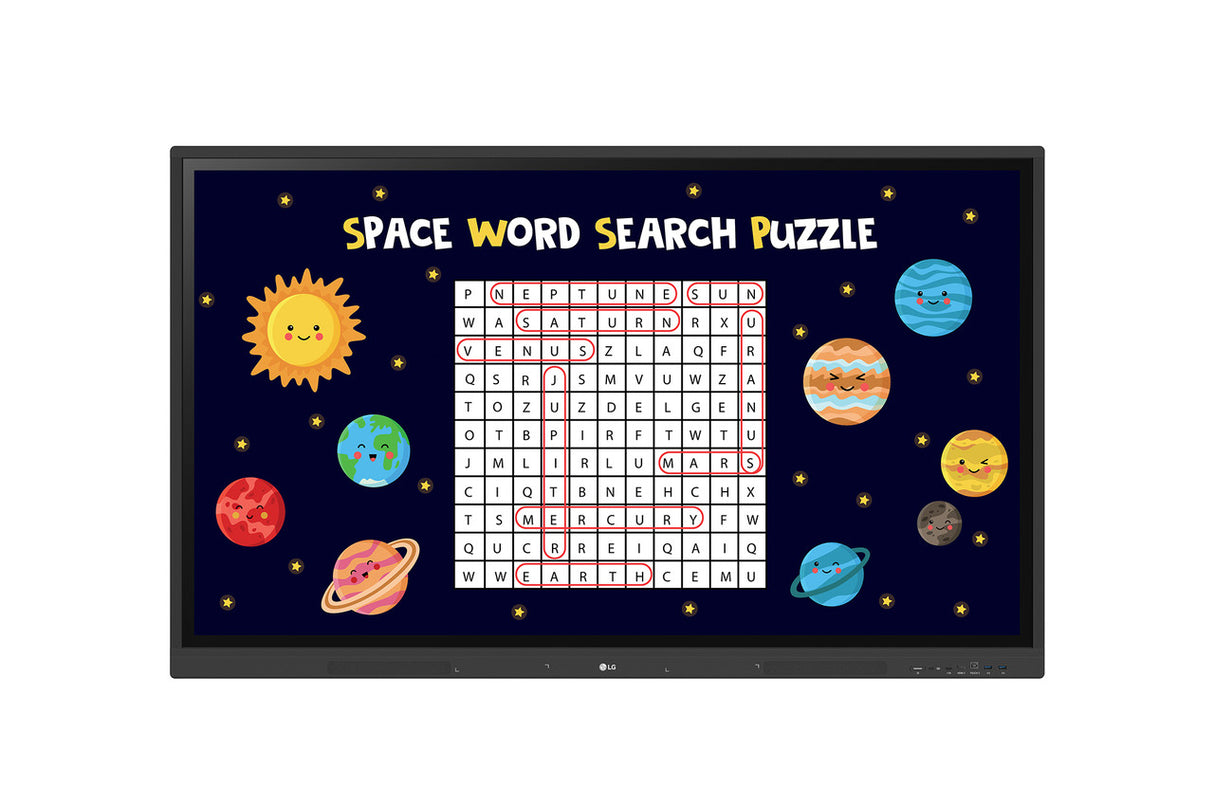

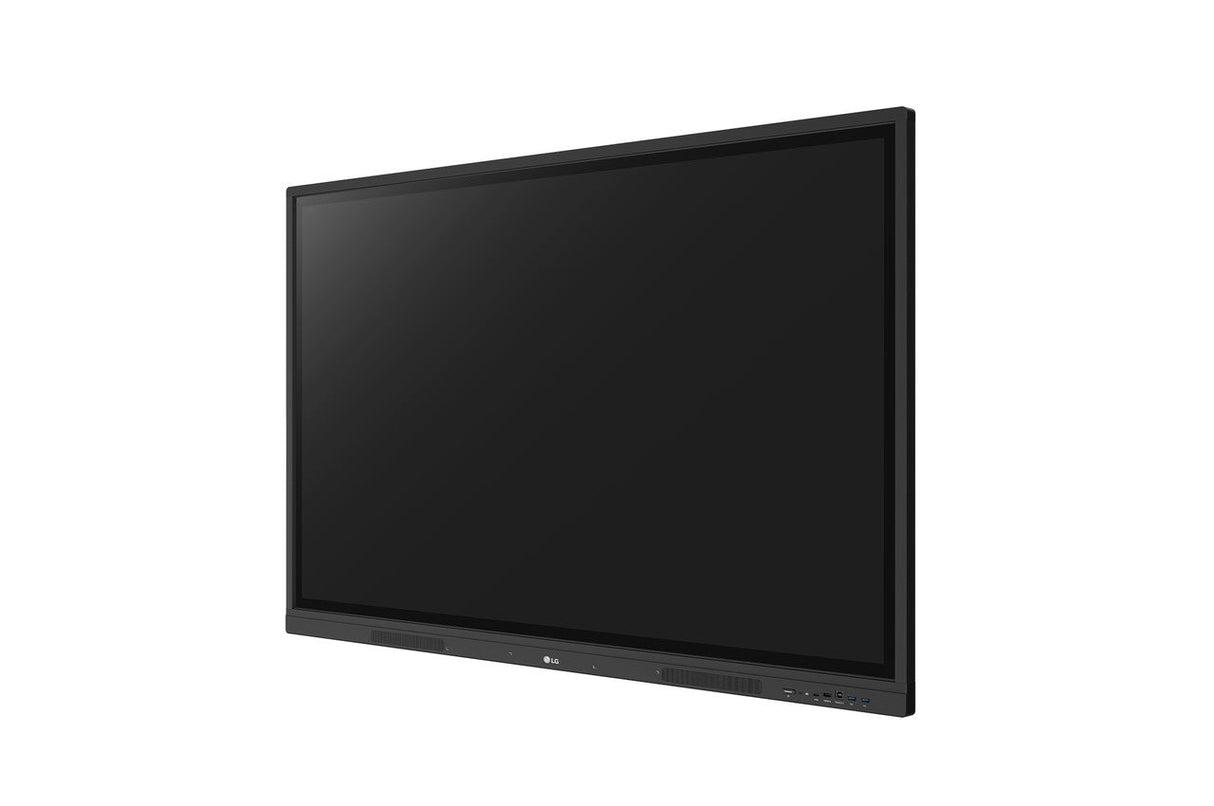

LG TR3DK Series 75" IPS Touch 4K Ultra HD CreateBoard Digital Display 75TR3DK-B.MUSQ

$2,105.60
Shipping calculated at checkout.
Get a Quote

Care information

Manufacture Warranty

Delivery and Shipping

Standard Shipping: 3-5 Business days

Express Shipping: 1-2 Business days

ShareThis

Description

 Features

•    Internal Memory : 32GB (Storage) / 4GB (RAM)
•    Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
•    Resolution : 3,840 × 2,160 (UHD)
•    Multi-Touch Point : 40 Points (Max.)

Key Specs

Display Size
75"
Resolution
3840 x 2160
Maximum Brightness
390 nits / cd/m2
Touchscreen Technology
Infrared (IR)
Inputs
Front:
1x HDMI
Side:
2x HDMI
Bottom:
1x DE-15/DB-15 (VGA)
1x 1/8" / 3.5 mm (Analog Audio)
Outputs
Side:
1x HDMI
Bottom:
1x TOSLINK Optical (Digital Audio)
1x 1/8" / 3.5 mm (Analog Audio)
Wireless
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
USB I/O
Side:
2x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control)
2x USB-A 3.0 / 3.1/3.2 Gen 1
Bottom:
1x USB-A 2.0
Side:
1x USB-C (Unspecified Version) (Video/Charging)
Ethernet I/O
2x RJ45 Gigabit Ethernet
Other I/O
1x DE-9/DB-9 Serial (RS-232C)
Built-In Speakers
Yes, 2x 15 W
Media Card Reader
No

Display

Display Size
75"
Panel Type
IPS-Type LCD
Aspect Ratio
16:9
Display Orientation
Landscape
Resolution
3840 x 2160
Maximum Brightness
390 nits / cd/m2
Lighting System
Direct LED
Contrast Ratio
1200:1
Response Time
8 ms (GtG)
Refresh Rate
60 Hz
Bit Depth / Color Support
8-Bit+FRC (1.07 Billion Colors)
Color Gamut
72% NTSC
Viewing Angle (H x V)
178 x 178°
Pixels Per Inch (ppi)
59 ppi
Finish
Anti-Glare / Matte

Surface

Touchscreen Technology
Infrared (IR)
Multi-Touch Points
40
Hardness Rating
7H
Haze Level
25%

Video

TV Tuner
No

Connectivity

Inputs
Front:
1x HDMI
Side:
2x HDMI
Bottom:
1x DE-15/DB-15 (VGA)
1x 1/8" / 3.5 mm (Analog Audio)
Outputs
Side:
1x HDMI
Bottom:
1x TOSLINK Optical (Digital Audio)
1x 1/8" / 3.5 mm (Analog Audio)
HDCP Support
Yes, Version 2.2
Wireless
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
Connection Protocols
AirPlay, Chromecast built-in
USB I/O
Side:
2x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control)
2x USB-A 3.0 / 3.1/3.2 Gen 1
Bottom:
1x USB-A 2.0
Side:
1x USB-C (Unspecified Version) (Video/Charging)
Ethernet I/O
2x RJ45 Gigabit Ethernet
Other I/O
1x DE-9/DB-9 Serial (RS-232C)
Number of OPS/Expansion Slots
1

Speaker

Built-In Speakers
Yes, 2x 15 W

Hardware

Smart TV
webOS
CPU
Quad-Core: Cortex A55
Storage
32 GB
RAM
4 GB
OS Compatibility
Windows XP or Later
Windows 7 to 10
Linux
macOS
Mobile App Compatible
Yes
Media Card Reader
No
Built-In Mic
No

Supported File Formats

Supported Languages
Arabic
Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian

Environmental

Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
10 to 90%

Electrical

Power Consumption
Typical: 225.0 W
Maximum: 430.0 W
Standby: 0.5 W
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 4 A
Power Adapter Type
Internal

General

Certifications
CB, NRTL, FCCClass A, CE, ErP
Mounting-Hole Pattern
800 x 400 mm
Lighting Lifespan
30000 Hours
IK Rating
No
Bezel Thickness
15 mm (Right/Top/Left)
44 mm (Bottom)
Duty Cycle
16 Hours / 7 Days
Dimensions
67.3 x 40.2 x 3.5" / 1709 x 1020 x 88 mm
Weight
104.3 lb / 47.3 kg

Packaging Info

Package Weight
128 lb
Box Dimensions (LxWxH)
73 x 45 x 9"
