ATEN 2-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included) - CS1942DPA

Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.

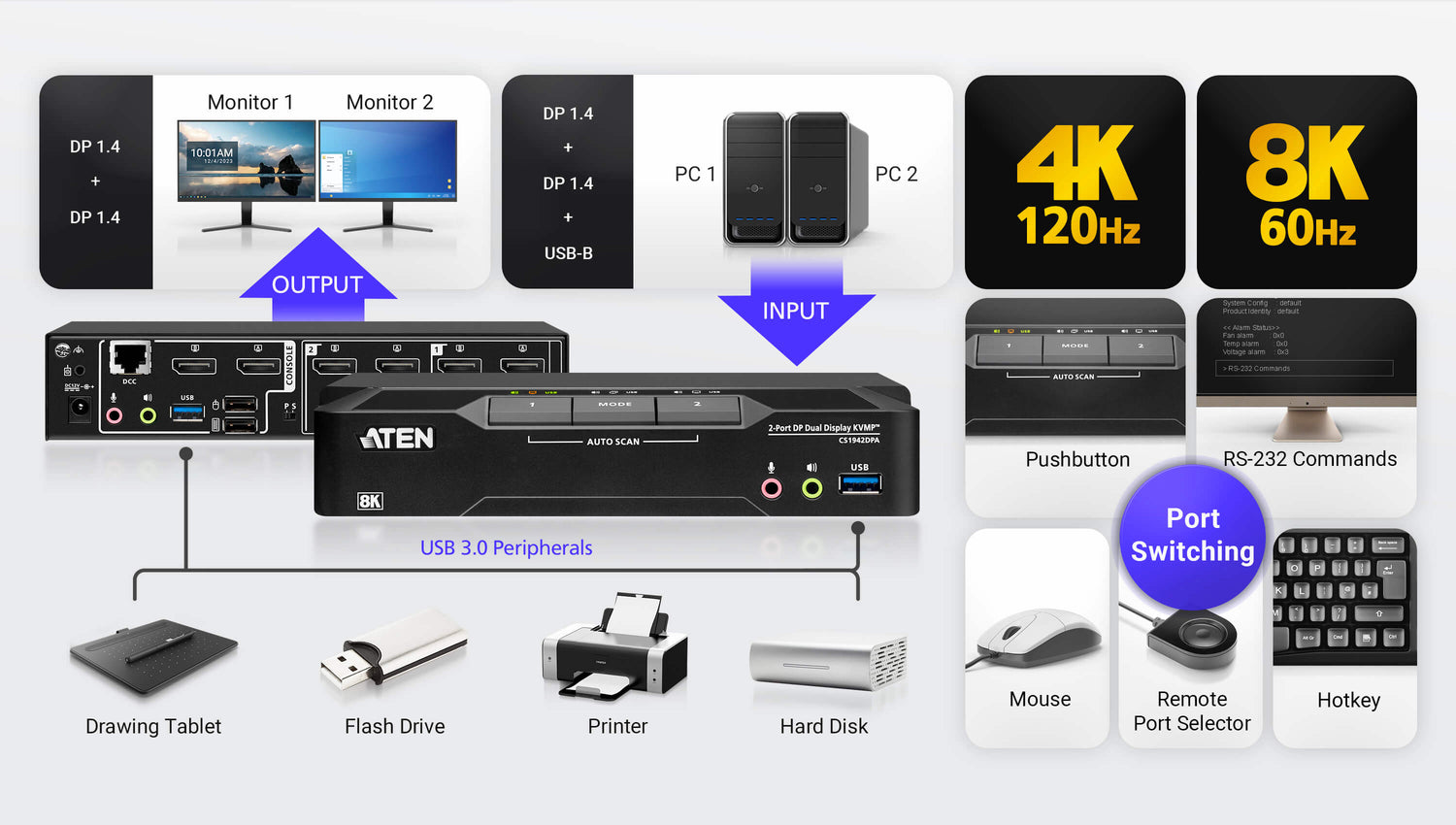

2 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console
The CS1942DPA is a 2-port KVM switch that empowers you to switch between projects with ease on a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1942DPA is definitely your key to a workspace transformation.

Unlock your creativity at this multitasking KVM workstation with:
● A pristine visual experience up to 4K@240 and 8K@60
● Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
● A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
● Multi-system compatibility with Windows, macOS, and Linux

• Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz
• Daisy-chainable quad-display control connecting two CS1942DPAs to manage up to two PCs and four displays with one keyboard and mouse

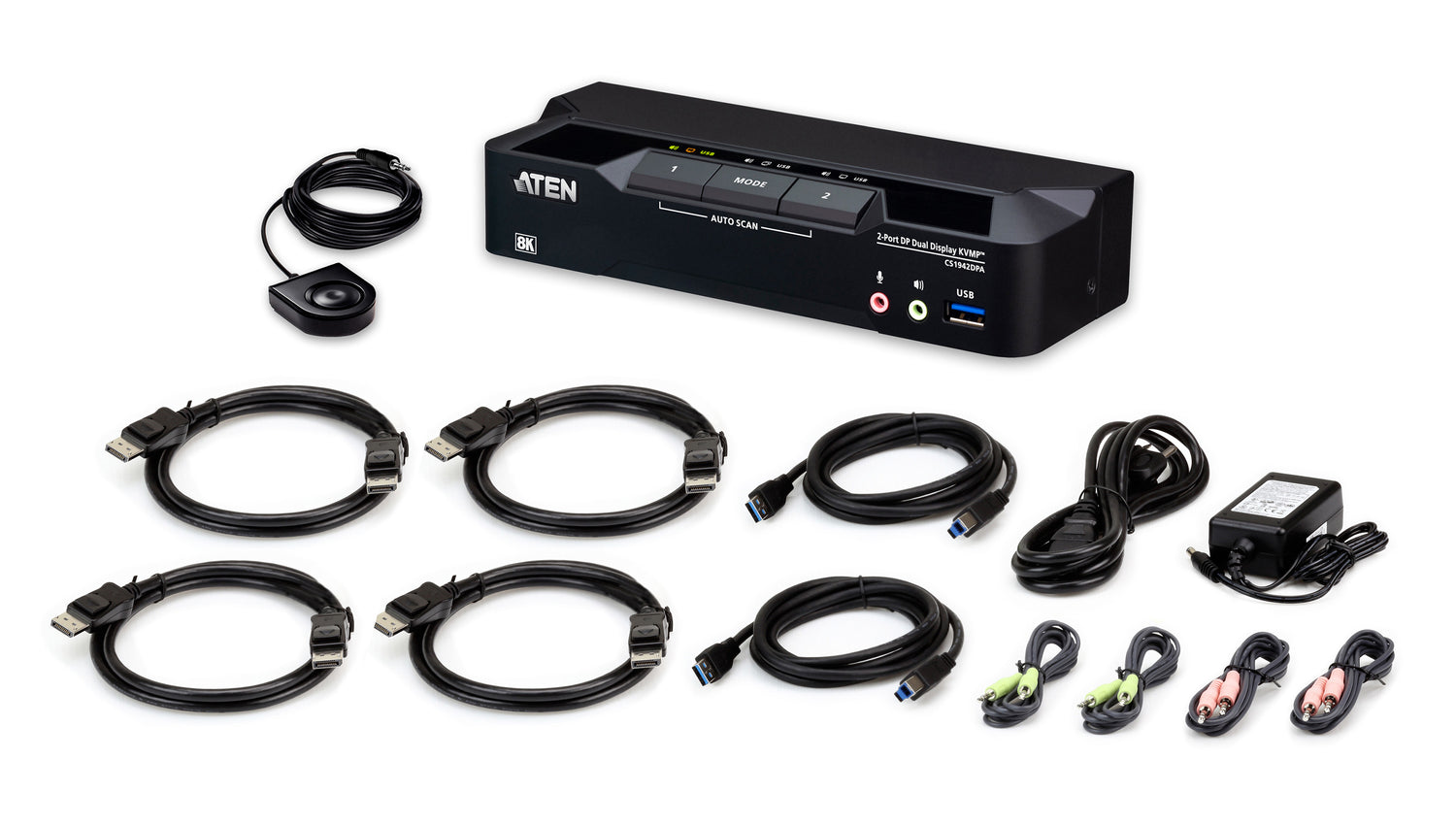

• All DisplayPort/USB cables and power adapter included for hassle-free installation
• Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone,DisplayPort,USB A
DisplayPorts quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console USB ports quantity	2
Console DisplayPorts ports quantity	4
Console RJ-45 ports quantity	1
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A,USB Type-B
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Y
HD type	8K Ultra HD
Maximum resolution	7680 x 4320
Video bandwidth	60
Scan interval	1,99
Maximum refresh rate	240
Rack mounting	N
Product colour	Black
LED indicators	Y
Push button	Y
Built-in display	N
Power source	DC
Input voltage	12
Power consumption (typical)	3.18
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Storage relative humidity (H-H)	0 - 80
Width	71.8
Depth	200
Height	43
Weight	470
Quick installation guide	Y
Harmonized System (HS) code	84718000
Country of origin	Thailand
