CYBERPOWER POWER,UPS,500VA,6OUT,BK - OR500LCDRM1U

Features

• Equipped with six surge-protected outlets for seamless connectivity (four battery-connected).

• Multifunction LCD Panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

• Runtime of 3 min at Full Load, 12 min at Half Load.

• The Nominal Input Voltage is 120 VAC using an input plug type NEMA 5-15P.

• UPS protects electronic equipment and prevents data loss during a power outage.

• Features serial and USB interfaces for communication and management and provides surge protection and filtering for RJ11/RJ45 (in/out combo) ports and coax lines (in/out).

• Automatic Voltage Regulation (AVR) provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

• This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. $300,000 lifetime connected equipment guarantee.

• This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. The Smart App LCD OR500LCDRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 lifetime connected equipment guarantee.

• This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. The Smart App LCD OR500LCDRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 lifetime connected equipment guarantee.

•

---

Specification

Global Product Type	Backup Systems
Protection Type	Power
System VA	500 VA
Backup Time at Half Load	12 min @ 150 W
Automatic Voltage Regulation (AVR)	Yes
Battery Recharge Time	8 h
Connected Equipment Guarantee/Warranty	Lifetime $300,000
Backup Time at Full Load	3 min @ 300 W
Jacks/Ports	RJ11
Jacks/Ports	RJ45
Connector/Port/Interface	Coaxial
Connector/Port/Interface	NEMA 5-15R
Connector/Port/Interface	USB
Joules Of Surge Protection	1,150 J
Noise Protection	EMI/RFI Noise Suppression
Number of Outlets	6
Diagnostics/Alarm/Status Light	Alarm
Diagnostics/Alarm/Status Light	LED
React Time	8 ms
Cord Length	10 ft
Color(s)	Black

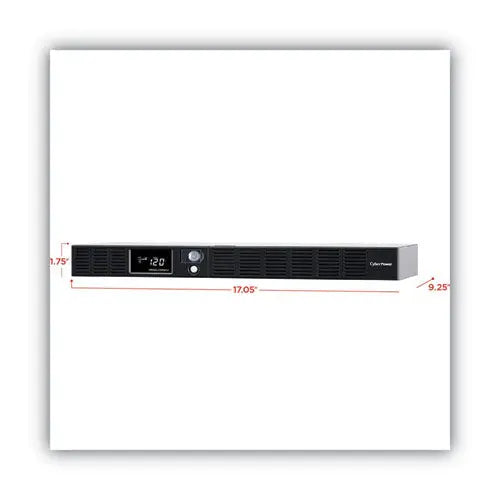

Width	17.05
Height	1.75
Depth	9.25
Backup Systems Alarm(s)	Audible
Input Frequency	57-63 Hz
Model Name/Number	Smart App LCD UPS Series OR500LCDRM1U
Number of Outlets/Type	4 UPS/Surge
Number of Outlets/Type	2 Surge Only
Weight	18 lbs
Package Includes	(2) Rack Mount Brackets
Package Includes	(1) USB A+B Type Cable
Package Includes	User Manual
Compliance Standards	cUL
Compliance Standards	Energy Star Rated
Compliance Standards	FCC Class B Certified
Compliance Standards	RoHS
Compliance Standards	UL Listed
Pre-Consumer Recycled Content Percent	0%
Post-Consumer Recycled Content Percent	0%
Total Recycled Content Percent	0%

---
