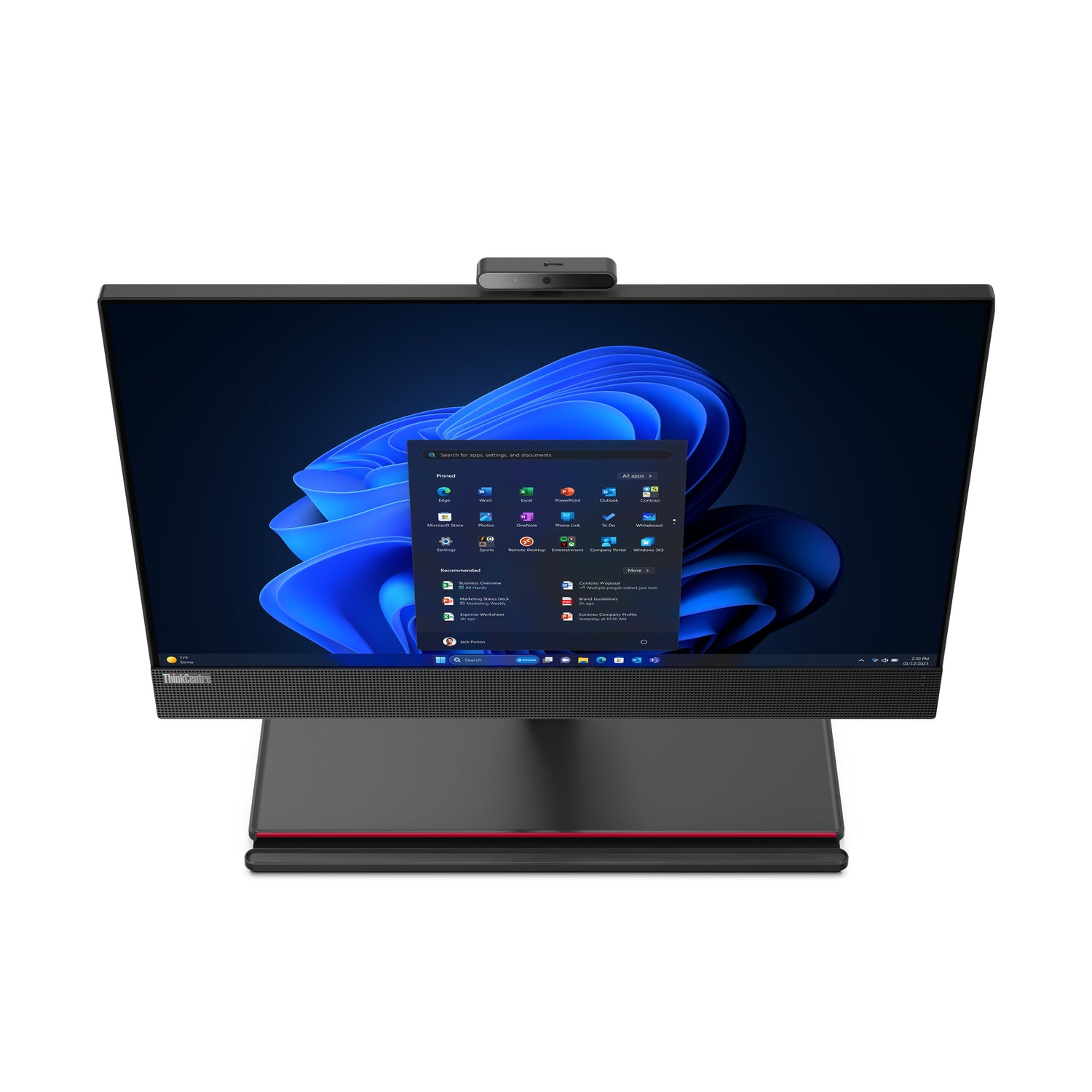

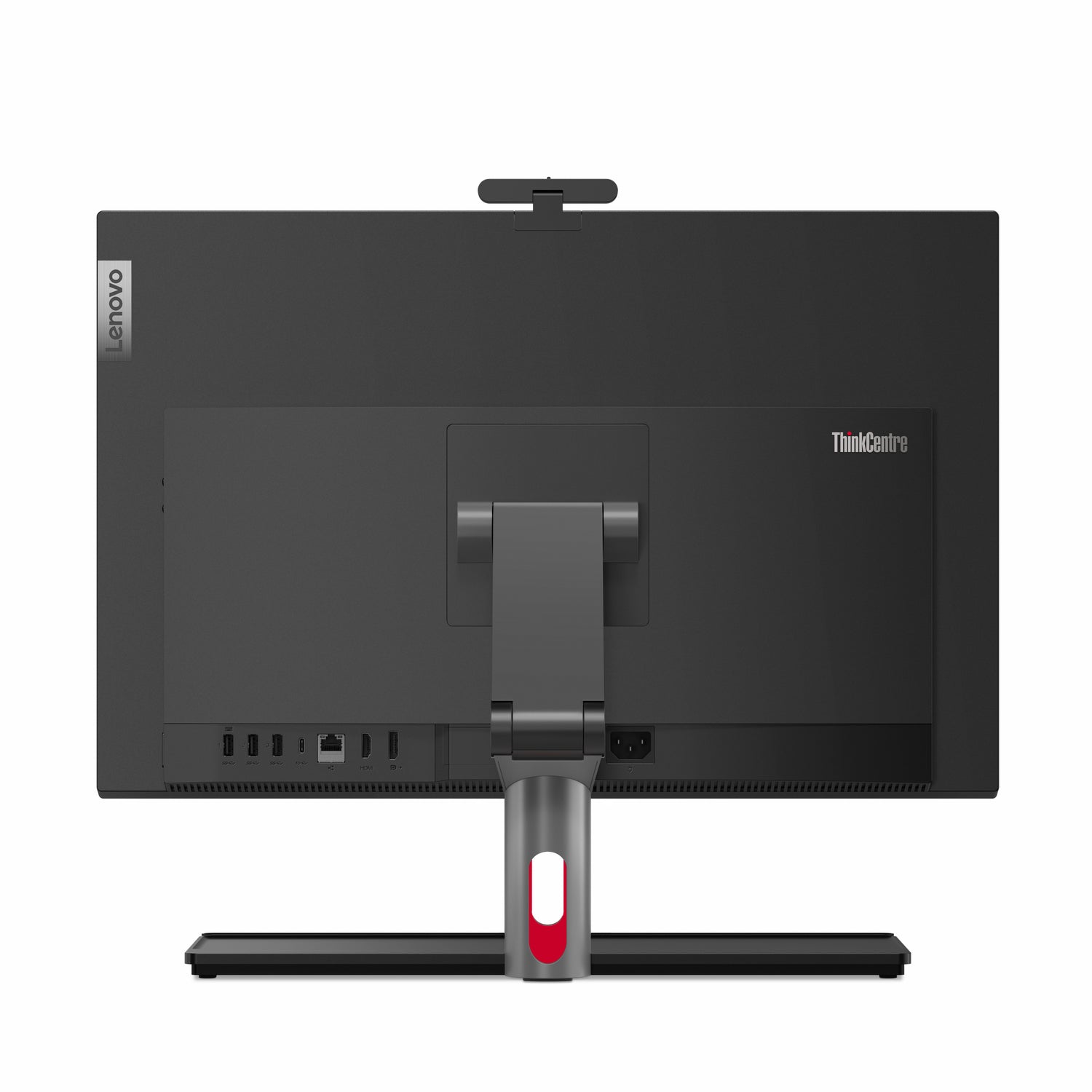

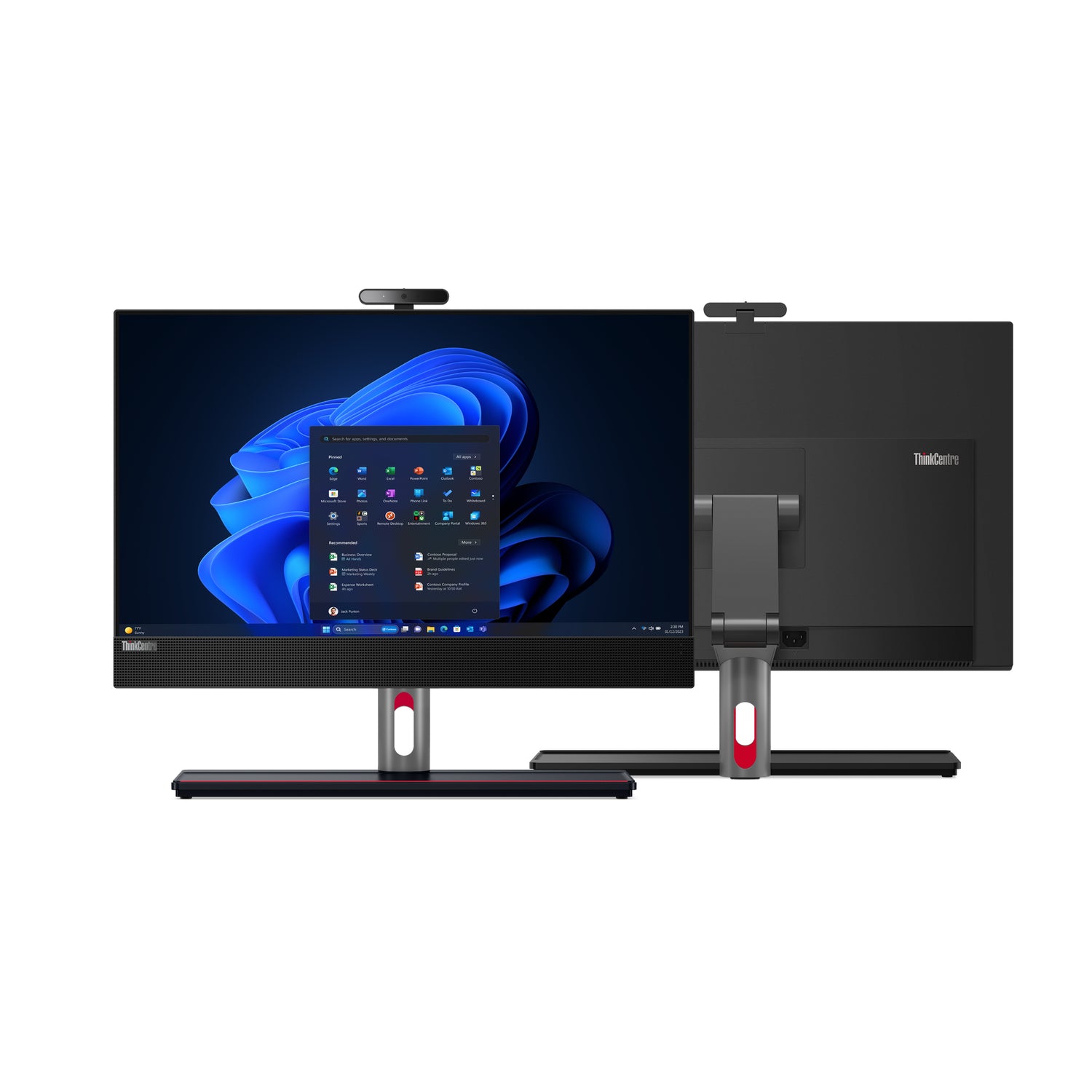

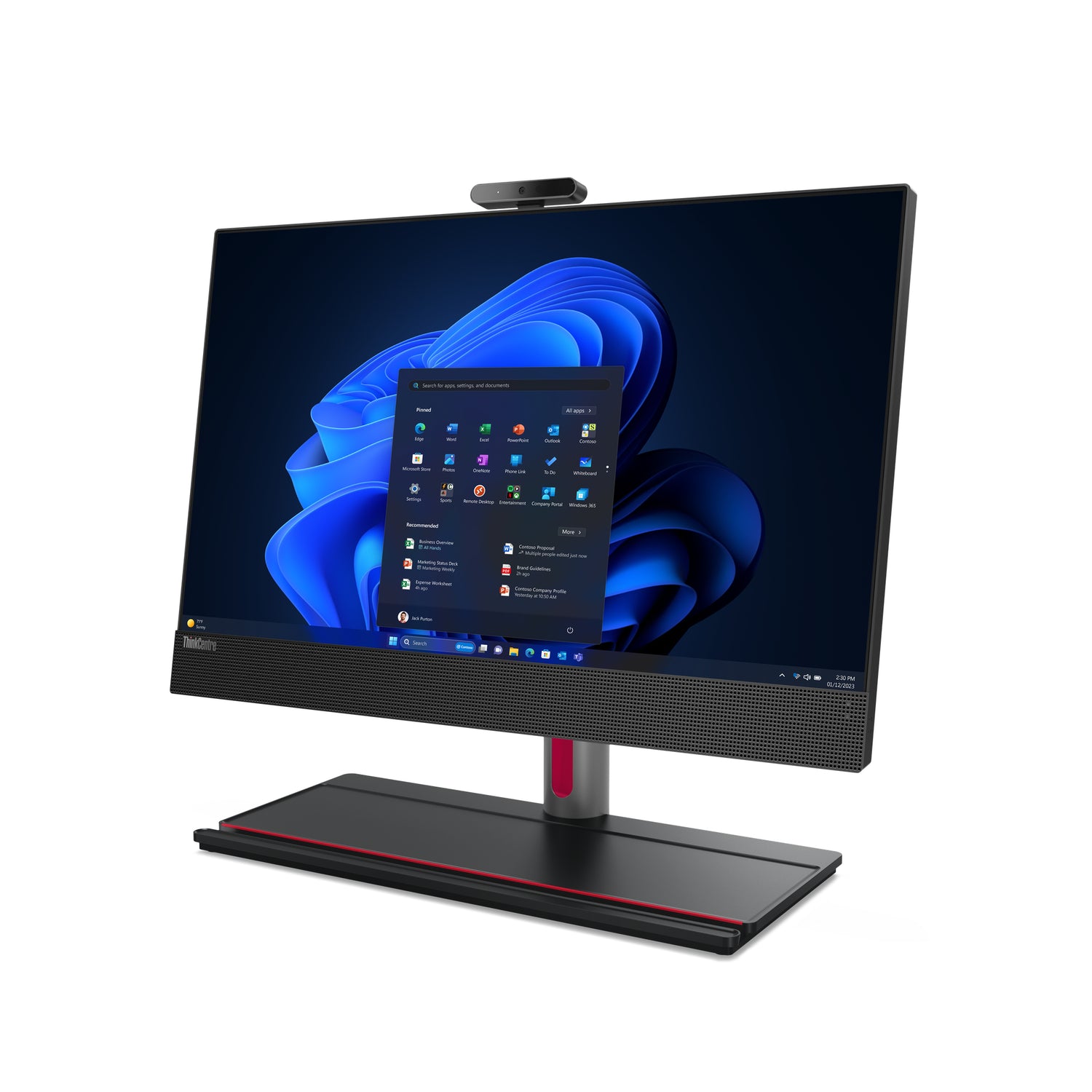

Lenovo ThinkCentre M90a Gen 5 Intel® Core™ i7 i7-14700 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6E (802.11ax) Black - 12SH0029US

Designed to brighten up any workspace

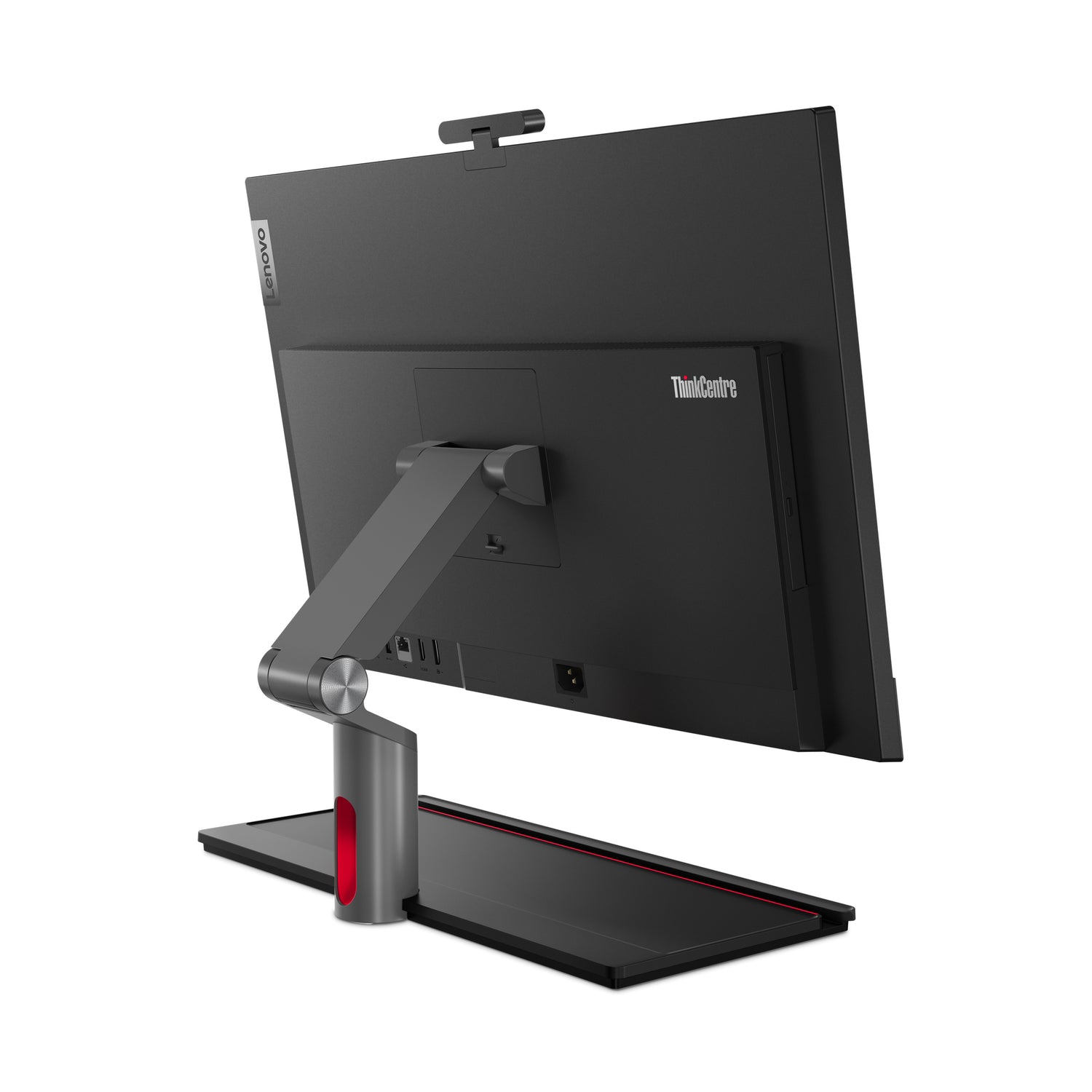

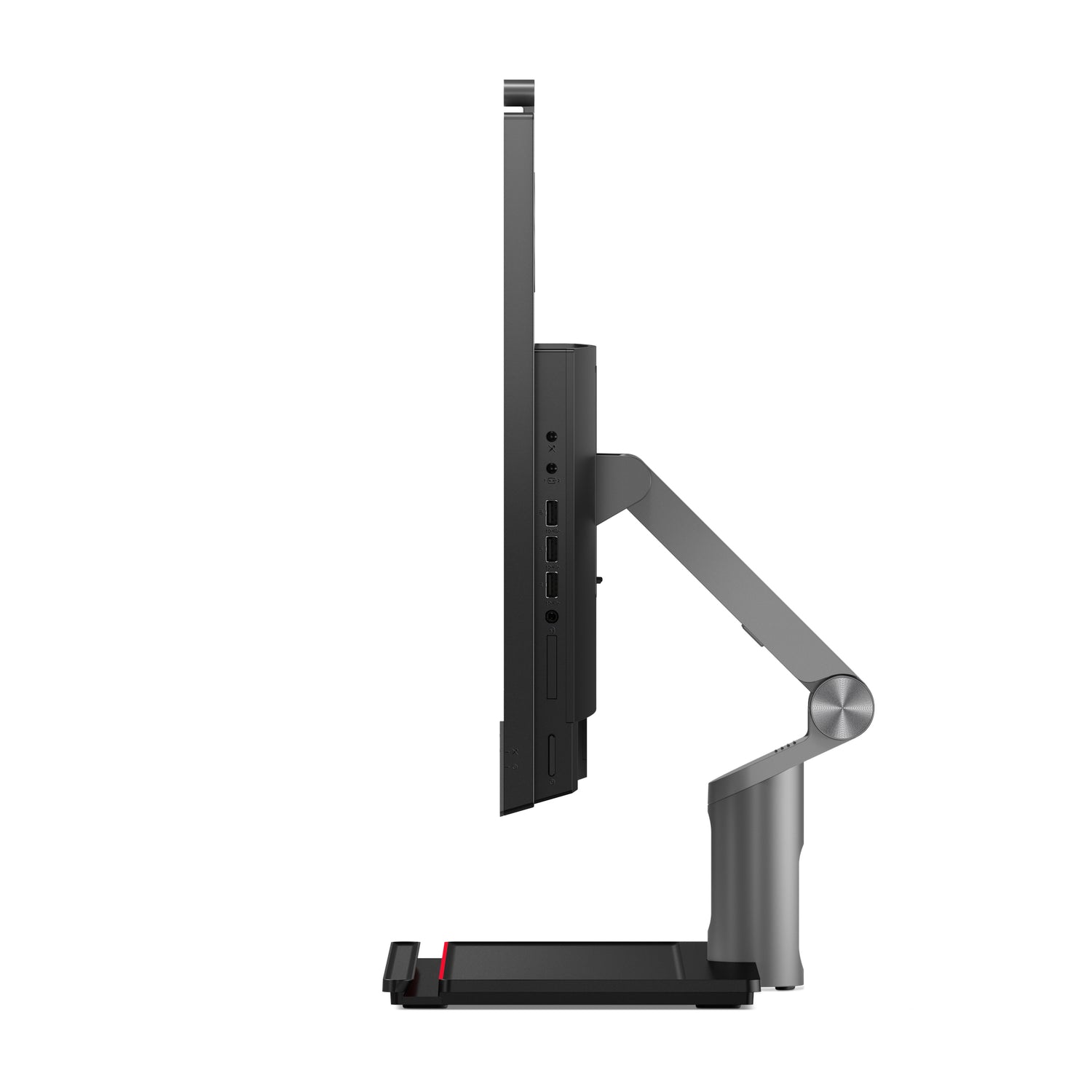

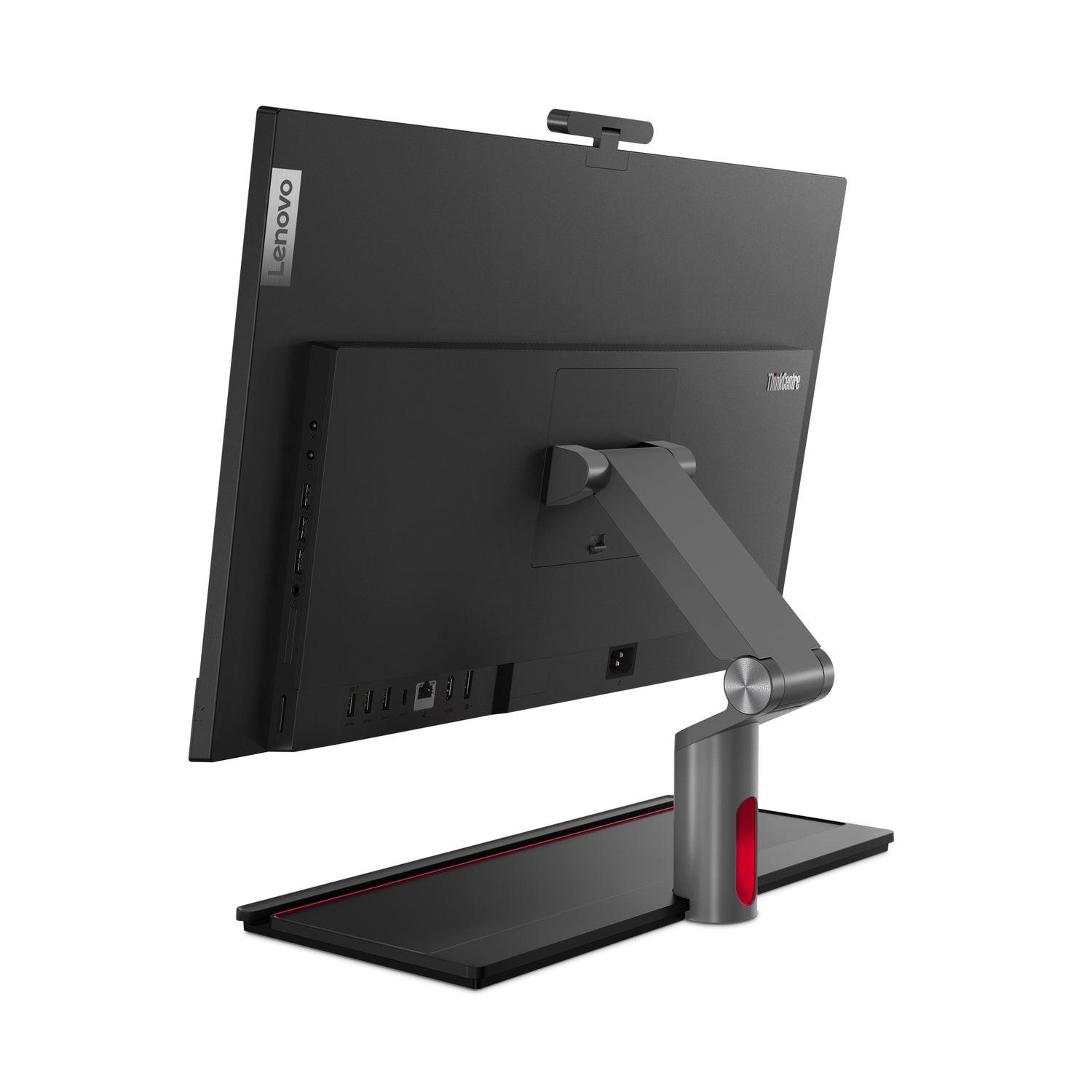

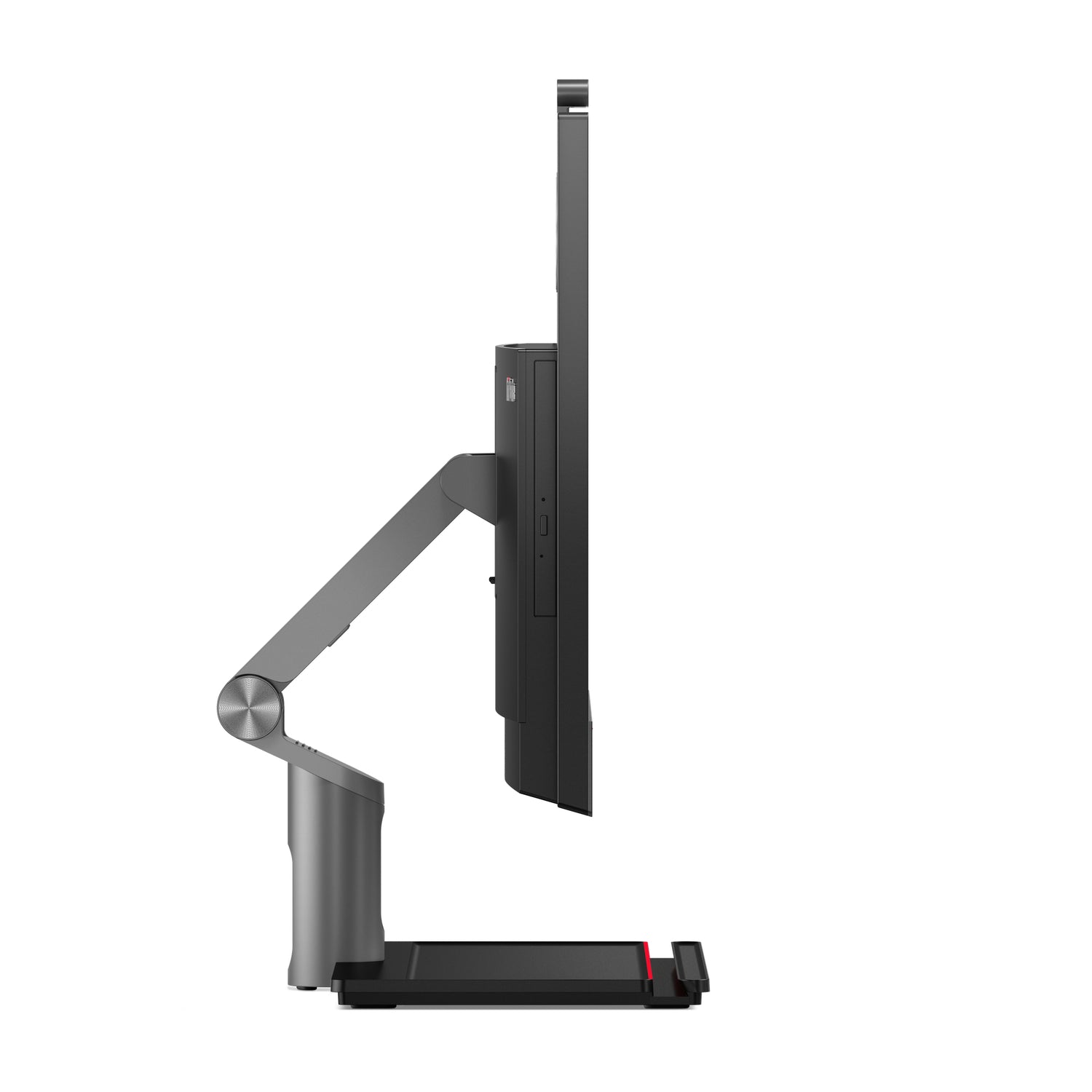

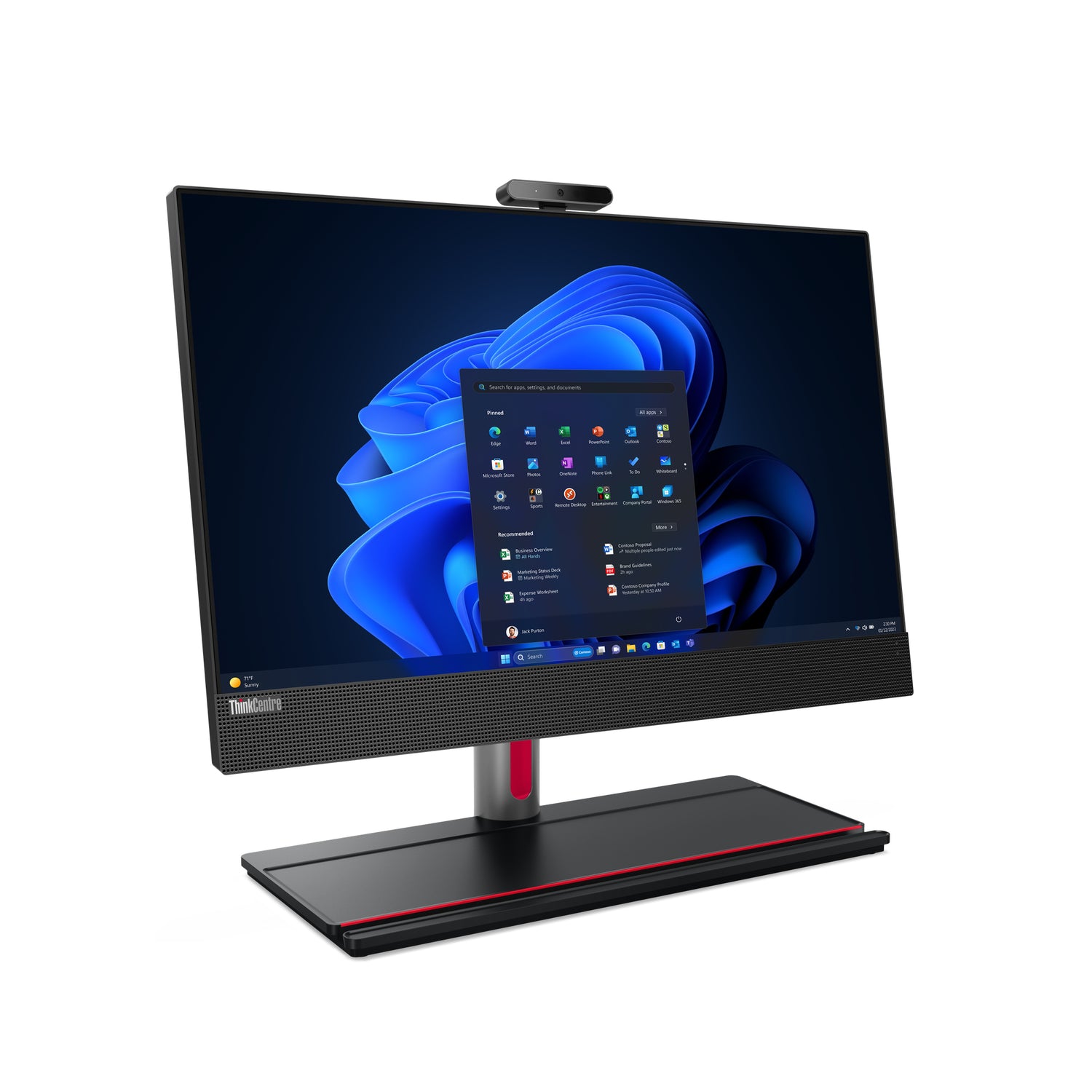

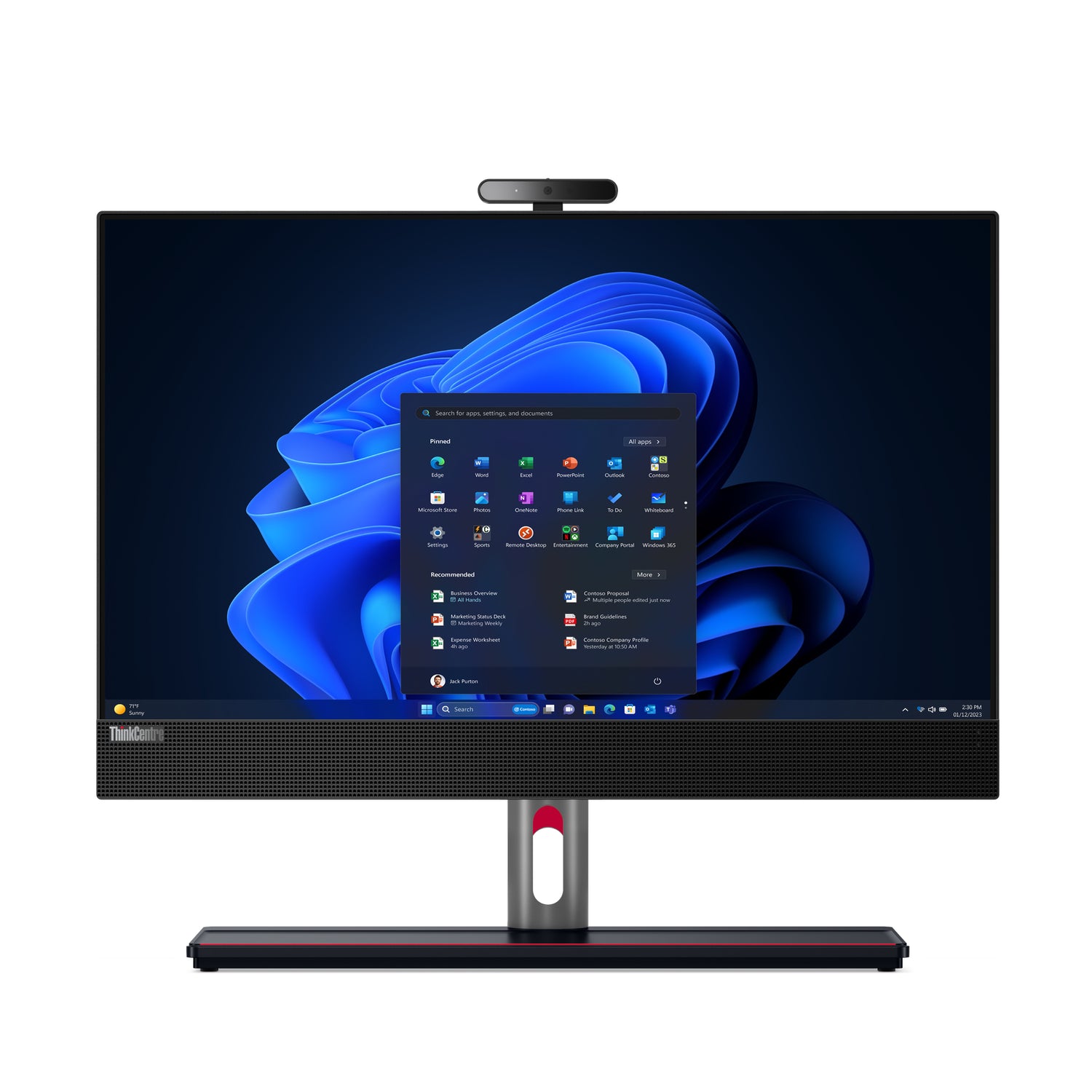

With its sleek design, the Lenovo ThinkCentre M90a Gen 5 all-in-one is a PC powerhouse. It runs on up to the Intel vPro® platform with 14th Gen Intel® Core™ processing muscle and boasts a stunning FHD display, with or without touchscreen. Plus, optional discrete graphics are ideal for video-editing or design work. Mounted on a choice of stands, including one that’s full function with adjustable tilt, lift, pivot, and swivel. And there’s even a docking space for your phone and keyboard to keep your workspace clutter-free.

A smarter way to work, by far
Thanks to our Intelligent Cooling Engine (ICE) 6.0, the ThinkCentre M90a Gen 5 all-in-one offers various power modes to meet your various computing needs. Choose a 15% power boost experience, a super quiet mode that cuts system noise by up to three decibels, or opt for maximum cooling. This cutting-edge PC also features optional smart human presence detection, enhancing both security and energy efficiency by recognizing when you're away from your machine.

Protecting your data, ideas, & more
Experience unparalleled peace of mind with ThinkShield, comprehensive security that comes with every ThinkCentre. The ThinkCentre M90a Gen 5 all-in-one PC leverages up to Intel vPro® for robust, hardware-enhanced device protection. Additional security measures include BIOS-based Smart USB Protection, and an optional physical shutter you can use to open and close the webcam, further safeguarding your privacy.

Because things happen
In addition to our stringent internal testing, the ThinkCentre M90a Gen 5 all-in-one PC has been evaluated against US Department of Defense's MIL-STD 810H standards and undergone more than 200 quality checks to confirm its ability to withstand extreme scenarios. These tests encompass a wide range of challenging factors, from the icy expanses of the Arctic tundra to dust-laden desert winds, including assessments for temperature, pressure, humidity, vibration, and beyond.

Built with the planet in mind
By 2025, Lenovo is committed to obtaining 90% of our global operations electricity from renewable sources, removing one-million tons of greenhouse gas emissions from our supply chain. It’s why this all-in-one PC, for instance, meets global standards for energy-efficiency and health & safety. And why it comes with 90% sustainable packaging and comprises recycled materials.

Specifications may vary depending upon region / model.

• Windows 11 Pro
• Intel Core i7-14700 (33MB Cache)
• 60.5 cm (23.8") Full HD 1920 x 1080 IPS
• 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 512GB SSD

Display diagonal	23.8
Display resolution	1920 x 1080
Touchscreen	N
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250
Panel type	IPS
RGB colour space	sRGB
Anti-glare screen	Y
Colour gamut	99
Tilt adjustment	Y
Tilt angle range	-5 - 70
Processor family	Intel Core i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor generation	Intel Core i7-14xxx
Processor cores	20
Processor threads	28
Processor boost frequency	5.4
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3
Efficient-core Max Turbo Frequency	4.2
Performance-core base frequency	2.1
Efficient-core base frequency	1.5
Processor cache	33
Processor cache type	Smart Cache
Processor base power	65
Maximum turbo power	219
Internal memory	32
Maximum internal memory	64
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	5600
Memory layout (slots x size)	2 x 16
Memory form factor	DIMM/SO-DIMM
Total storage capacity	512
Storage media	SSD
Optical drive type	DVD±RW
Total SSDs capacity	512
Number of SSDs installed	1
SSD capacity	512
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	N
Discrete graphics card	N
Discrete graphics card model	Not available
On-board graphics card	Y
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel UHD Graphics
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6
Built-in microphone	Y
Built-in camera	Y
Total megapixels	5
Privacy camera	Y
Privacy type	Privacy shutter
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Y
Bluetooth	Y
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Ethernet LAN data rates	100,1000
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	1.4/2.1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Product colour	Black
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Panel mounting interface	100 x 100
Product type	All-in-One PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating system language	ENG
AC adapter power	180
AC adapter frequency	50/60
AC adapter input voltage	100 - 240
Width (with stand)	539.6
Depth (with stand)	344.19
Height (with stand)	472
Weight (with stand)	7830
Operating temperature (T-T)	5 - 35
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	20 - 80
Storage relative humidity (H-H)	10 - 90
Operating altitude	0 - 3048
Non-operating altitude	0 - 12192
Certification	ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 TCO edge
Mouse included	Y
Mouse connectivity	Wired
Keyboard included	Y
Keyboard connectivity	Wired
Keyboard language	English
