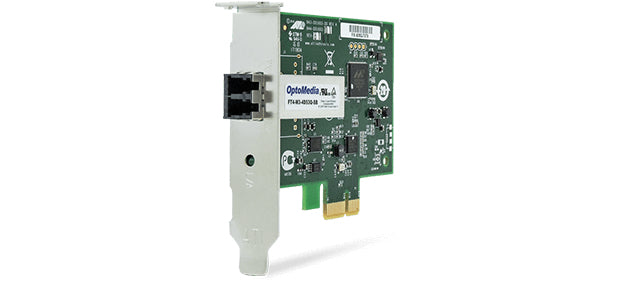

Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s - AT-2914SX/LC-901

PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.

• Jumbo frames up to 9.6KB
• Smart Load Balancing (SLB) and failover
• Link aggregation (IEEE 802.3ad)
• Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
• UEFI network boot
• Low-profile and standard height brackets included

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	2
Fiber optic connector	LC
Maximum data transfer rate	1000
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.2,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3x,IEEE 802.3z
Security algorithms	SNMP
Wake-on-LAN ready	Y
Jumbo frames support	Y
Auto-negotiation	Y
Jumbo frames	9600
Quality of Service (QoS) support	Y
Load balancing system	Y
Internal	Y
LED indicators	Y
Certification	UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power consumption (typical)	1.5
Windows operating systems supported	Windows 10,Windows 7
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2016,Windows Server 2019
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-25 - 70
Operating relative humidity (H-H)	5 - 90
Width	88
Height	69
Weight	68
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
Flow control support	Y
