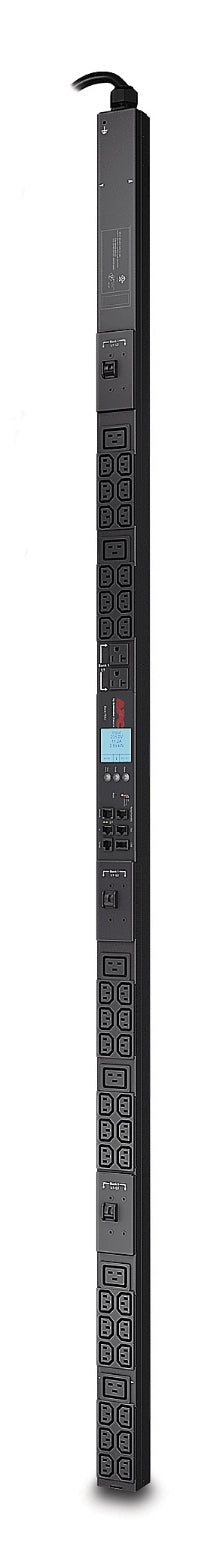

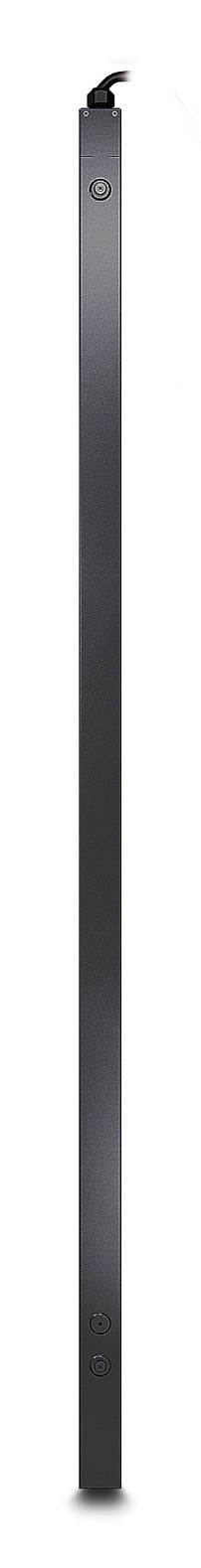

APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black - AP8865

Description

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty

• Metered, Monitored 0U Black
• LCD
• 44 AC outlet(s) NEMA 5-20R, C13 coupler, C19 coupler

PDU types	Metered,Monitored
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LCD
AC outlets quantity	44
AC outlet types	NEMA 5-20R,C13 coupler,C19 coupler
Power plug	NEMA L21-30P
Output connections	36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R
Cable length	1.82
Security algorithms	SNMP
Monitoring	Power,Voltage,Energy
Nominal input voltage	208
Maximum current	30
AC input frequency	50 - 60
Nominal output voltage	208
Load capacity	8600
Maximum input current per phase	30
Maximum total current draw per phase	30
Certification	CSA C22.2 No. 60950,UL 60950-1
Operating temperature (T-T)	5 - 60
Storage temperature (T-T)	-25 - 65
Operating relative humidity (H-H)	5 - 95
Storage relative humidity (H-H)	5 - 95
Non-operating altitude	0 - 15240
Width	56
Depth	46
Height	1791
Weight	7560
Manual	Y
Package weight	9200
Package width	107
Package depth	162
Package height	200
Total carbon footprint (kg of CO2e)	6416
