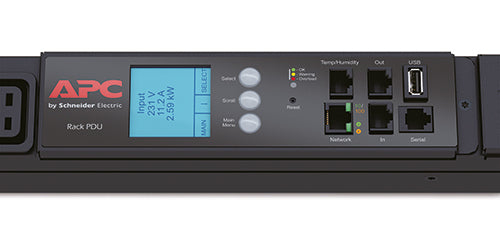

APC AP8866 power distribution unit (PDU) 18 AC outlet(s) 2U Black - AP8866
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
APC AP8866 power distribution unit (PDU) 18 AC outlet(s) 2U Black -...
Description
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| PDU types | Metered |
| Rack capacity | 2U |
| Product colour | Black |
| AC outlets quantity | 18 |
| Cable length | 1.83 |
| Nominal input voltage | 208 |
| AC input frequency | 50 - 60 |
| Nominal output voltage | 208 |
| Maximum input current per phase | 48 |
| Maximum total current draw per phase | 48 |
| Power protection features | Overload |
| Compliance certificates | RoHS |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| Operating temperature (T-T) | 0 - 55 |
| Storage temperature (T-T) | -25 - 65 |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Operating temperature (T-T) | 32 - 131 |
| Width | 56 |
| Depth | 51 |
| Height | 1829 |
| Weight | 9500 |
| Total carbon footprint (kg of CO2e) | 54038.36 |
