APC AP9614 UPS accessory - AP9614
Description
Description

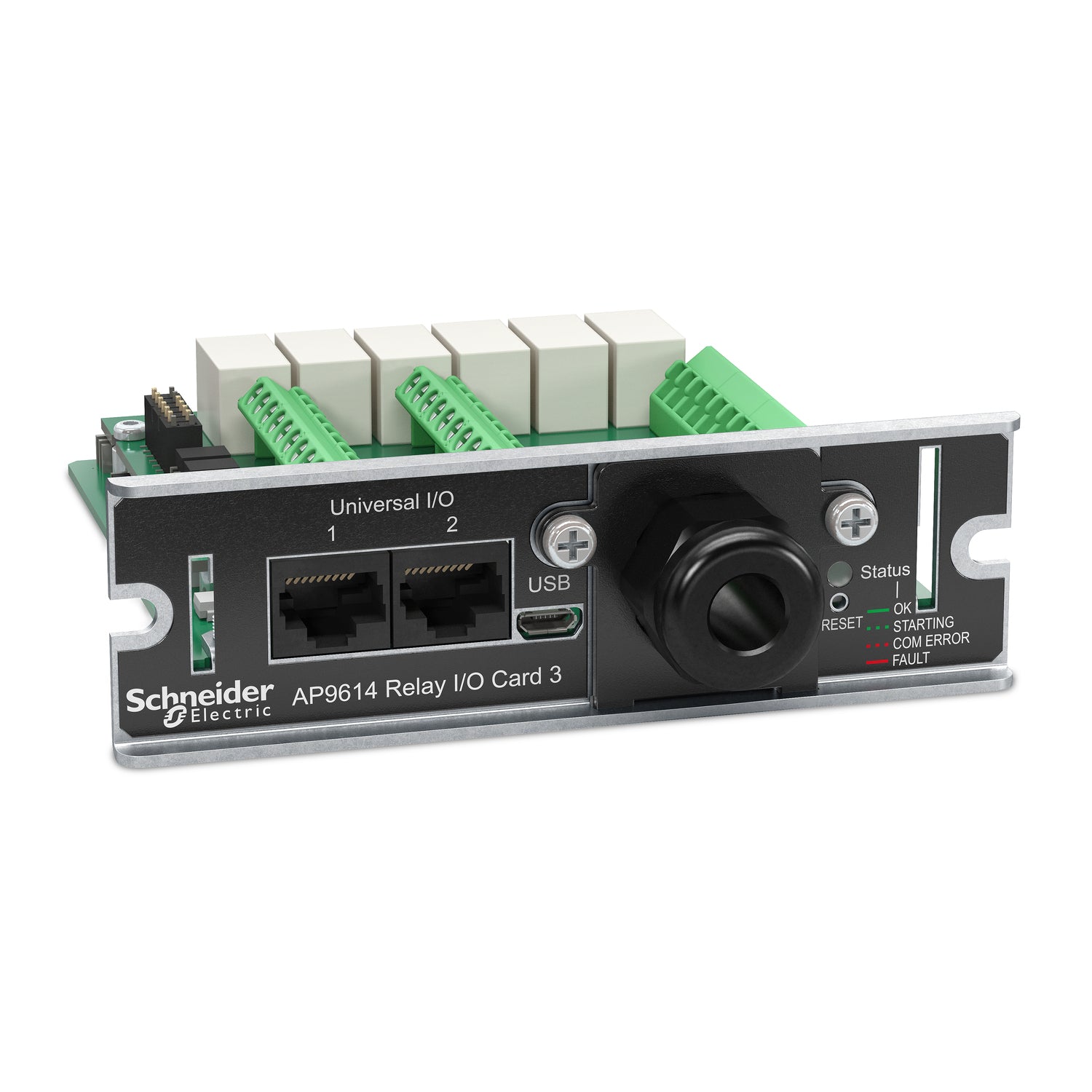

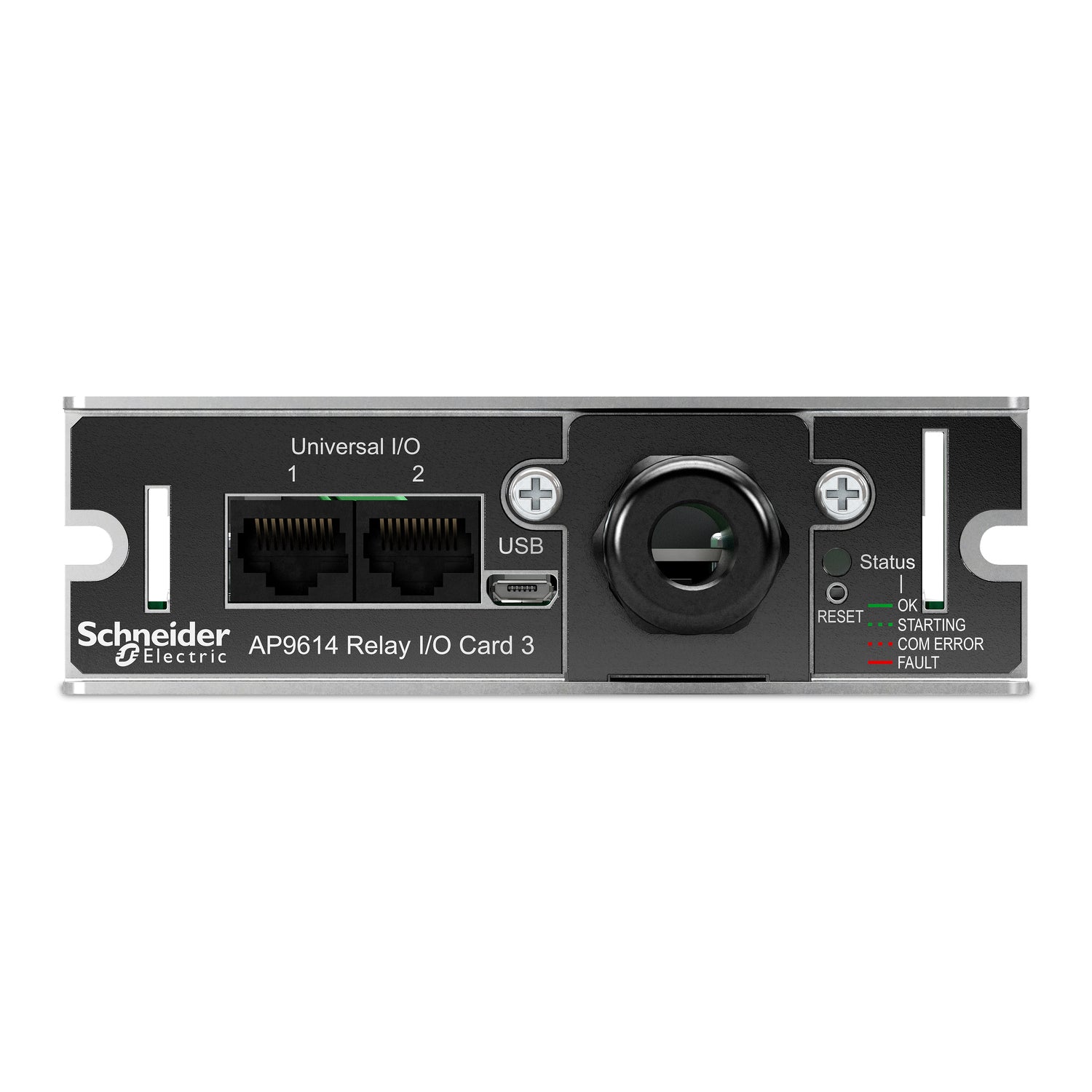

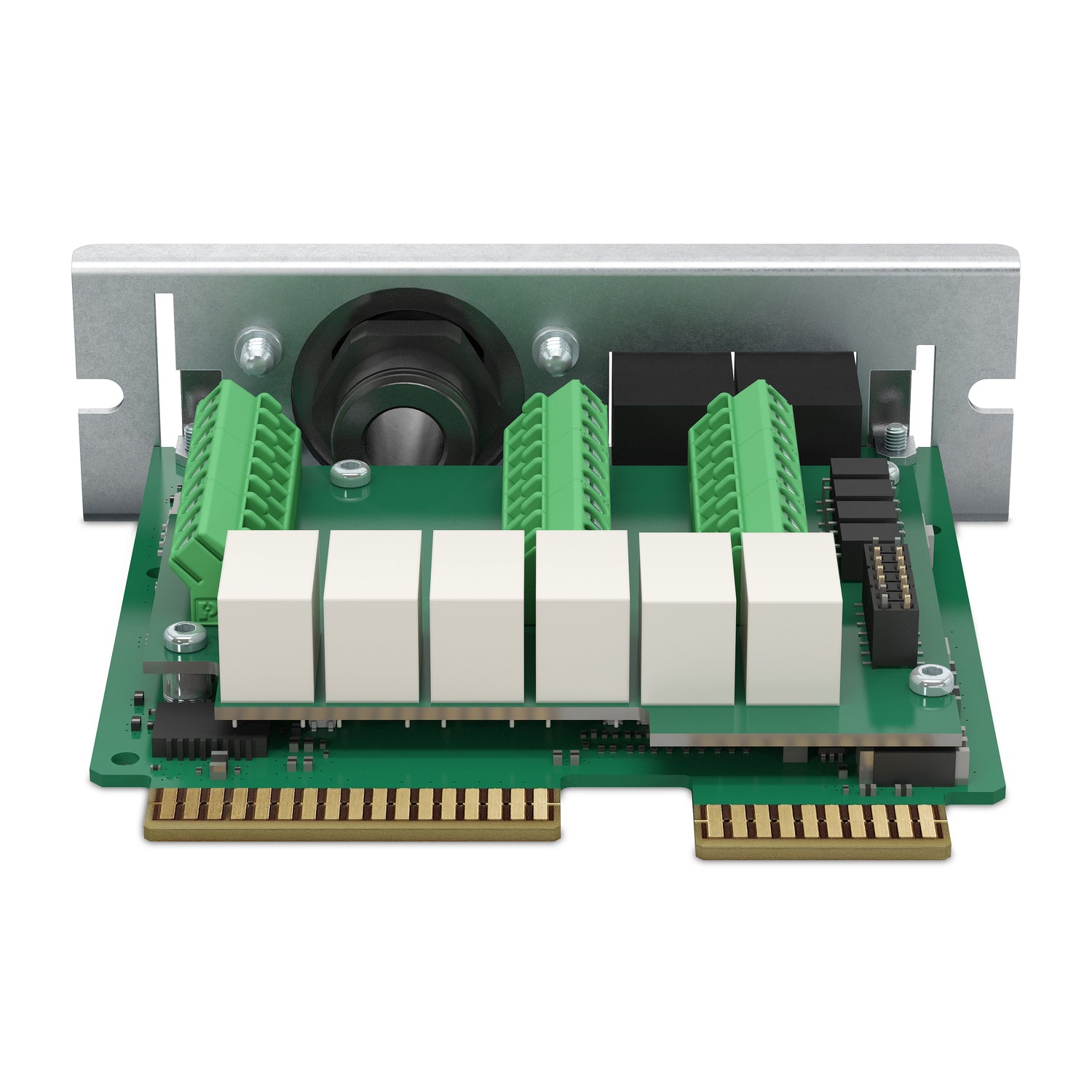

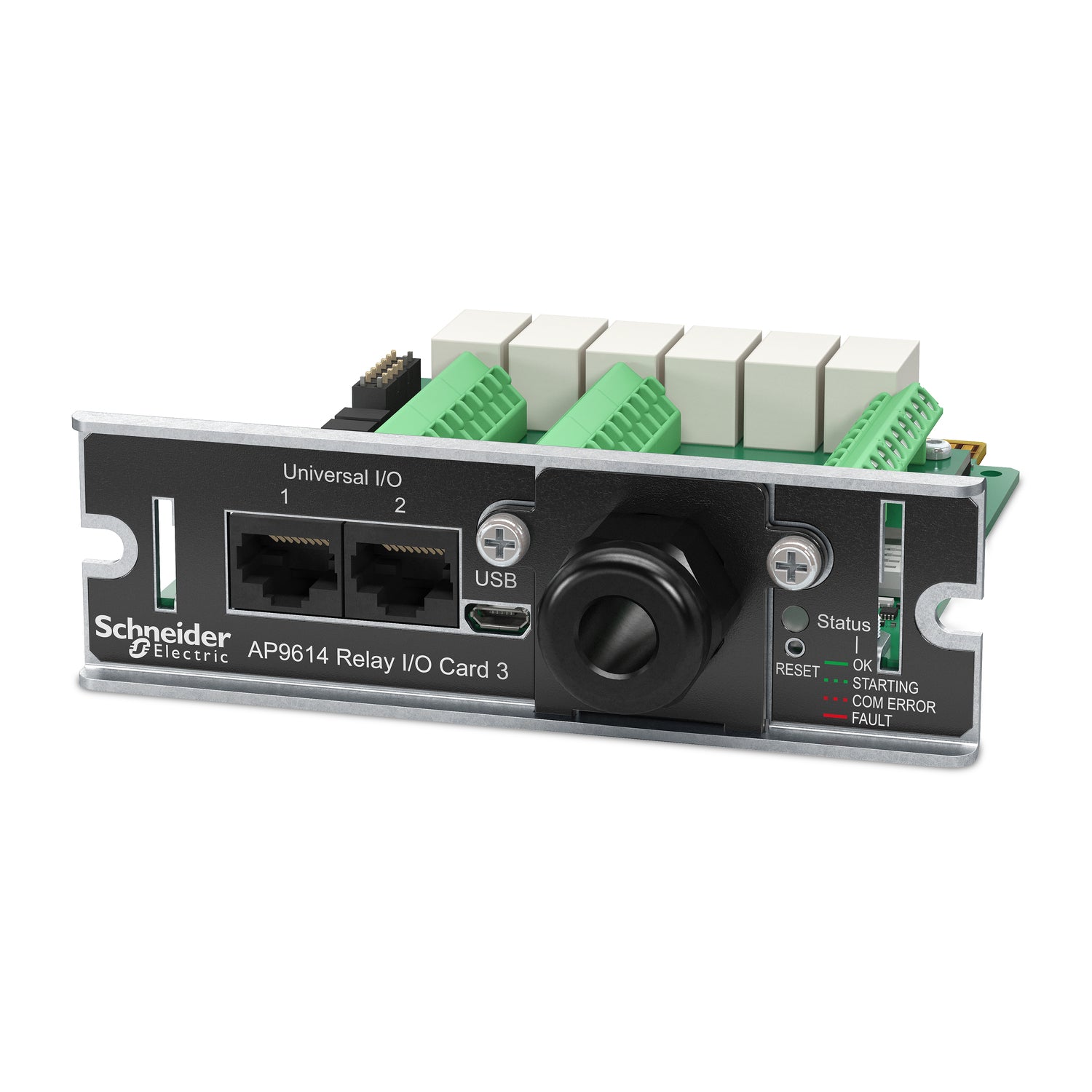

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
- Provides 6 configurable output relays and 4 input contacts
- Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
- Monitor connected devices via dynamic Web UI
- Configure actions to status changes or UPS events via dynamic Web UI
- For UPS devices with a SmartSlot 160kVA or below
| Product type | Relay card |
| LED indicators | Y |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 65 |
| Non-operating altitude | 0 - 15240 |
| Width | 121 |
| Depth | 128 |
| Height | 38 |
| Weight | 200 |
| Package width | 165 |
| Package depth | 238 |
| Package height | 51 |
| Package weight | 440 |
| Total carbon footprint (kg of CO2e) | 270 |
