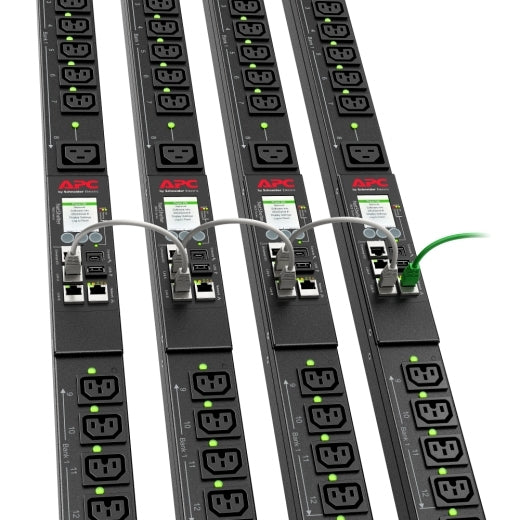

APC NetShelter Switched Rack PDU, 9K series, 0U, 8.6kW, 208V, 21 C13 and C15, 3 C19 and C21 outlets - APDU9965

Field-replaceable NMC

Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.

High Retention Outlets

With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.

60C Operating Temperature

Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).

C13/C15 and C19/C21 Hybrid Outlets

Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.

Hydraulic Magnetic Circuit Breakers

Provide increased availability by maintaining trip current over a wide temperature range.

• Switched 0U Black
• 24 AC outlet(s) C13 coupler, C15 coupler, C19 coupler, C21 coupler
• 8600 W

PDU types	Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
AC outlets quantity	24
AC outlet types	C13 coupler,C15 coupler,C19 coupler,C21 coupler

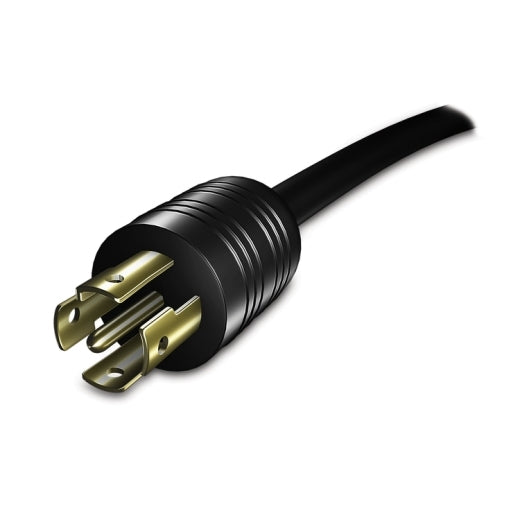

Power plug	NEMA L21-30P
Cable length	1.8
Nominal input voltage	208
Maximum current	30
Output voltage	208
Load capacity	8600
Maximum power	8600
Certification	CULus, FCC 15 A, ICES-003
Operating temperature (T-T)	-5 - 60
Storage temperature (T-T)	-25 - 65
Operating relative humidity (H-H)	5 - 95
Storage relative humidity (H-H)	5 - 95
Operating altitude	0 - 3048
Non-operating altitude	0 - 15240
Width	56
Depth	51
Height	1829
Weight	8180
Package weight	10320
Package width	165
Package depth	124
Package height	2040
