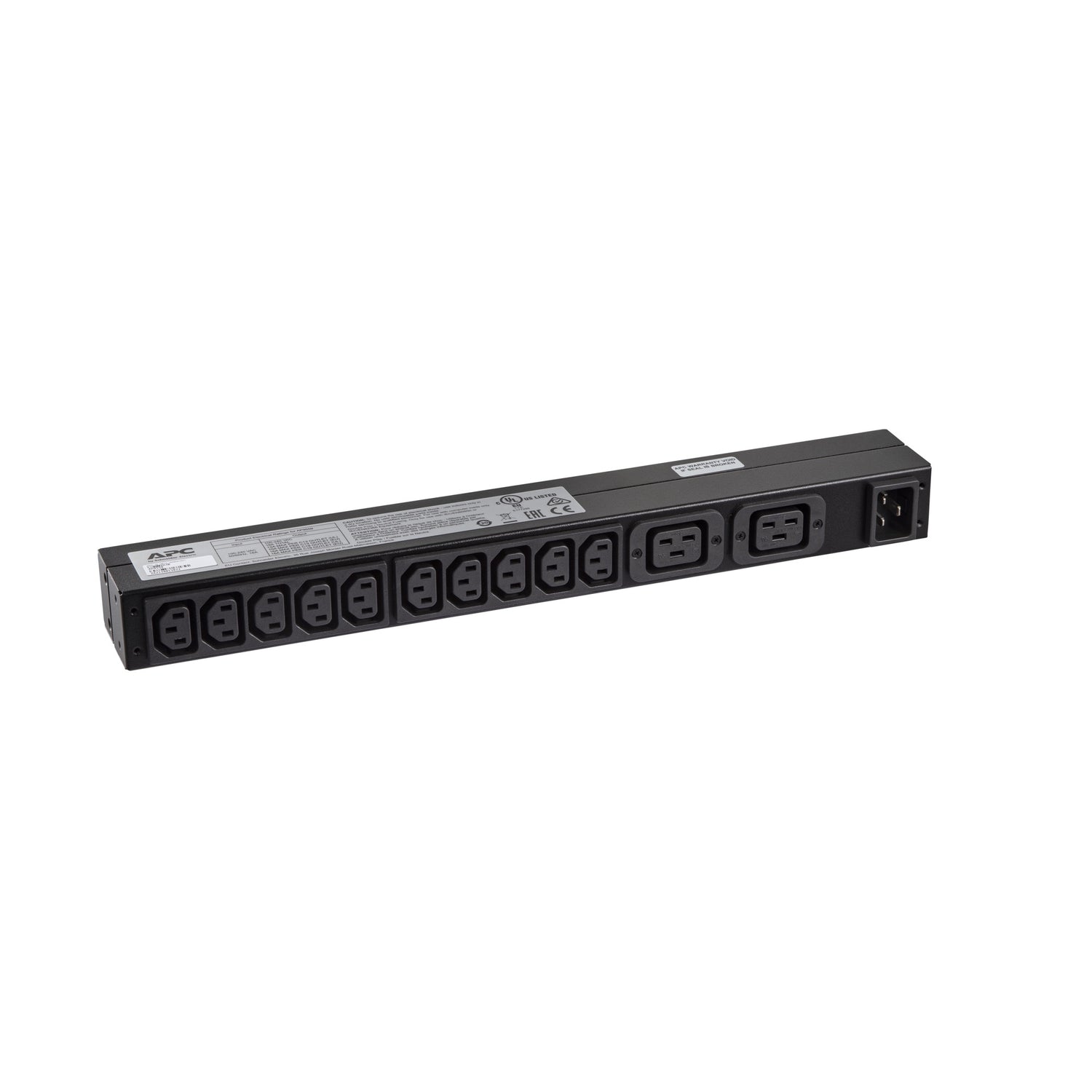

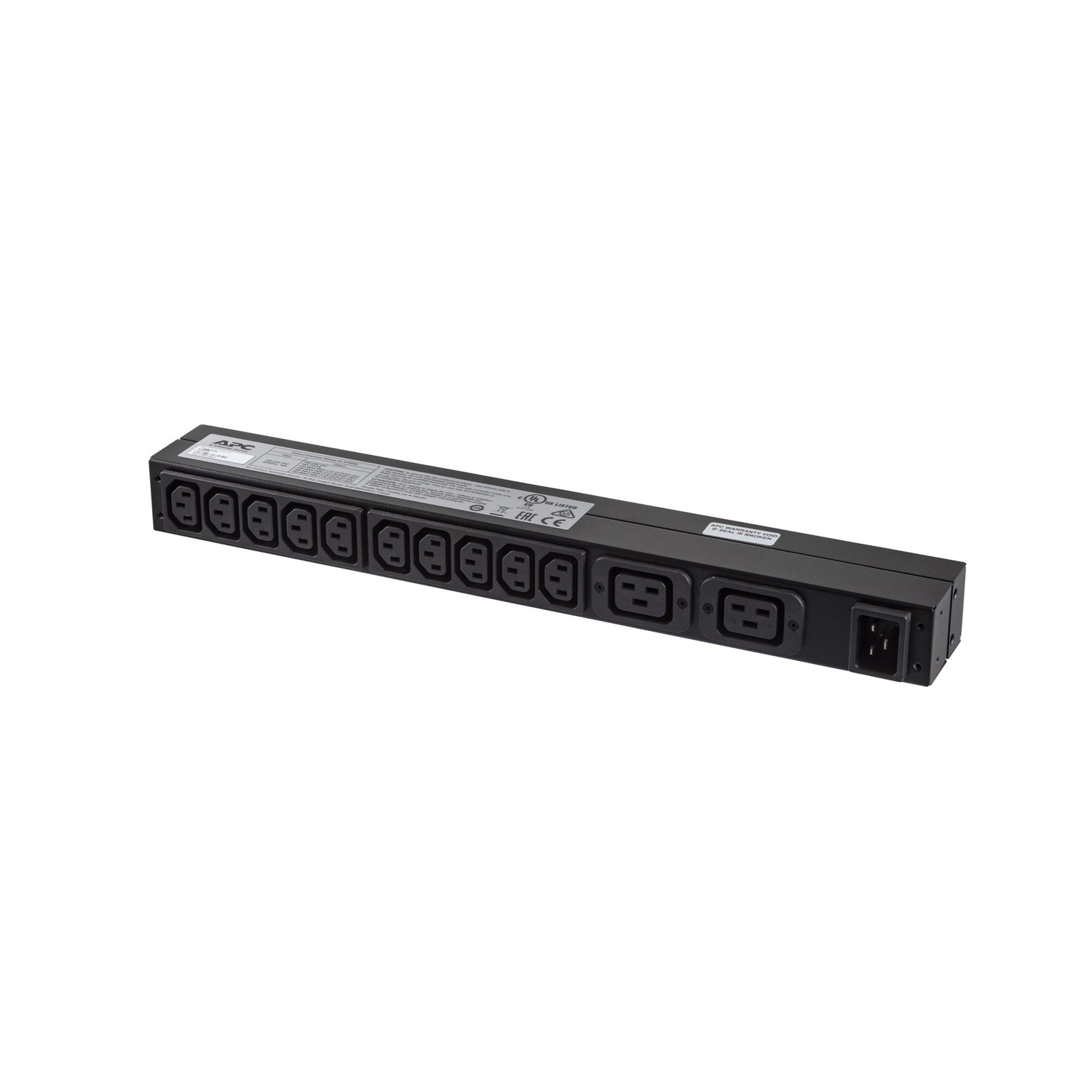

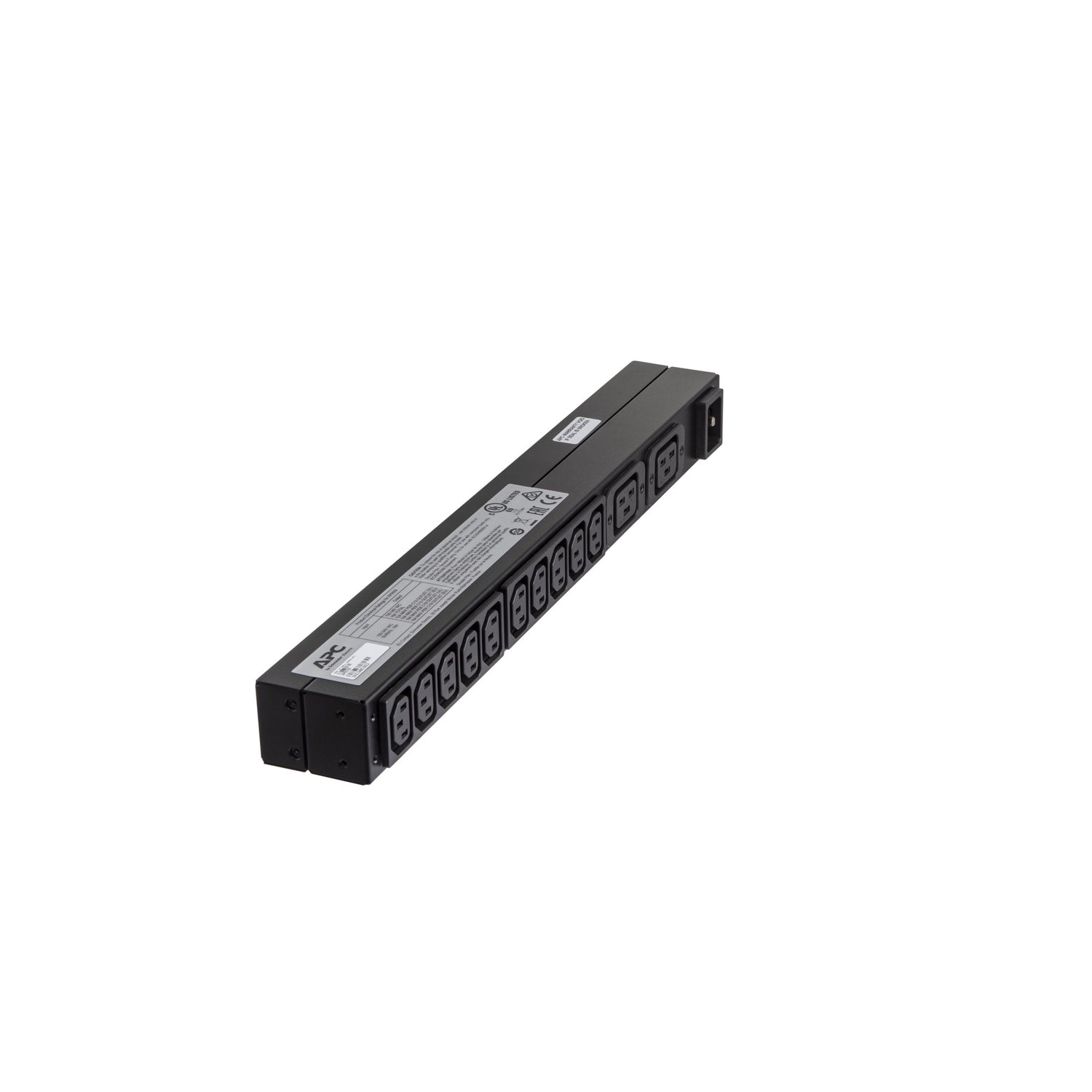

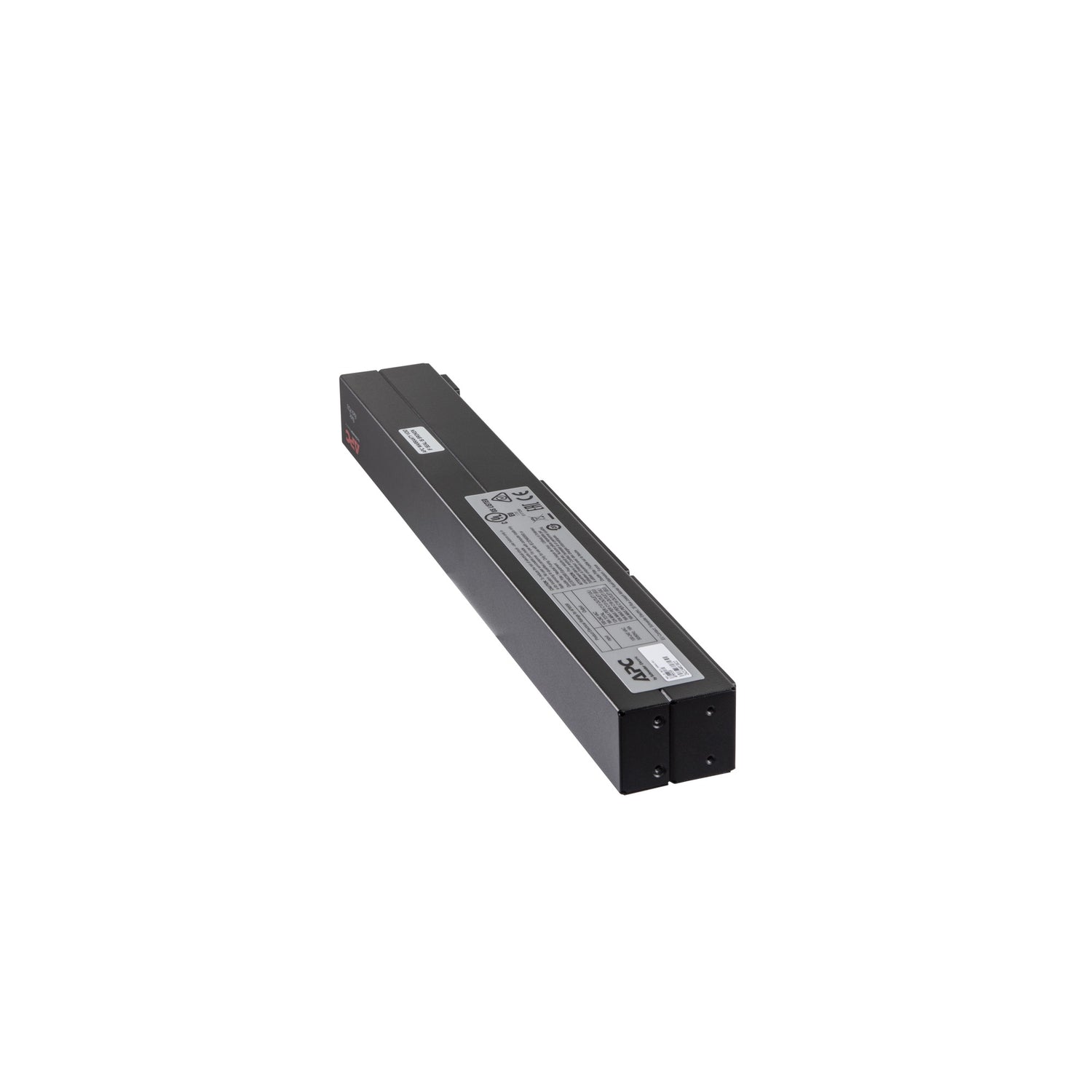

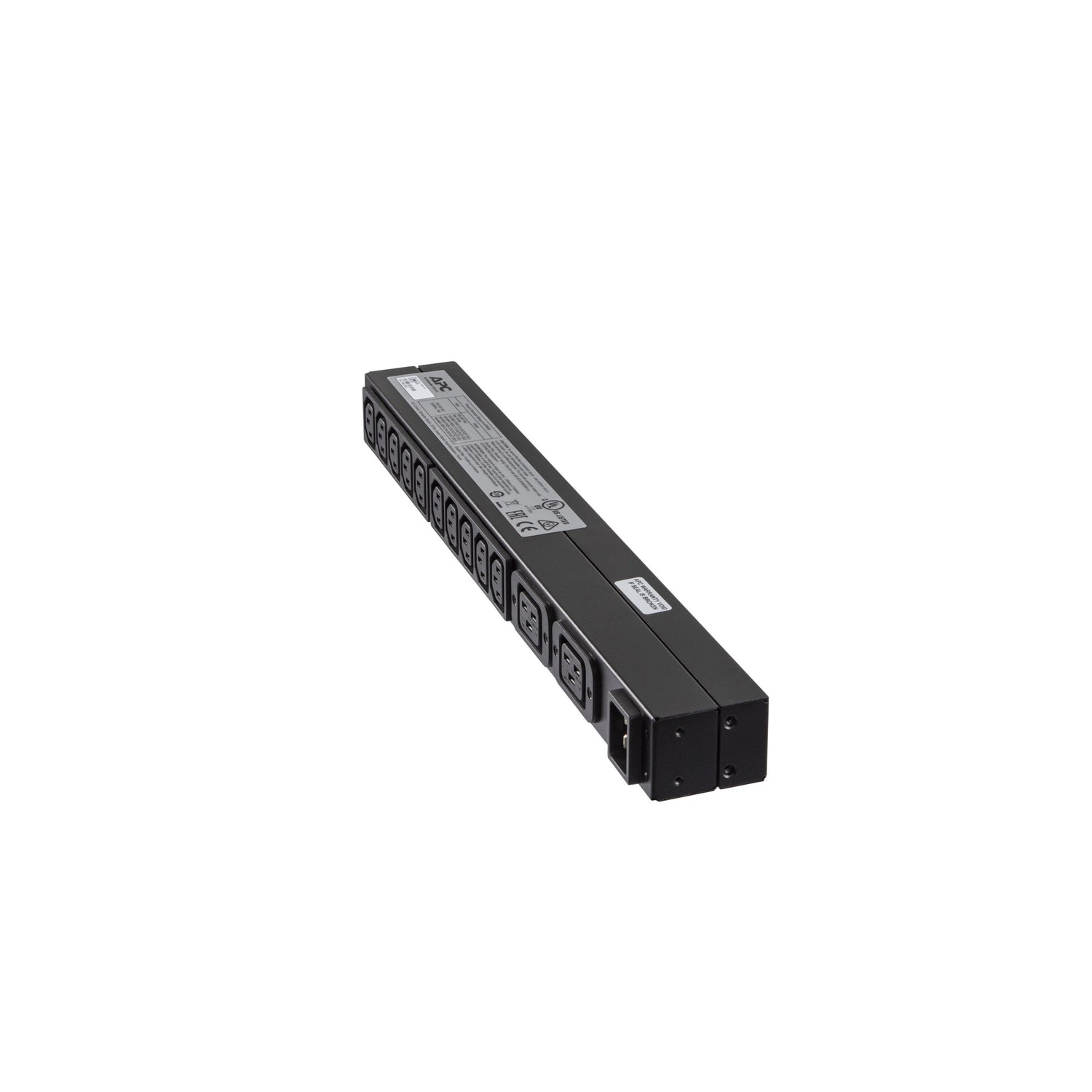

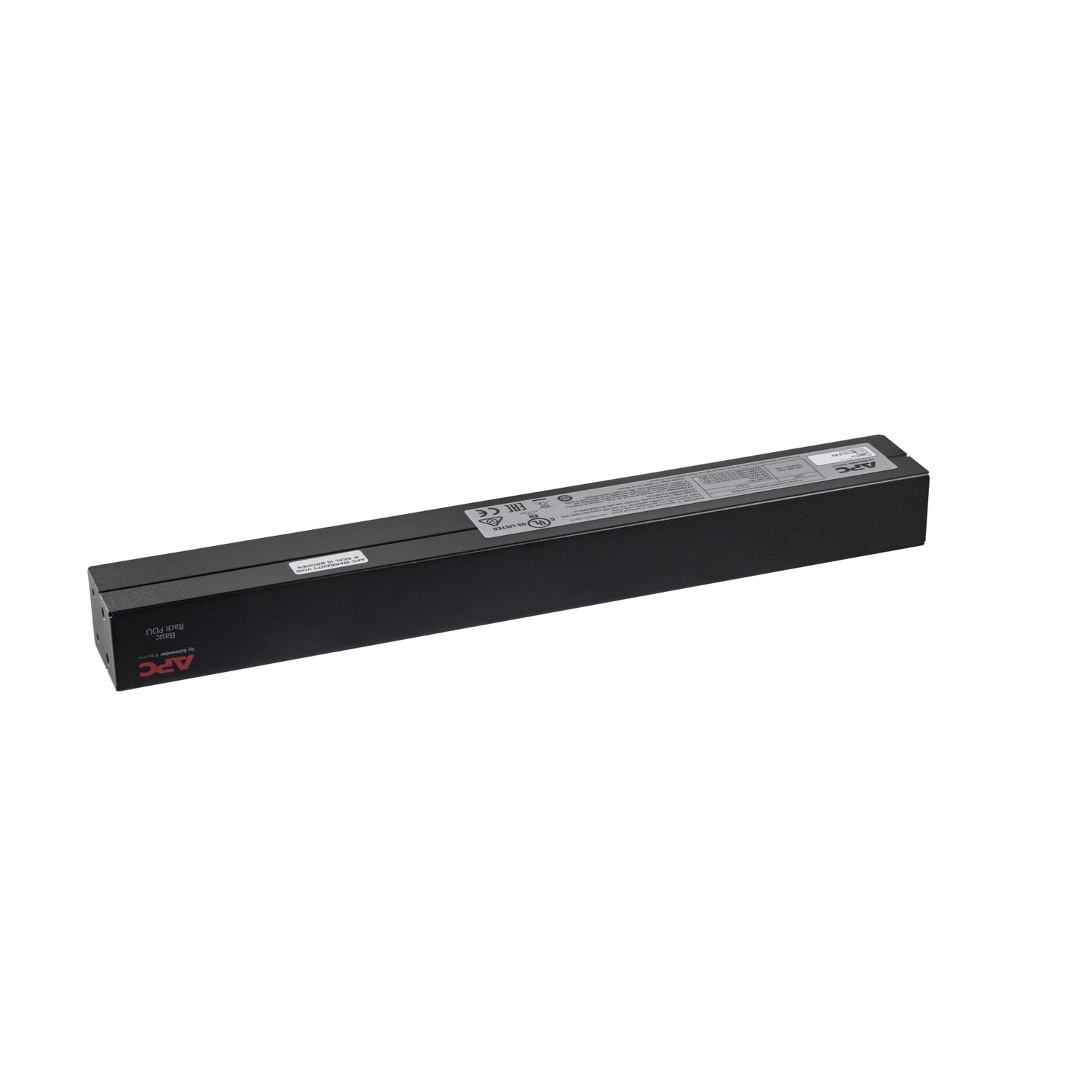

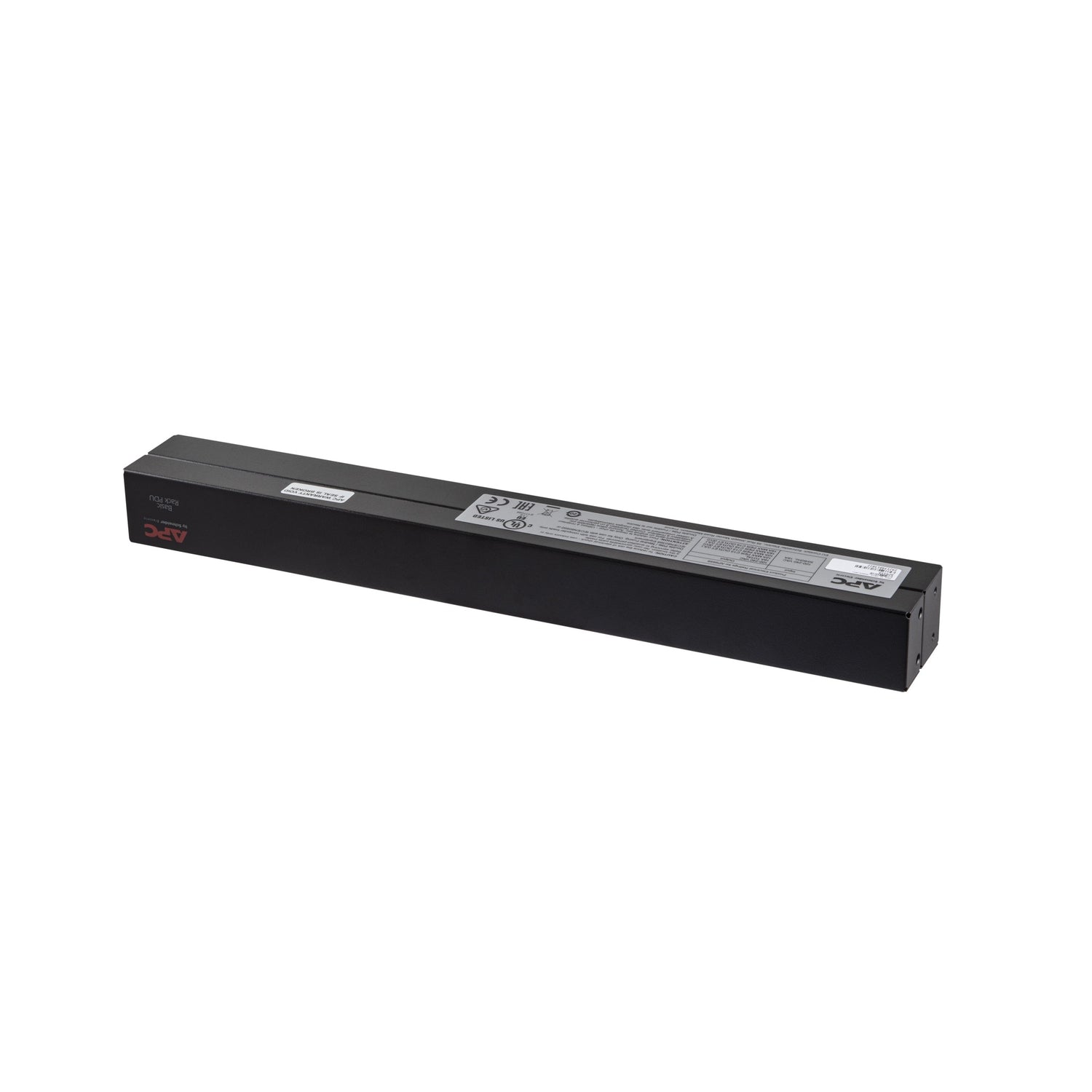

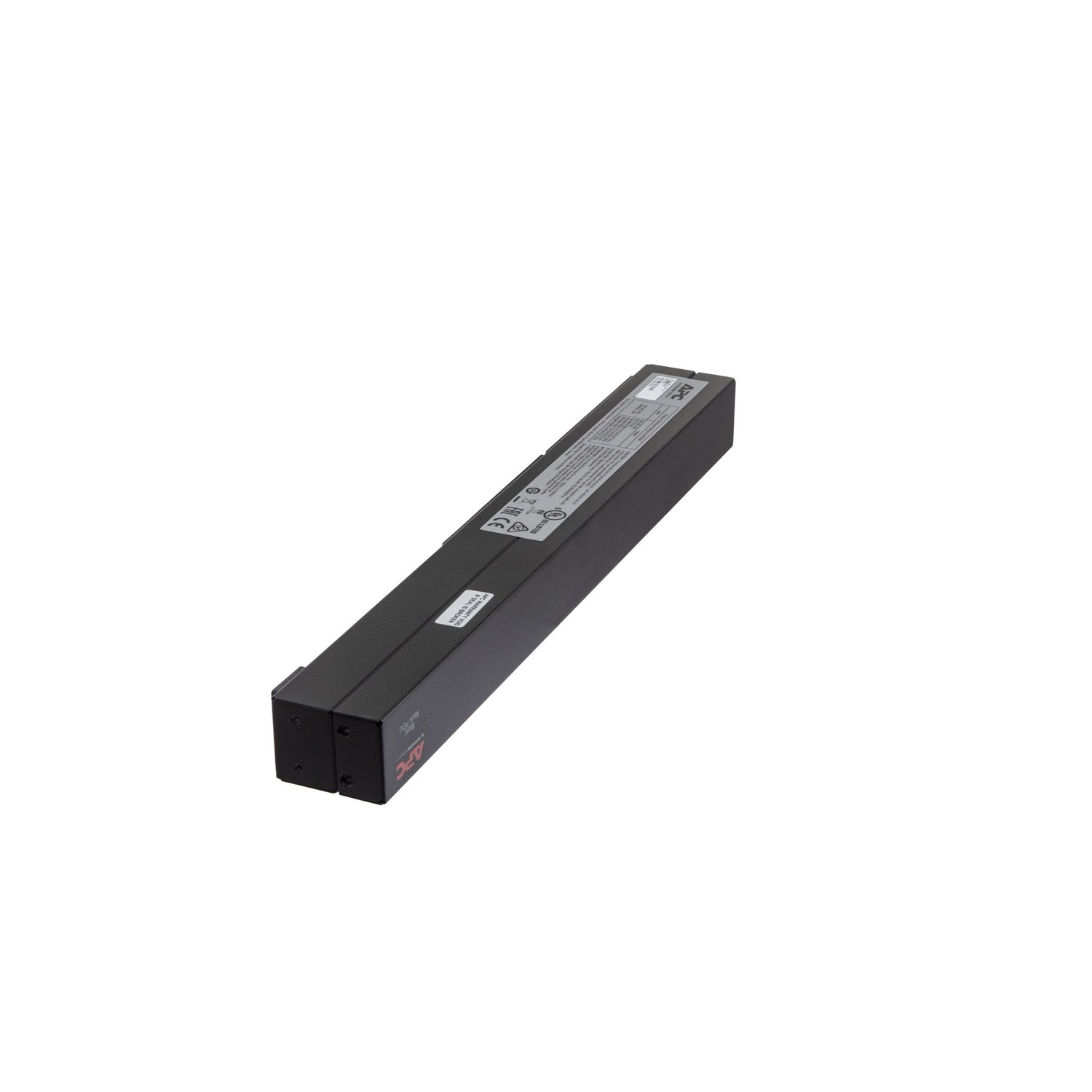

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black - AP9559

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

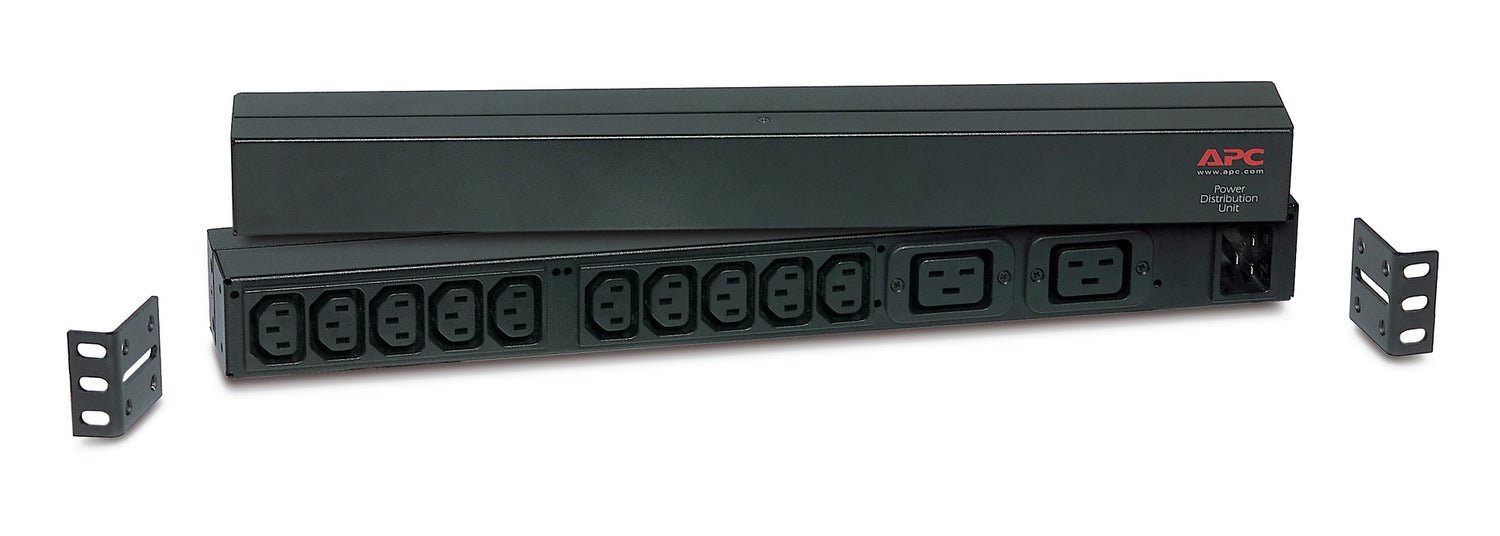

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual

Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

• Single-phase Basic 0U/1U Black
• 12 AC outlet(s) C13 coupler, C19 coupler
• 3680 W

PDU types	Basic
Rack capacity	0U/1U
Type	Single-phase
Mounting	Horizontal/Vertical
Product colour	Black
AC outlets quantity	12
AC outlet types	C13 coupler,C19 coupler
Power plug	C20 coupler
Cable length	2.5
Load capacity	3680
Maximum input current per phase	16
Maximum power	3680
Operating temperature (T-T)	0 - 45
Storage temperature (T-T)	-25 - 65
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Width	447
Depth	57.2
Height	44.5
Weight	980
I/O ports	Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
