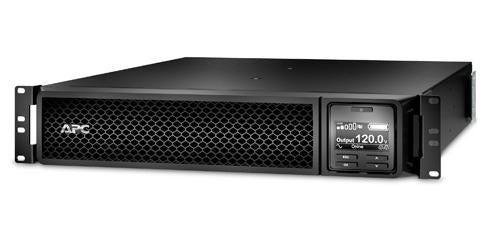

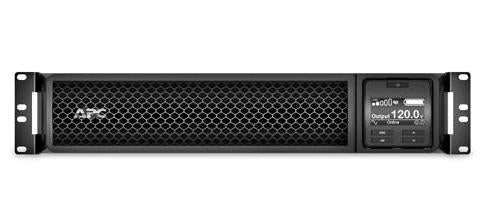

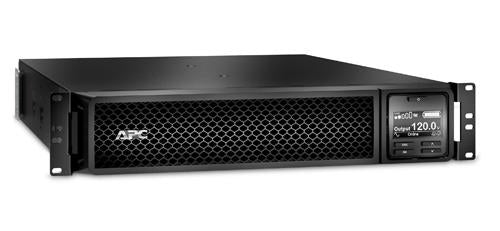

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 120V, 8x 5-20R+1x L5-30R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT3000RMXLA
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 9 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This 2700 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while itβs smart battery management maximizes performance. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card.
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 454 Ah
- Rackmount/Tower Black
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 |
| Output power | 2700 |
| Waveform | Sine |
| Input operation voltage (min) | 108 |
| Input operation voltage (max) | 150 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 120 |
| Output operation voltage (max) | 120 |
| Output frequency | 50/60 |
| Surge energy rating | 340 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Noise level | 55 |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| AC outlet types | NEMA 5β20R,NEMA L5-20R |
| Power plug | NEMA L5-30P |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RJ-45 |
| SmartSlot | Y |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 454 |
| Typical backup time at full load | 3.3 |
| Typical backup time at half load | 10.3 |
| Battery life (max) | 5 |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Replacement battery cartridge | APCRBC152 |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Display type | LCD |
| LED indicators | Alarm,Status |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Compliance certificates | RoHS |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
| Cables included | USB cable |
| Quick installation guide | Y |
| Sustainability certificates | ENERGY STAR |
| Width | 432 |
| Depth | 635 |
| Height | 85 |
| Weight | 31300 |
| Bracket | Y |
| Resource CD | Y |
| Warranty card | Y |
| Software CD | Y |
| Package width | 599 |
| Package depth | 871 |
| Package height | 246 |
| Package weight | 39920 |
| Products per pallet | 6 |
