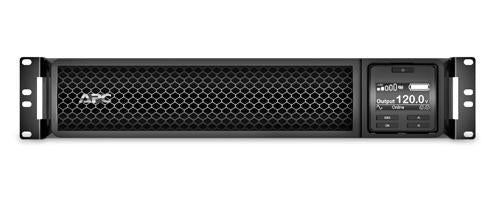

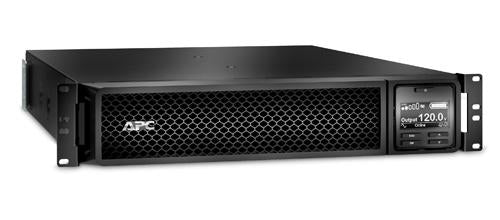

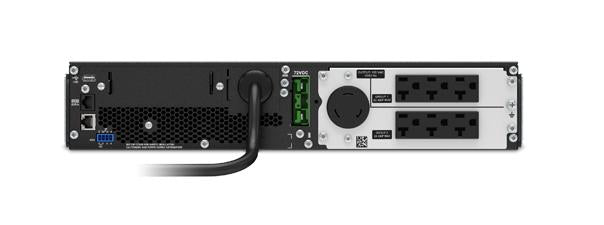

APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W - SRT2200RMXLA

APC Smart-UPS SRT 2200VA RM 120V

- High density, double-conversion on-line power protection with scalable runtime
- Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
- Battery failure notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Availability

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime
Allows additional run time to be quickly added as needed.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Manageability

SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Serial connectivity
Provides management of the UPS via a serial port.
Network manageable
Provides remote power management of the UPS over the network.

Adaptability

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Marketing Features

Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Serviceability

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Audible alarms
Provides notification of changing utility power and UPS power conditions
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Protection

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Cold-start capable
Provides temporary battery power when the utility power is out.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

• Double-conversion (Online)
• 2.2 kVA 1800 W
• Waveform: Sine
• Sealed Lead Acid (VRLA) 306 Ah
• Rackmount/Tower Black

UPS topology	Double-conversion (Online)
Output power capacity	2.2
Output power	1800
Waveform	Sine
Input operation voltage (min)	108
Input operation voltage (max)	150
Input frequency	40/70
Output operation voltage (min)	120
Output operation voltage (max)	120
Output frequency	50/60
Surge energy rating	340
Crest factor	3:1
Emergency Power Off (EPO)	Y
Output voltage Total Harmonic Distortion (THD)	2
Noise level	55
Surge protection	Y
Audible alarm(s)	Y
Auto-restart	Y
AC outlet types	NEMA 5–20R,NEMA L5-20R
Power plug	NEMA 5-20P
USB port	Y
Serial interface	Y
Serial interface type	RJ-45
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
SmartSlot	Y
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	306
Typical backup time at full load	3.3
Typical backup time at half load	10.3
Battery life (max)	5
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Replacement battery cartridge	APCRBC141
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cable length	1.83
Display type	LCD
LED indicators	Alarm,Status
International Protection (IP) code	IP20
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 50
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Compliance certificates	RoHS
Certification	CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
Cables included	USB cable
Quick installation guide	Y
Sustainability certificates	ENERGY STAR
Width	432
Depth	584
Height	85
Weight	24950
Screws included	Y
Bracket	Y
Resource CD	Y
Warranty card	Y
Software CD	Y
Package width	599
Package depth	810
Package height	246
Package weight	34020
Products per pallet	12
Harmonized System (HS) code	85078000
