APC SRTL2K2RM1UC uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1950 W 5 AC outlet(s) - SRTL2K2RM1UC

Description

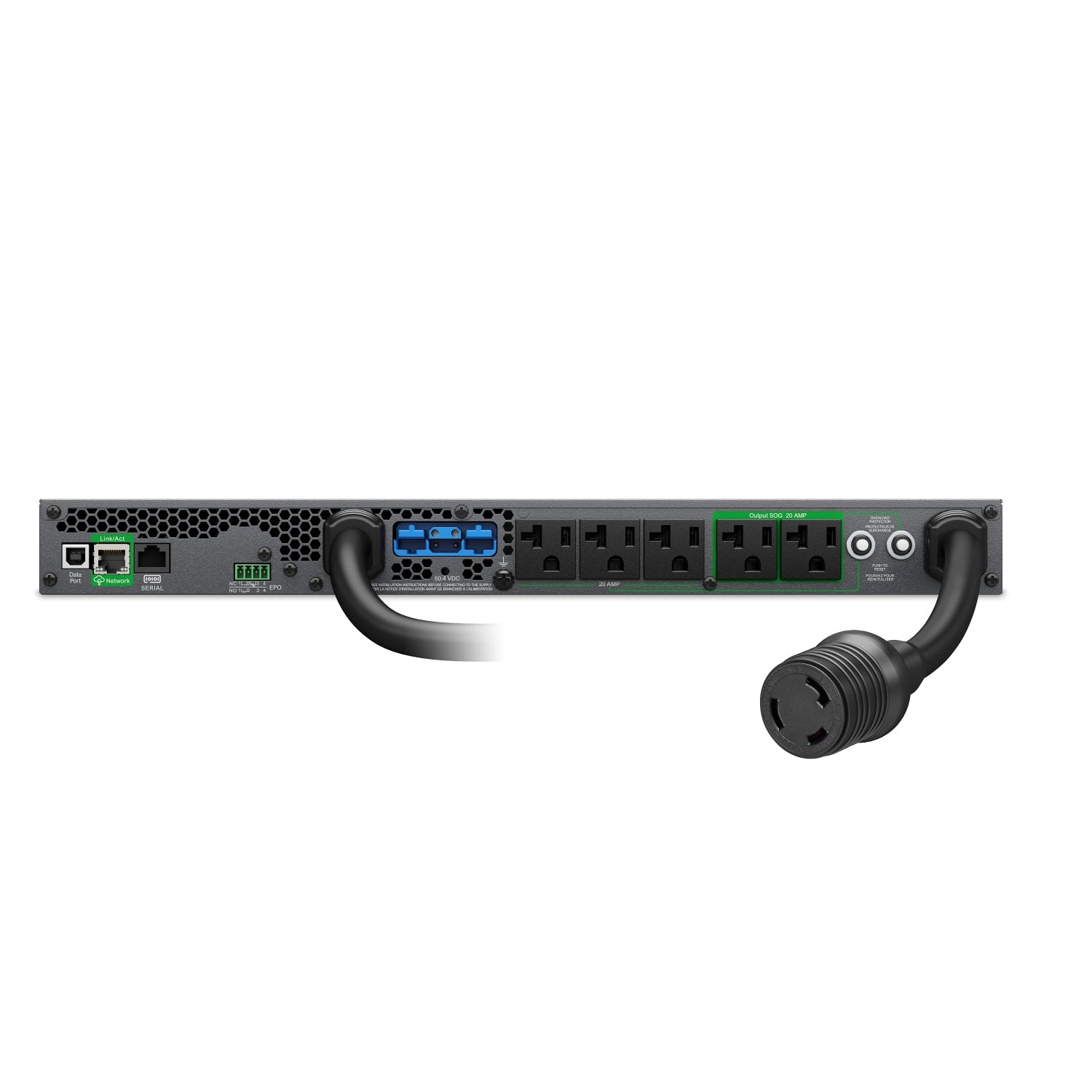

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

• Double-conversion (Online)
• 2.2 kVA 1950 W
• Waveform: Sine
• 5 AC outlet(s)
• Lithium-Ion (Li-Ion) 50 V
• Rackmount Silver

UPS topology	Double-conversion (Online)
Output power capacity	2.2
Output power	1950
Waveform	Sine
Input operation voltage (min)	120
Input operation voltage (max)	125
Input frequency	50/60
Output operation voltage (min)	120
Output operation voltage (max)	125
Output frequency	50/60
Crest factor	3:1
Noise level	55
Audible alarm(s)	Y
AC outlet types	NEMA 5–20R,NEMA L5-20R
Power plug	NEMA 5-20P
AC outlets quantity	5
USB port	Y
USB 2.0 ports quantity	1
Serial interface	Y
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Emergency Power Off (EPO) connector	Y
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	50
Battery recharge time	1.5
Replacement battery cartridge	APCRBC173-LI
Form factor	Rackmount
Product colour	Silver
Rack capacity	1U
Cable length	2.4
Display type	LCD
International Protection (IP) code	IP20
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-15 - 45
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Non-operating altitude	0 - 15240
Compliance certificates	UL,cUL
Certification	EN/IEC 62040-1
Rack mount kit	Y
Cables included	RJ-45,USB cable
Width	432
Depth	560
Height	43
Weight	15900
Package width	564
Package depth	764
Package height	278.2
Package weight	24200
