ASUS | SKU:
PRIME B860-PLUS WIFI-CSM
Sold out

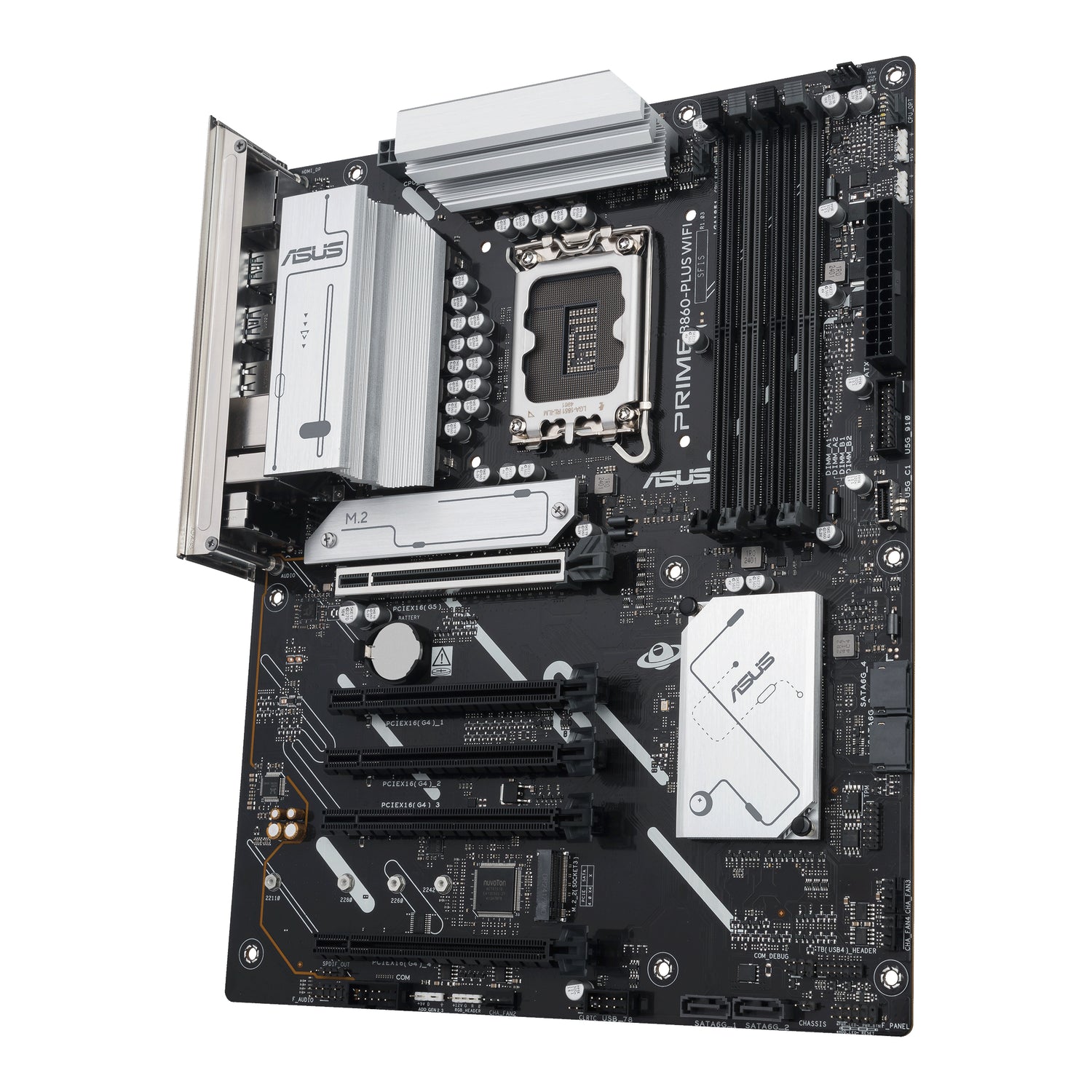

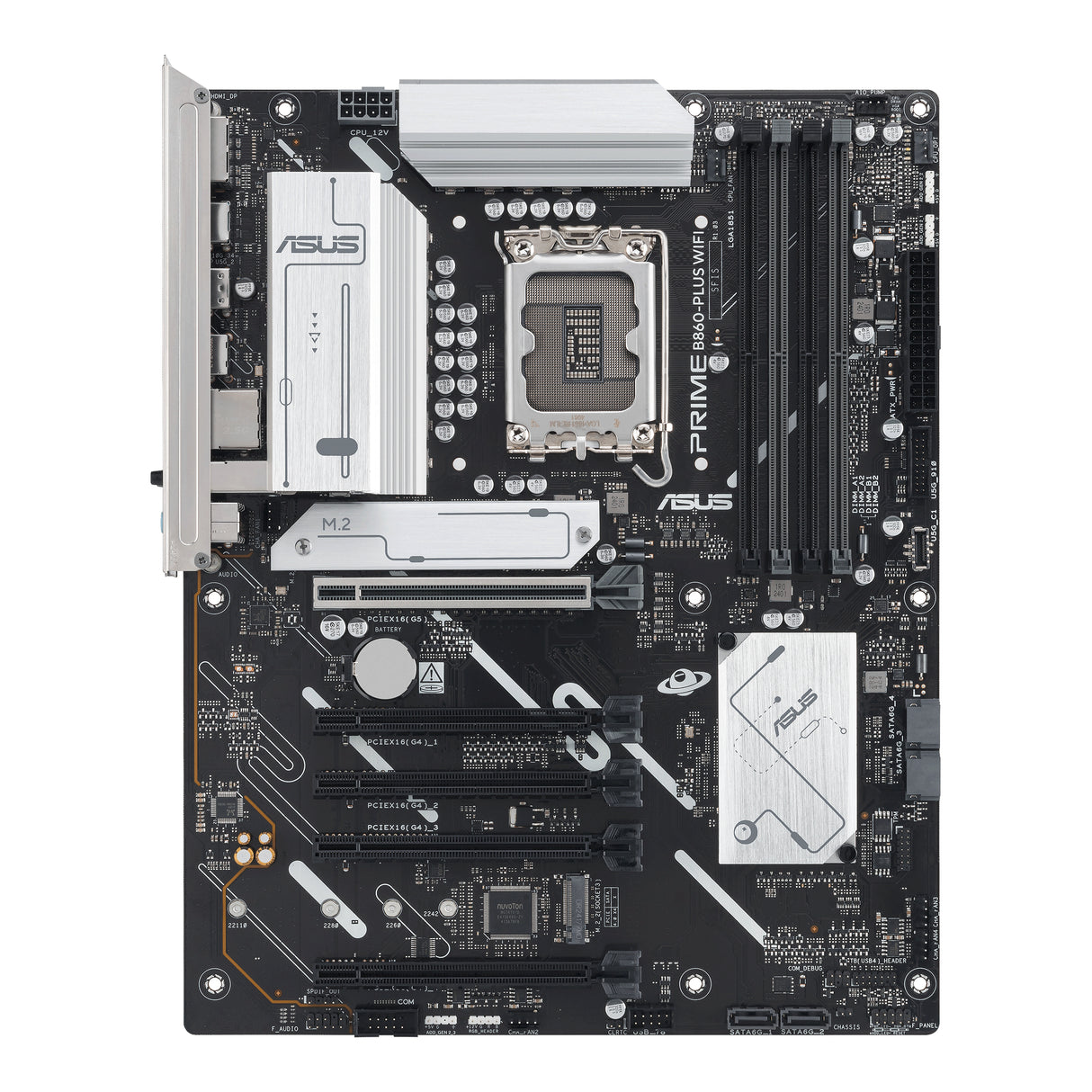

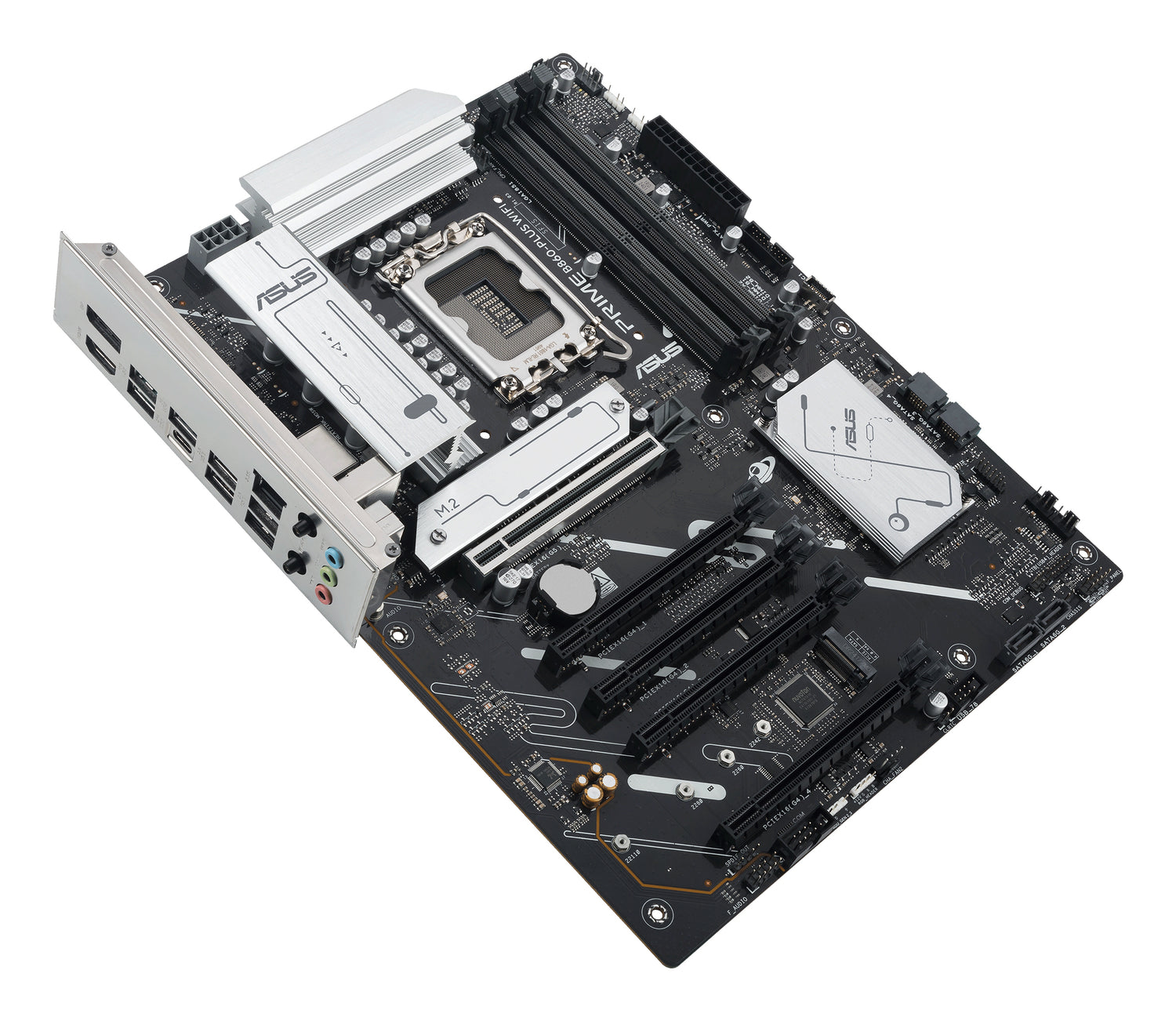

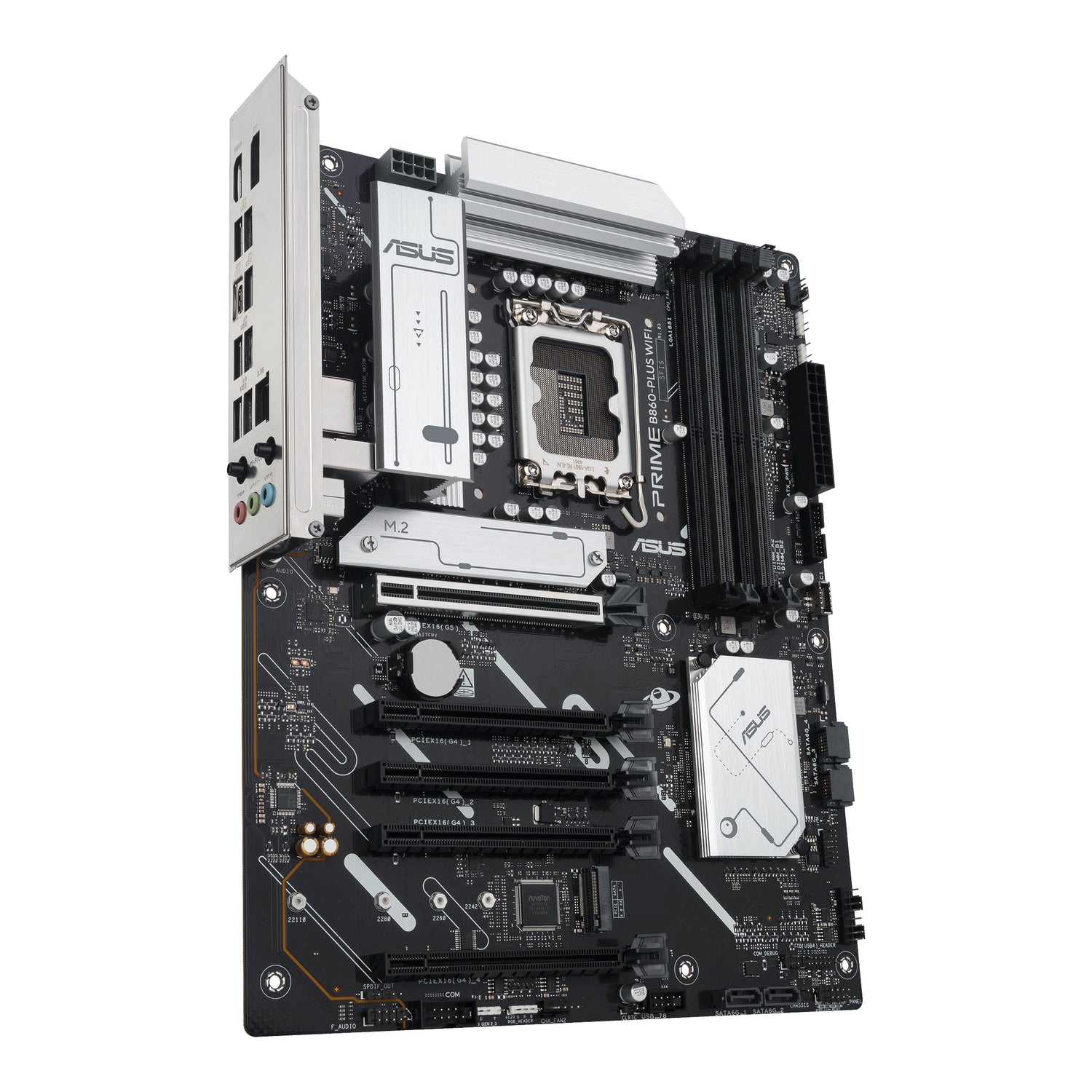

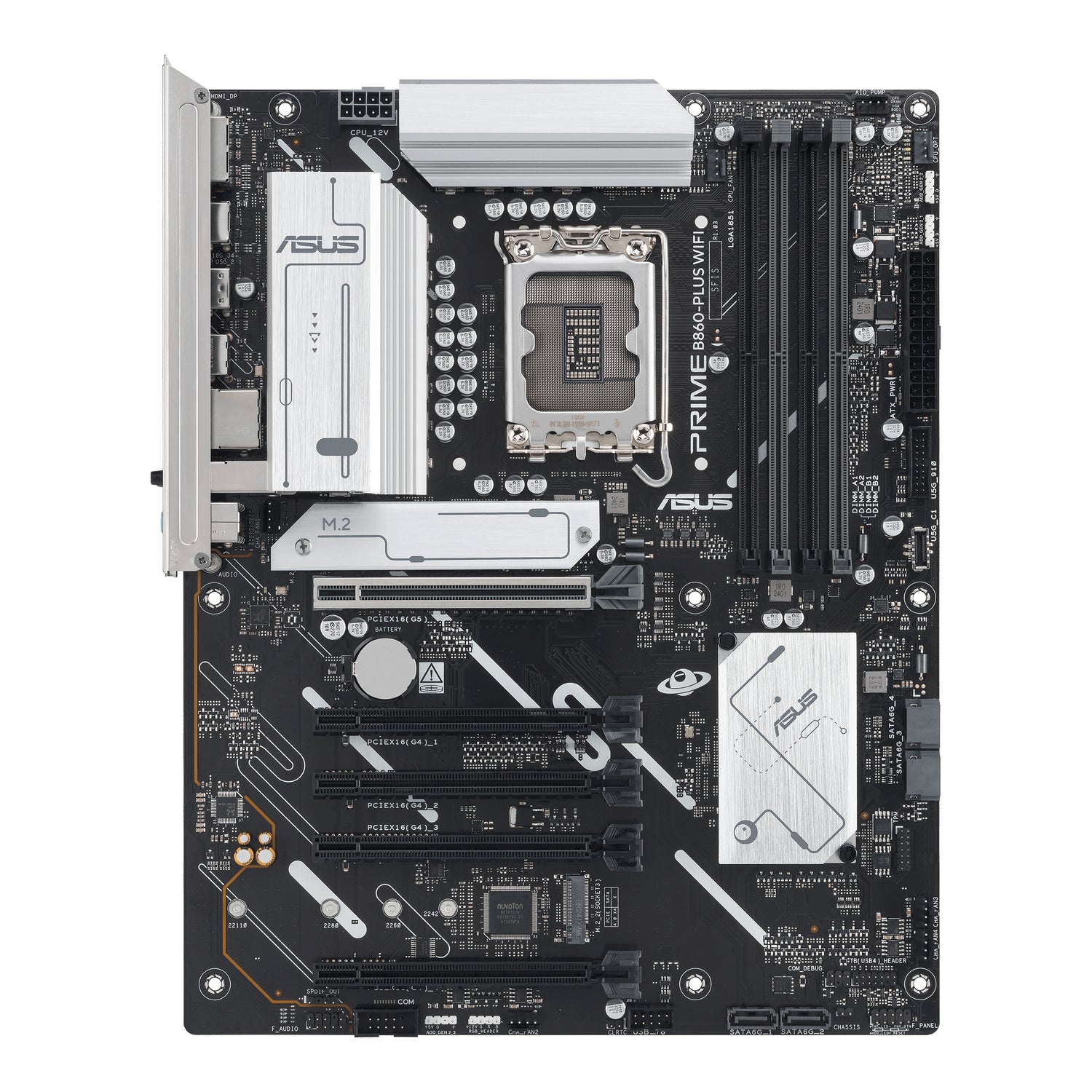

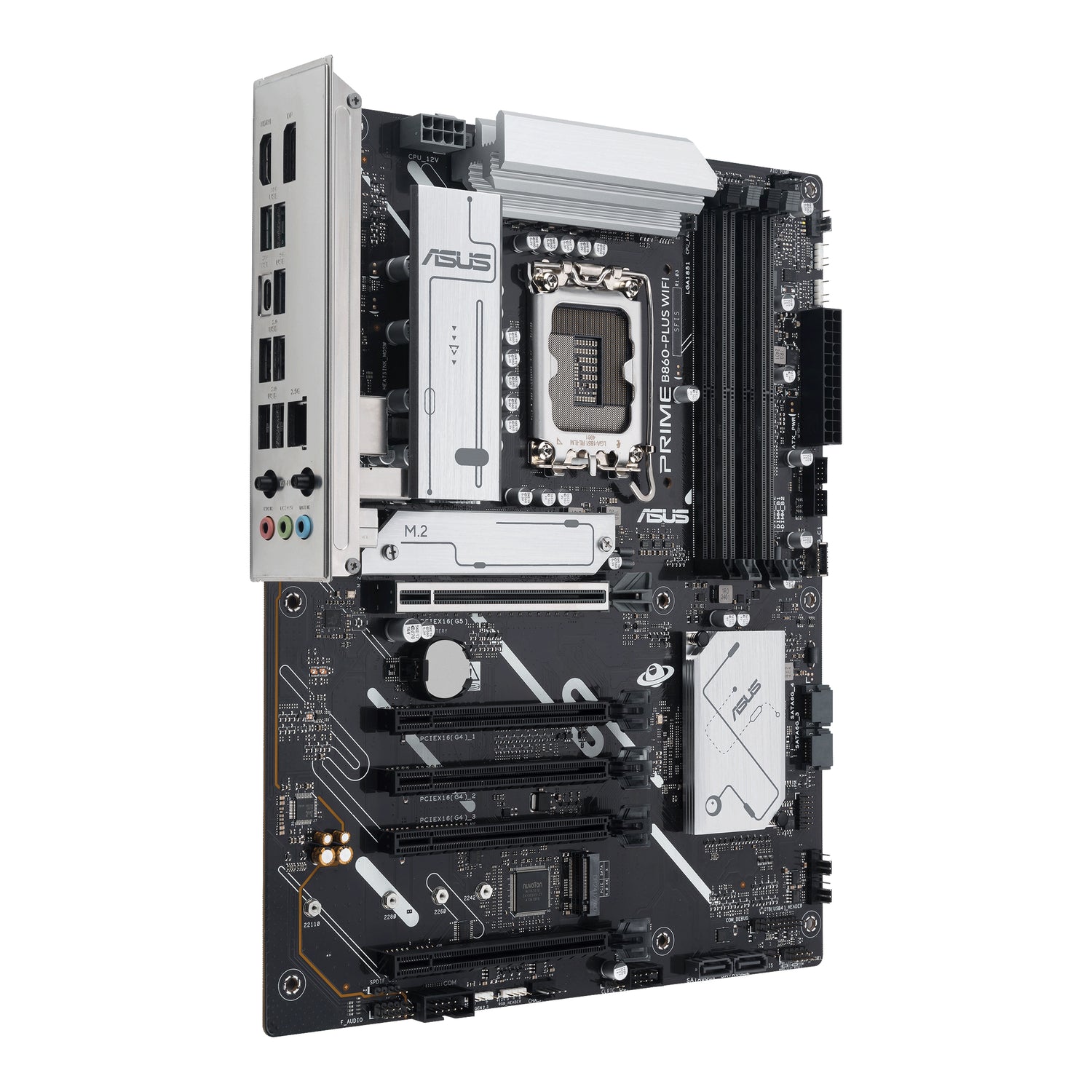

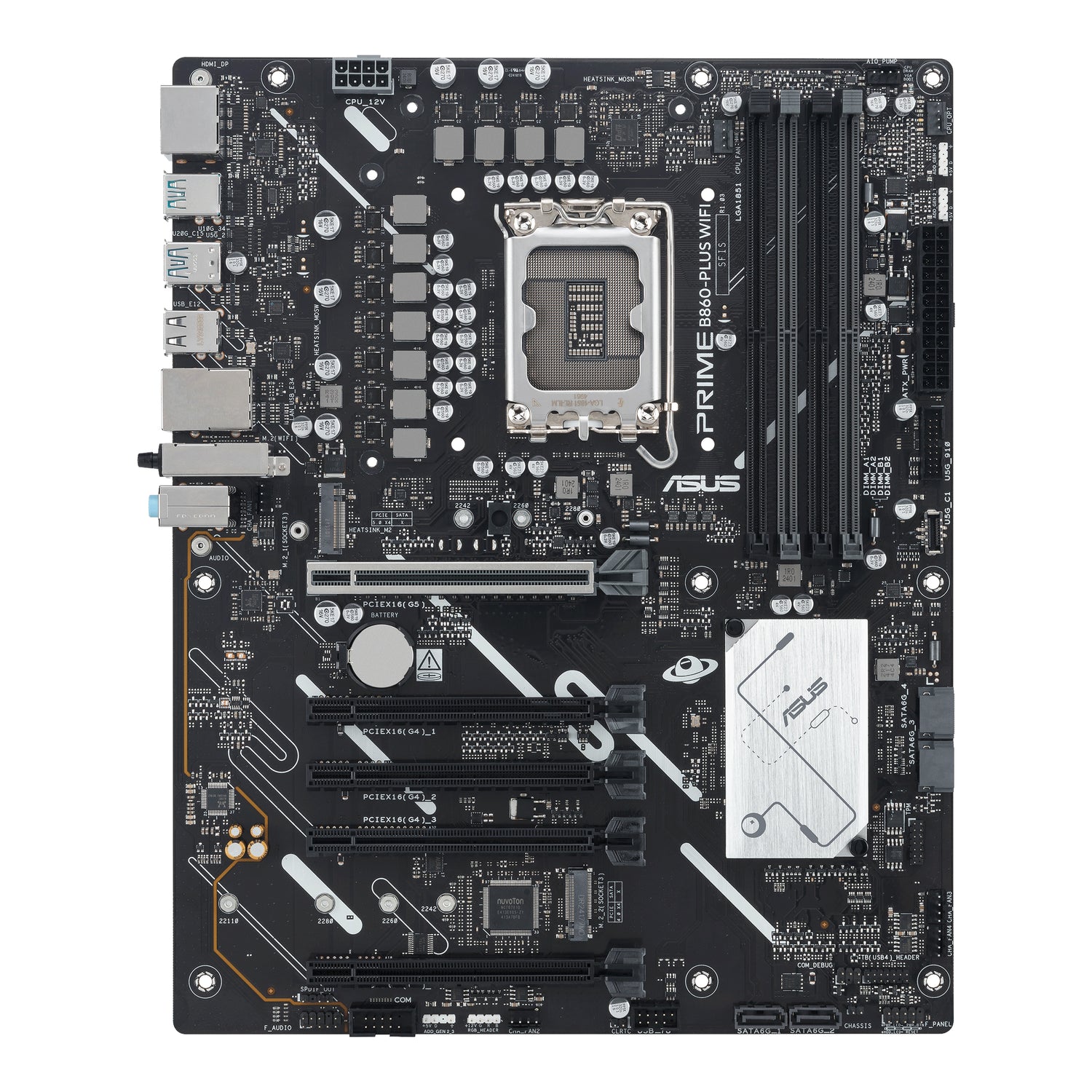

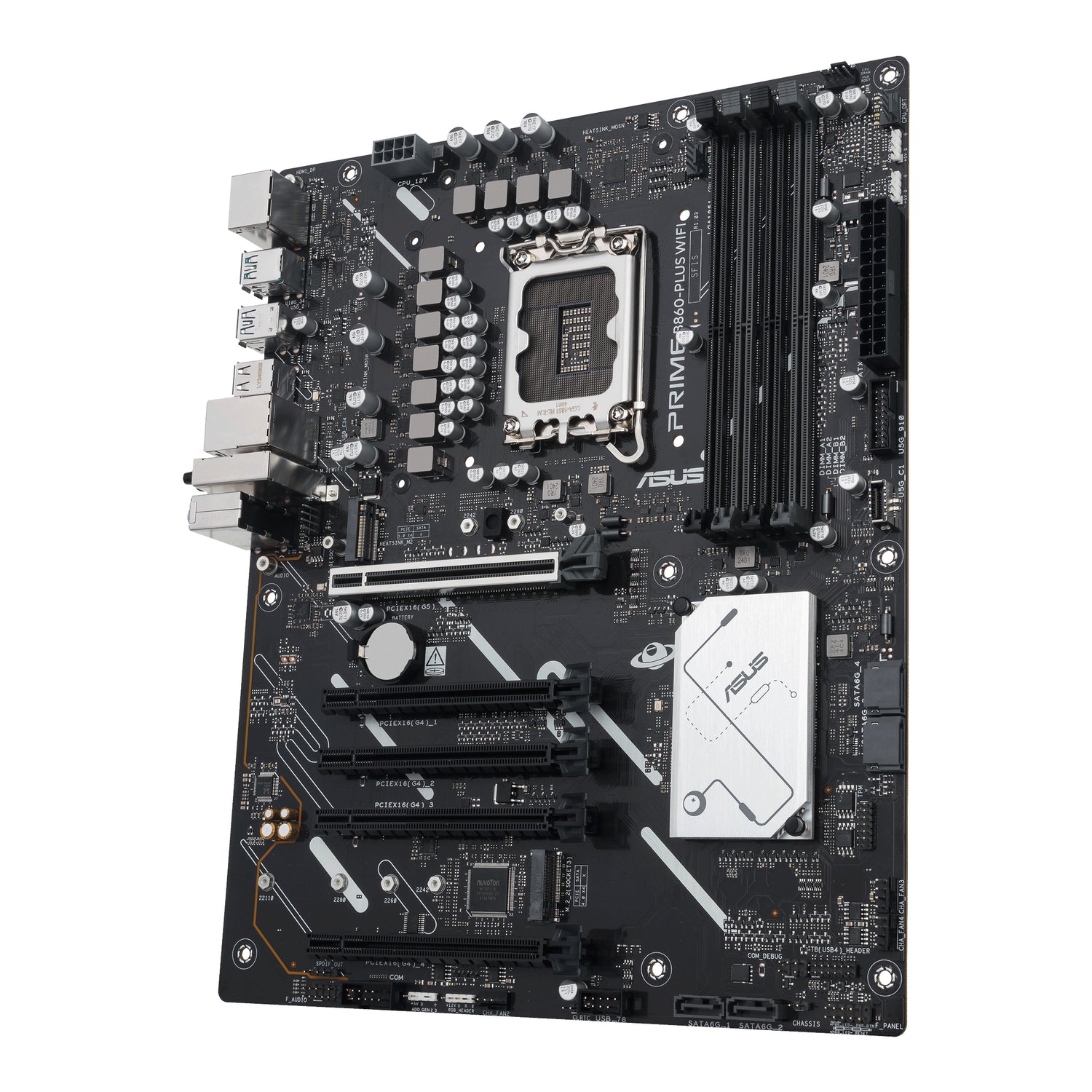

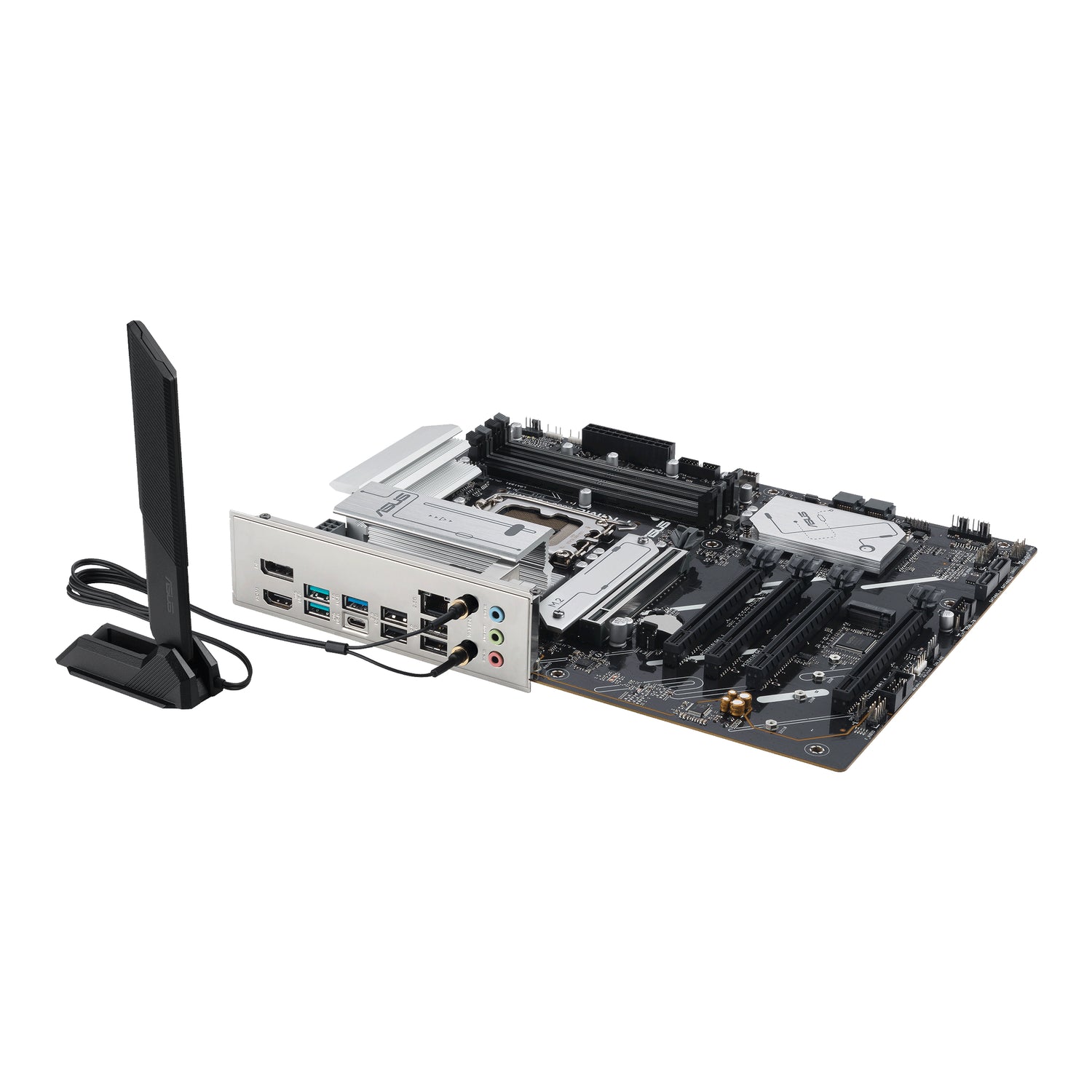

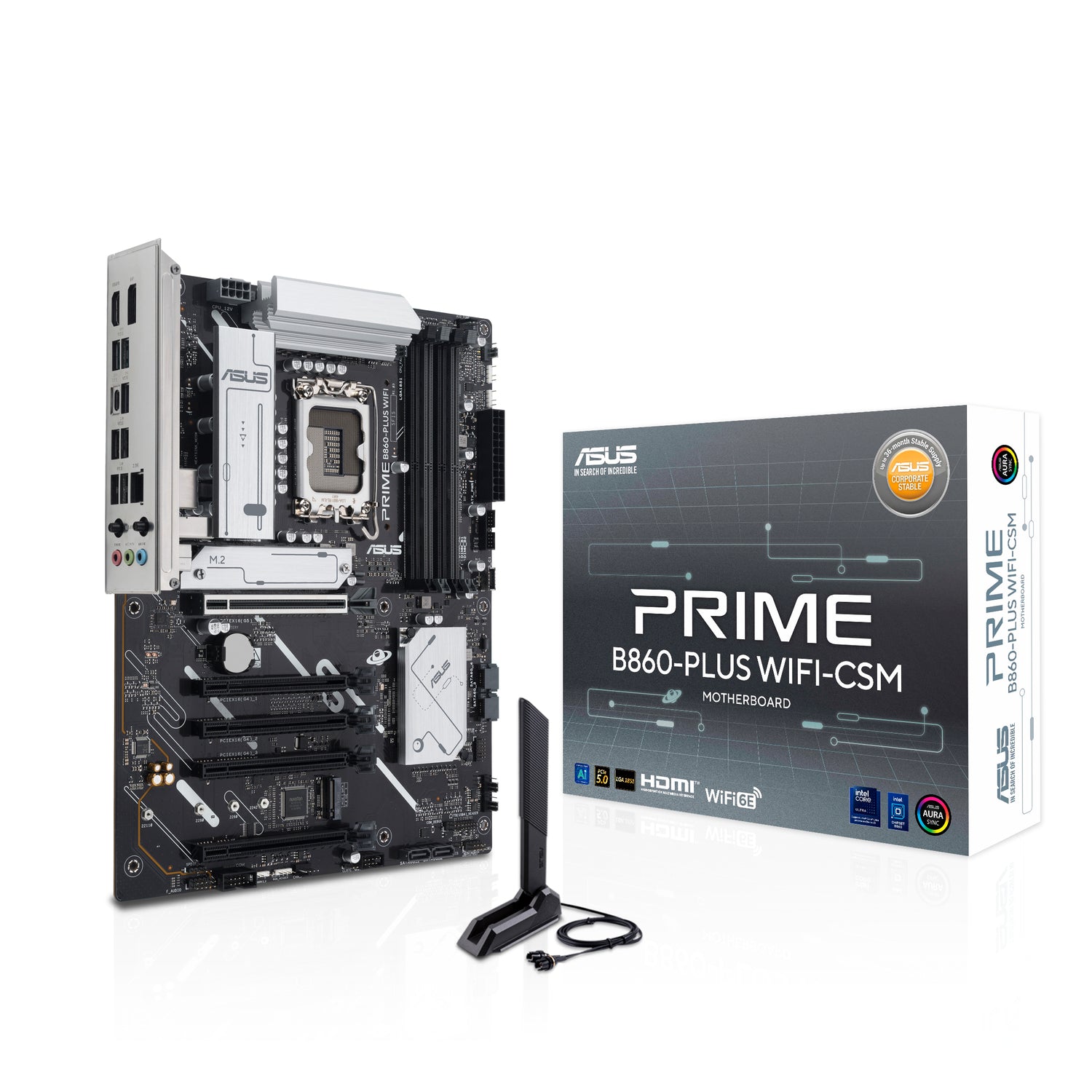

ASUS PRIME B860-PLUS WIFI-CSM motherboard Intel B860 LGA 1851 (Socket V1) ATX - PRIME B860-PLUS WIFI-CSM
$195.60
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel B860 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | non-ECC |
| Supported memory clock speed (max) | 8666 |
| Unbuffered memory | Y |
| Maximum internal memory per slot | 64 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | N |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Y |
| Number of COM connectors | 1 |
| TPM connector | Y |
| Thunderbolt headers | 1 |
| 12V power connector | Y |
| Number of water pump connectors | 1 |
| RGB LED pin header | Y |

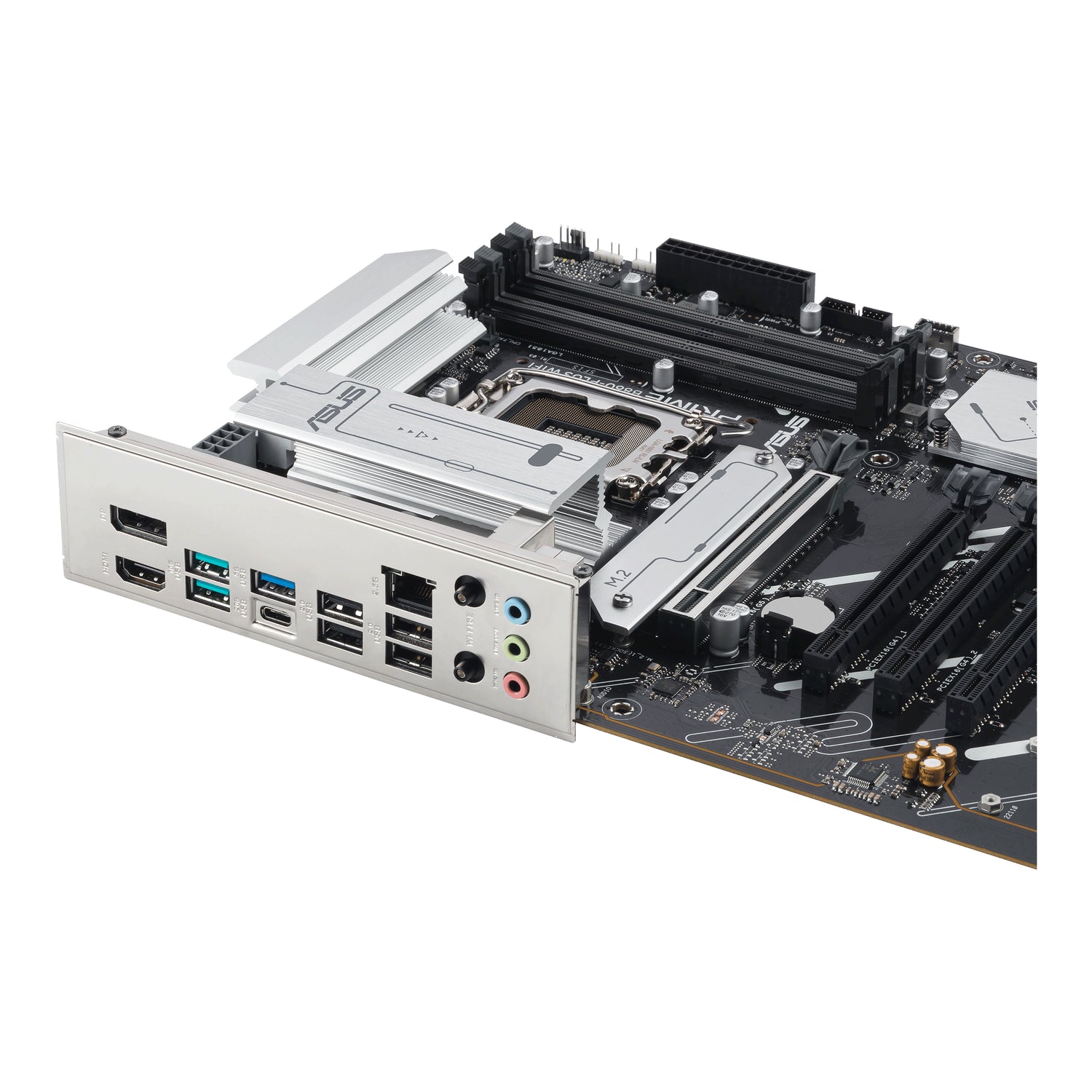

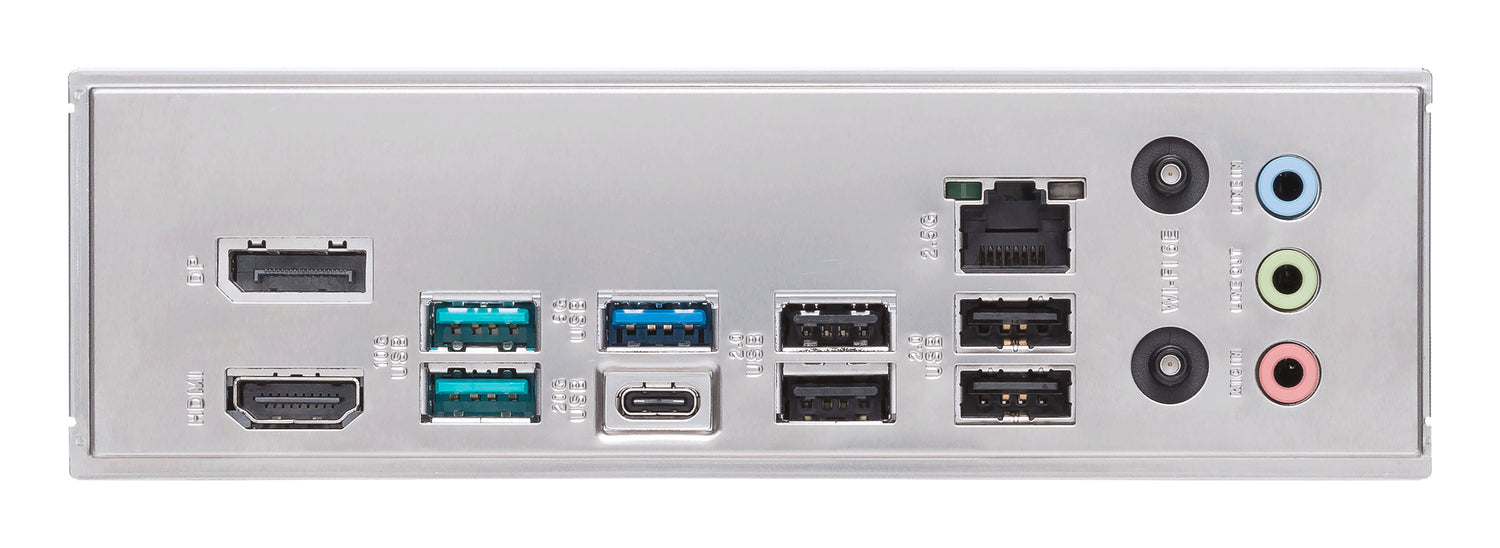

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 |
| Product colour | Black |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Width | 305 |
| Depth | 244 |

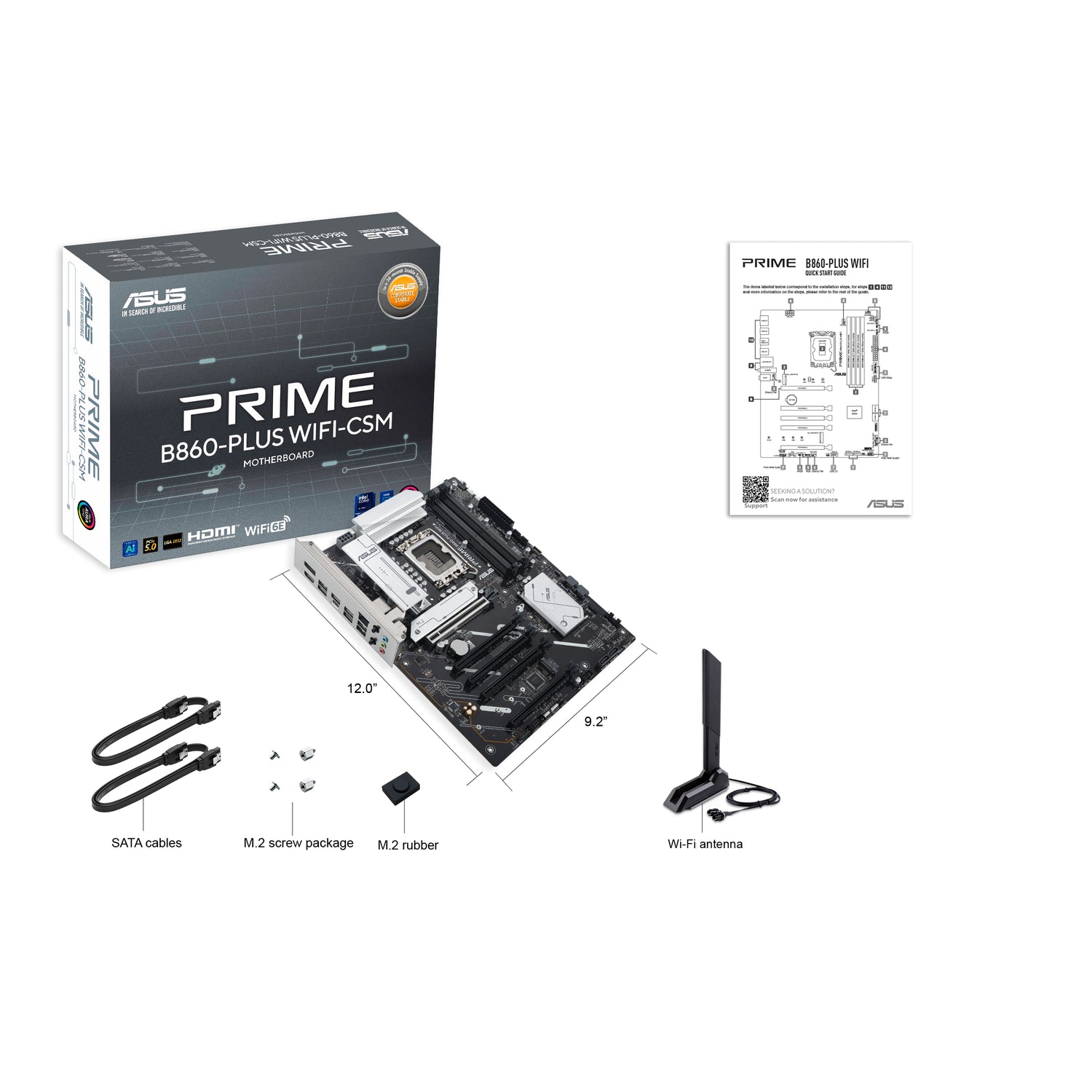

| Cables included | SATA |
| Antenna included | Y |
| Screws included | Y |
| mSATA ports quantity | 0 |
