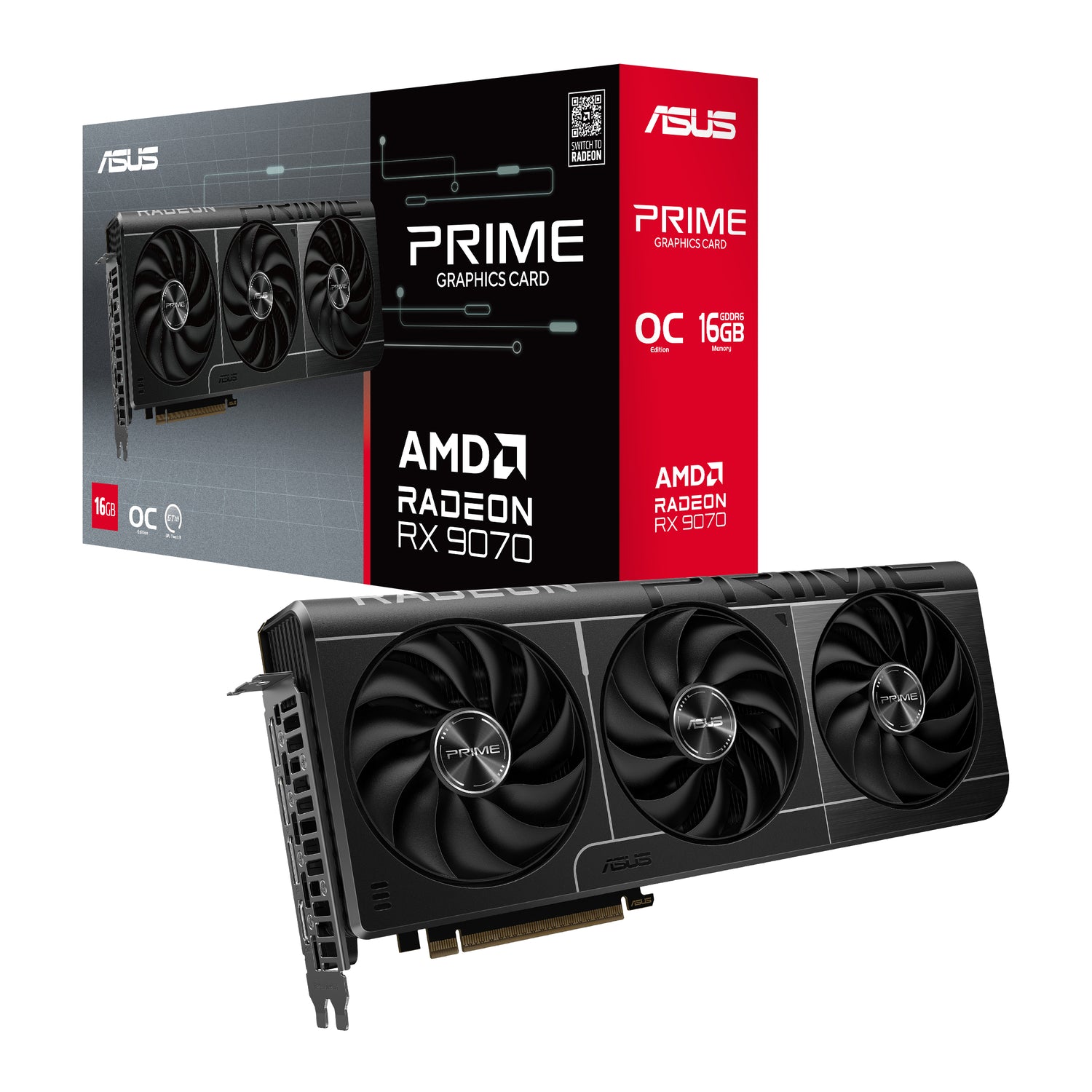

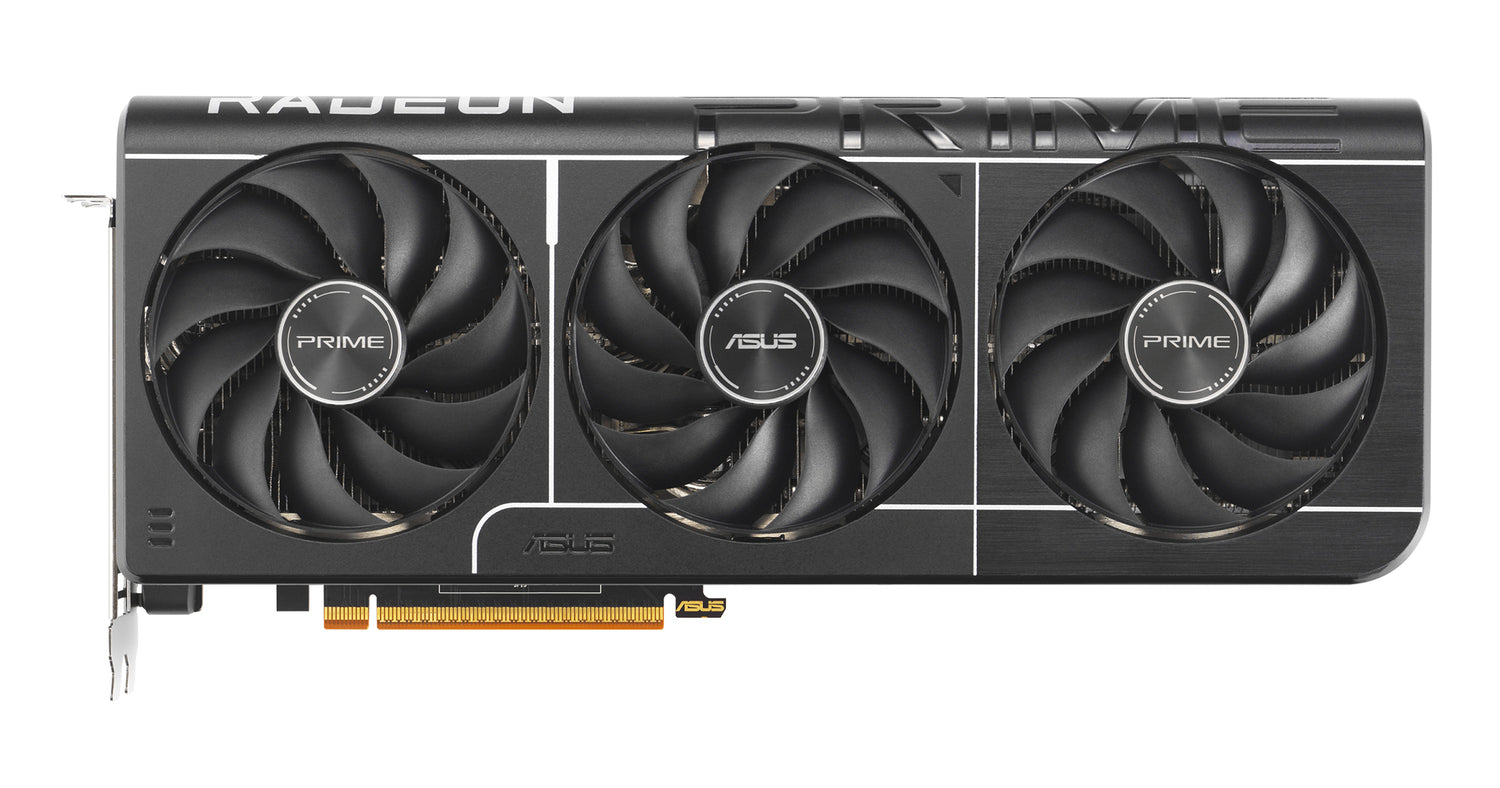

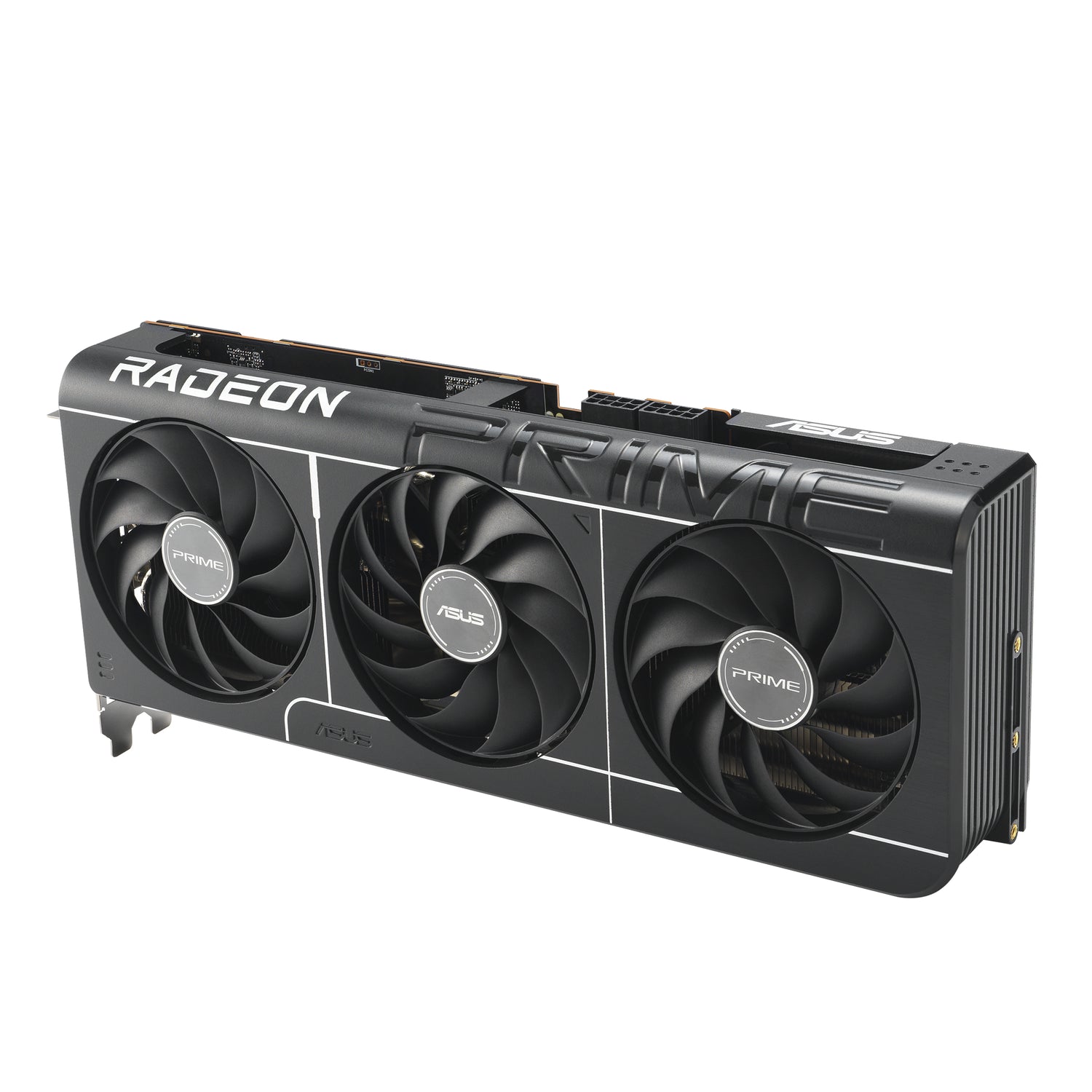

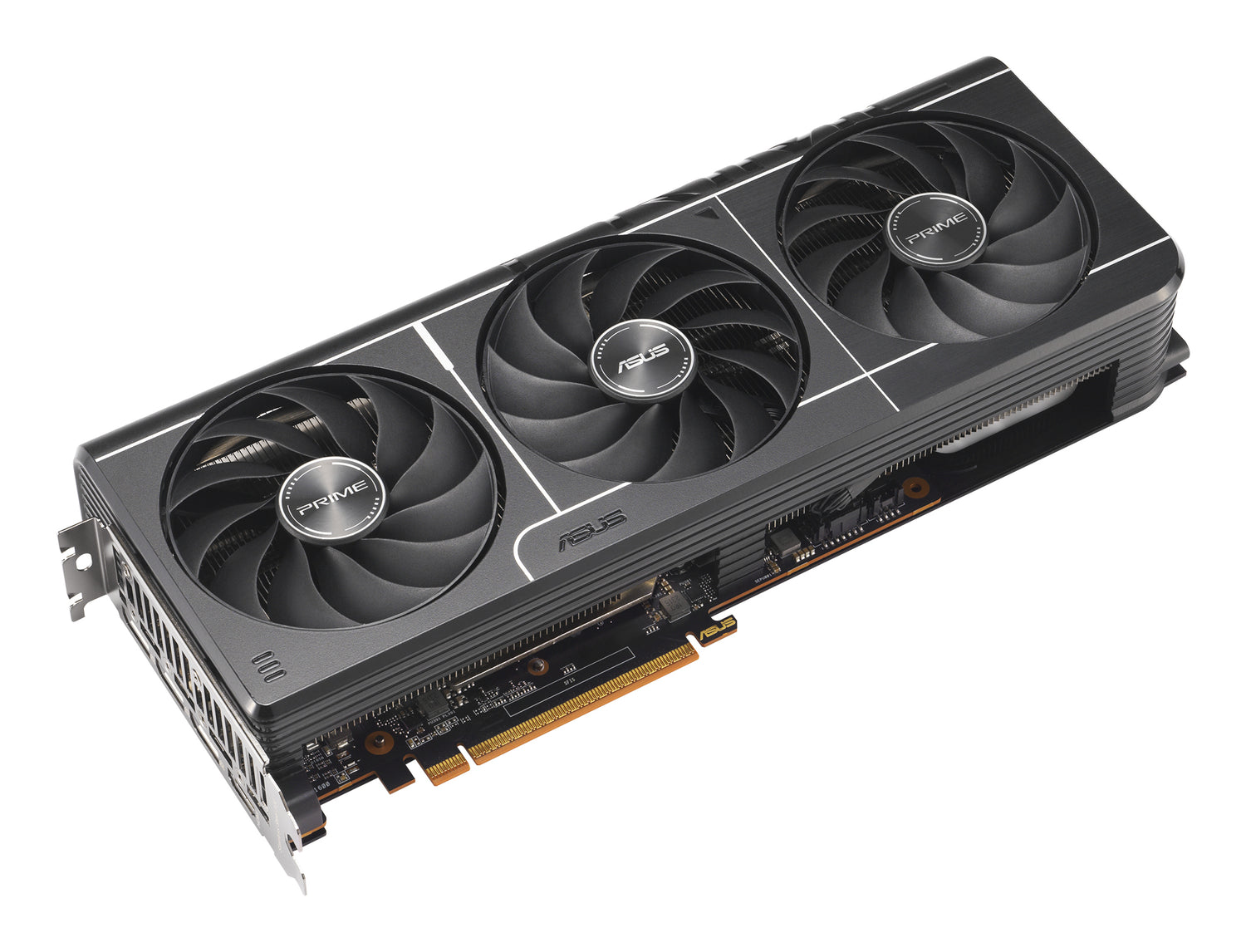

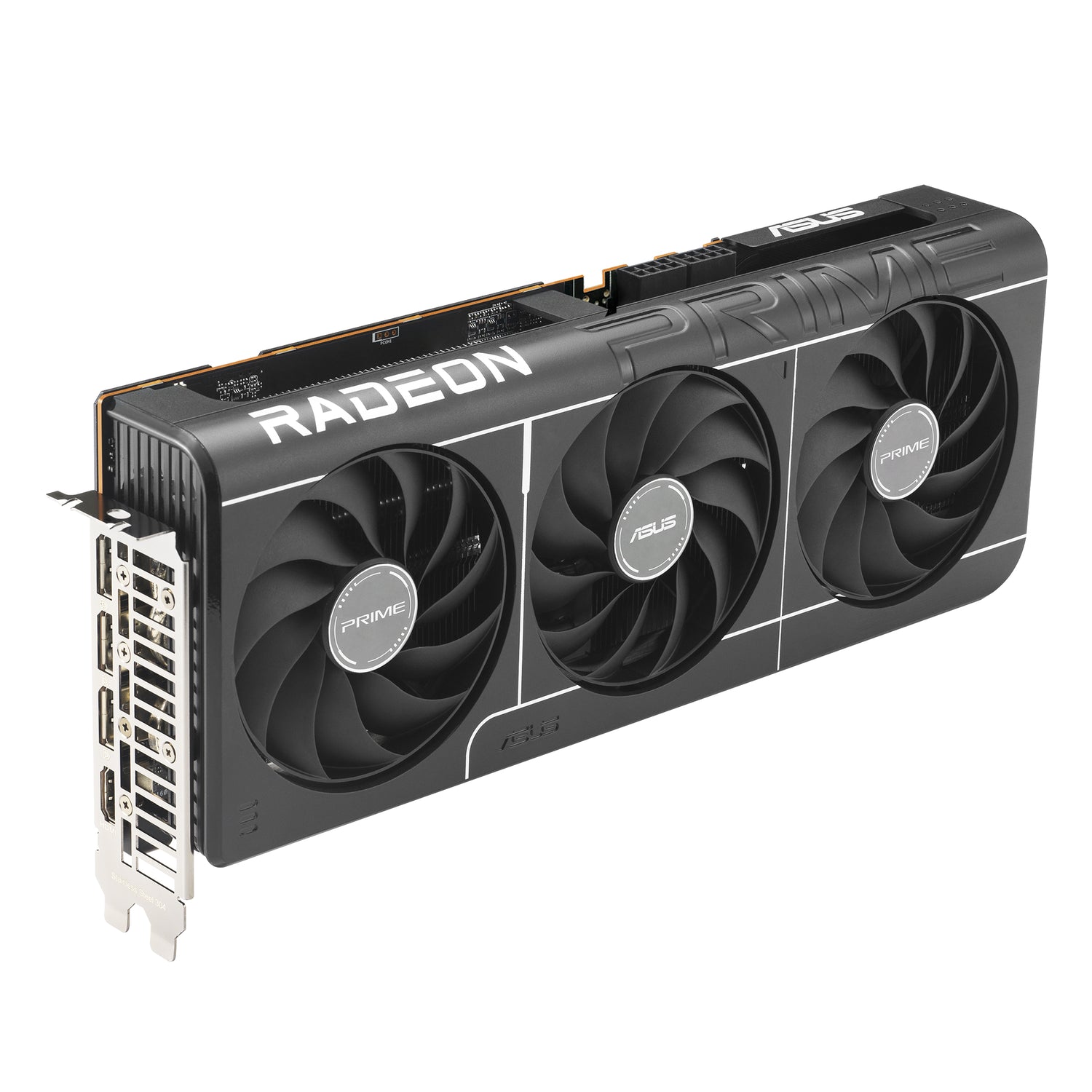

ASUS Prime -RX9070-O16G AMD Radeon RX 9070 16 GB GDDR6 - PRIME-RX9070-O16G

Primed for Power
Experience Primal performance with the Prime Radeon™ RX 9070 graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.

Cooling
2.5-slot Design

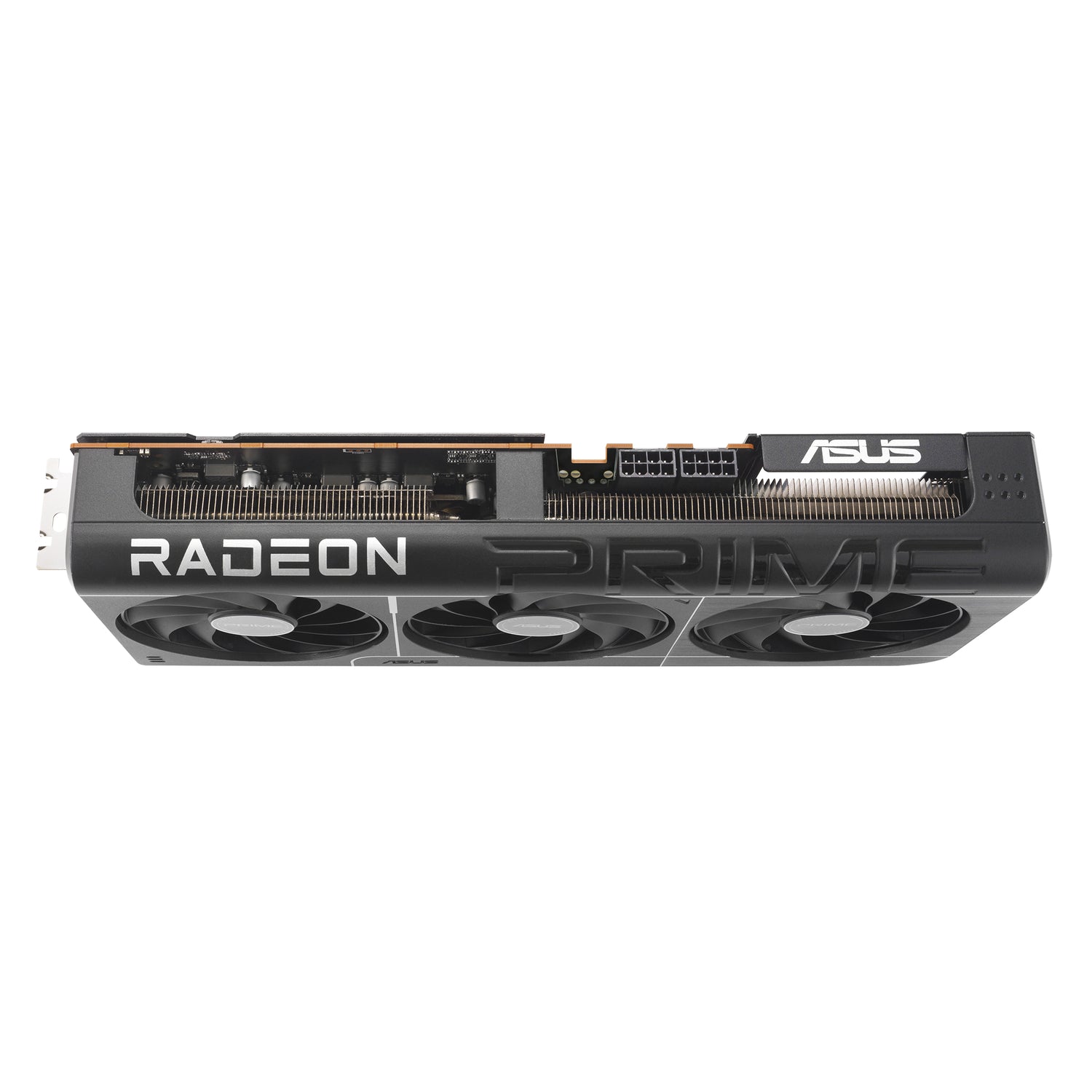

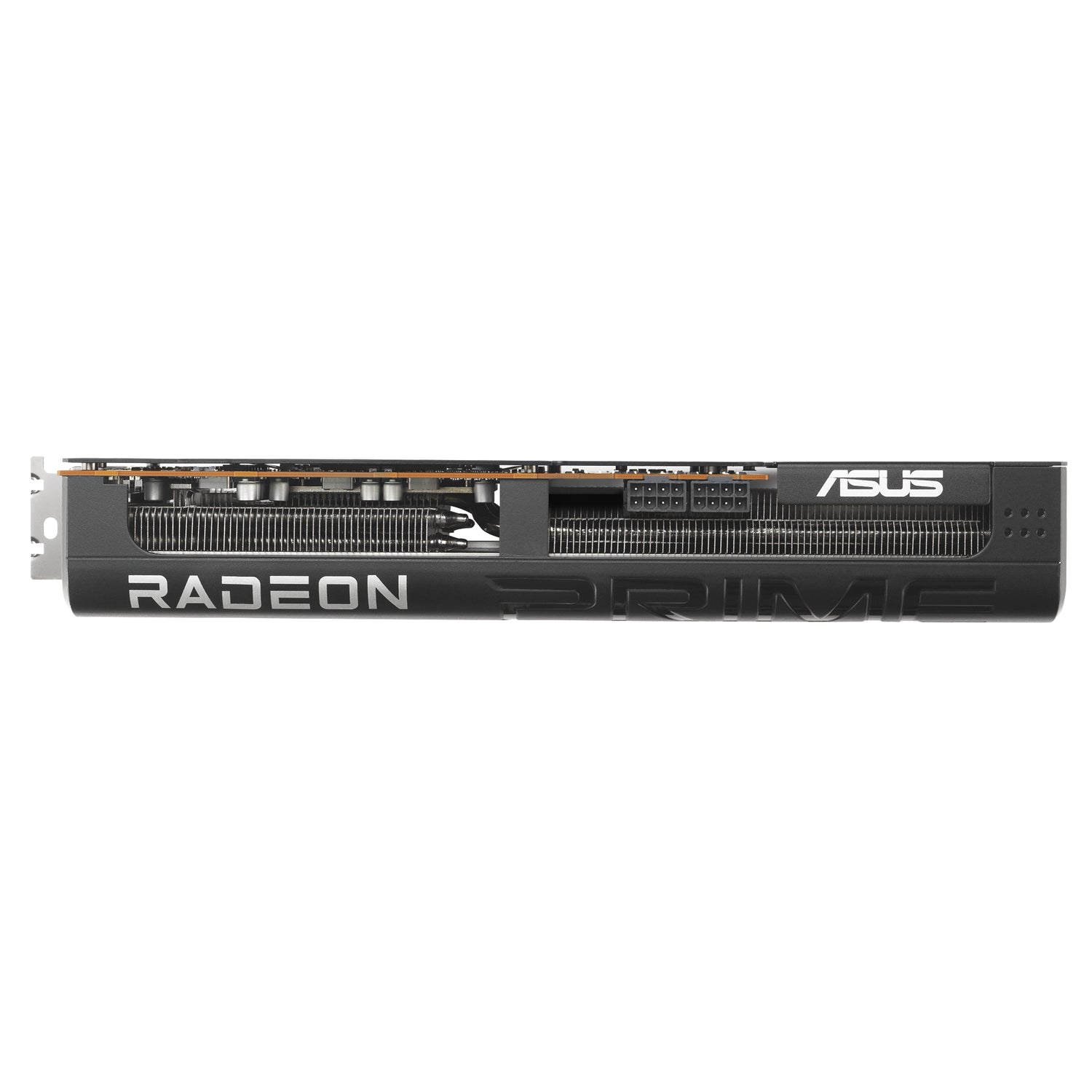

The Prime Radeon™ RX 9070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

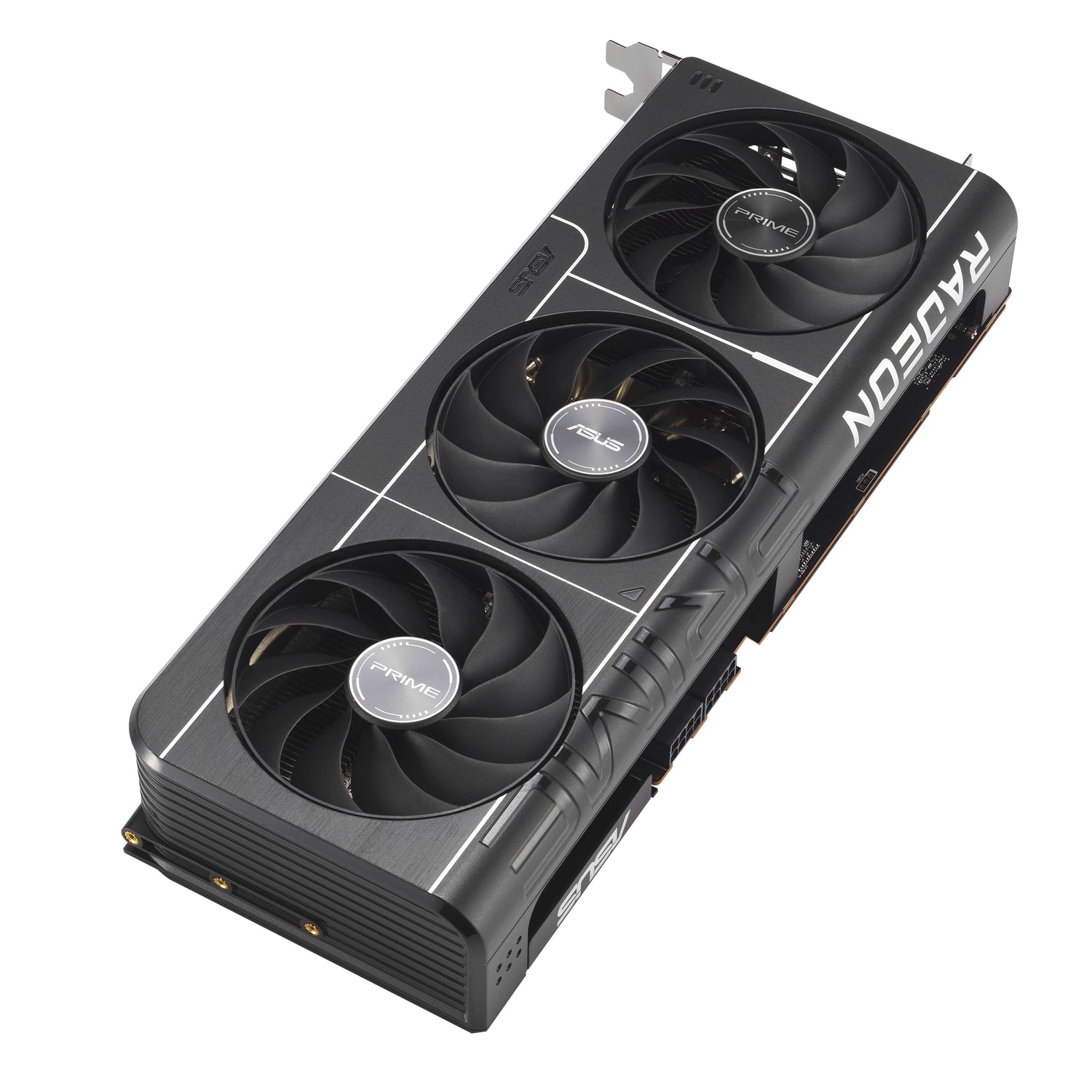

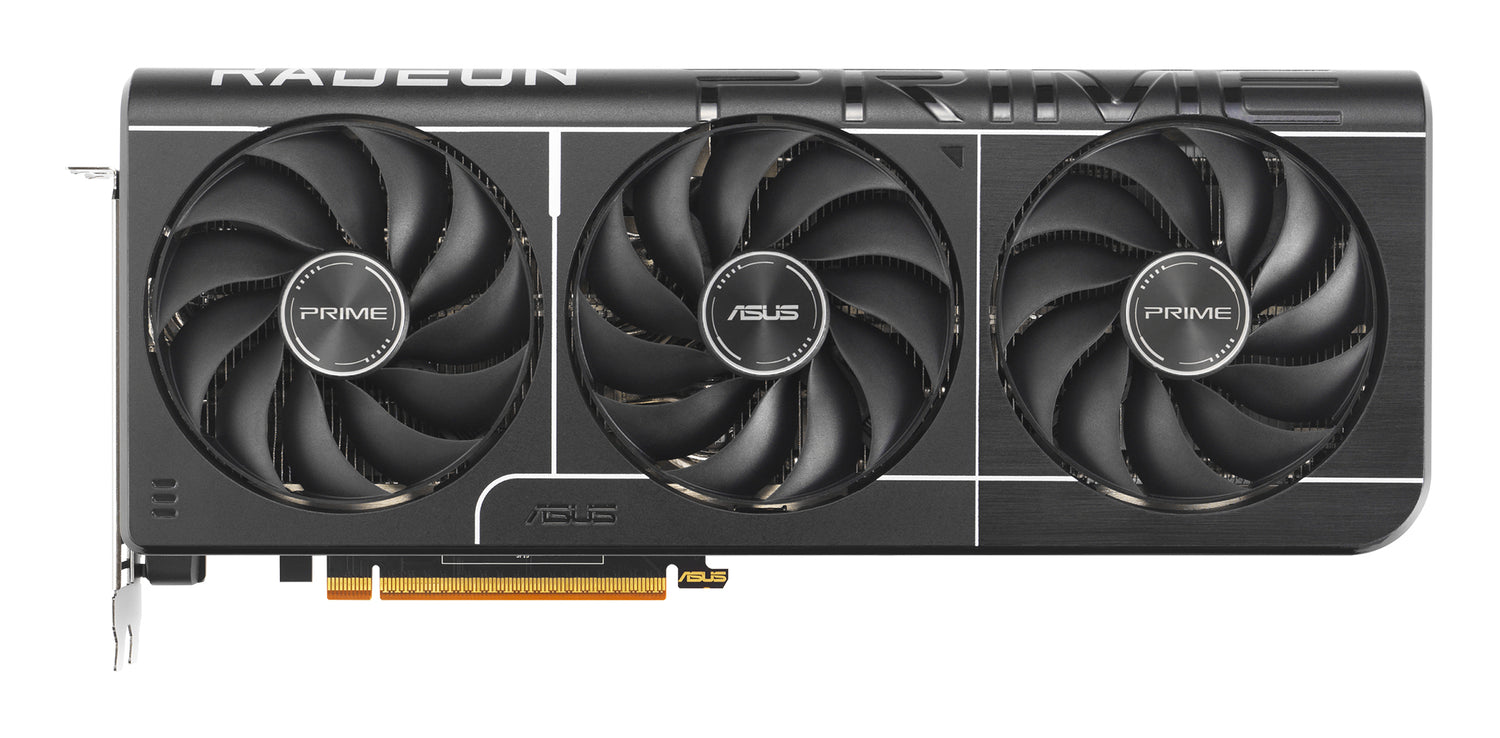

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

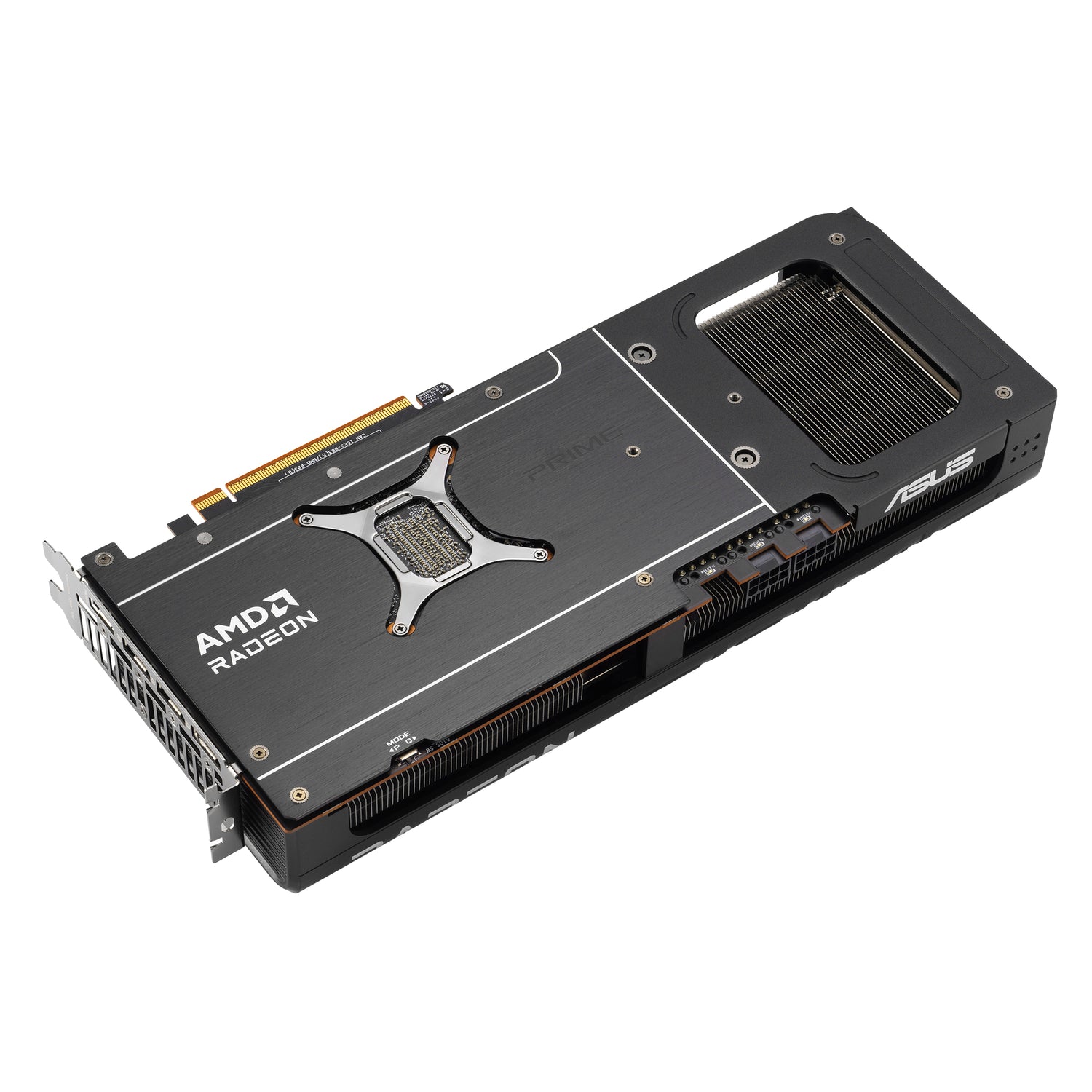

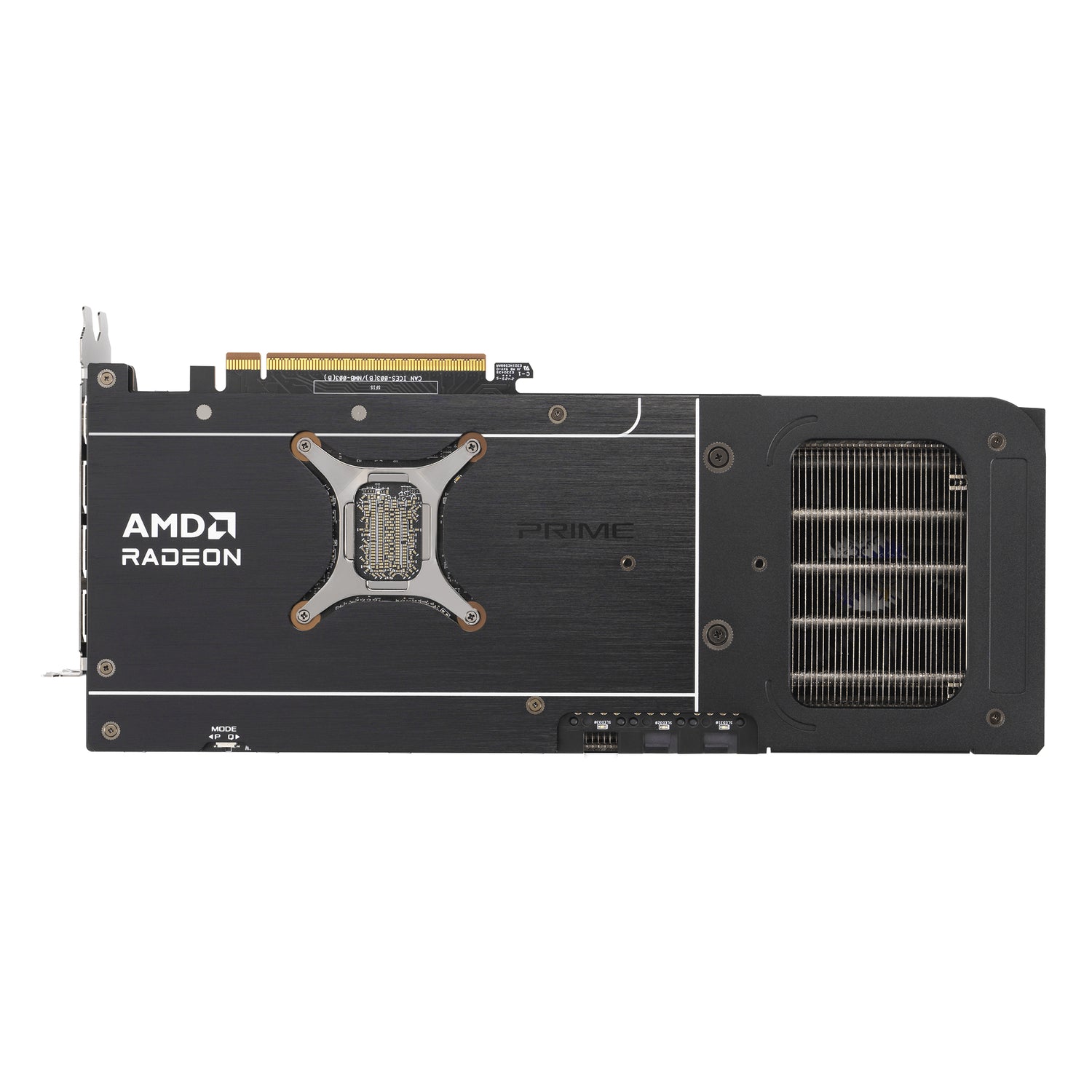

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

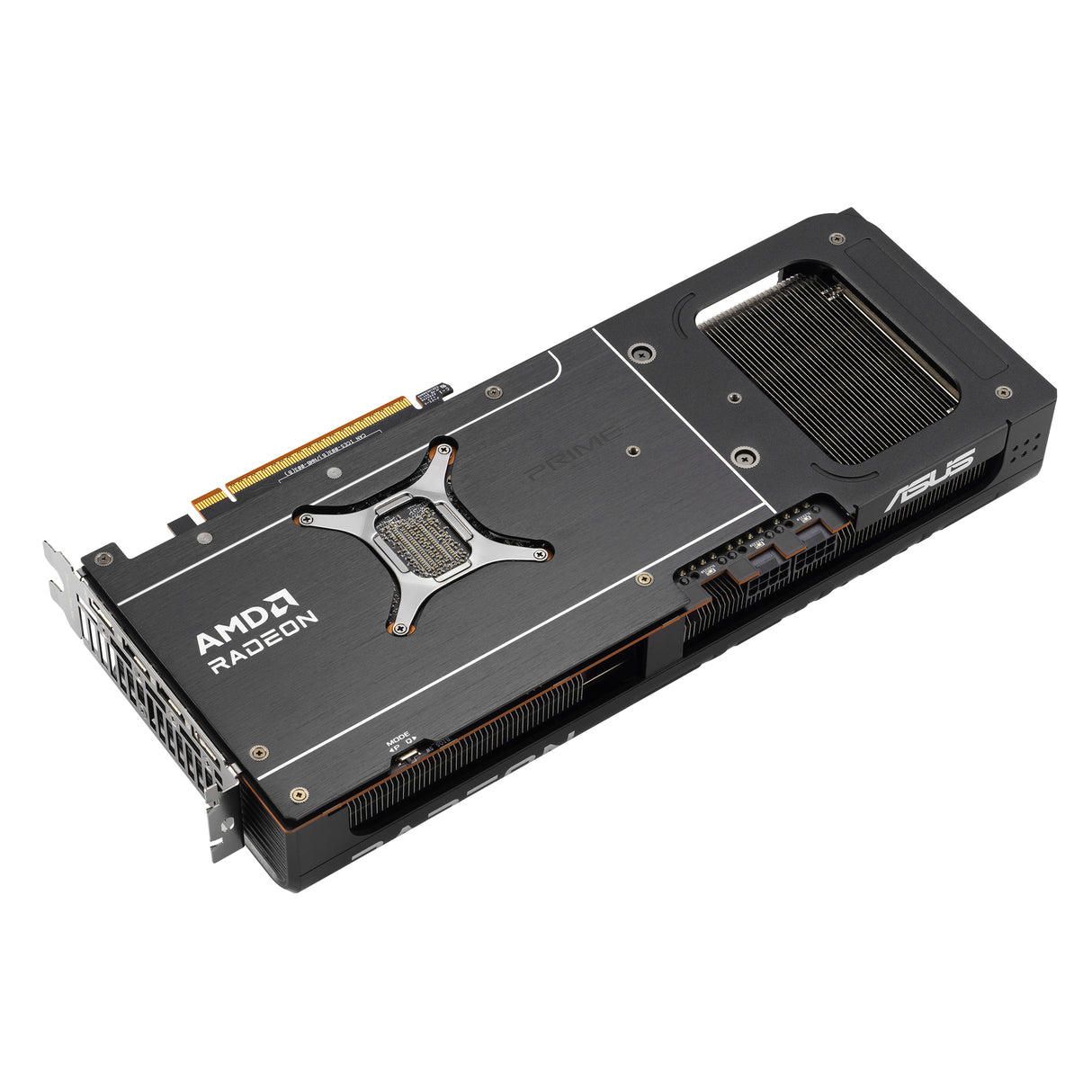

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

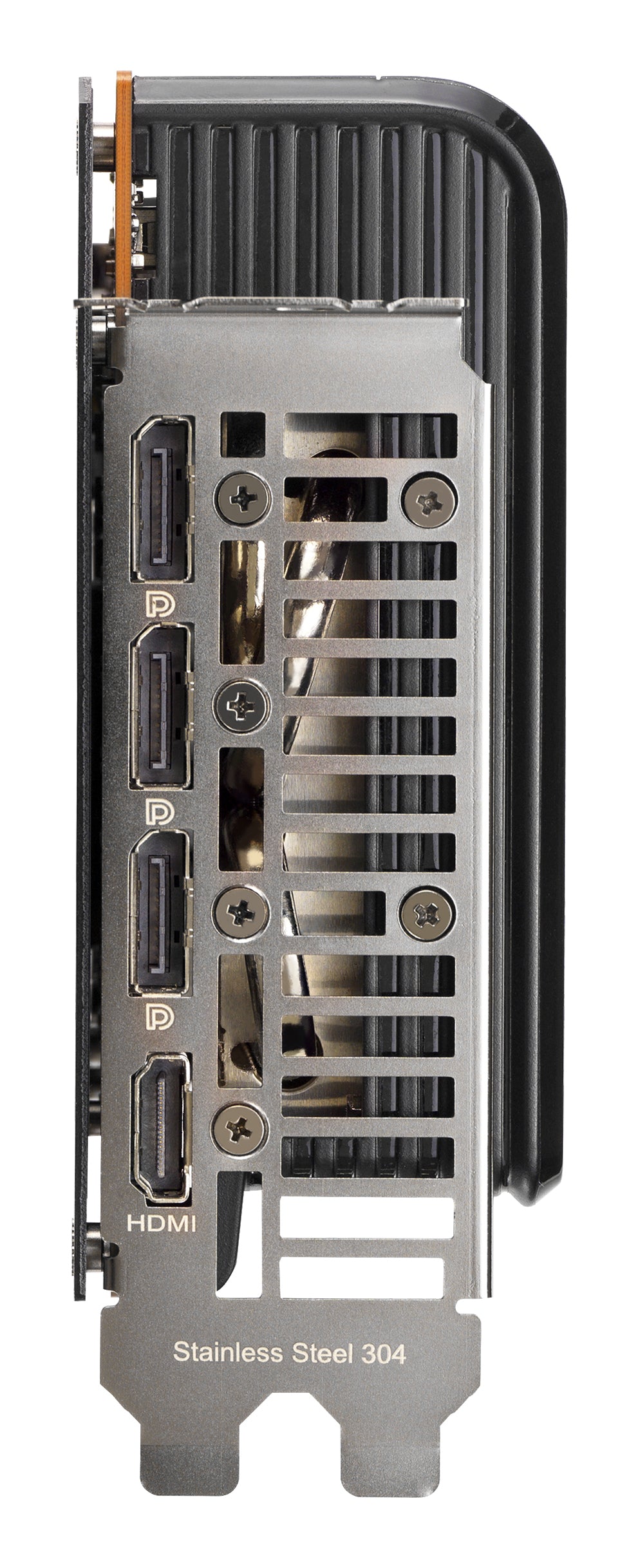

Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

Engineering
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

• AMD Radeon RX 9070 16 GB GDDR6
• 7680 x 4320 pixels 256 bit 20 Gbit/s PCI Express 5.0
• HDMI ports quantity: 1 DisplayPorts quantity: 3
• DirectX version: 12 Ultimate OpenGL version: 4.6
• 2x 8-pin

Graphics processor family	AMD
Graphics processor	Radeon RX 9070
Maximum resolution	7680 x 4320
CUDA	N
Parallel processing technology support	Not supported
Processor boost clock speed	2590
Stream processors	3584
Maximum displays per videocard	4
Discrete graphics card memory	16
Graphics card memory type	GDDR6
Memory bus	256
Data transfer rate	20
Interface type	PCI Express 5.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1a
TV tuner integrated	N
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	N
HDCP	Y
HDCP version	2.3
Overclocked (OC) edition	Y
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3
Form factor	Full-Height/Full-Length (FH/FL)
Bracket height	Full-Height (FH)
Number of slots	2.5
Product colour	Black
Minimum system power supply	650
Supplementary power connectors	2x 8-pin
Weight	1160
Length	312
Depth	50
Height	130
Package width	405
Package depth	233
Package height	88.5
Package weight	1750
Package type	Box
User guide	Y
