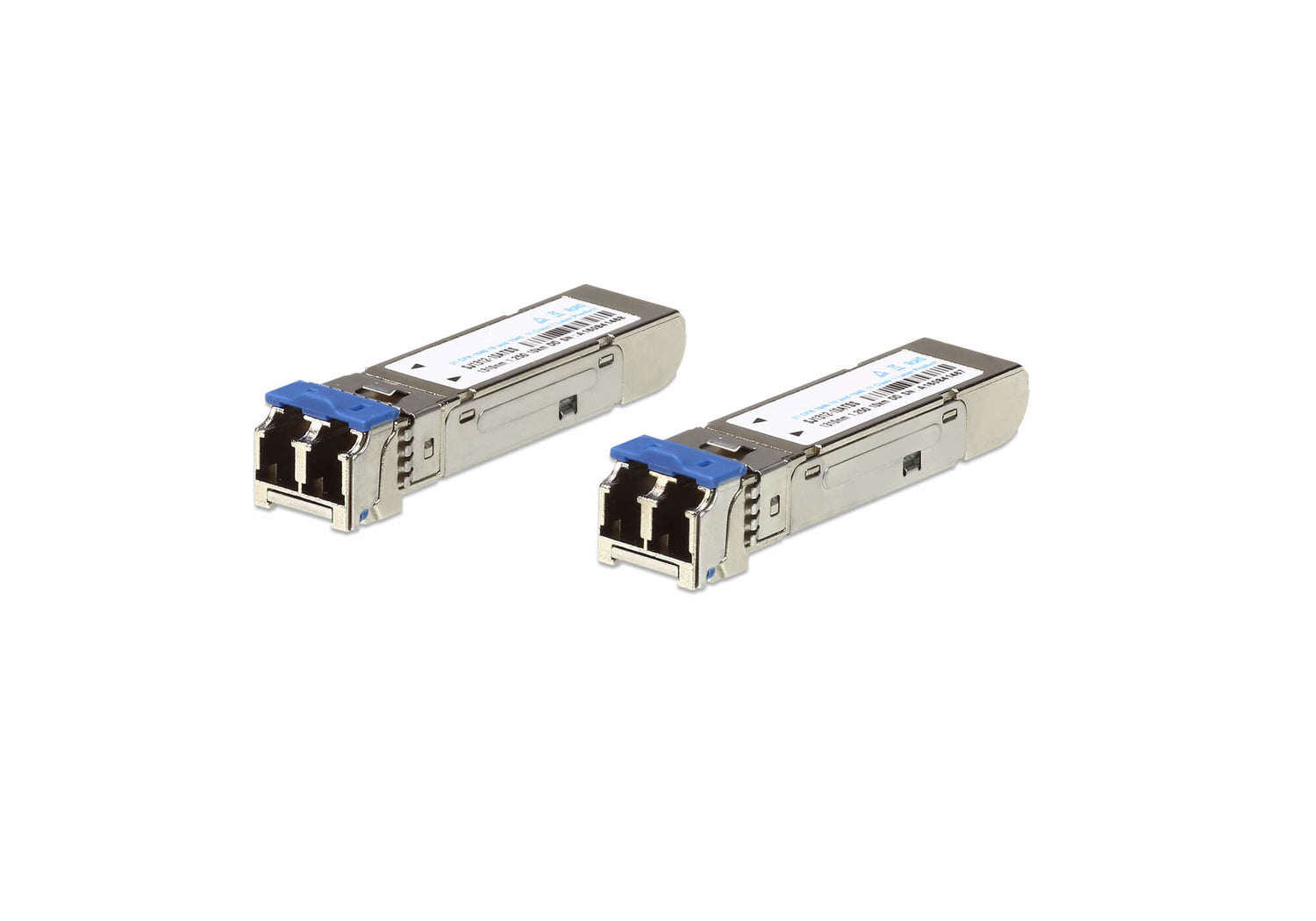

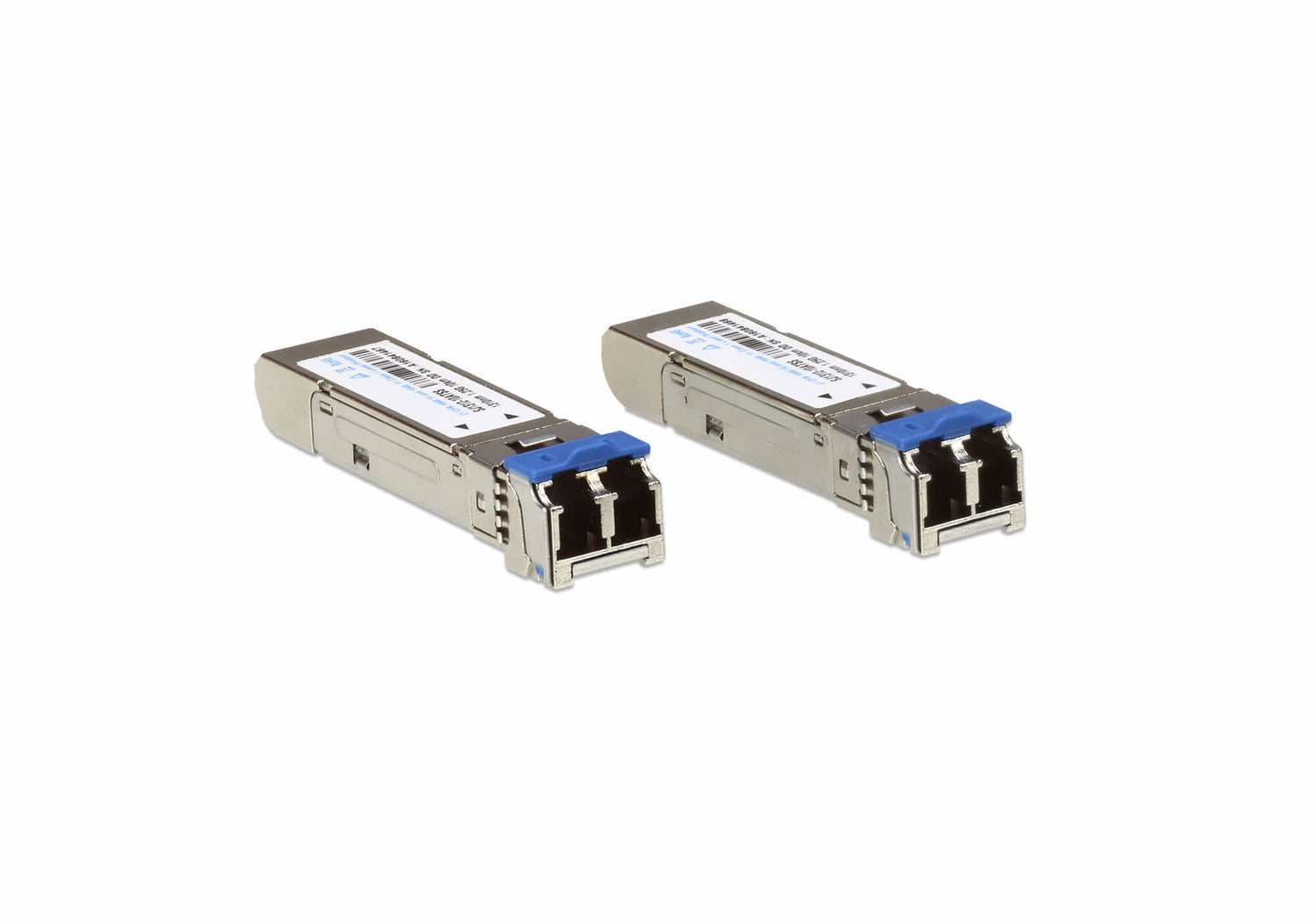

ATEN 2A-137G network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm - 2A-137G
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
ATEN 2A-137G network transceiver module Fiber optic 1250 Mbit/s SFP...
Description
Description
The 2A-137G 1.25G Single-Mode/10KM Fiber SFP Module provides 1 GbE connectivity up to 10 kilometers. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-137G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm which makes it a cost-effective and high performance transceiver.
- Extend your network connectivity up to 10 kilometers
- Differential Inputs and Outputs
- Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
- Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
- Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
- Operation Temperature from 0° C to 70° C
- RoHS Compliant
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Y |
| Maximum transfer distance | 10000 |
| Wavelength | 1310 |
| Digital Diagnostics Monitoring (DDM) | Y |
| Product colour | Black,Metallic |
| Compliance certificates | RoHS |
| Certification | IEC 825, EN60825-1, FDA 21 CFR 1040.10 |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Width | 144.6 |
| Depth | 55.9 |
| Height | 13 |
| Weight | 20 |
