ATEN 4-Port USB 3.0 8K DisplayPort KVMP™ Switch (Cables included) - CS1924A

Control four computers with a single USB keyboard and mouse while sharing USB peripherals and enjoying ultra-high-resolution video.

Built on ATEN’s enterprise-grade design heritage, the CS1924A belongs to ATEN’s first KVM switch series with 8K support, delivering professional-grade performance and reliable multi-computer control from a single console.

Ultra-High Resolution for Versatile Professional Applications
The CS1924A delivers up to 8K@60 Hz and 4K@120 Hz, providing precise, clear visuals for demanding tasks. It enables users to control multiple computers from a single console, supporting efficient multitasking and high-resolution workflows while keeping the workspace clean and organized.

Multi-Display Expansion and Broad Display Compatibility
Daisy-chaining further allows multi-display setups using a single keyboard and mouse, streamlining multi-screen workflows and enhancing productivity for complex tasks. With DisplayPort Dual-Mode (DP++) support, the switch can connect to HDMI or DVI displays via compatible adapters, expanding compatibility with a wide range of monitors.

Flexible and Intuitive Switching for Efficient Workflows
Multiple switching methods, including front panel pushbuttons, a remote port selector, hotkeys, mouse switching, and RS-232 commands, allow users to control connected computers seamlessly. This flexibility enables fast, efficient workflow management tailored to individual preferences, ensuring smooth transitions between multiple systems.

Efficient Peripheral Sharing and Easy Installation
The integrated USB 3.1 Gen 1 hub provides 5 Gbps data transfer speeds, enabling fast sharing of peripherals between connected computers. All required DisplayPort and USB cables, along with a power adapter, are included for quick, plug-and-play setup, helping users maintain a clean, organized, and fully functional workspace from the start.

• Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz
• Supports daisy-chaining for dual-display setups by connecting two CS1924A units, enabling dual-screen control through a single connection

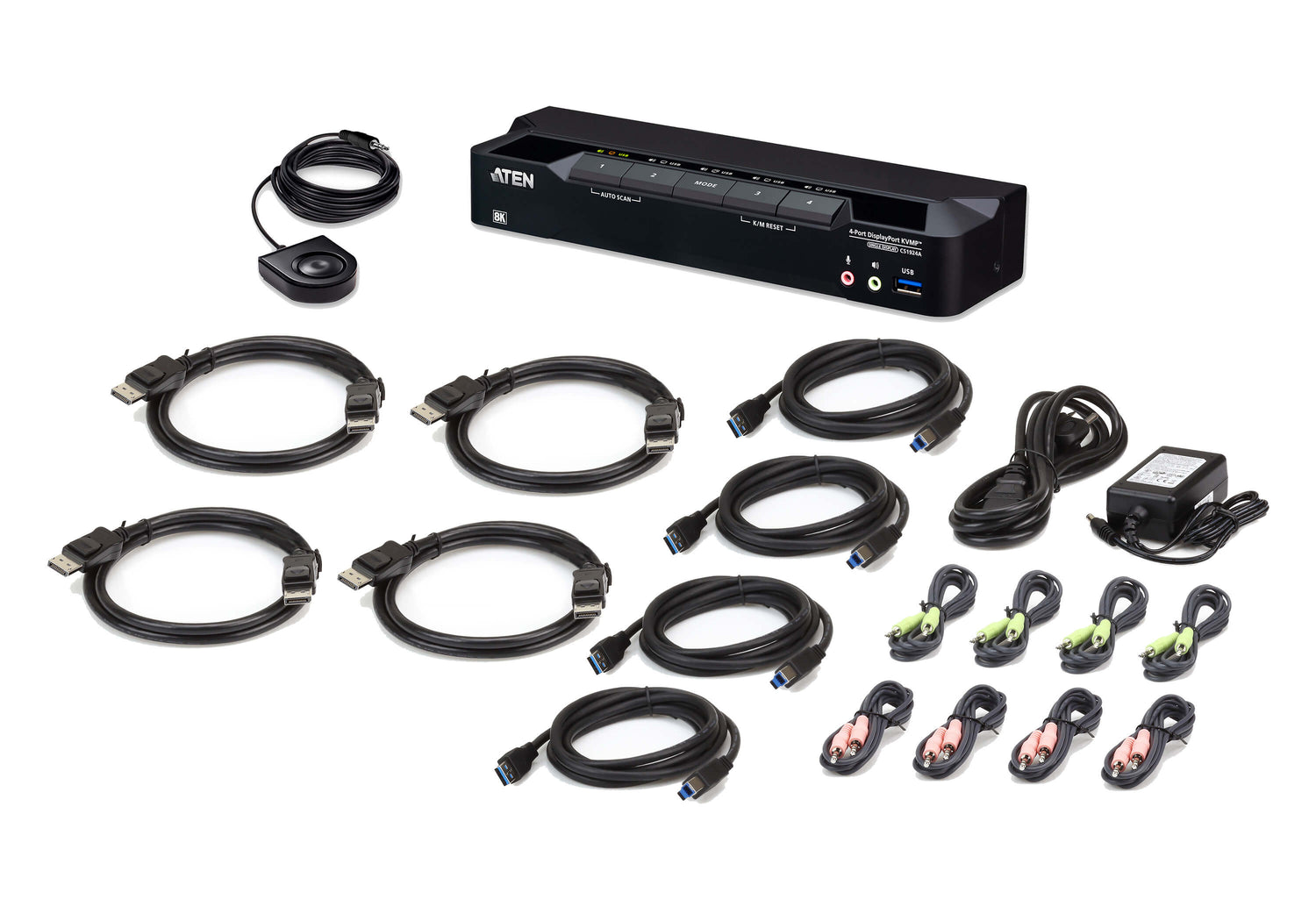

• All DisplayPort/USB cables and power adapter included for hassle-free installation
• Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone,DisplayPort,USB A
DisplayPorts quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console USB ports quantity	2
Console DisplayPorts ports quantity	1
Console RJ-45 ports quantity	1
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A,USB Type-B
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Y
HD type	8K Ultra HD
Maximum resolution	7680 x 4320
Video bandwidth	60
Scan interval	1,99
Maximum refresh rate	240
Rack mounting	N
Product colour	Black
LED indicators	Y
Push button	Y
Built-in display	N
Power source	DC
Input voltage	12
Power consumption (typical)	3.18
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Storage relative humidity (H-H)	0 - 80
Width	73
Depth	260
Height	43
Weight	620
Quick installation guide	Y
Harmonized System (HS) code	84718000
Country of origin	Thailand
