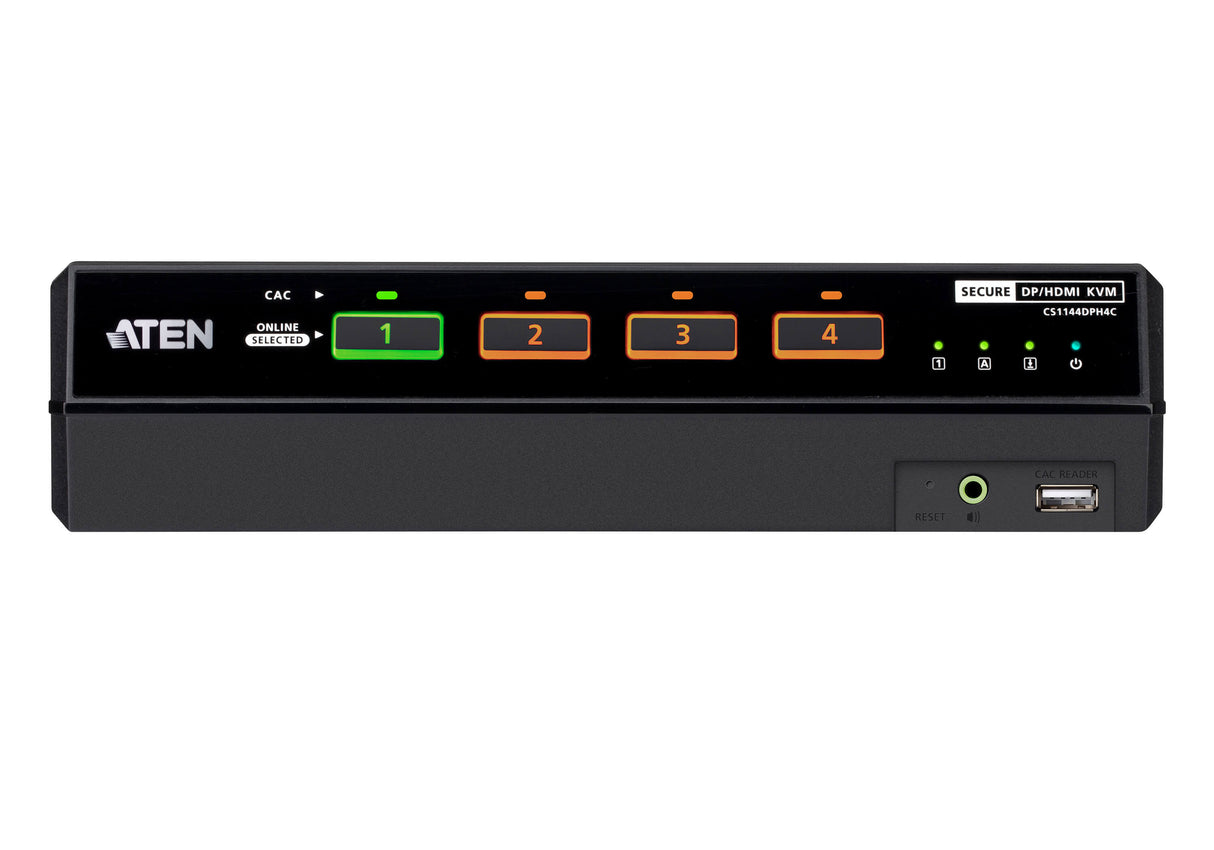

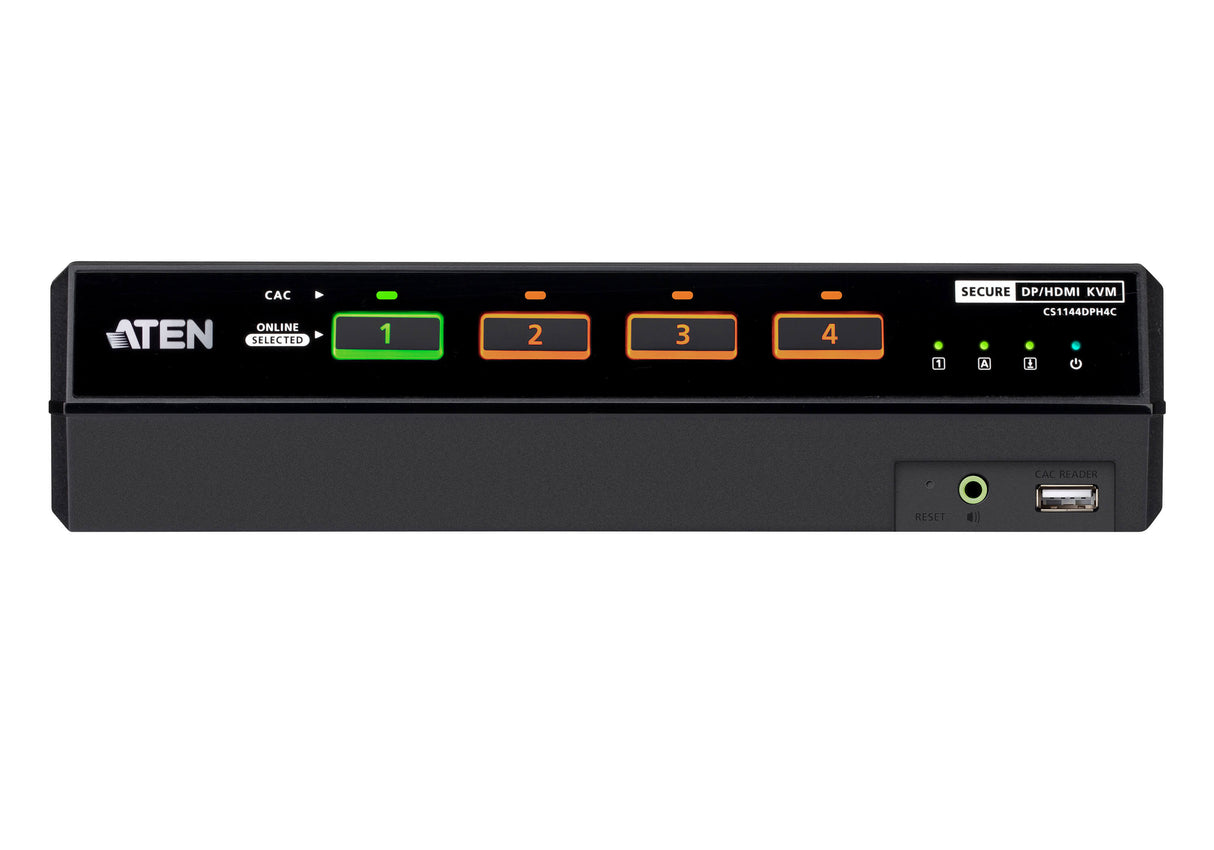

ATEN 4-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC (PSD PP v4.0 Compliant) - CS1144DPH4C

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.

To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Superior ultra-high video quality – up to 5K (5120 x 2880 @ 60Hz)
• DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
• Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
• Production in Taiwan

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Console ports	DisplayPort,HDMI,USB A
HDMI ports quantity	8
DisplayPorts quantity	8
USB 2.0 Type-B ports quantity	8
Console USB ports quantity	2
Console DisplayPorts ports quantity	2
Console HDMI ports quantity	2
USB 2.0 ports quantity	1
Audio connections	Y
Headphone outputs	5
RJ-11 ports quantity	1
DC-in jack	Y
HD type	5K Ultra HD
Maximum resolution	5120 x 2880
Maximum refresh rate	144
Rack mounting	Y
Product colour	Black
Housing material	Metal
LED indicators	Power,Key Lock
Push button	Y
Built-in display	N
Power source	DC
Input voltage	100 - 240
AC input frequency	50 - 60
Input current	1.2
Power consumption (typical)	29.16
External power adapter	Y
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	144.9
Depth	245
Height	60
Weight	1570
Manual	Y
AC adapter included	Y
Rubber feet	Y
Country of origin	Taiwan
