ATEN 4-Port USB DisplayPort Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant) - CS1144DP4C

ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

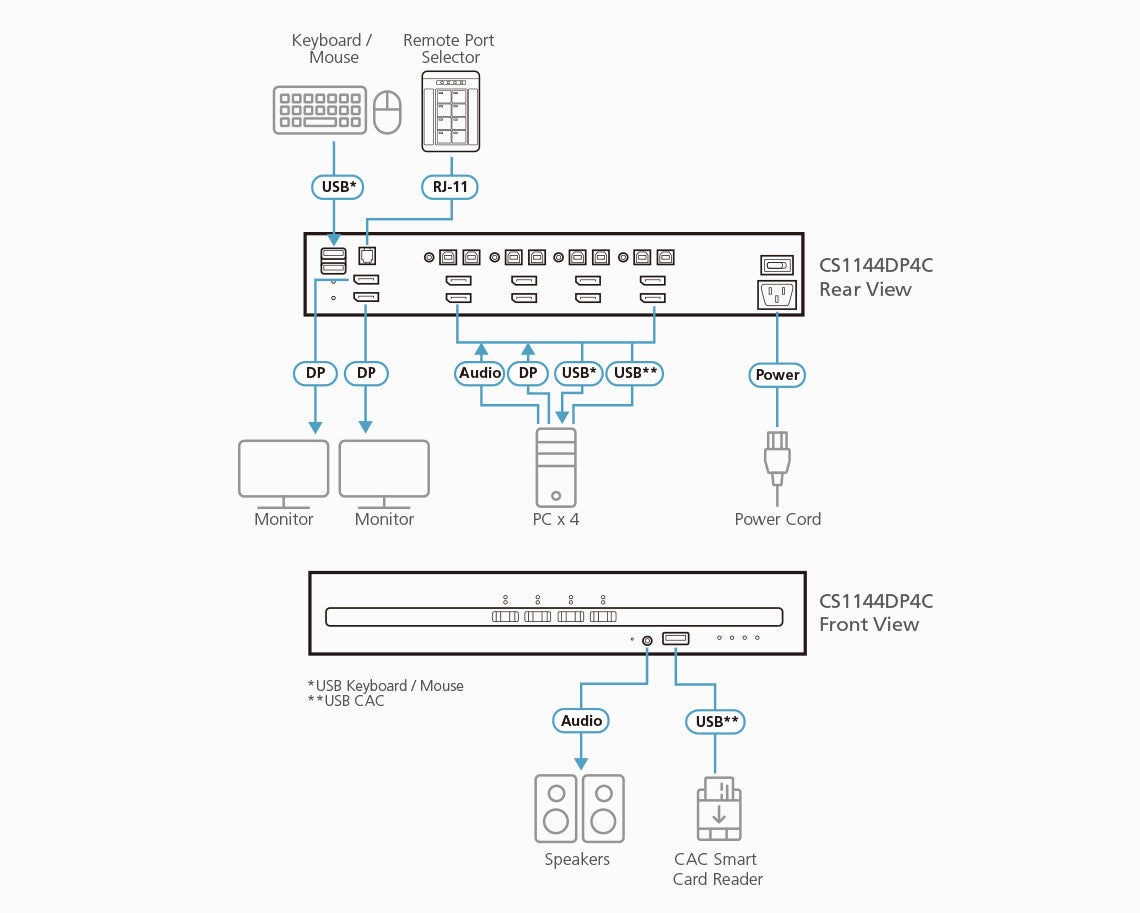

ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1.With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
• Configurable Device Filtration – supports administrative configuration to filter specific USB authentication devices and USB HID devices
• Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	DisplayPort,USB A
DisplayPorts quantity	8
USB 2.0 Type-B ports quantity	8
Console USB ports quantity	2
Console DisplayPorts ports quantity	2
USB hub	Y
USB 2.0 Type-A hub ports quantity	1
Headphone outputs	4
RJ-11 ports quantity	1
HD type	4K Ultra HD
Maximum resolution	3840 x 2160
Product colour	Black
Housing material	Metal
Wired remote switch	Y
LED indicators	Y
Push button	Y
Built-in display	N
Power source	AC
Input voltage	100 - 240
AC input frequency	50 - 60
Input current	1.5
Power consumption (typical)	13.9
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	163.9
Depth	335
Height	65.5
Weight	2370
Package width	131
Package depth	540
Package height	233
Package volume	16480.4047212
Package weight	3010
Cables included	AC
Manual	Y
Master (outer) case net weight	7110
Master (outer) case width	420
Master (outer) case length	555
Master (outer) case height	258
Master (outer) case gross weight	9950
Master (outer) case volume	60144.9821784
Country of origin	Taiwan
