ATEN CL3116NX rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U - CL3116NX

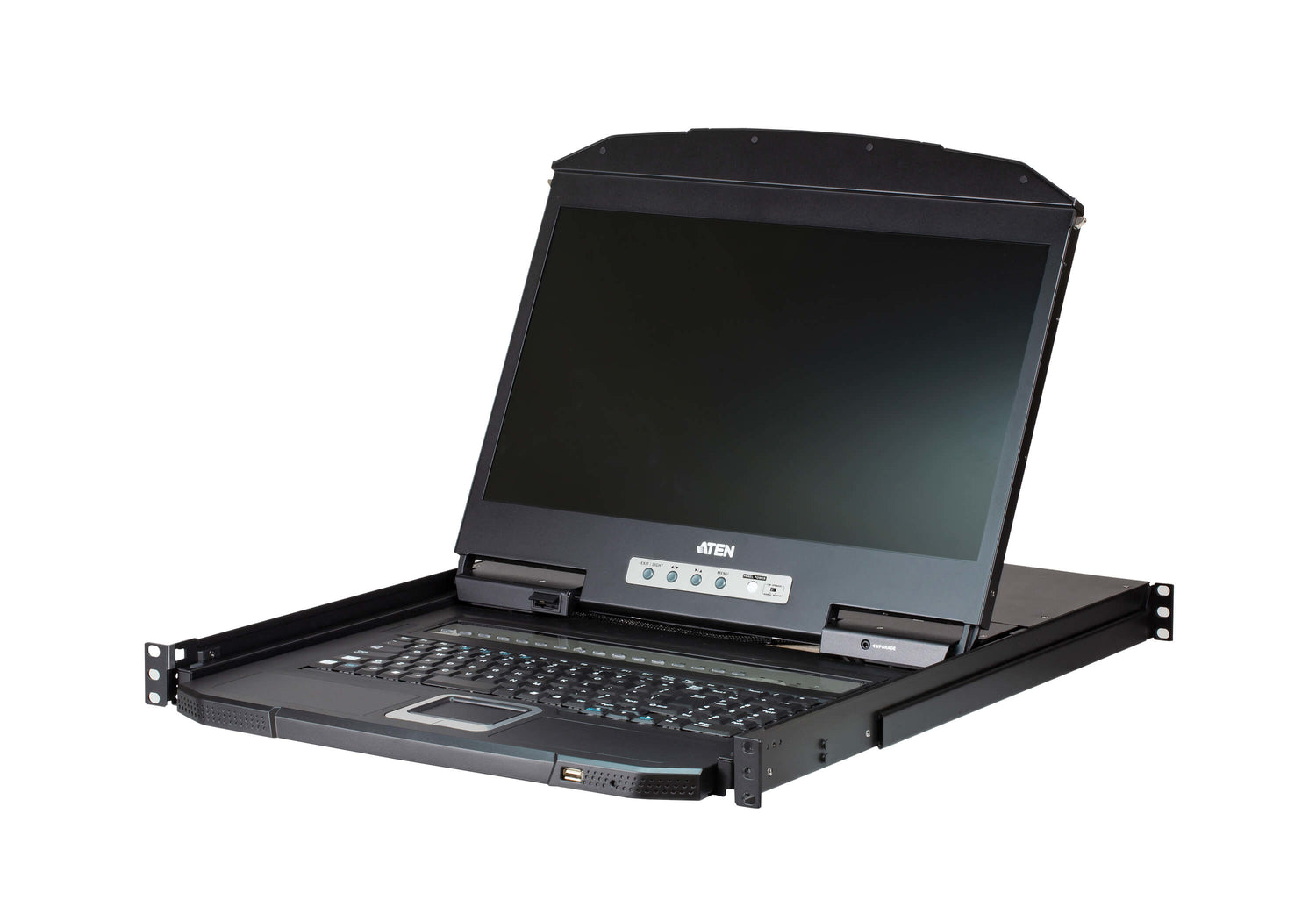

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

• Exclusive LED illumination light
• Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere

Display diagonal	18.5
Display resolution	1366 x 768
Display	TFT-LCD
Display brightness	250
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170
Viewing angle, vertical	160
On Screen Display (OSD)	Y
Pixel pitch	0.3 x 0.3
Display type	LED
Display number of colours	16.78 million colours
Rack capacity	1U
Material	Metal,Plastic
Product colour	Black
Hot-Plug support	Y
Operating relative humidity (H-H)	0 - 80
Built-in KVM switch	Y
KVM switch ports quantity	16
Rack mounting	Y
LED indicators	Y
3.5 mm (1/8-inch) in	Y
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Hot keys	Y
Power supply type	AC
AC adapter input voltage	100 - 240
AC adapter frequency	50 / 60
Input current	1
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Width	480.6
Height	631.7
Depth	42.8
Weight	10600
