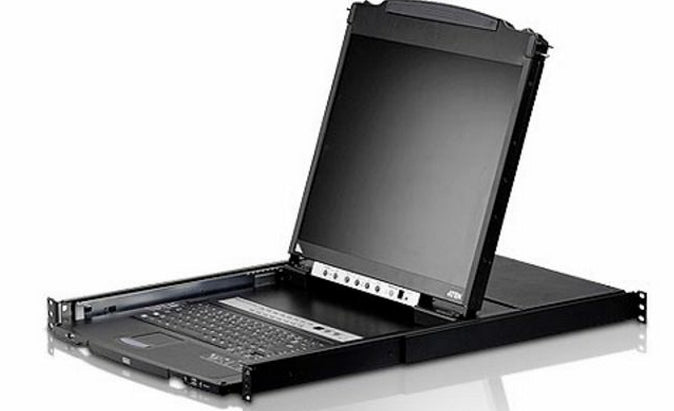

ATEN CL5808N KVM switch Black - CL5808N

Features
- Integrated KVM console with 19" LCD in a Dual Rail housing
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units*– control up to 256 computers from two consoles (one bus)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Supports USB peripherals for computers connected to the local station
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console Lock - enables the console drawer to remain securely locked away in position when not in use
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

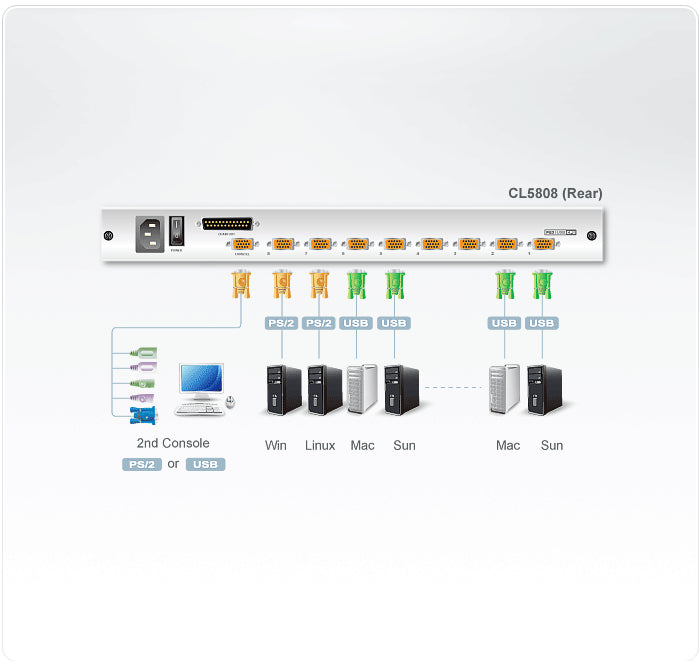

- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
- With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- LCD power button helps save energy and prolong display's life
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable

Package Contents
- 1x CL5808 KVM Switch with Standard Rack Mounting Kit
- 2x 2L-5302UP PS/2 USB KVM Cables
- 1x LIN5-27X6-U21G 5-in-1 Console Cable
- 1x Firmware Upgrade Cable
- 1x 1ADP-0007-001G Power Cord
- 1x User Instructions

• Black
• Number of computers controlled: 8
• Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
• 1920 x 1440 pixels
• Housing material: Metal, Plastic
• LCD Built-in display
• 30.7 W

Number of computers controlled	8
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
HDMI ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	0
USB 2.0 ports quantity	2
Maximum resolution	1920 x 1440
Scan interval	255
Product colour	Black
Housing material	Metal,Plastic
LED indicators	Y
Built-in display	Y
Display	LCD
Power consumption (typical)	30.7
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	680.72
Depth	480.06
Height	44.19
Weight	14968.5
Quick installation guide	Y
Manual	Y
Connectivity technology	Wired
Compatibility	ACS1208A, ACS1216A,CS1708A,CS1716A
Ports quantity	8
Compatible operating systems	Windows, Linux, Mac, Sun
Power requirements	100 - 240V
RJ-12 ports quantity	0
Display resolution at frequency	1280x1024@75 Hz
