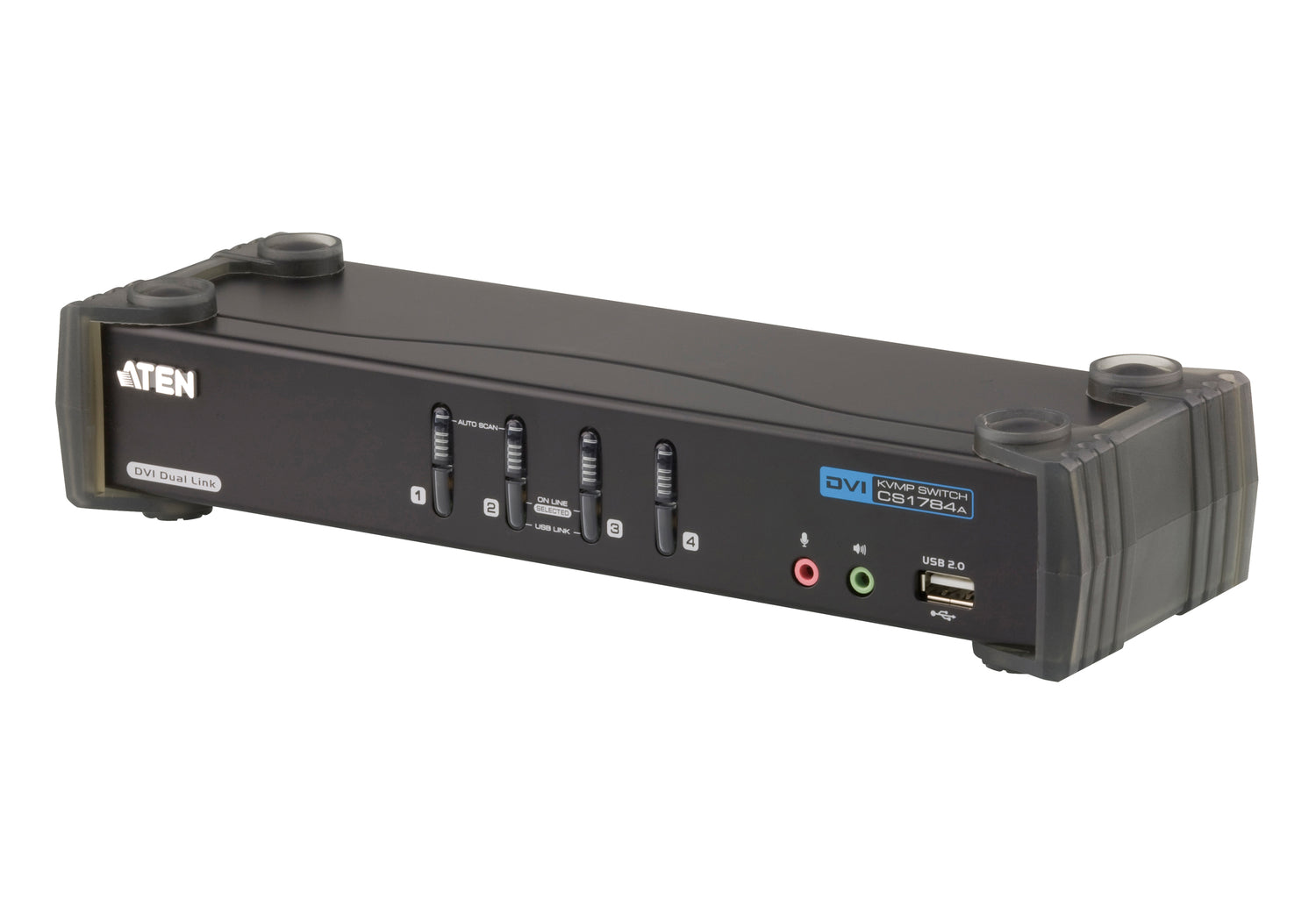

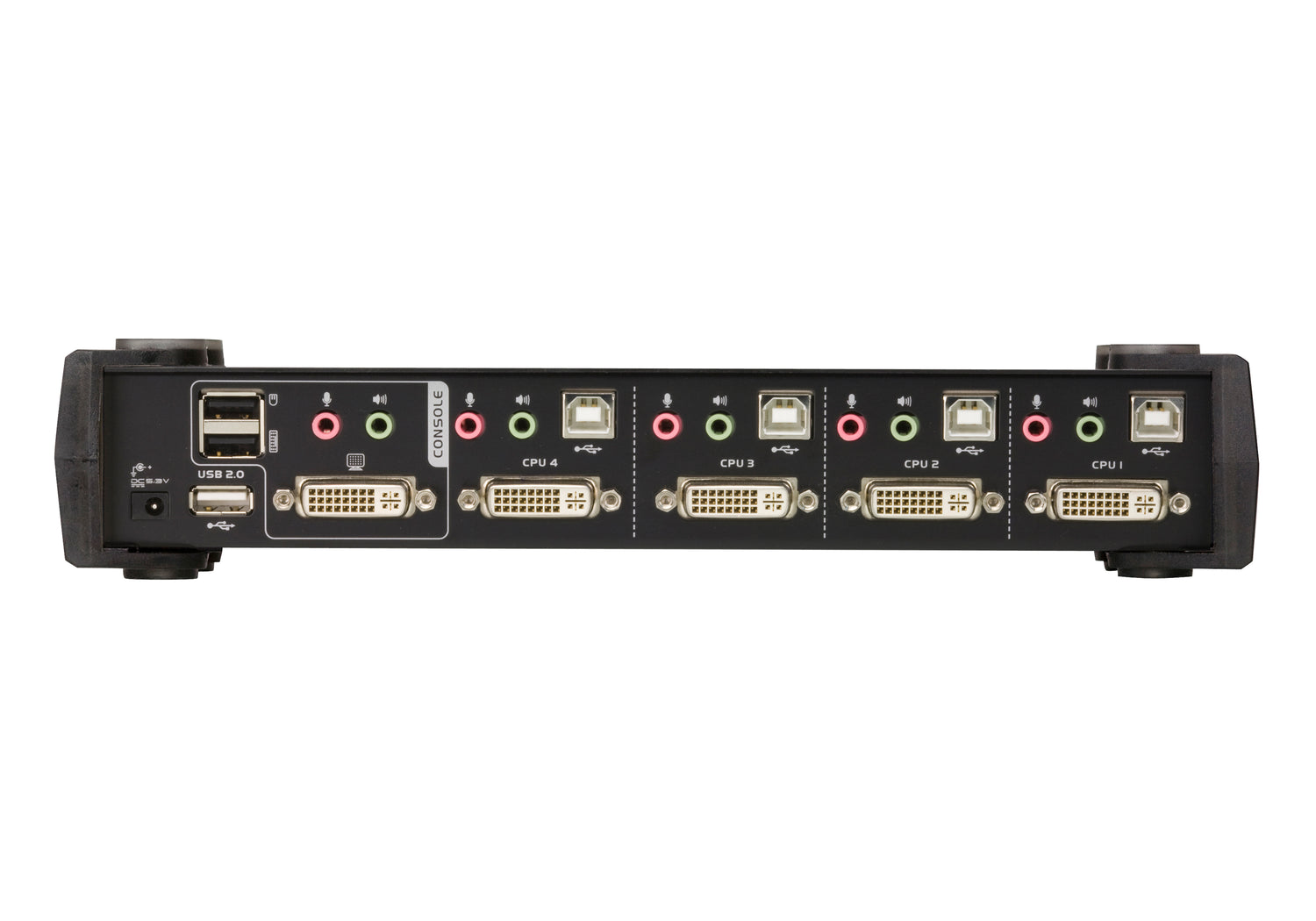

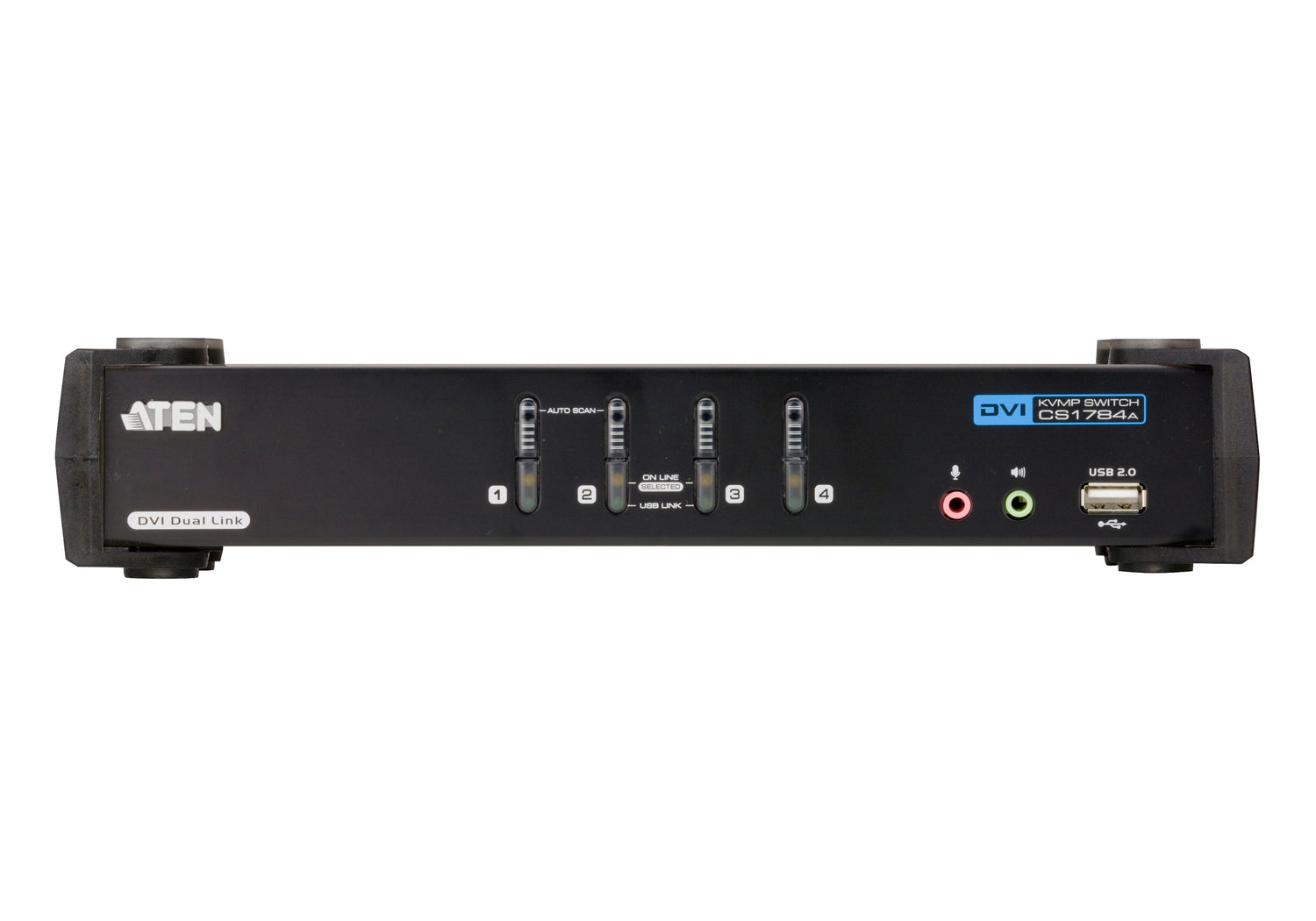

ATEN CS1784A KVM switch Black - CS1784A
$478.44
Unit price
/
Unavailable
Description
Description
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- * PC keyboard combinations emulate Mac/Sun keyboards
- Mac/Sun keyboard work only with their own
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Console ports | 3.5mm headphone,3.5mm mic,DVI-I,USB A |
| DVI-I ports quantity | 5 |
| Console USB ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| Audio connections | Y |
| Headphone outputs | 4 |
| Number of microphone inputs | 2 |
| DC-in jack | Y |
| Maximum resolution | 2560 x 1600 |
| Scan interval | 1,99 |
| HDCP | Y |
| Power on detection | Y |
| Firmware upgradeable | Y |
| Rack mounting | N |
| Product colour | Black |
| Housing material | Metal |
| Push button | Y |
| Hot keys | Y |
| Built-in display | N |
| Power source | DC |
| Input voltage | 5.3 |
| Power consumption (typical) | 10 |
| Windows operating systems supported | Y |
| Linux operating systems supported | Y |
| Mac operating systems supported | Y |
| Other operating systems supported | Y |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Width | 270 |
| Depth | 88 |
| Height | 55.5 |
| Weight | 930 |
| Cables included | KVM |
| Manual | Y |
| AC adapter included | Y |
| Harmonized System (HS) code | 85176200 |
