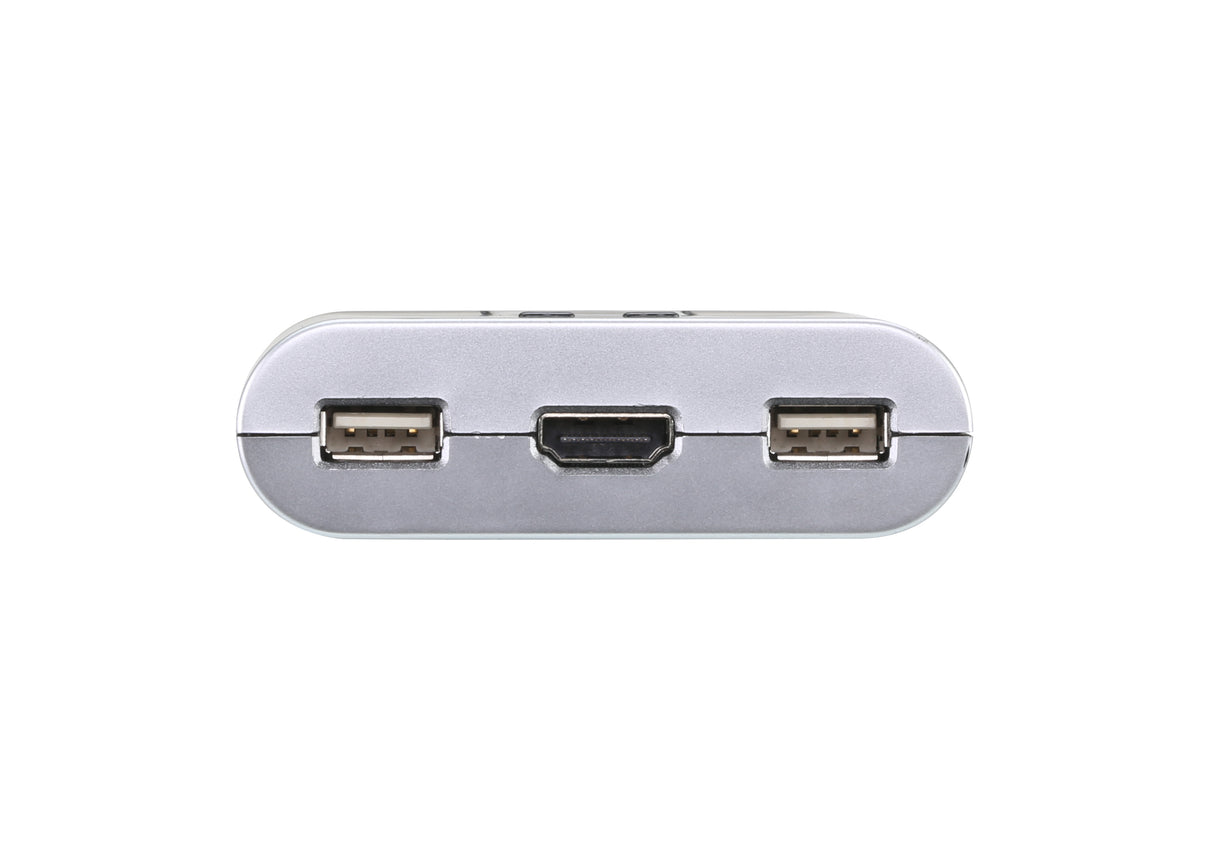

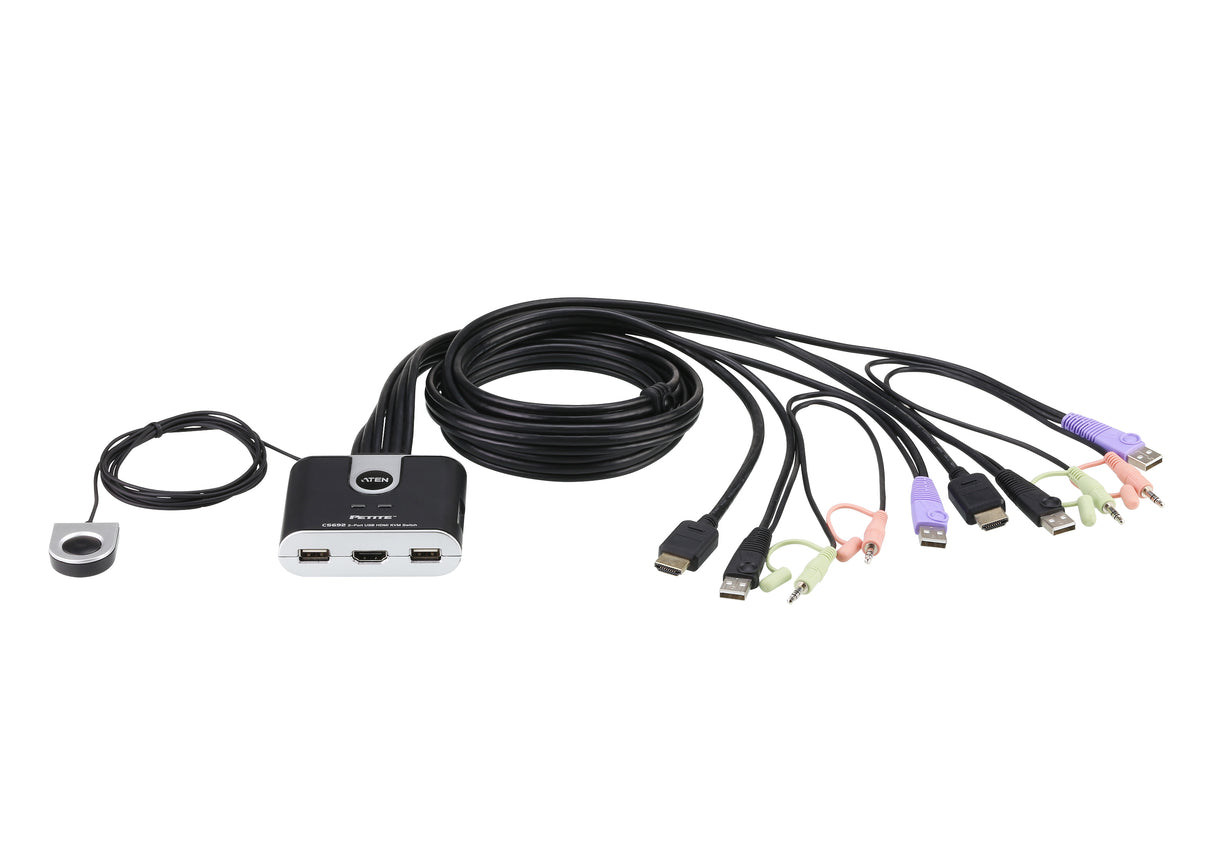

ATEN CS692 KVM switch Black - CS692

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.

• Superior video quality - up to 1920 x 1200 and 1080p
• Computer selection via a remote port selector, hotkeys, and USB mouse
• Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
• Built-in all-in-one cables (2 x 1.2 m) and bus-powered design

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone,3.5mm mic,HDMI,USB A
HDMI ports quantity	2
Console USB ports quantity	2
Console HDMI ports quantity	1
USB 2.0 Type-A hub ports quantity	4
USB connector type	USB Type-A
Audio connections	Y
Headphone outputs	3
Number of microphone inputs	3
HD type	WUXGA
Maximum resolution	1920 x 1200
Video bandwidth	60
Scan interval	3,5,10,20
Rack mounting	N
Product colour	Black
Housing material	Plastic
Cable length	1.2
Remote switch cable length	1.8
LED indicators	Y
Push button	Y
Hot keys	Y
Built-in display	N
Power source	DC
Input voltage	5
Power consumption (typical)	0.72
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Storage relative humidity (H-H)	0 - 80
Width	82.4
Depth	66.5
Height	25.2
Weight	480
Quick installation guide	Y
Manual	Y
