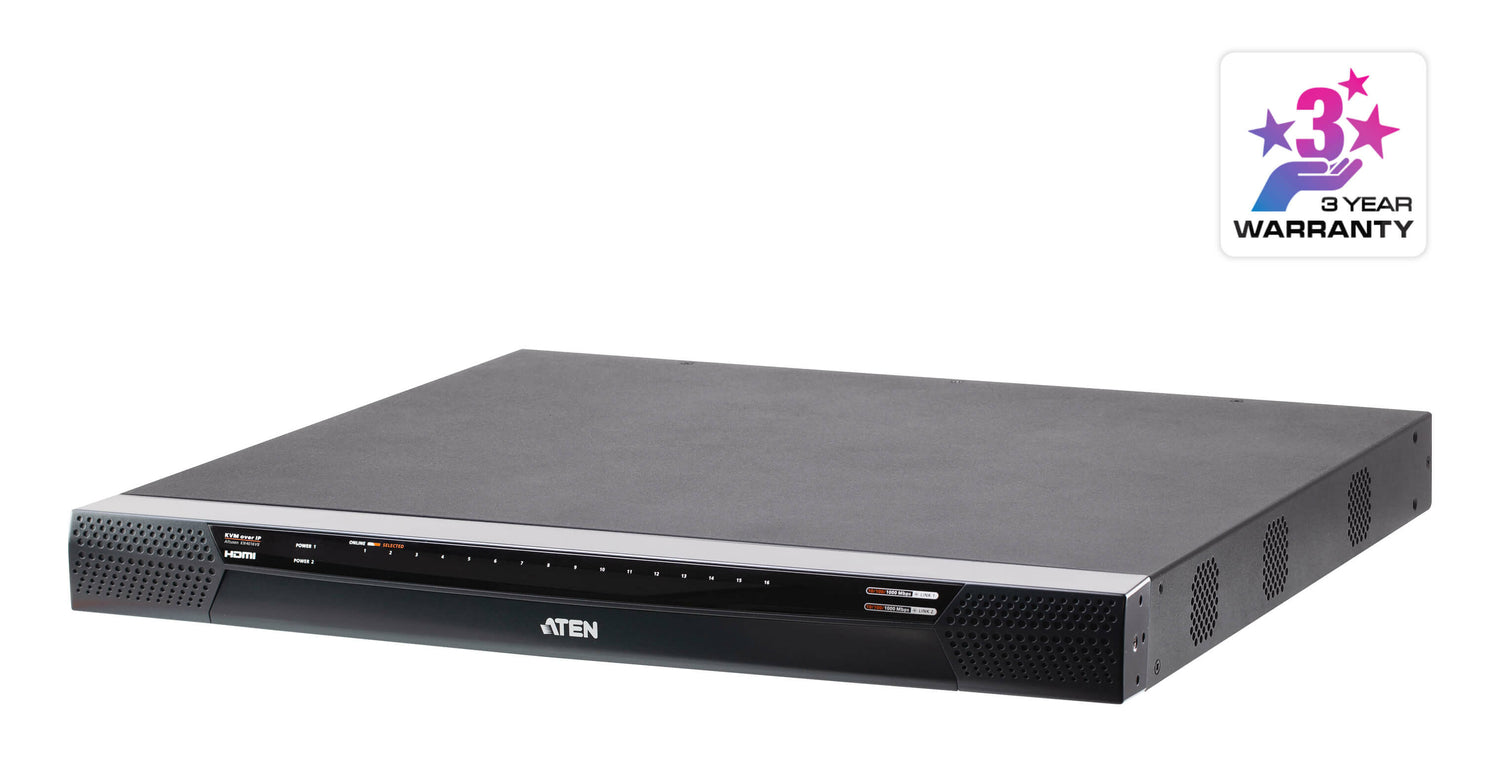

ATEN KN4016VB KVM switch Black - KN2132VB

The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information.

This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.

The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.

The KN series is compatible with ATEN’s KVM over IP Console Station – the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN’s PDU remote power management systems from the KVM over IP switches’ user interface.

Additional exclusive features of KN series include Message Board, Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user’s time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

Note: We recommend using WinClient app or JavaClient app for more robust management and control. Performance and usage may vary depending on the user's hardware configuration. A minimum of 8GB RAM, dual core CPU and a graphics card that supports OpenGL is required. Please also make sure that the browser is the latest version.

• Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
• Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
• Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software

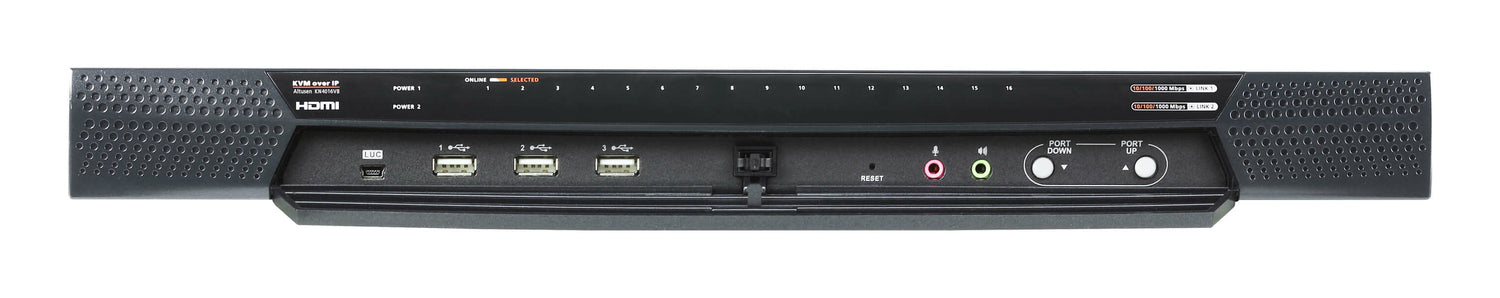

• Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation

Number of computers controlled	16
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	HDMI/VGA

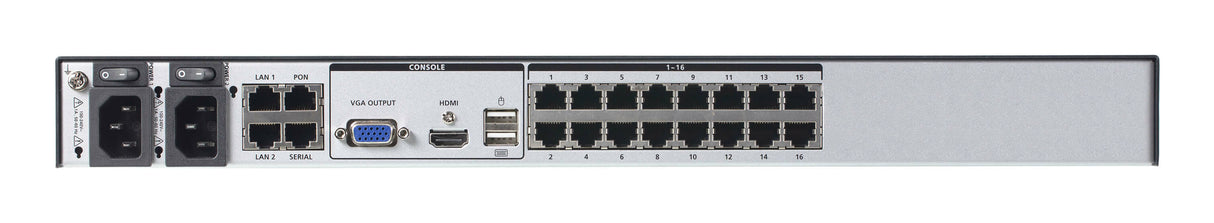

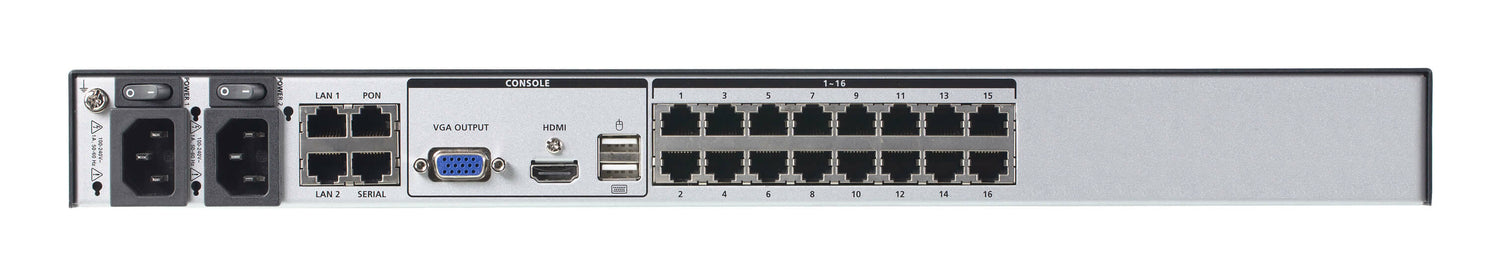

Console ports	HDMI,Mini-USB B,USB A,VGA (D-Sub)
VGA (D-Sub) ports quantity	1
Console USB ports quantity	2
Console HDMI ports quantity	1
USB hub	Y
USB 2.0 Type-A hub ports quantity	3
USB connector type	Mini-USB B,USB Type-A
Serial port type	RJ-45
Serial ports quantity	1
Audio connections	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	20
HD type	Full HD+
Maximum resolution	1920 x 1200
Video bandwidth	60
Scan interval	1,255
Firmware upgradeable	Y
Product colour	Black
Housing material	Metal
Cascadable	Y
LED indicators	Y
Push button	Y
Hot keys	Y
Built-in display	N
Power source	AC
Input voltage	100 - 240
AC input frequency	50/60
Input current	1
Power consumption (typical)	44
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	412.1
Depth	433.6
Height	44
Weight	5190
Quick installation guide	Y
