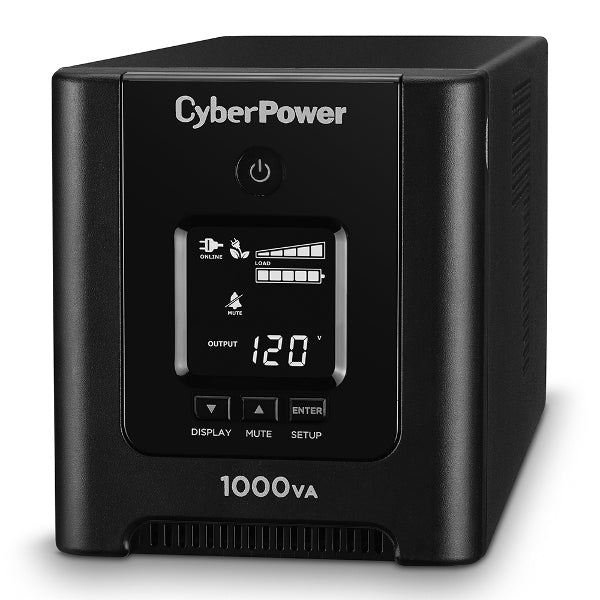

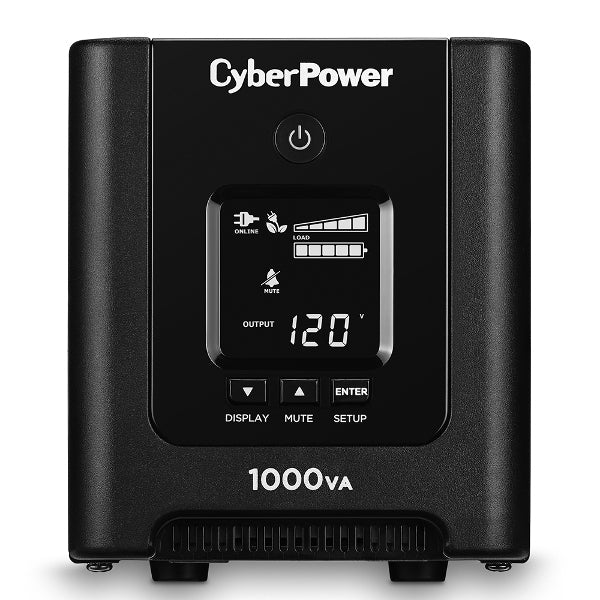

CyberPower OR1000PFCLCD uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s) - OR1000PFCLCD

The CyberPower PFC Sinewave OR1000PFCLCD mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding networking hardware, network-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

CyberPower's OR1000PFCLCD with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 6.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

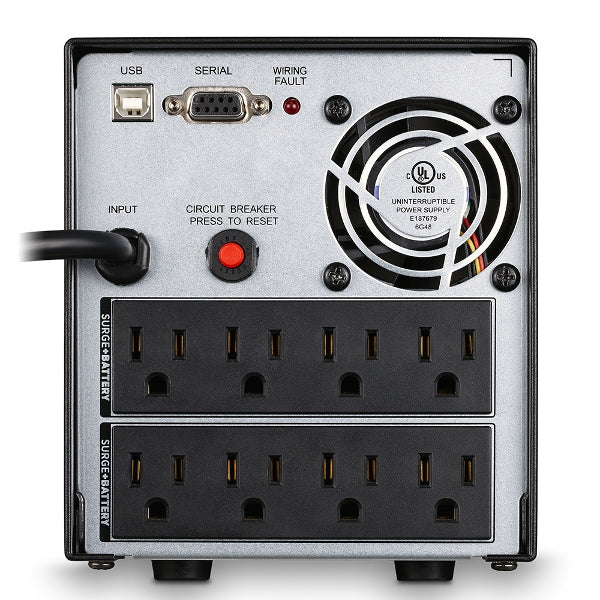

The OR1000PFCLCD unit has a capacity of 1000VA / 700W, eight (8) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The front LCD panel displays all major UPS vitals for ease of use and provides user selectable options to customize performance. This unit offers connectivity via one (1) HID USB and one (1) DB9 port. EMI/RFI filters decrease the susceptibility of the load to noise disturbances.

This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.

• Line-Interactive
• 1 kVA 700 W
• 8 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Mini Tower Black

UPS topology	Line-Interactive
Output power capacity	1
Output power	700
Input operation voltage (min)	78
Input operation voltage (max)	142
Input frequency	50/60
Output operation voltage (min)	120
Output operation voltage (max)	120
Automatic Voltage Regulation (AVR)	Y
Surge energy rating	1030
EMI/RFI noise filtering	Y
Surge protection	Y
Power protection features	Overload
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
AC outlets quantity	8
USB 2.0 ports quantity	1
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Typical backup time at full load	2
Typical backup time at half load	10
Battery recharge time	8
Form factor	Mini tower
Product colour	Black
Cable length	1.8
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-15 - 45
Operating relative humidity (H-H)	0 - 90
Operating altitude	0 - 3000
Non-operating altitude	0 - 15000
Compliance certificates	RoHS
Safety	UL1778 4th, cUL 107.3-05, FCC/DoC Class B
Sustainability certificates	ENERGY STAR
Width	137
Depth	163
Height	351
Weight	11200
