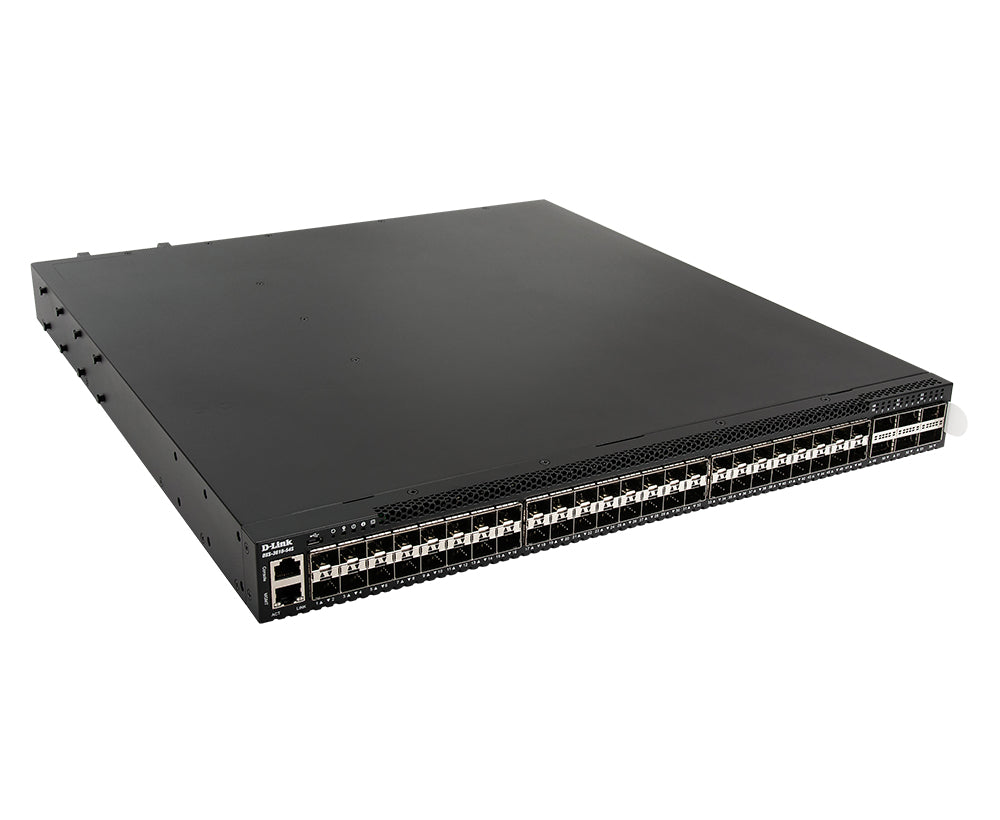

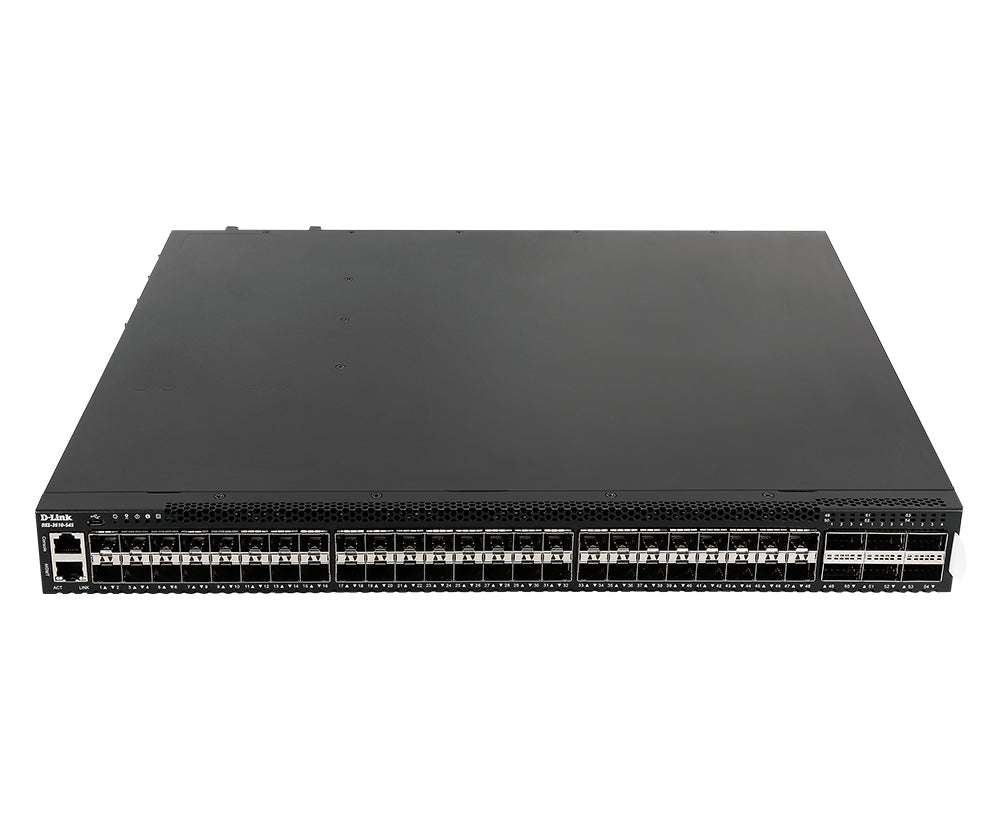

D-Link 48-port 10G SFP+ Layer 3 Stackable 10G Managed Switch - DXS-3610-54S/SI

OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

Hot-Swappable Redundancy

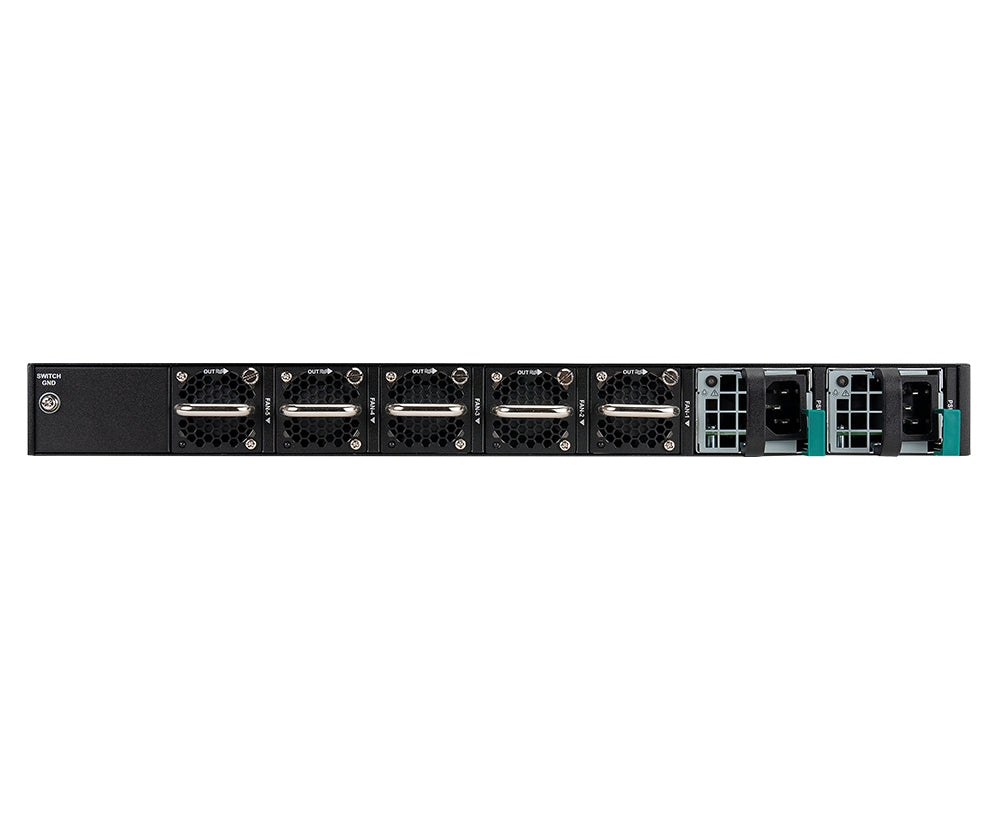

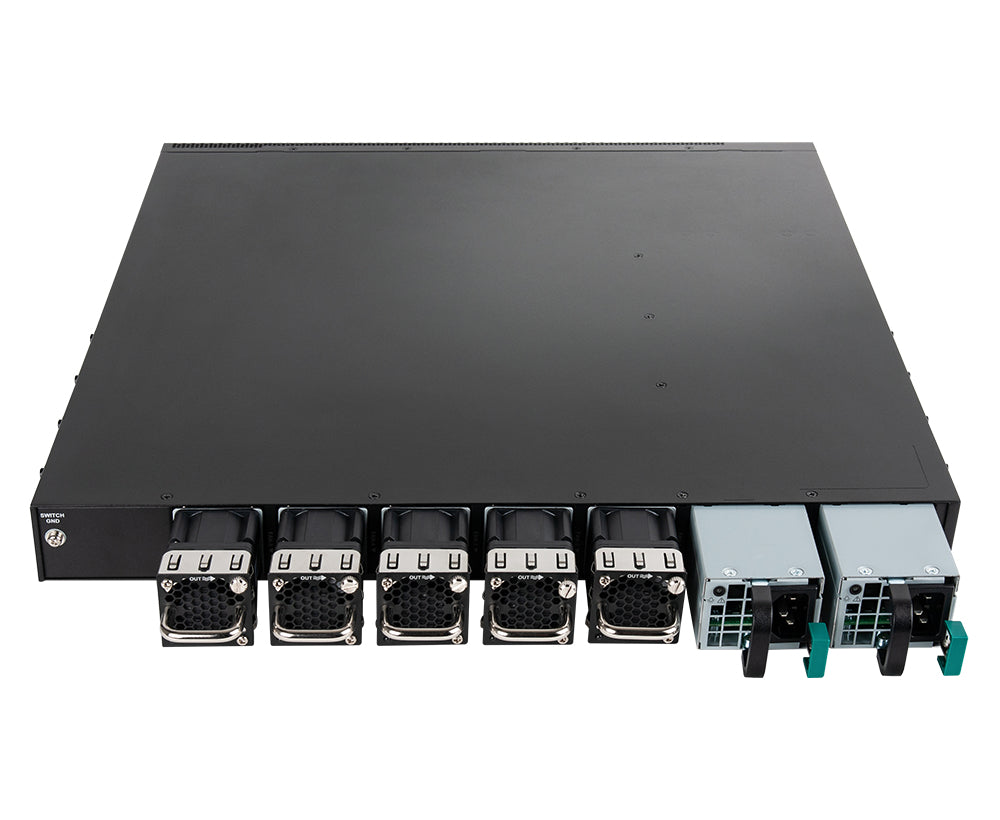

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.

Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

• High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
• Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
• OpenFlow 1.3 compliance for SDN-enabled network compatibility
• Modular PSU (1+1) and fan (N+1) with load sharing capabilities
• Switch locator LED and ID tag for maintenance convenience
• Upgradable license for full L3 and MPLS applications

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
Basic switching RJ-45 Ethernet ports type	N
SFP+ module slots quantity	48
Console port	RJ-45
QSFP28 ports quantity	6
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x
10G support	Y
Port mirroring	Y
Full duplex	Y
IP routing	Y
Flow control support	Y
Link aggregation	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
VLAN support	Y
Virtual LAN features	MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN
MAC address table	294912
Switching capacity	2211.84
Forwarding rate	1607.04
Number of queues	8
Static route	Y
Jumbo frames support	Y
Jumbo frames	9436
Packet buffer memory	32
DHCP features	DHCP client,DHCP server,DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
SSH/SSL support	Y
BPDU filtering/protection	Y
Multicast support	Y
Management protocols	SNMP v1/v2c/v3
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
Number of fans	5
Electromagnetic compatibility	FCC, CE, C-Tick, IC, VCCI
Physical stacking (units)	12
Virtual stacking (units)	32
Noise level	79.4
Mean time between failures (MTBF)	94262
Power supply included	Y
Redundant power supply (RPS) support	Y
AC input voltage	110 - 240
AC input frequency	50 - 60
Power consumption (typical)	120.6
Power consumption (max)	320.8
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Heat dissipation	1083
Width	441
Depth	487.44
Height	43.5
Weight	9800
Certification	CB, cUL, LVD
Harmonized System (HS) code	85176990
