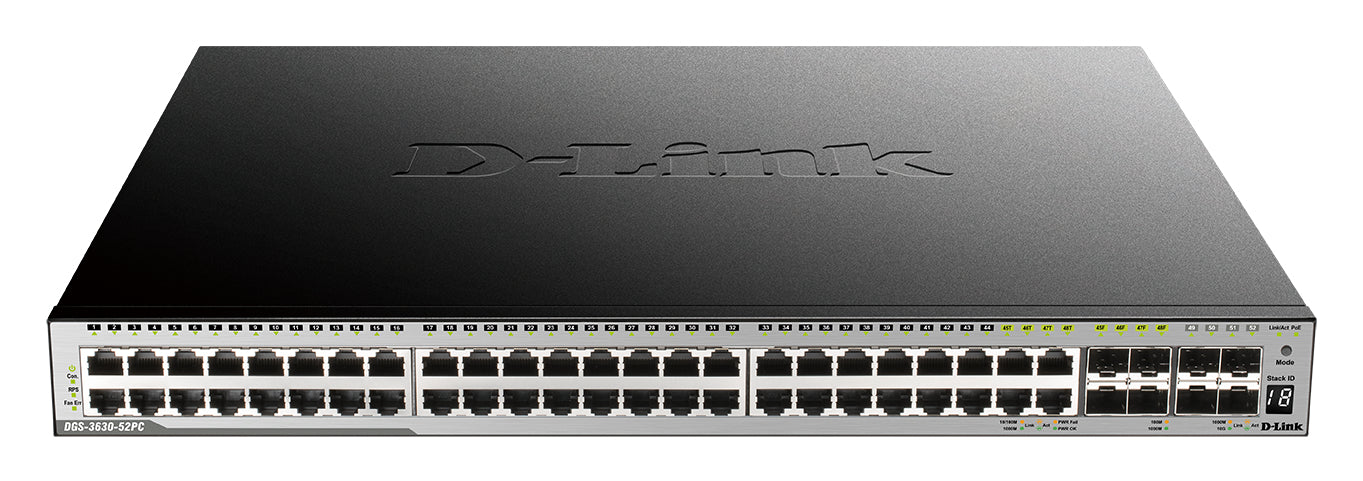

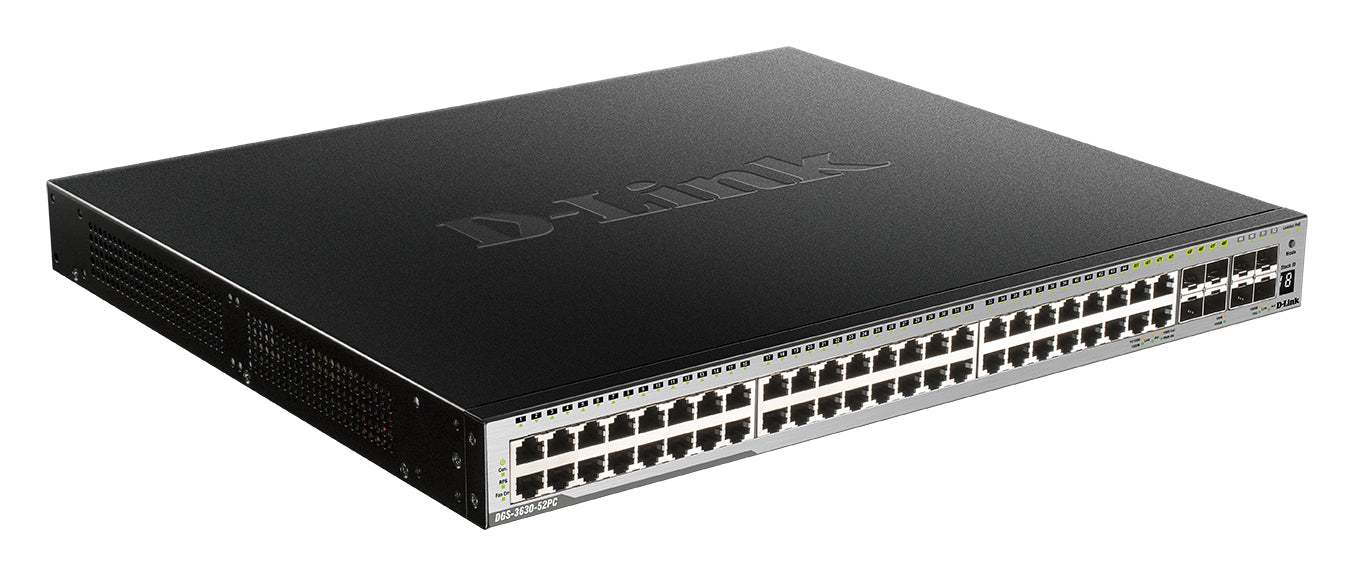

D-Link 48-Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+ - DGS-3630-52PC/SI

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

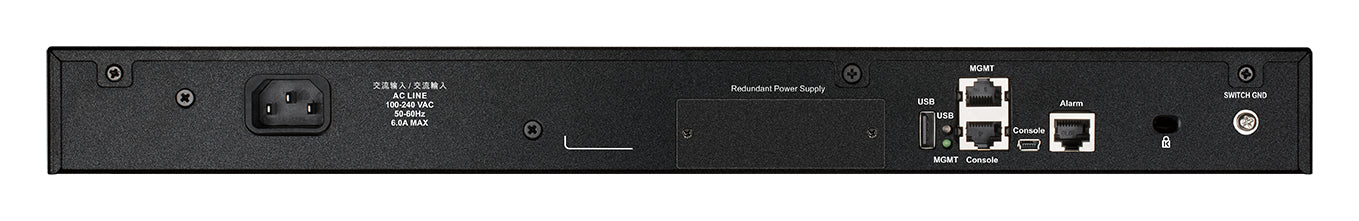

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

• Designed for Small to Medium Businesses, Enterprises and ISPs
• Deliver high performance, flexibility, fault tolerance, and advanced software features
• Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
• High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
• DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at
10G support	Y
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Y
Full duplex	Y
IP routing	Y
Routing entries	16000
Flow control support	Y
Link aggregation	Y
Head-of-line (HOL) blocking	Y
Auto-negotiation	Y
Ethernet Ring Protection Switching (ERPS)	Y
VLAN support	Y
Virtual LAN features	Private VLAN,Voice VLAN,Protocol-based VLAN,MAC address-based VLAN,Port-based VLAN
Number of VLANs	4000
MAC address table	68000
Switching capacity	176
Forwarding rate	130.95
Store-and-forward	Y
Static route	Y
Number of static routes	512
Jumbo frames support	Y
Jumbo frames	12000
DHCP features	DHCP server,DHCP client
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	802.1x RADIUS,SNMP,SNMPv3,SSH,SSL/TLS
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Rack mounting	Y
Stackable	Y
Product colour	Black,Grey
Number of fans	4
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC
Physical stacking (units)	9
Virtual stacking (units)	32
Built-in processor	Y
Redundant power supply (RPS) support	Y
AC input voltage	100 - 240
AC input frequency	50 - 60
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	370
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 95
Storage relative humidity (H-H)	5 - 95
Width	441
Depth	380
Height	44
Weight	6300
Package width	538
Package depth	560
Package height	170
Package weight	8599.6
Shipping (inner) case height	572
Shipping (inner) case width	362
Shipping (inner) case length	579
Shipping (inner) case net weight	13667.7
Products per shipping (inner) case	2
Pallet gross weight (air)	355460
Master (outer) cases per pallet (air)	18
Products per pallet (air)	36
Pallet gross length	1100
Pallet gross width	1200
Pallet height (air)	1851
Pallet gross weight (sea)	355460
Master (outer) cases per pallet (sea)	18
Products per pallet (sea)	36
Pallet height (sea)	1851
Shipping (inner) case gross weight	18720
Harmonized System (HS) code	85176990
