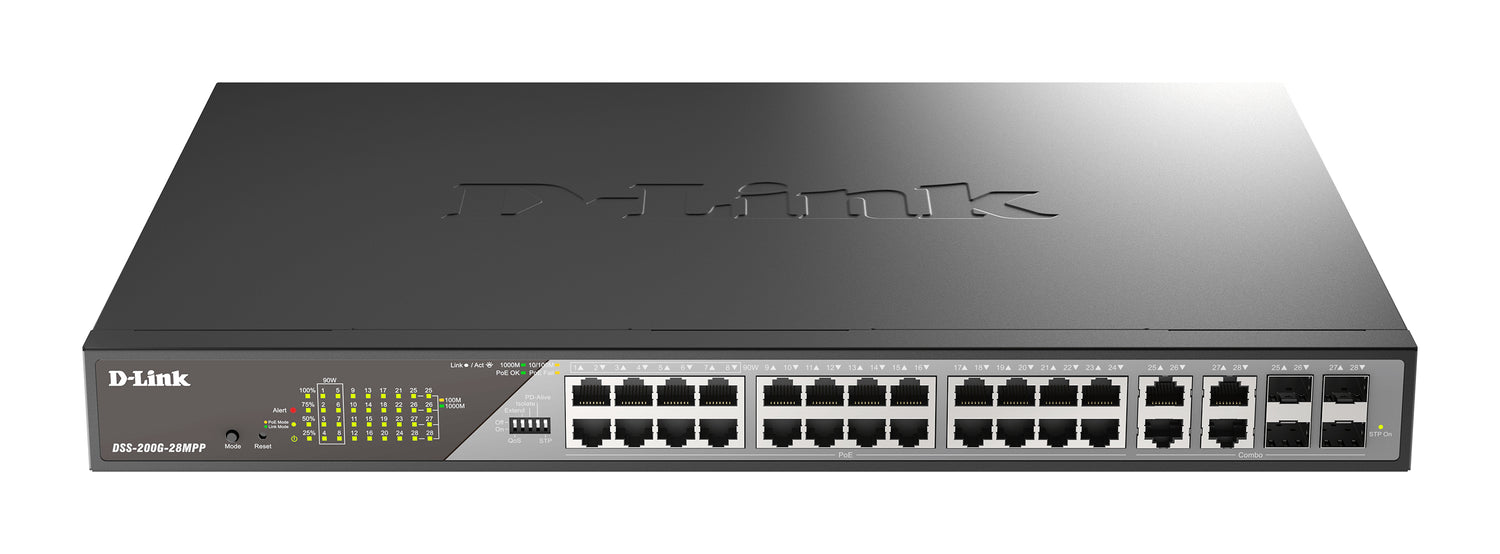

D-Link DSS-200G-28MPP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey - DSS-200G-28MPP

Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

Built for Surveillance,
with Gigabit Ethernet & PoE++
Designed to meet surveillance requirements for businesses of all sizes, with features like support for high-powered PTZ cameras, high PoE budgets, Auto Surveillance VLAN, and surge protection, these switches are ideal for IP surveillance setups.

Long Range PoE Delivery
Connect and power cameras up to 250 metres away without the need for additional PoE extenders.

Power Your Devices
Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.

Reliable PoE Connections
Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.

Rapid deployments with a single PoE cable.
The series supports PoE, and some provide higher power PoE++, delivering up to 90 watts on selected ports, enabling faster deployment of PoE devices such as IP cameras, VoIP phones, access points, terminals, speakers, lights, conferencing systems, displays, and more.

Reach further with a flick of a switch.
The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS, Extend (connection by up to 250 metres), Port Isolation, PD-Alive and STP (Spanning Tree Protocol) in an instant.

Protects the network against power surges.
6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation, ERPS and STP support to make your network more robust and resilient.

Connect to more with PoE++
See your remaining power availability with the built-in PoE Power Budget LEDs for 25%, 50%, 75%, and 100% power usage at a glance. And utilise up to 518W, with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP, so you can rapidly deploy more devices.

Layer 2 management features.
Comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.

Quality of Service and bandwidth control.
Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.

Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, sparing businesses the expense of dedicated hardware and facilities.

Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.

Energy efficient
With built-in D-Link Green technology, this series saves power without sacrificing operational performance or functionality.

Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings

Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode

Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy

We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.

• High PoE budgets and support for IEEE 802.3bt 90 W PoE
• 6 kV surge protection on all PoE ports
• Alarm Port and four-stage PoE usage indicator light
• Smart Fan design
• Surveillance traffic optimization
• Auto-detect ONVIF devices
• Built-in SNMP MIB
• Surveillance VLAN
• Easy deployment with automatic configuration

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Traffic classification	Y
MIB support	• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention • RFC2233 Interface Group MIB • RFC2665 Ether-like MIB • RFC4363 IEEE 802.1p MIB • ZoneDefense MIB • Private MIB • RFC951 BootP client • RFC1542 BootP/DHCP client • RFC2236 IGMP Snooping
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x
Port mirroring	Y
Full duplex	Y
Half duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	1000
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Voice VLAN
Number of VLANs	4094
MAC address table	8000
Switching capacity	56
Forwarding rate	41.67
Number of queues	4
Jumbo frames support	Y
Jumbo frames	10240
Packet buffer memory	4.1
IGMP snooping	Y
SSH/SSL support	Y
Password protection	Y
Queue scheduling algorithms	Strict Priority Queue (SPQ),Weighted Round Robin (WRR)
Multicast support	Y
Multicast features	Controllable multicast
Form factor	1U
Product colour	Grey
Reset button	Y
LED indicators	Activity,Alarm,Link,Power,Speed
Number of fans	2
Memory type	DDR3-SDRAM
Internal memory	128
Flash memory	32
Noise level	54
Fanless	N
Mean time between failures (MTBF)	289075
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Input current	6.4
Input voltage	100 - 240
Power consumption (max)	579.3
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	518
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Heat dissipation	209.16
Width	440
Depth	330
Height	44
Weight	4710
Compliance certificates	BSMI,CB,CE,Federal Communications Commission (FCC),Low Voltage Directive (LVD),UL,cUL
Sustainability compliance	Y
