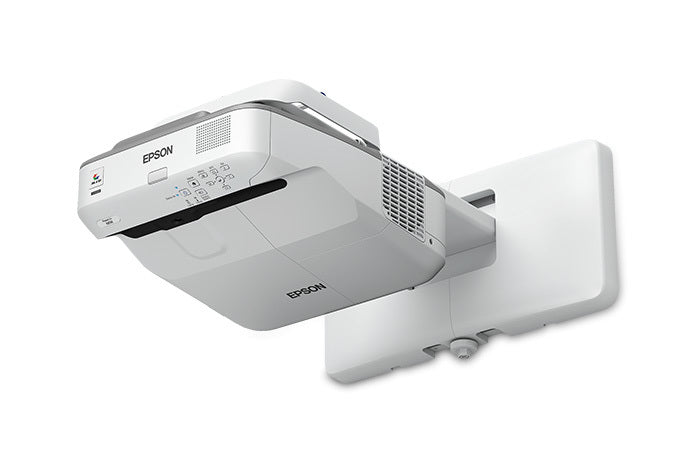

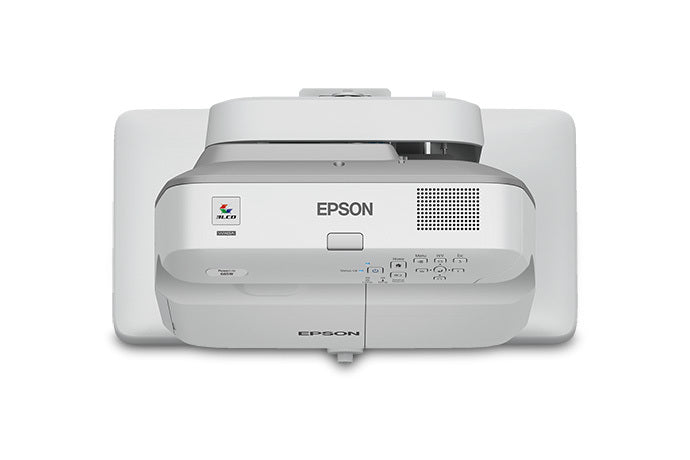

Epson PowerLite 685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White - V11H744520

The ultimate ultra short-throw presentation display for BYOD classrooms.
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.

• Education Ultra short throw projector Grey, White
• 3LCD 3500 ANSI lumens
• Lamp 5000 h
• WXGA (1280x800) 16:10
• Screen size compatibility: 1524 - 2540 mm (60 - 100") Number of colours: 1.073 billion colours
• Focus: Manual Zoom capability
• Ethernet LAN
• Built-in speaker(s) 16 W
• AC 373 W

Projector brightness	3500
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Native aspect ratio	16:10
Screen size compatibility	60 - 100
Projection distance	0.34 - 0.6
Contrast ratio (dynamic)	14000:1
Number of colours	1.073 billion colours
Keystone correction, horizontal	-3 - 3
Keystone correction, vertical	-3 - 3
Matrix type	3-panel (p-Si TFT active)
White light output	3500
Colour light output	3500
Light source type	Lamp
Service life of light source	5000
Service life of light source (economic mode)	10000
Lamp type	UHE
Lamp power	250
Focus	Manual
Fixed focal length	3.7
F-number (relative aperture)	1.6
Zoom capability	Y
Zoom ratio	1.35:1
Digital zoom	1.35
Throw ratio	0.28 - 0.37:1
Analog signal format system	NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM
Full HD	N

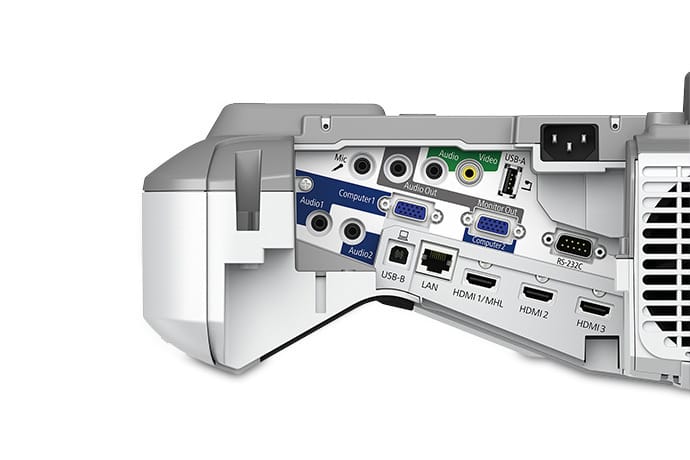

VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
DVI port	N
Audio (L/R) in	3
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Audio (L/R) out	1
Microphone in	Y
Mobile High-Definition Link (MHL)	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Noise level	35
Noise level (economic mode)	29
Password protection	Y
Built-in speaker(s)	Y
RMS rated power	16
Number of built-in speakers	1
Product type	Ultra short throw projector
Market positioning	Education
Product colour	Grey,White
Placement	Ceiling,Desktop,Wall
Cable lock slot	Y
Cable lock slot type	Kensington
Power source	AC
Power consumption (typical)	373
Power consumption (standby)	2.2
Power consumption (economy mode)	324
AC input voltage	100 - 240
AC input frequency	50 - 60
Operating temperature (T-T)	5 - 40
Weight	5715
Width	368
Depth	401
Height	188
Remote control included	Y
Batteries included	Y
Quick start guide	Y
Manual	Y
Compliance certificates	RoHS
RS-232 ports	1
RS-232C	Y
