GIGABYTE | SKU:
B550 EAGLE WIFI6

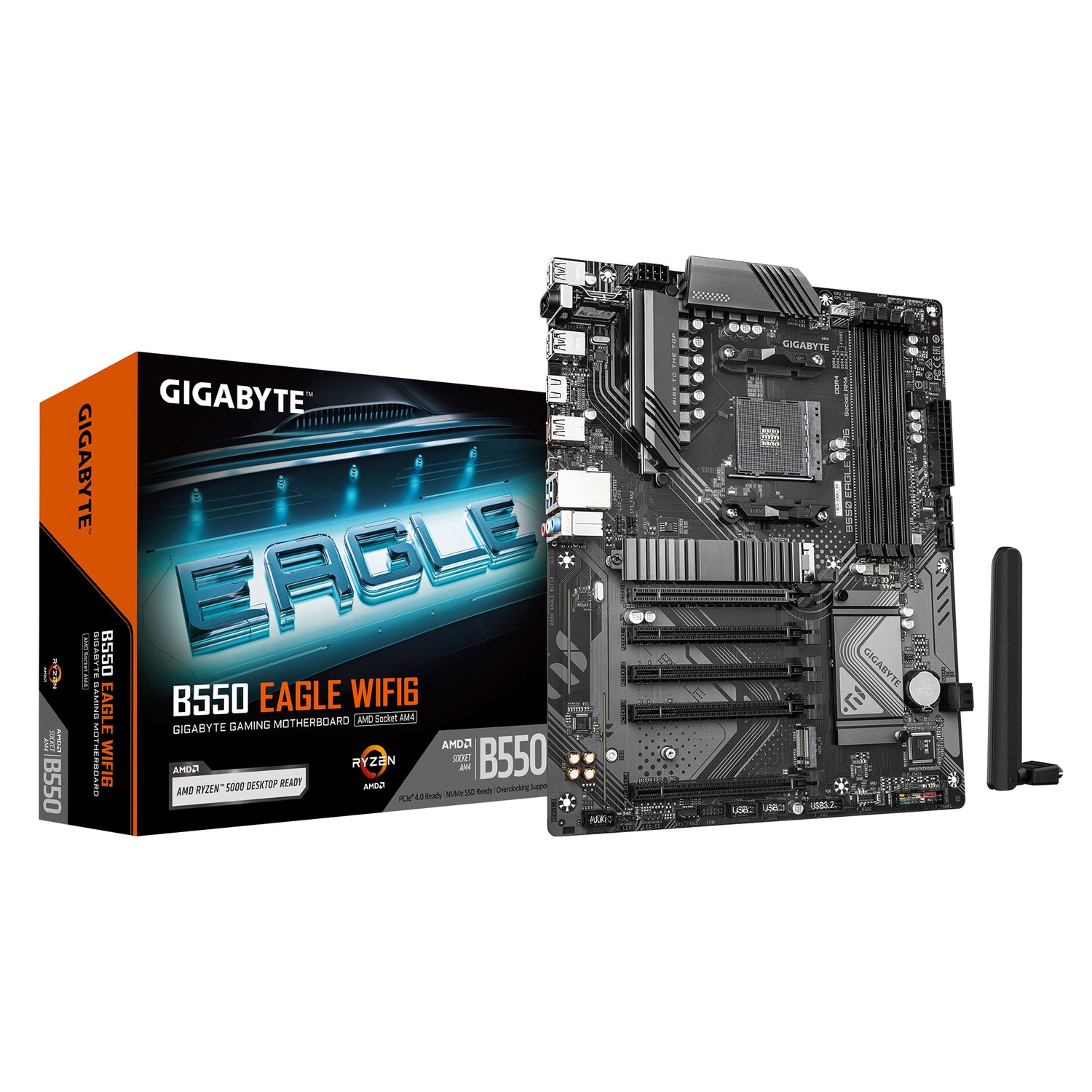

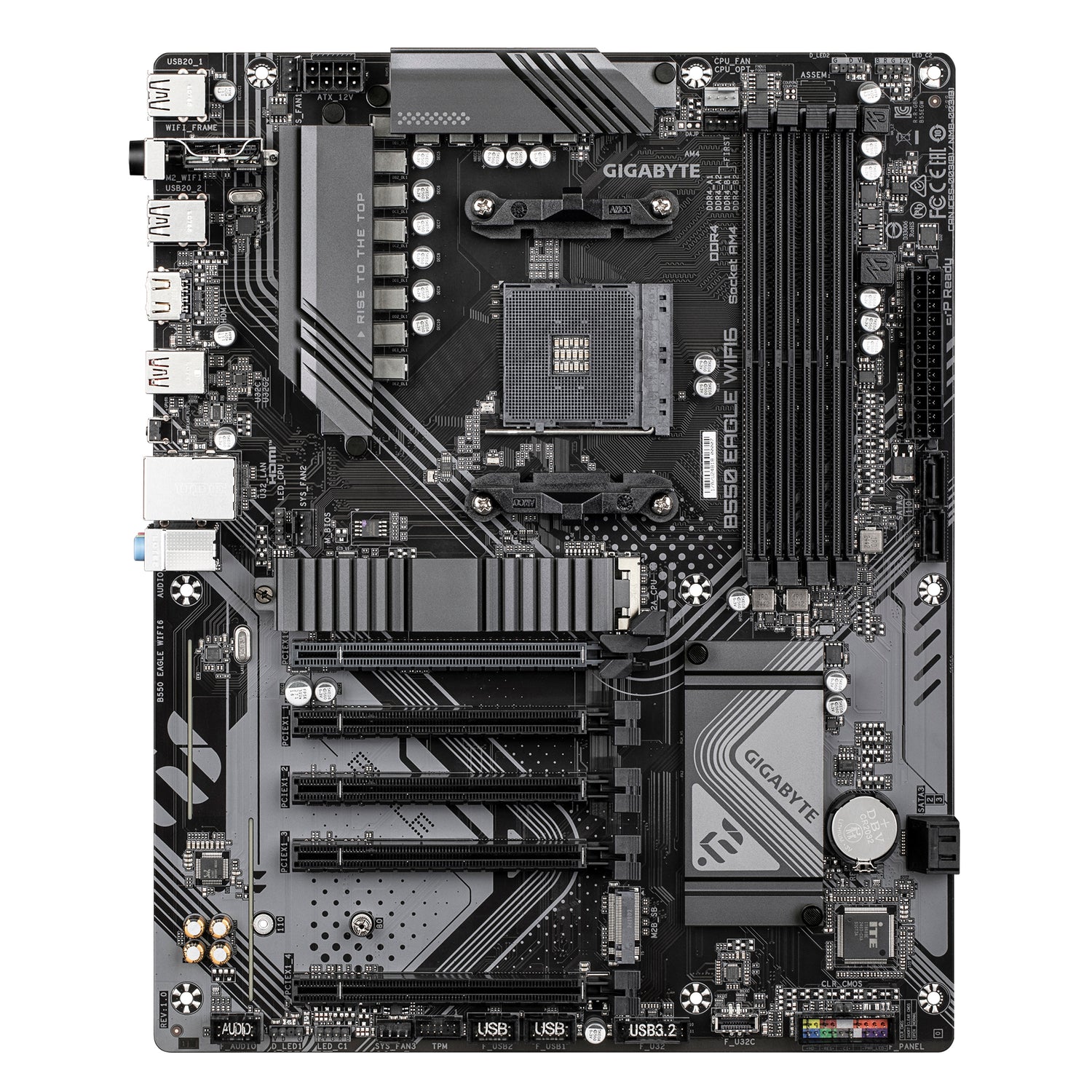

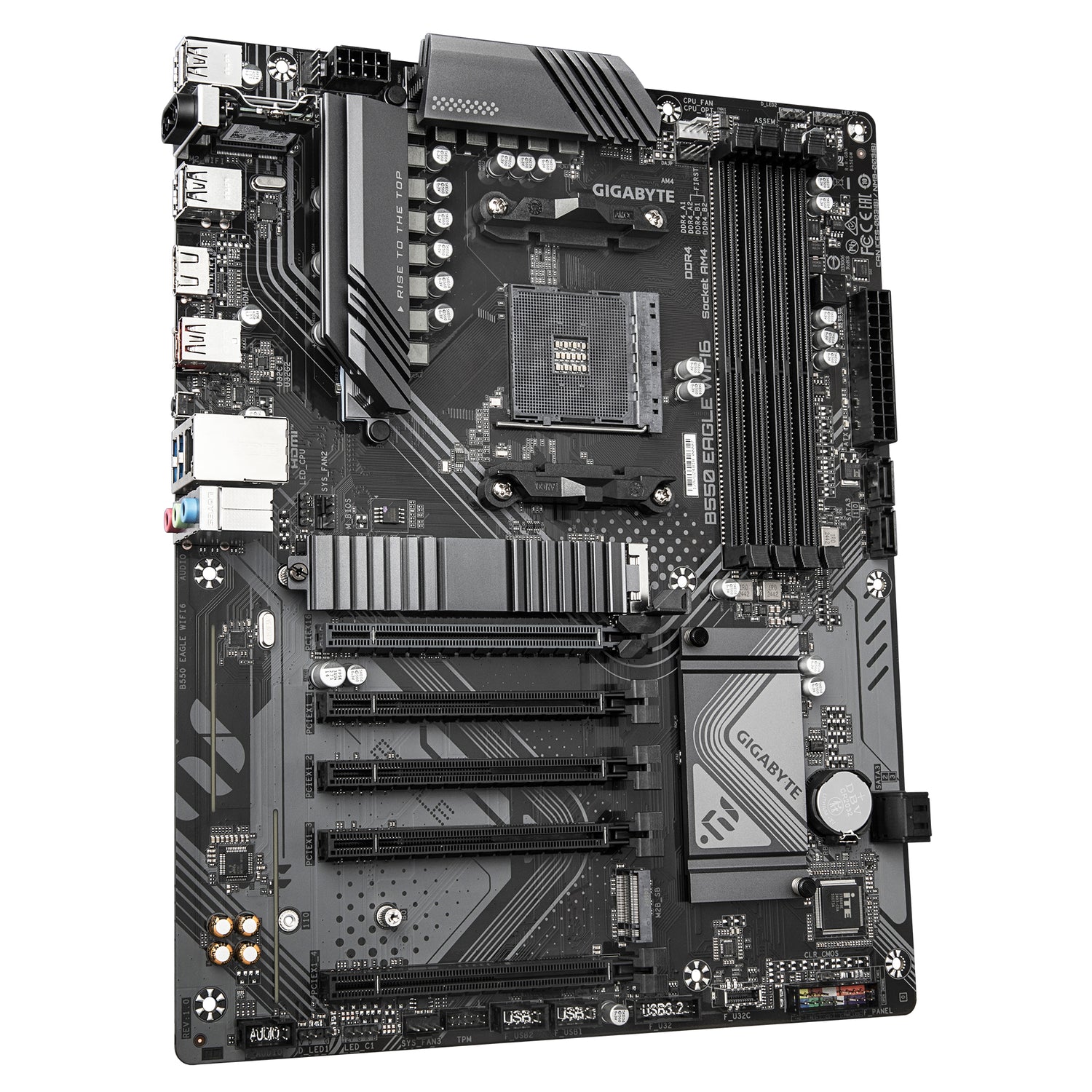

GIGABYTE B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2 - B550 EAGLE WIFI6
$136.70
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
GIGABYTE B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPU...
$136.70
Unit price
/
Unavailable
Description
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3+1 phases VRM solution
- Dual Channel DDR4: 4*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch: PCIe slots with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal: VRM Thermal Armor Advanced
- Fast Networking: GbE LAN & Wi-Fi 6
- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series,AMD Ryzen 4000 Series,AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 3200,2933,2667,2400,2133 |
| Supported memory clock speed (max) | 3200 |
| Unbuffered memory | Y |
| Maximum internal memory per slot | 32 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 |
| HDCP | Y |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Y |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Y |
| Number of water pump connectors | 1 |
| RGB LED pin header | Y |
| Number of RGB LED pin headers | 5 |

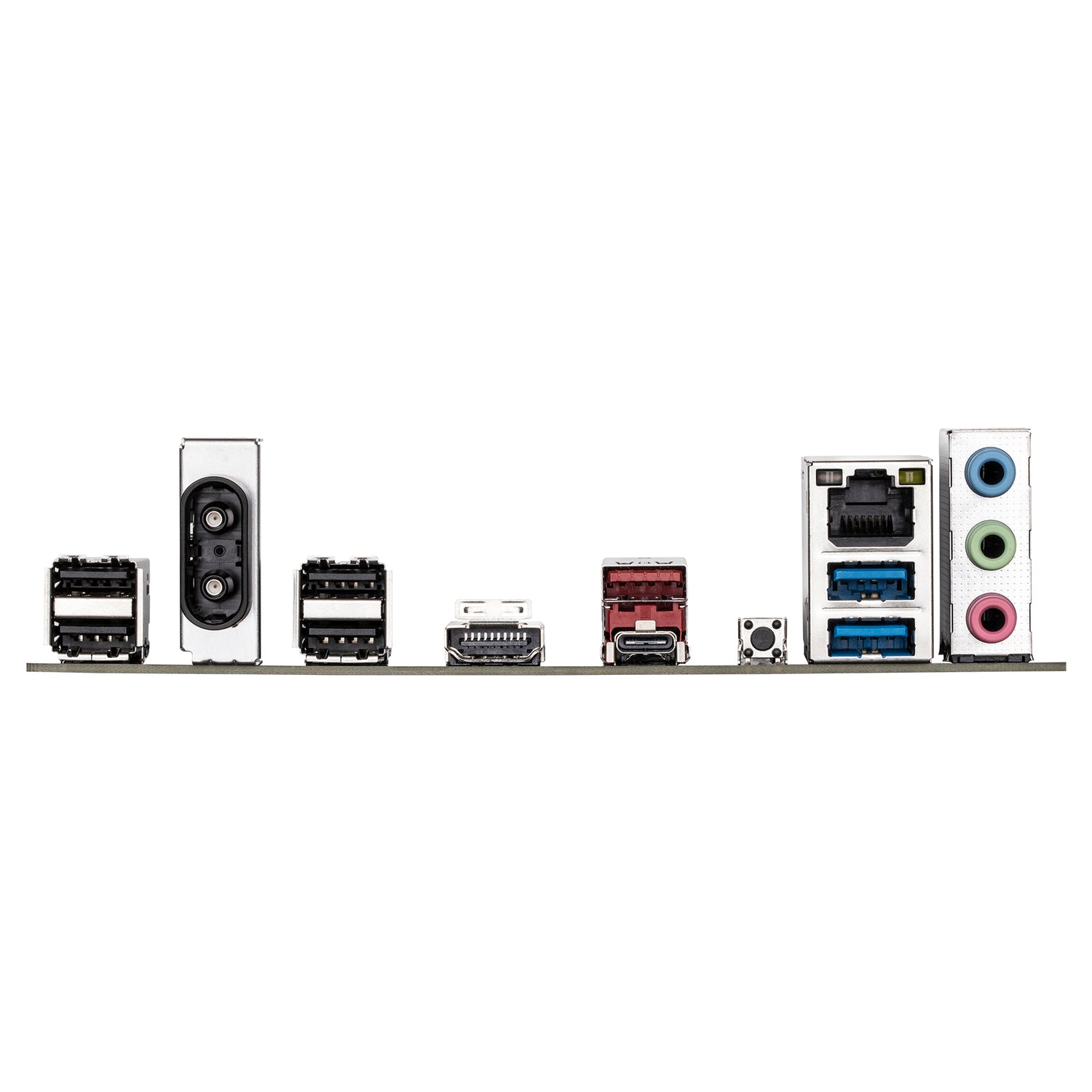

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Products per shipping (inner) case | 1 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 |
| Package depth | 270 |
| Package height | 80 |
| Package weight | 1482.5 |
| Width | 305 |
| Depth | 244 |
| Height | 35 |
| Batteries included | Y |
| Antenna included | Y |
| Screws included | Y |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 1250 |
| Warranty period | 3 |
