Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H - KSM56R46BD8-32MH

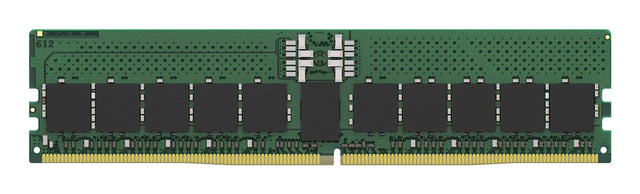

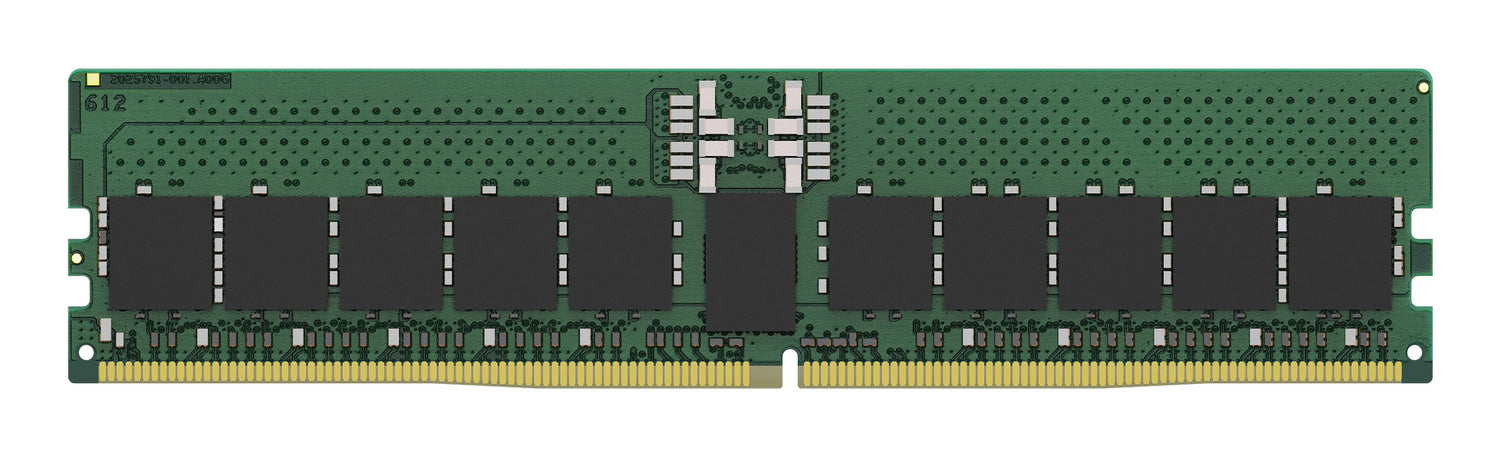

Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

• Server 32 GB DDR5 5600 MT/s
• 288-pin DIMM 1 x 32 GB
• CAS latency: 46
• 1.1 V
• ECC

Internal memory	32
Memory layout (modules x size)	1 x 32
Internal memory type	DDR5
Memory data transfer rate	5600
Component for	Server
Memory form factor	288-pin DIMM
ECC	Y
On-Die ECC	Y
CAS latency	46
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory voltage	1.1
Module configuration	4096M x 80
Row cycle time	48
Refresh row cycle time	295
Row active time	32
Row Precharge Time (TRP)	16
SPD profile	Y
JEDEC standard	Y
Operating temperature (T-T)	0 - 95
Storage temperature (T-T)	-55 - 100
Compliance certificates	RoHS
Width	133.35
Height	31.25
