LENOVO | SKU:
40AS0090US

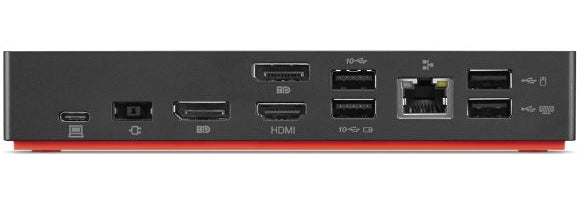

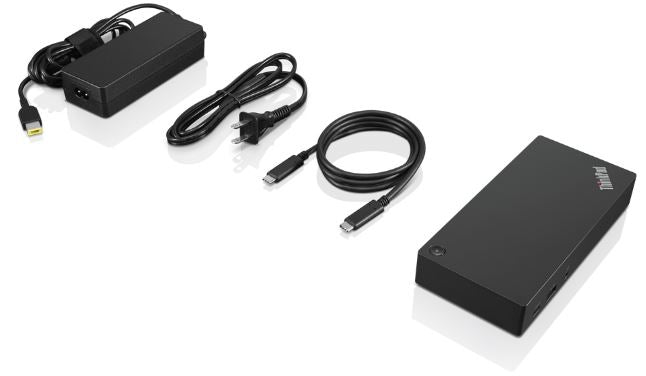

Lenovo 40AS0090US laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black - 40AS0090US
$158.15
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Lenovo 40AS0090US laptop dock/port replicator Wired USB 3.2 Gen 1 (...
$158.15
Unit price
/
Unavailable
Description
Description
ThinkPad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions. Supports vivid 4K displays or multiple 1080p screens, charge your notebook, connect legacy USB peripherals, wired networks and rapidly charge your mobile devices.
- One Connection, no limitations: Think of all the time you'd save if you could connect all your peripherals at once, transfer USB data at lightning - fast 10Gbps speeds, and have access to a stable, stress - free wired network connection
- Jaw-dropping 4K or multiple displays *: the days of being limited by your notebook's capabilities are over. Now you can experience vivide 4K on a single screen or take multitasking to the next level with Multi displays
- Ready for your command: Ideal for being the centrerpiece of your workspace. Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN. It also supports passing ThinkPad MAC address through the dock
- Dock has the ability to support DisplayPort 1.4 and HDMI 2.0 for max 1 x 4K@60Hz, but the real video output would depend on the system's output
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Microphone in | N |
| Headphone outputs | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Y |
| Headphone connectivity | 3.5 mm |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Wake-on-LAN ready | Y |
| Product colour | Black |
| Card reader integrated | N |
| Data transfer rate | 10 |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 |
| Number of displays supported | 3 |
| Cable lock slot | Y |
| Plug and Play | Y |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8) |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power supply | 90 |
| Windows operating systems supported | Windows 10,Windows 7 |
| Operating temperature (T-T) | 0 - 35 |
| Operating relative humidity (H-H) | 20 - 95 |
| Width | 171 |
| Depth | 80 |
| Height | 30.75 |
| Weight | 325 |
| Quantity per pack | 1 |
| Package width | 210 |
| Package depth | 158 |
| Package height | 75 |
| Package weight | 960 |
| Cables included | AC,USB Type-C |
| AC adapter included | Y |
| Manual | Y |
| Harmonized System (HS) code | 84733020 |
