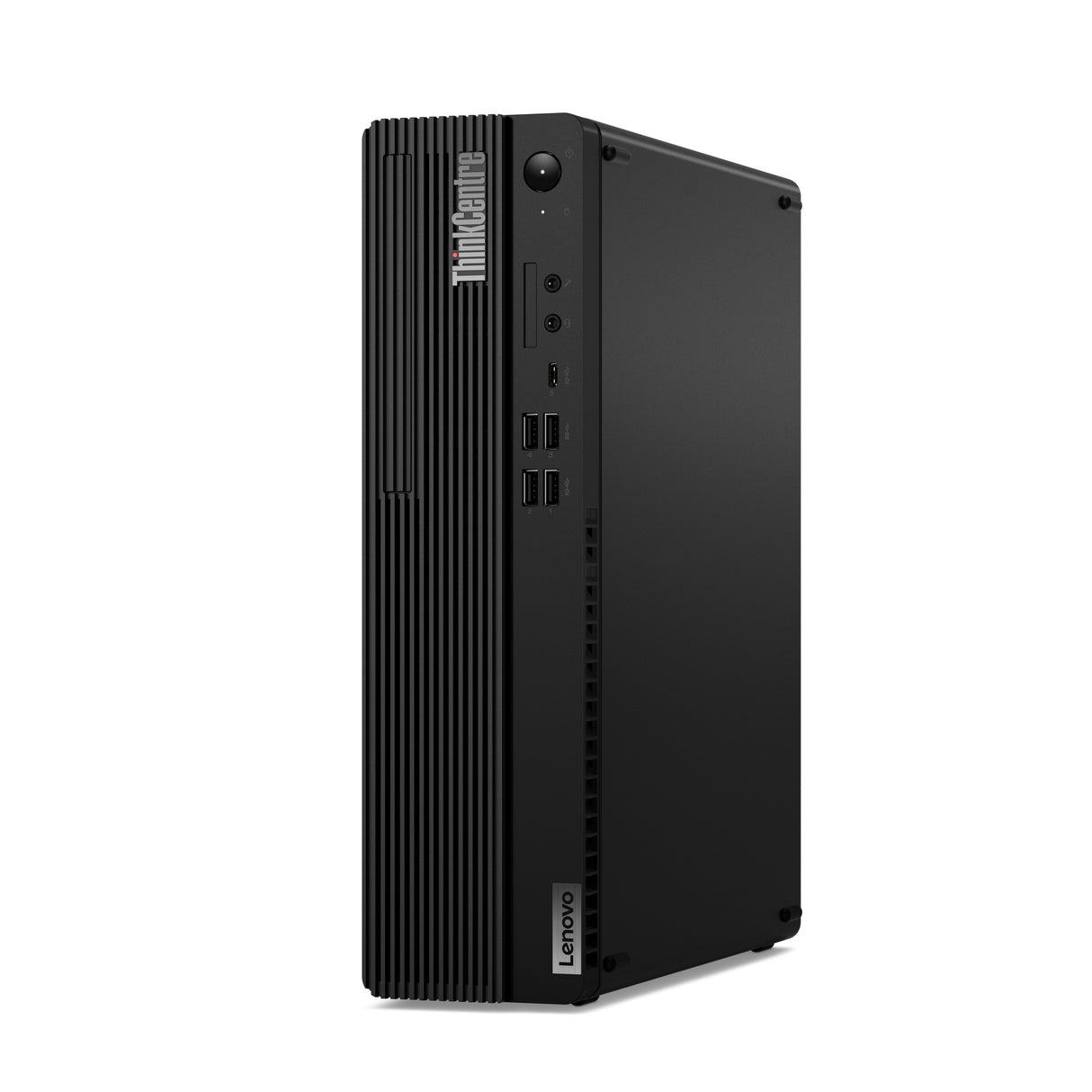

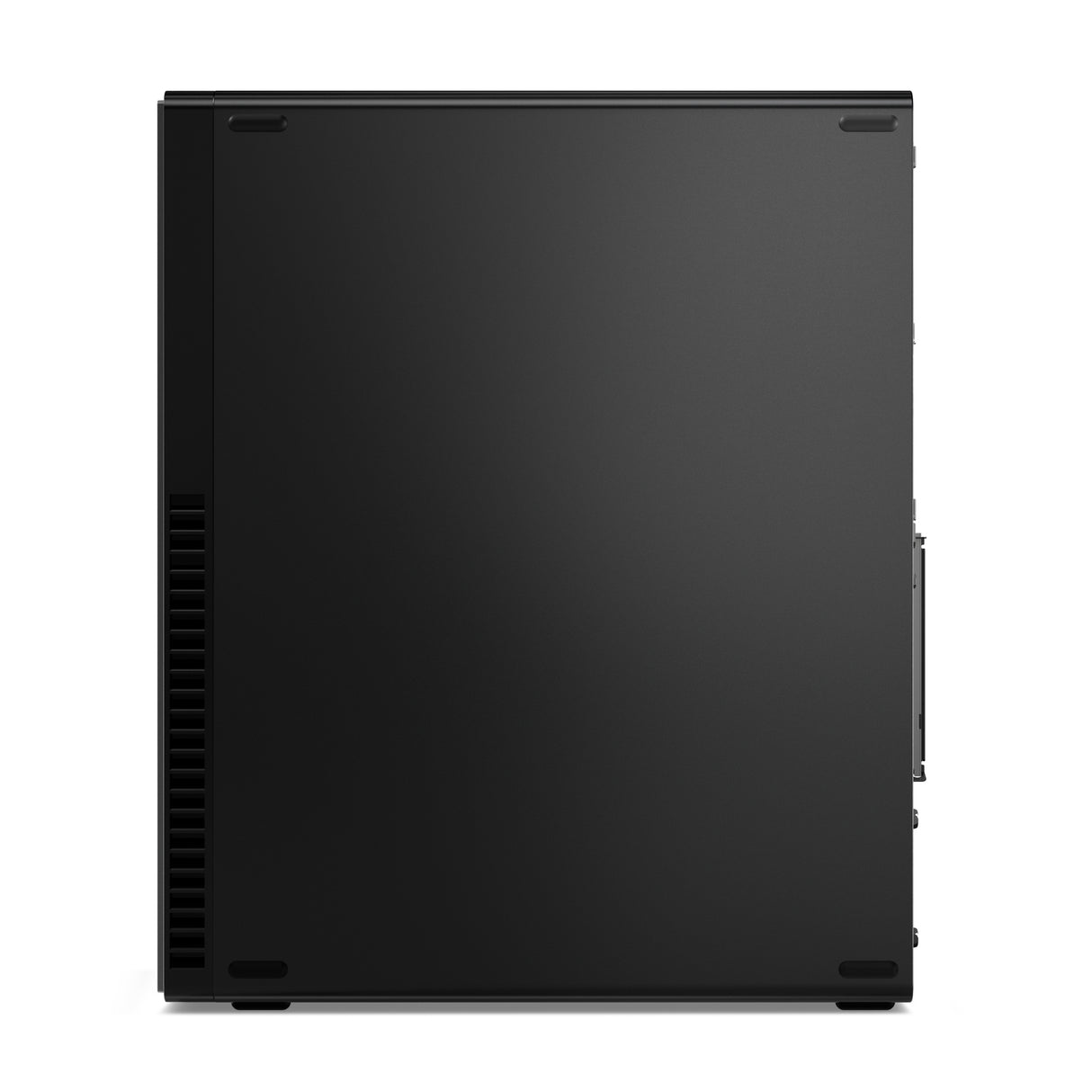

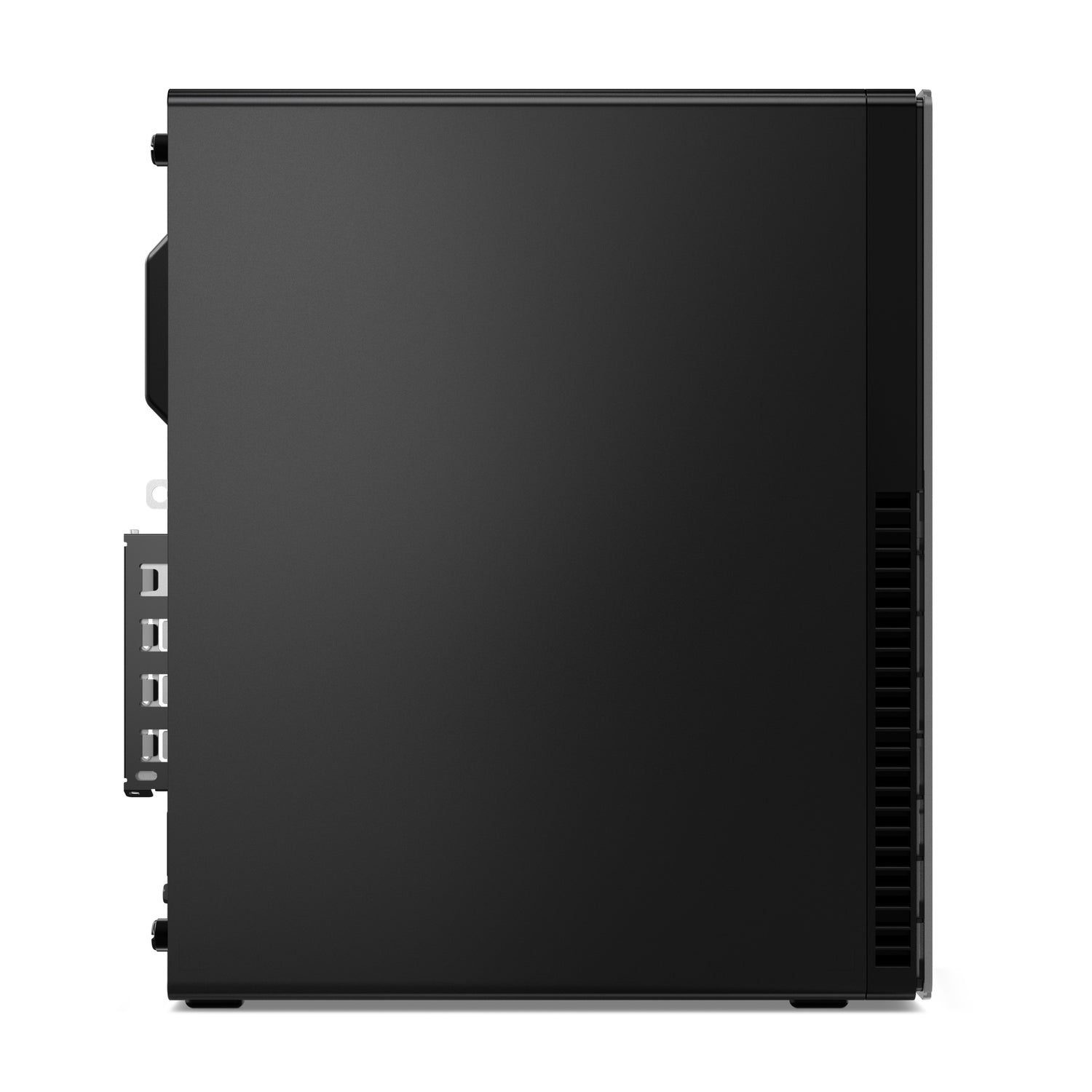

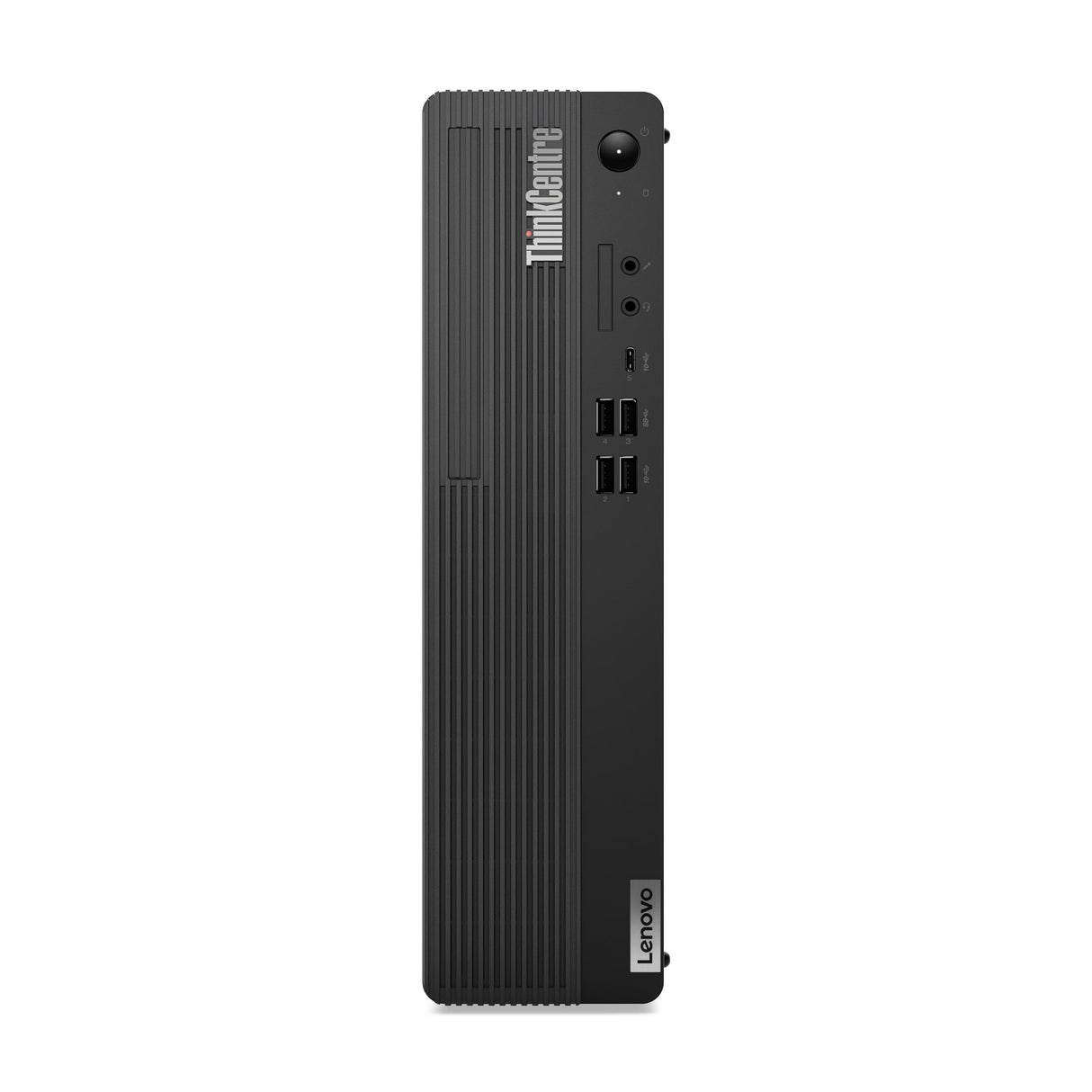

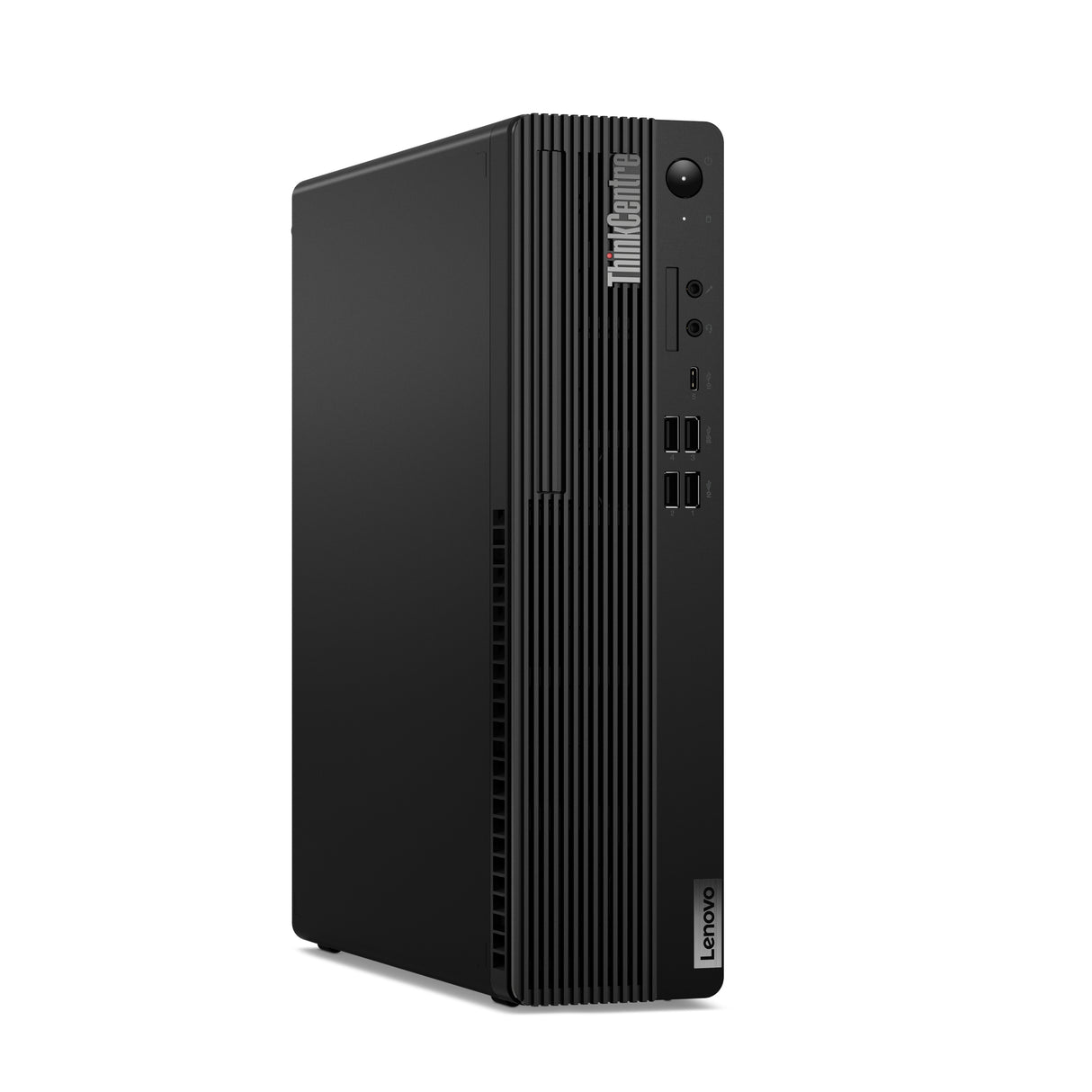

Lenovo ThinkCentre M90s Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black - 12V40002US

Peak Processing Performance

No program is too intricate, and no file is too massive to hinder the Lenovo ThinkCentre M90s Gen 5 (Intel) small form factor (SFF) from operating at the speed of human imagination. With cutting-edge Intel vPro® Enterprise technology and Intel® Core™ processors, this desktop delivers real-world, top-notch performance for business needs.

Confidently Secured

Lenovo ThinkShield offers thorough security, combining hardware and software to protect your data. The discrete Trusted Platform Module (dTPM) chip encrypts passwords and data, while BIOS-based Smart USB Protection prevents unauthorized access through peripherals. Leveraging the Intel vPro® platform, this device enhances data and asset security.

Expandable Flexibility

The Smart Cable offers cutting-edge device collaboration through convenient USB-A and USB-C® connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices with this intelligent feature, supporting high-speed USB-C® data transfers.

Environmentally Aware

This small form factor PC was crafted with a strong emphasis on recycling. Our commitment to sustainability is evident in the integration of recycled post-consumer content (PCC) into various components. The packaging is thoughtfully designed using a combination of recycled and sustainably sourced materials.

• Windows 11 Pro
• Intel Core i7-14700 (33MB Cache)
• 16GB (4400MHz) DDR5-SDRAM (2 x 8) & 512GB SSD

Processor family	Intel Core i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor generation	Intel Core i7-14xxx
Processor cores	20
Processor threads	28
Processor boost frequency	5.4
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3
Efficient-core Max Turbo Frequency	4.2
Performance-core base frequency	2.1
Efficient-core base frequency	1.5
Processor cache	33
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65
Maximum turbo power	219
Internal memory	16
Maximum internal memory	128
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8
Memory slots	4x DIMM
Memory clock speed	4400
Memory channels	Dual-channel
Total storage capacity	512
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512
Number of SSDs installed	1
SSD capacity	512
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	N
Discrete graphics card	N
On-board graphics card	Y
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel UHD Graphics
Product type	PC
Motherboard chipset	Intel Q670
Password protection	Y
Password protection type	BIOS,HDD,Power on
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Built-in speaker(s)	Y
Ethernet LAN	Y
Wi-Fi	Y
Ethernet LAN data rates	100,1000
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.3

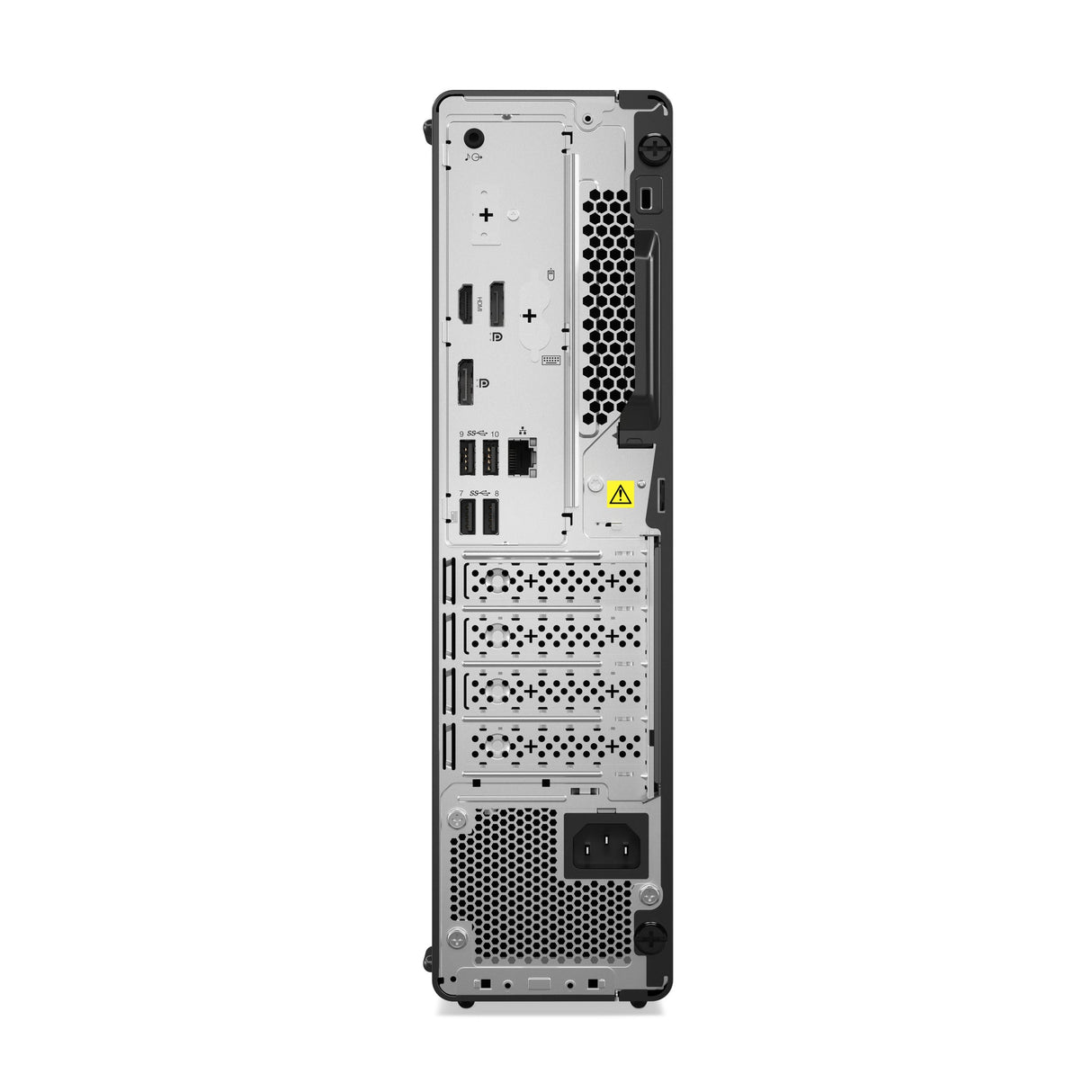

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	2
DisplayPort version	1.4a
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Y
Line-out	Y
Microphone in	Y
Power supply	310
Power supply input voltage	100 - 240
Power supply input frequency	50/60
Chassis type	SFF
Product colour	Black
Volume	8.2
Placement supported	Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system language	ENG
Display included	N
Audio chip	Realtek ALC897Q-CG
Audio system	High Definition Audio
Number of speakers	1
Operating temperature (T-T)	5 - 35
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	20 - 80
Storage relative humidity (H-H)	10 - 90
Operating altitude	0 - 3048
Non-operating altitude	0 - 12192
Width	92.5
Depth	297.7
Height	339.5
Weight	5300
Package width	195
Package depth	395
Package height	530
Package weight	7600
Mouse included	Y
Mouse connectivity	Wired
Keyboard included	Y
Compliance certificates	RoHS
Certification	ErP Lot 3 MIL-STD-810H
Sustainability certificates	GREENGUARD,TCO
Keyboard connectivity	Wired
