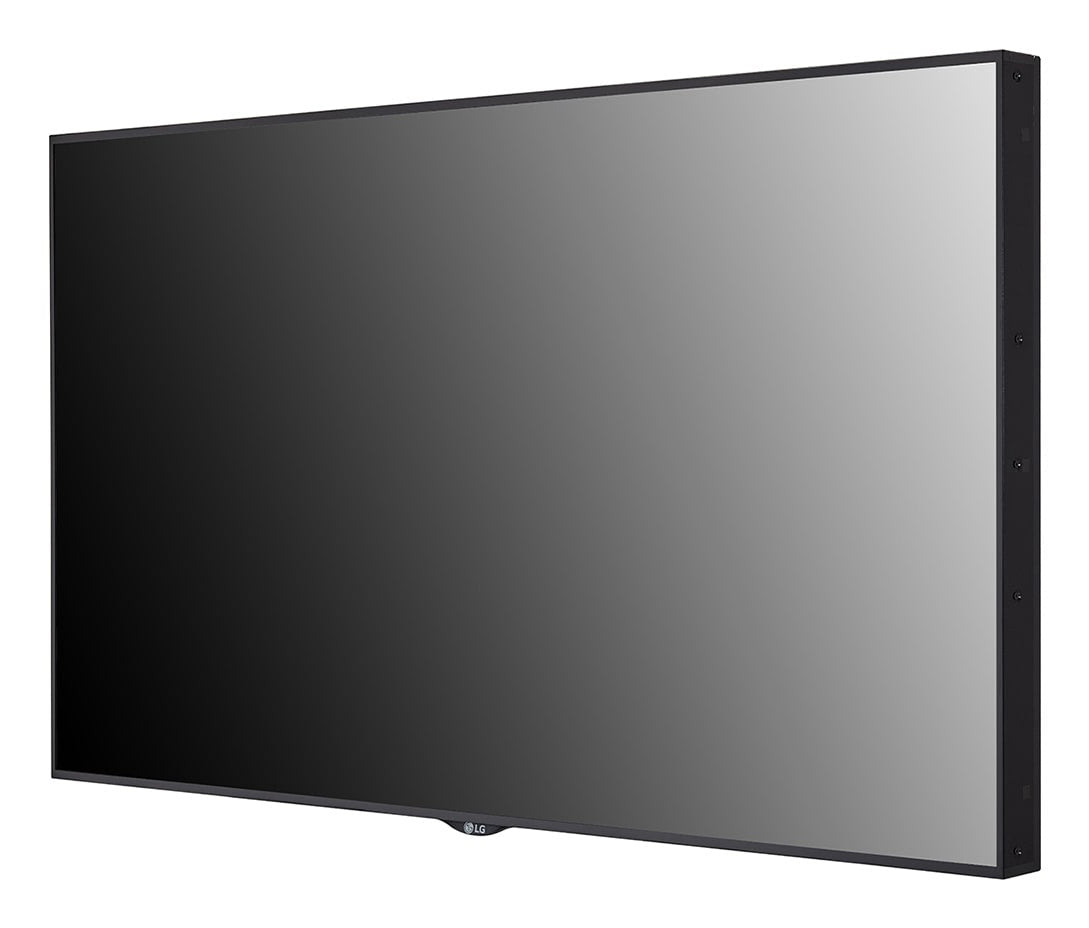

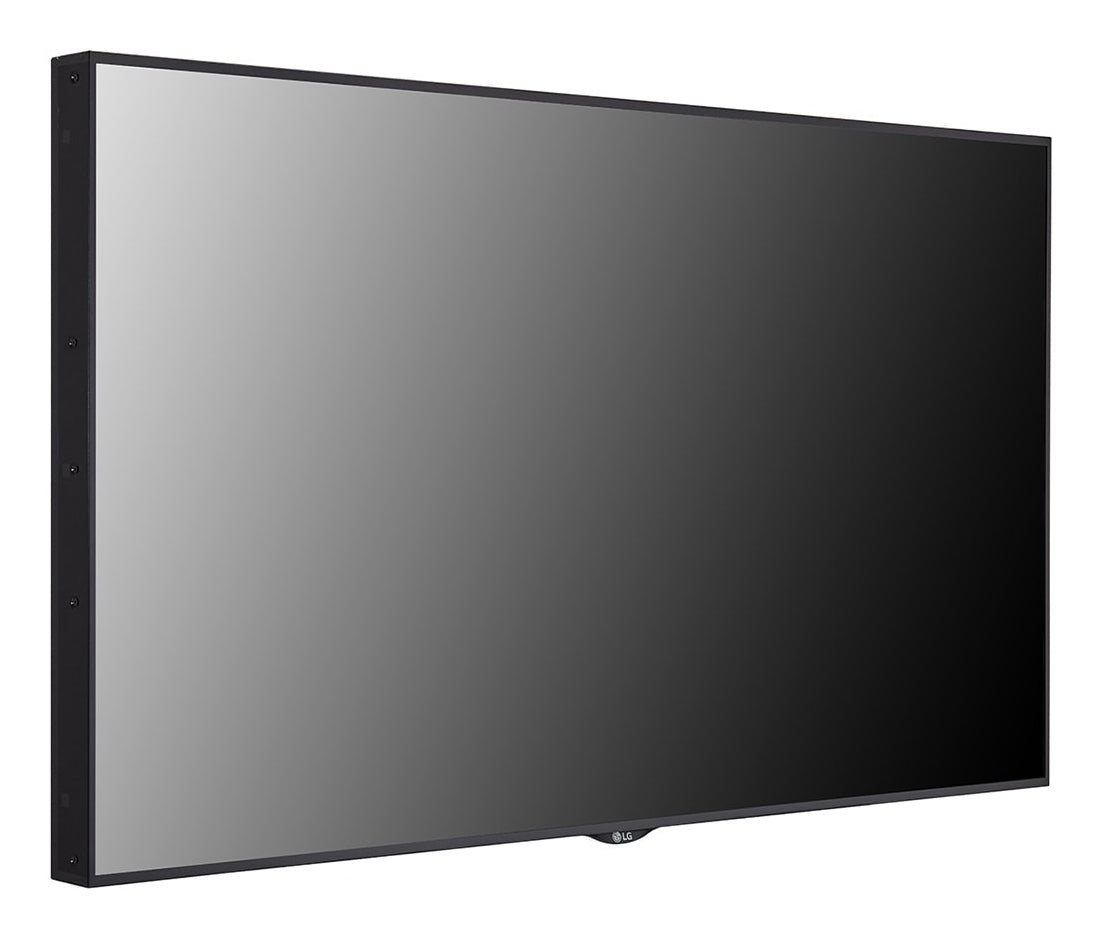

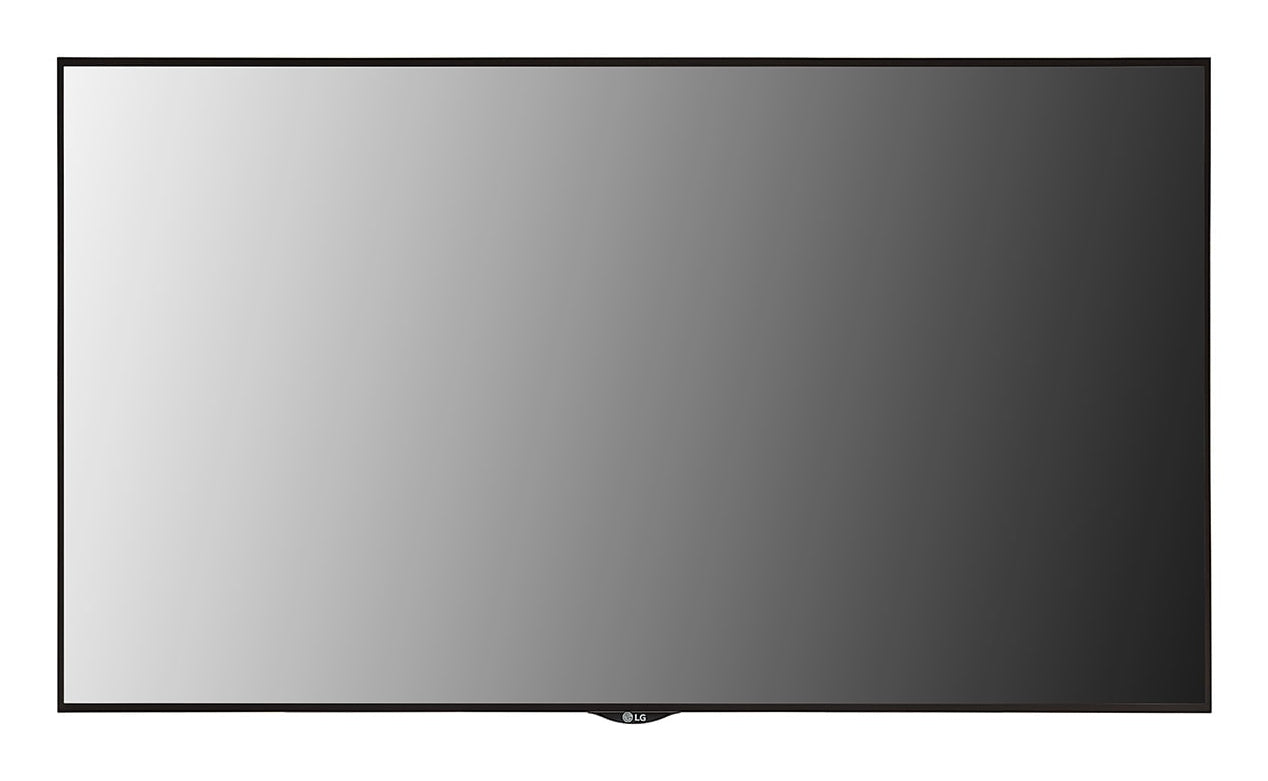

LG 49XS4P-B.AEK Signage Display Digital signage flat panel 124.5 cm (49") LED 4000 cd/m² Full HD Black WebOS 24/7 - 49XS4P-B

Attract Passing Customers with a Bright Display Presented Through a Window

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

• UL Verified Display Anti-discoloration Characteristics

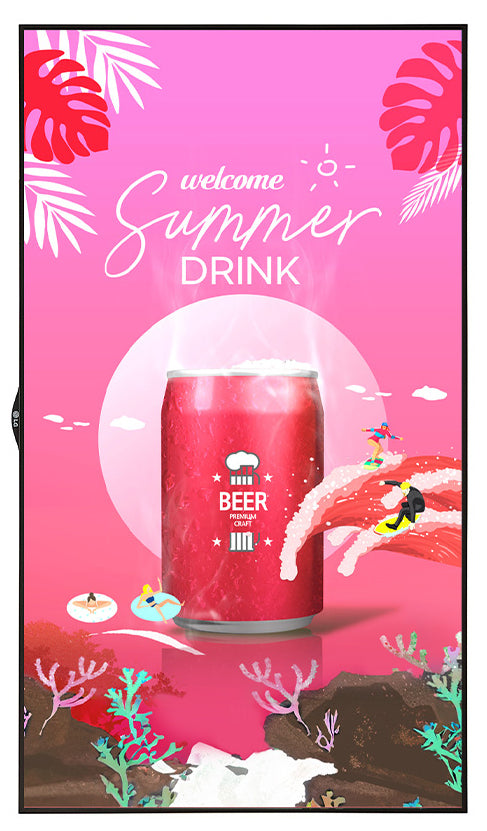

• Portrait / Landscape
• Space Efficiency

Display diagonal	49
Display technology	LED
Display resolution	1920 x 1080
Display brightness	4000
HD type	Full HD
Touchscreen	N
Panel type	IPS
LED backlight	Y
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Response time	8
Contrast ratio (typical)	1300:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display number of colours	1.07 billion colours
Panel life	50000
Native refresh rate	60
Haze rate	3

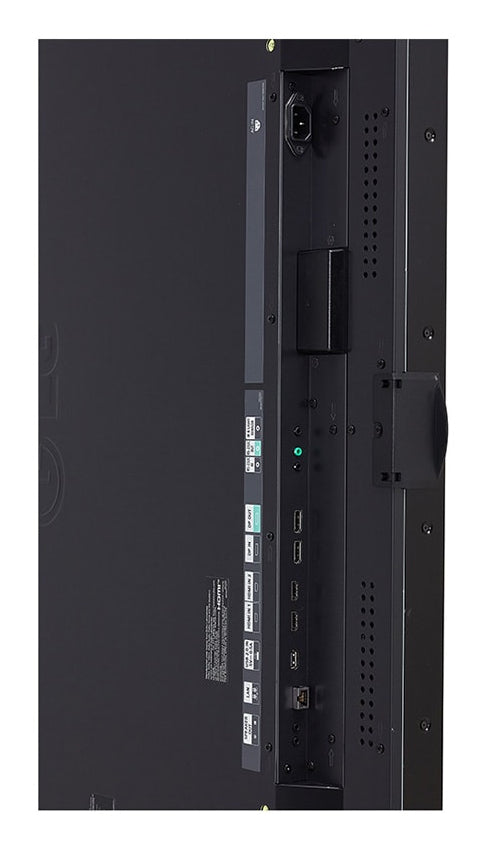

HDMI ports quantity	2
DisplayPorts quantity	2
USB port	Y
HDMI input ports quantity	2
DVI-D ports quantity	1
DisplayPorts in	1
DisplayPorts out	1
USB ports quantity	1
USB version	2.0
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
Audio (L/R) out	1
RS-232C	Y
Infrared data port	Y
Remote (IR) input	1
Remote (IR) output	1
Built-in speaker(s)	Y
RMS rated power	20
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Outdoor

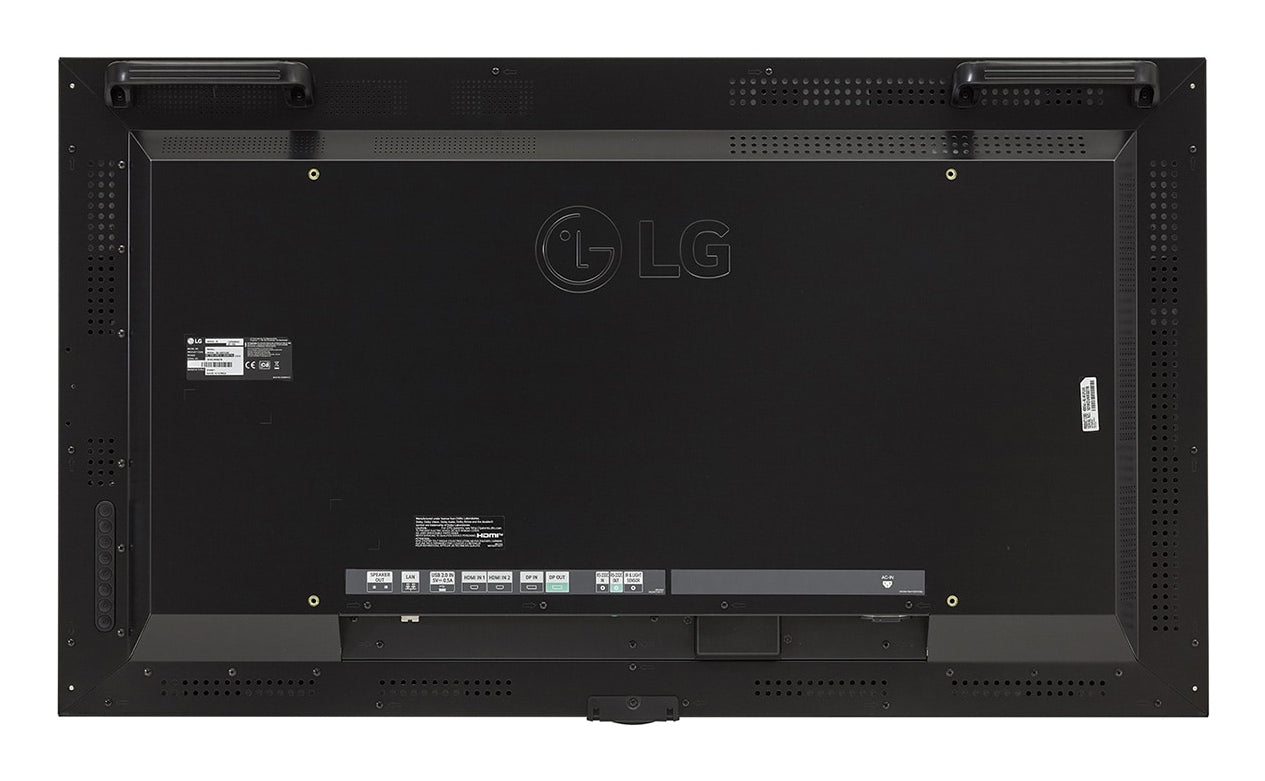

VESA mounting	Y
Orientation	Horizontal/Vertical
Screen shape	Flat screen
Panel mounting interface	600 x 400
Bezel width (bottom)	9
Bezel width (side)	6.5
Bezel width (top)	9
Bezel colour	Black
Purpose	Retail
On Screen Display (OSD)	Y
Number of OSD languages	22
On Screen Display (OSD) languages	ARA,CHI (SIMPL),CHI (TR),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,GRE,ITA,JPN,KOR,NOR,POL,POR,RUS,SWE,TUR
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	1.4
Power consumption (typical)	345
Power consumption (off)	0.5
Power consumption (max)	375
AC input voltage	100 - 240
AC input frequency	50/60
Heat dissipation	1177
Computer system	Y
Computer system type	System on Chip (SoC)
Internal memory	16
Operating system installed	WebOS
Operating system version	6.0
Display width	1092.7
Display depth	83.5
Display height	626.4
Display weight	20800
Package width	1181
Package depth	725
Package height	212
Package weight	25300
Remote control included	Y
Cables included	AC,HDMI
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 80
Ethernet LAN	Y
Suitable for outdoor use	Y
Heat dissipation (max)	1279
Introduction year	24
Manual	Y
