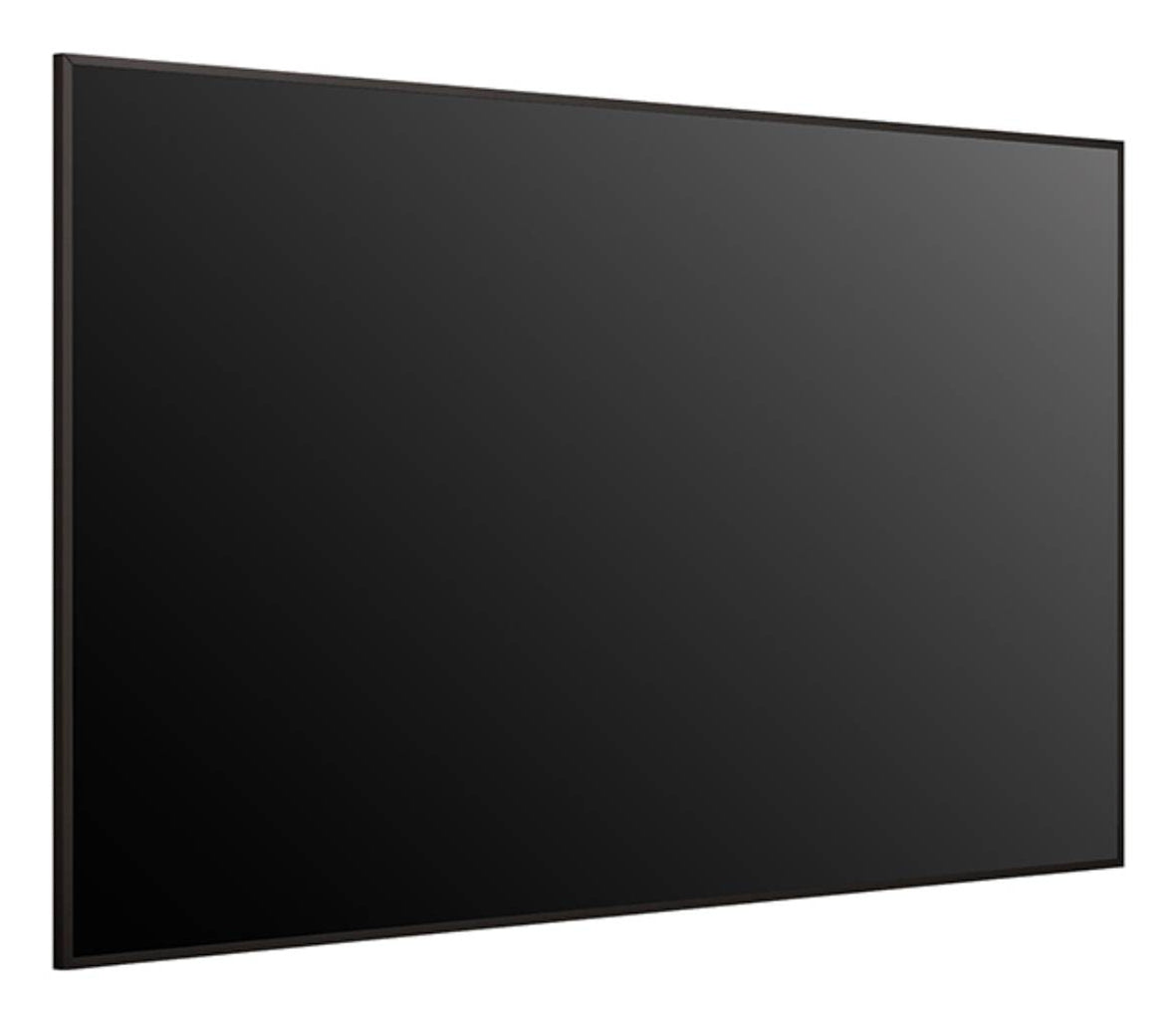

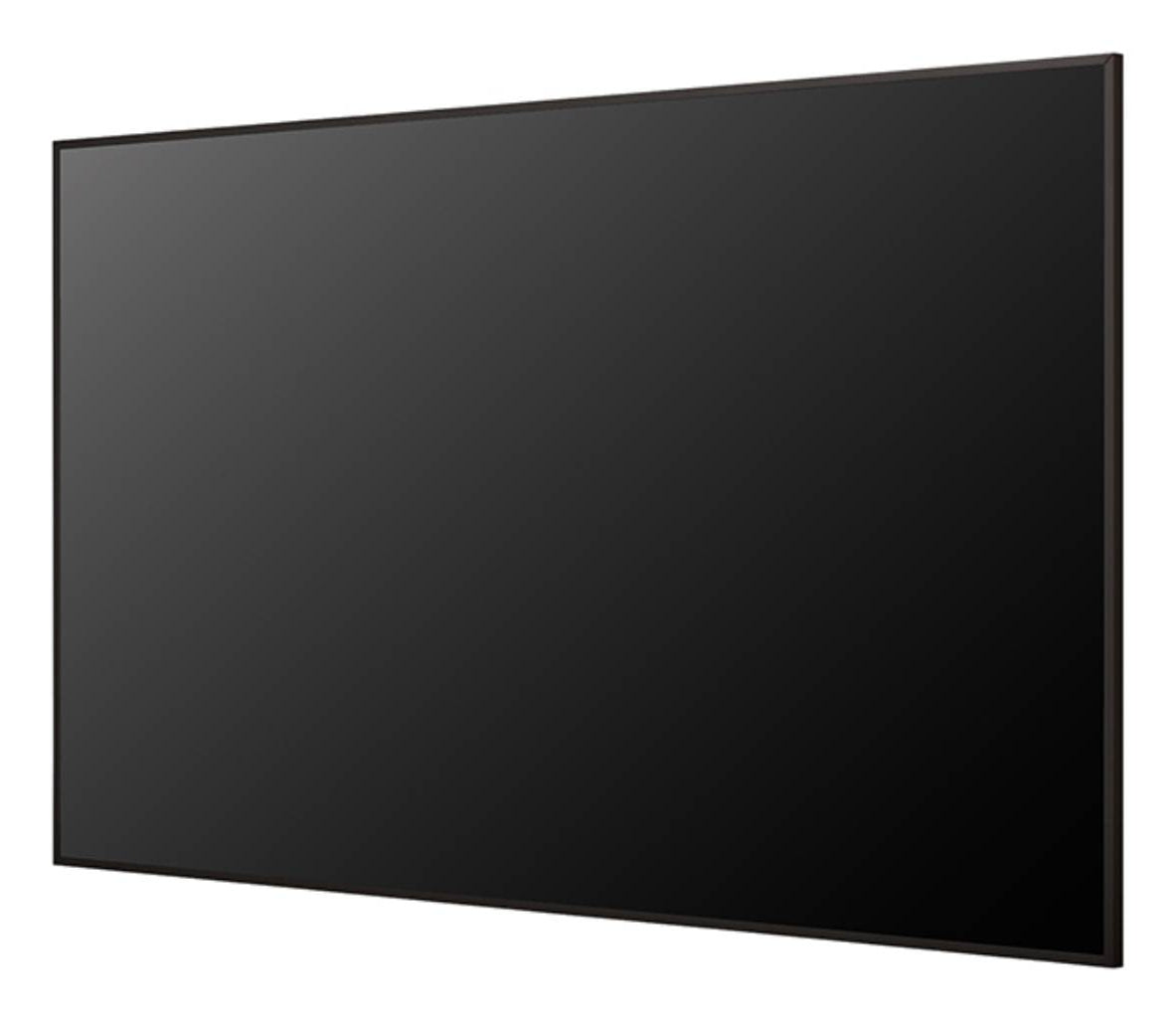

LG 4K UHD Signage Digital signage flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7 - 75UH5Q-E

Large UHD Signage Display with LG webOS Platform and Advanced Security

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

• Resolution : 3,840 × 2,160 (UHD)
• Brightness : 500 nits (Typ.)
• Bezel Width : 12.9 mm (Even)
• webOS Smart Platform
• LG Shield

Display diagonal	75
Display resolution	3840 x 2160
Display brightness	500
HD type	4K Ultra HD
Touchscreen	N
Panel type	ADS
LED backlight	Y
LED backlighting type	Edge-LED
Native aspect ratio	16:9
Response time	8
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display number of colours	1.07 billion colours
Panel life	50000
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Native refresh rate	60
Haze rate	25
Colour gamut	95
HDMI ports quantity	3
DVI port	N
DisplayPorts quantity	1
USB port	Y
Consumer Electronics Control (CEC)	Yes
USB ports quantity	2
USB version	2.0
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
RS-232C	Y
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Y
Orientation	Horizontal/Vertical
Screen shape	Flat screen
Panel mounting interface	600 x 400
Bezel width (bottom)	12.9
Bezel width (side)	12.9
Bezel width (top)	12.9
Bezel colour	Black
Mounting type	Wall
Purpose	Commercial
Picture-in-Picture	Y
Digital Rights Management (DRM) type	Pro:Idiom
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	Multi
Operating hours (hours/days)	24/7
HDCP	Y
Automatic brightness control	Y
International Protection (IP) code	IP5X
HDCP version	1.4/2.2
webRTC support	Y
Power consumption (typical)	160
Power consumption (standby)	0.5
Power consumption (off)	0.5
Power consumption (max)	247
AC input voltage	100 - 240
AC input frequency	50/60
Heat generation (typical)	546
Heat generation (max)	843
Computer system	Y
Computer system type	System on Chip (SoC)
Internal memory	16
Operating system installed	WebOS
Operating system version	8.0
Display width	1679.5
Display depth	29.7
Display height	958.7
Display weight	35700
Package width	1820
Package depth	200
Package height	1115
Package weight	44000
Remote control included	Y
Cables included	Power
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 80
LG technologies (AV/TV)	Control Manager,Gapless Playback,ISM Method,SI Server Setting,Local Contents Scheduling,Booting Logo Image,Auto Set ID,Group Manager,No Signal Image,Setting Data Cloning,Status Mailing,Smart Energy Saving
Gyroscope	Y
Temperature sensor	Y
Ethernet LAN	Y
Wi-Fi	Y
Security algorithms	SNMP
Compliance certificates	CB,Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),CE,KC
Quick start guide	Y
Bluetooth	Y
Power consumption (PowerSave)	112
Plug and Play	Y
Wake-on-LAN	Y
