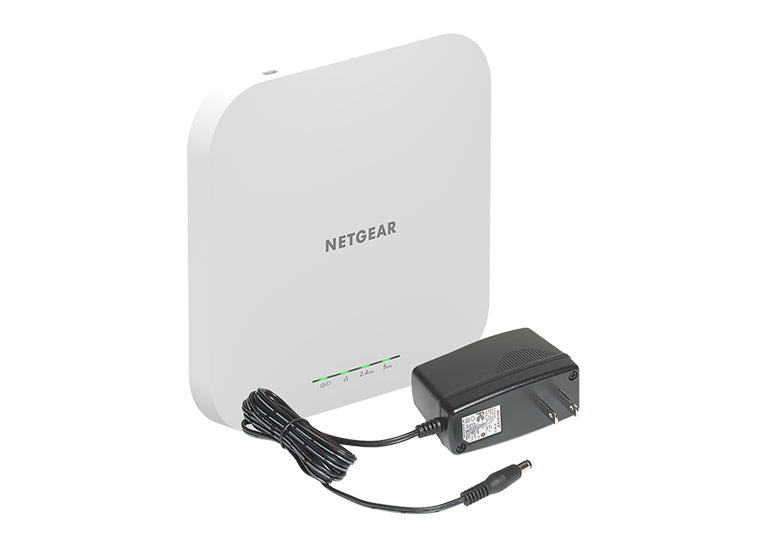

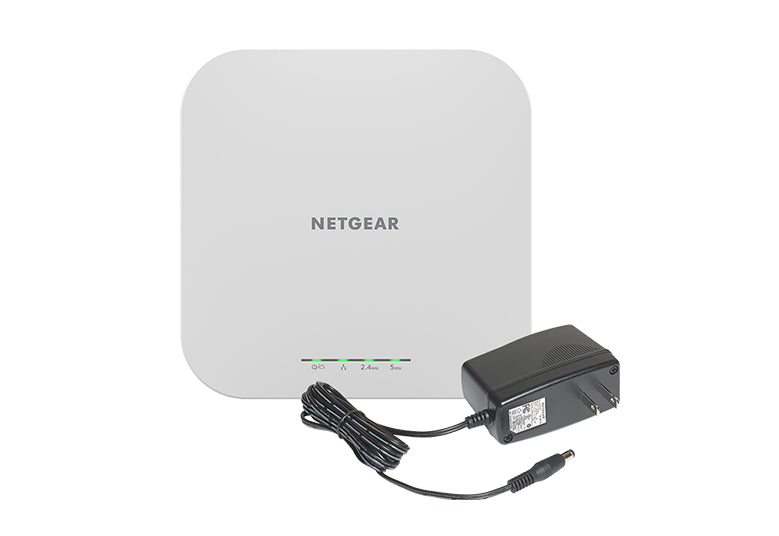

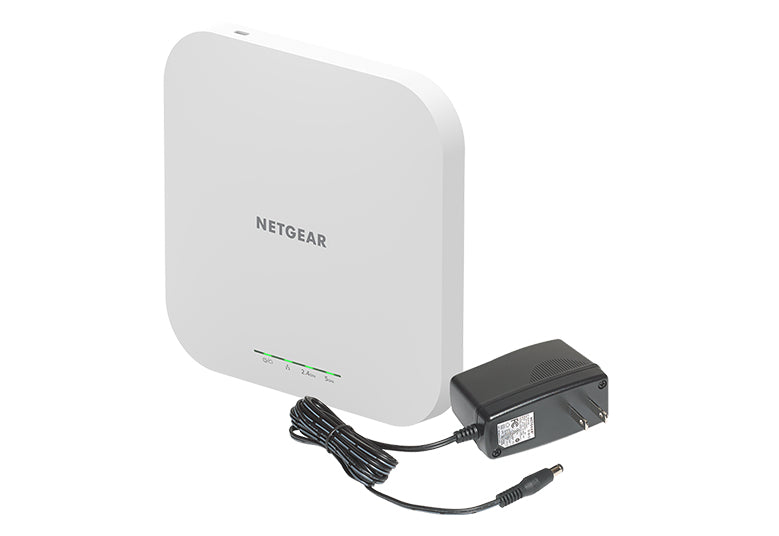

NETGEAR AX1800 White Power over Ethernet (PoE) - WAX610PA-100NAS

Instant WiFi Mesh
Forming wireless backhaul with other WAX6610, WAX610Y, WAC540, or WC564 units to set up a mesh network

Monitor From Anywhere
User-friendly remote cloud management with the Insight app

Flexible Mounting
Wall and ceiling kit included

Powerful Business WiFi
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.

Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Easy Wiring
Extra Wired 2.5Gbps Ethernet port that’s backward compatible with 100/1000Mbps Ethernet for easy wiring. WAX610PA version includes power adaptor for non-PoE installations.

Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless, Mesh WiFi
Wire-free installation with other WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Easy DIY Set Up
Setup, configure, and manage with the Insight app.

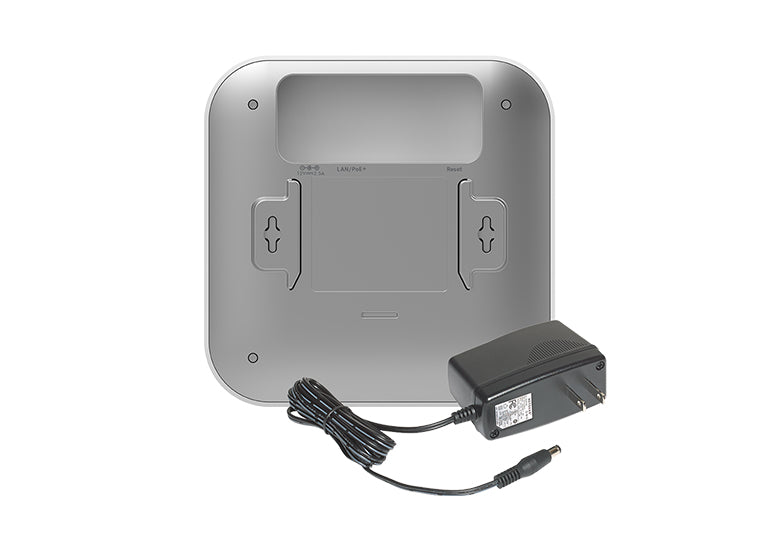

Flexible Mounting
Easy to securely install on the wall or a suspended ceiling with included hardware.

8 Wireless Networks (SSIDS)
Separate and secure networks for admin, guests, employees and IoT like cameras, locks and more.

Separate VLANs
Keep admin, employees, visitors, HR departments safely separated and segregated.

Peer-to-peer Separation
Prevent guests from accessing other guests devices on same VLAN

• Number of Max Users : 250
• Number of Concurrent Users : 30
• Remote management : Insight Standalone
• Ethernet port : 2.5G

2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate (2.4 GHz)	600
Maximum data transfer rate (5 GHz)	1200
Ethernet LAN data rates	100,1000
Networking standards	IEEE 802.11ax,IEEE 802.3af
Number of users	250
MIMO	Y
VLAN support	Y
Security algorithms	WPA,WPA2,WPA3
MAC address filtering	Y
Auto Wireless Distribution System (WDS)	Y
Remote Authentication Dial-In User Service (RADIUS)	Y
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power over Ethernet (PoE)	Y
AC input voltage	12
Input current	2.5
Power consumption (typical)	15.3
Placement	Ceiling,Wall
Product colour	White
LED indicators	Power,Status
Antenna type	Internal
Antenna gain level (max)	4.5
Width	160.9
Depth	160.9
Height	33.25
Weight	412
Mounting kit	Y
Operating temperature (T-T)	0 - 40
