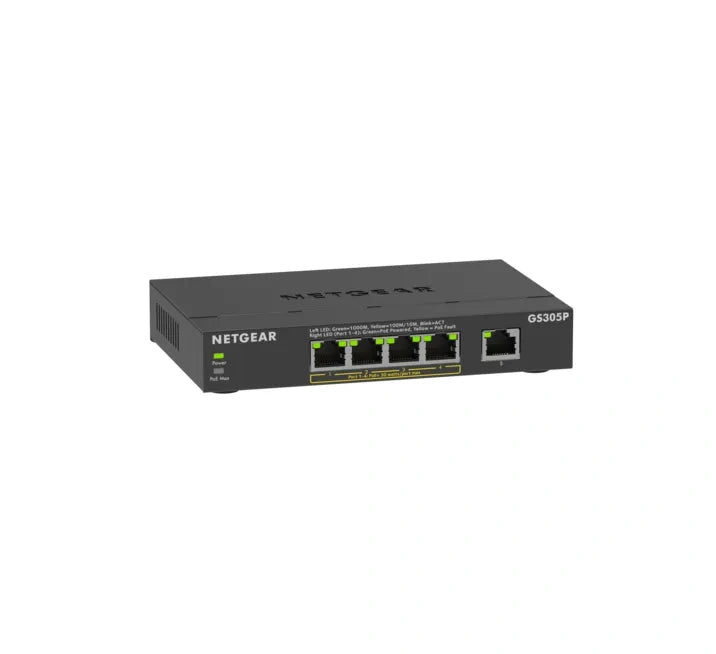

NETGEAR GS305P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black - GS305P-300NAS

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance

FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed

POWER-OVER-ETHERNET
4 PoE ports with 55W total power budget to power wireless AP, IP Cameras, IP Phones and much more

PoE POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.

Metal Case
Durable and Rugged

VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box

STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs

• Unmanaged
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 5
• MAC address table: 2000 entries Switching capacity: 10 Gbit/s
• Desktop/Wall-Mounting
• DC/PoE Power over Ethernet (PoE)

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.1p,IEEE 802.3az,IEEE 802.3at,IEEE 802.3af,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support	N
Full duplex	Y
Half duplex	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
Cable length detection	Y
MAC address table	2000
Switching capacity	10
Forwarding rate	1.448
Latency (1 Gbps)	2.4
Jumbo frames support	Y
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000
Packet buffer memory	0.128
MAC address filtering	Y
Rack mounting	N
Stackable	N
Form factor	Desktop/Wall-Mounting
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Fanless	Y
Mean time between failures (MTBF)	4113947
Power source	DC/PoE
DC input voltage	54
Input current	1.25
Power consumption (max)	66.78
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	63
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 70
Storage relative humidity (H-H)	5 - 95
Operating altitude	0 - 3000
Heat dissipation	228.38
Width	158
Depth	101
Height	27
Weight	400
