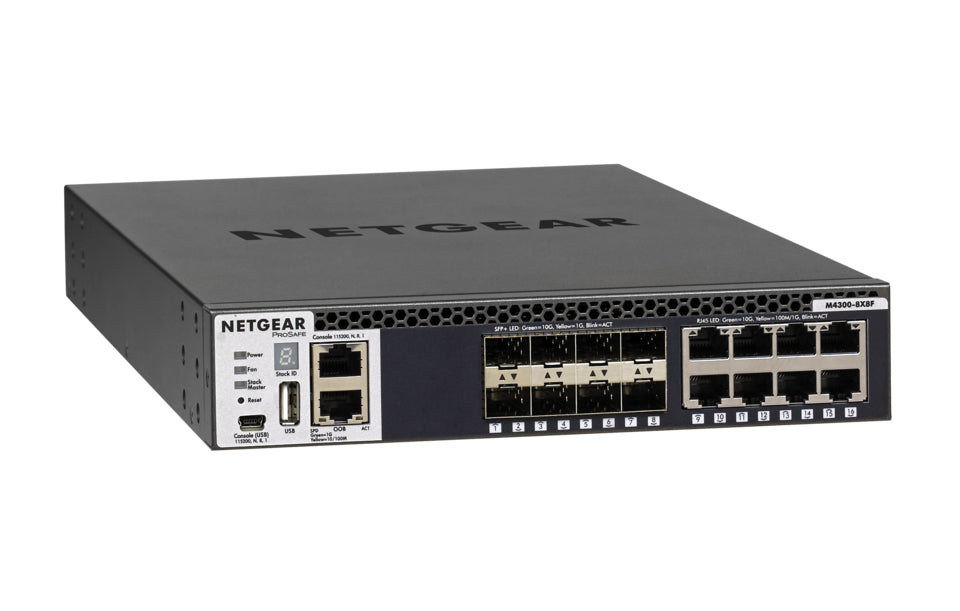

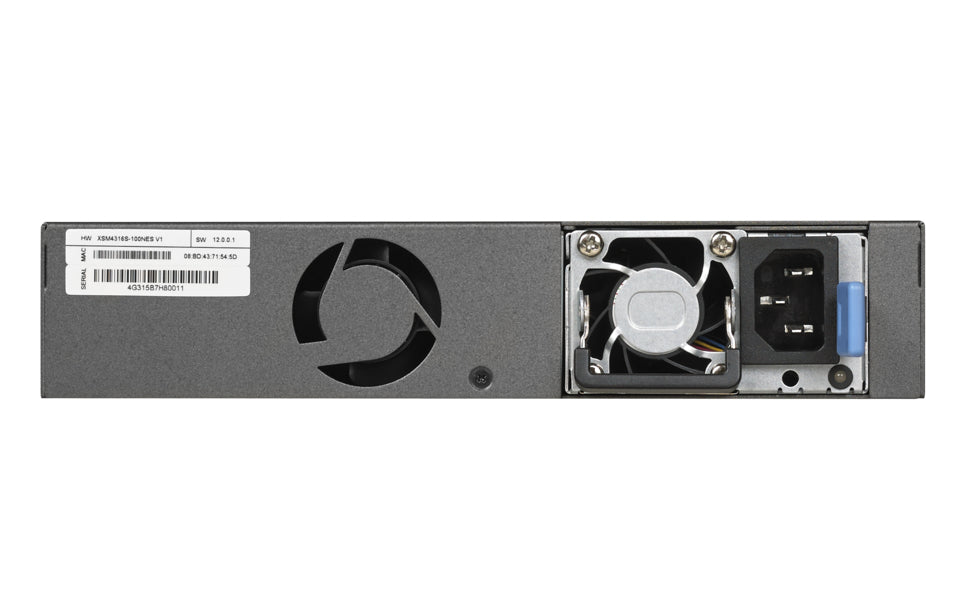

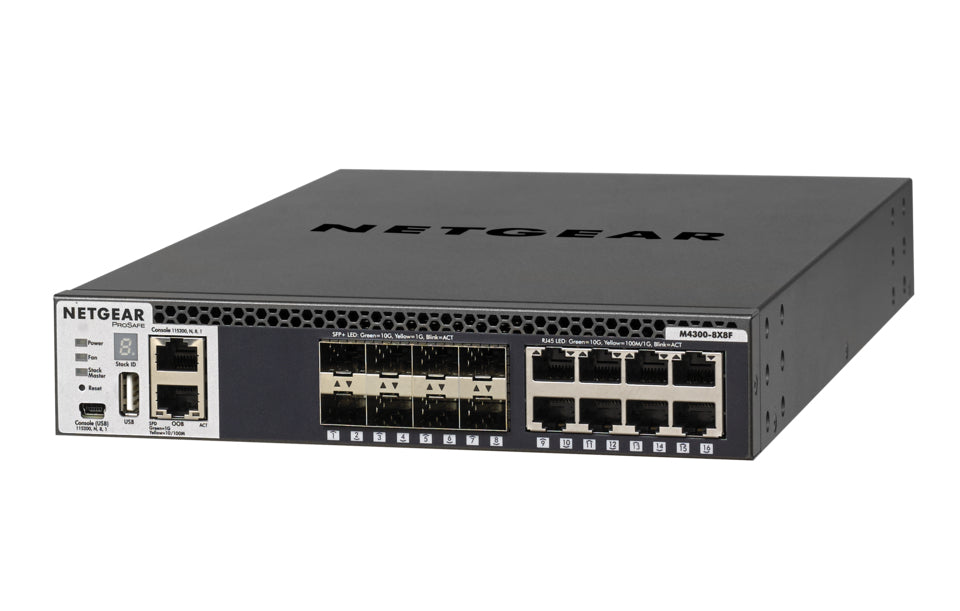

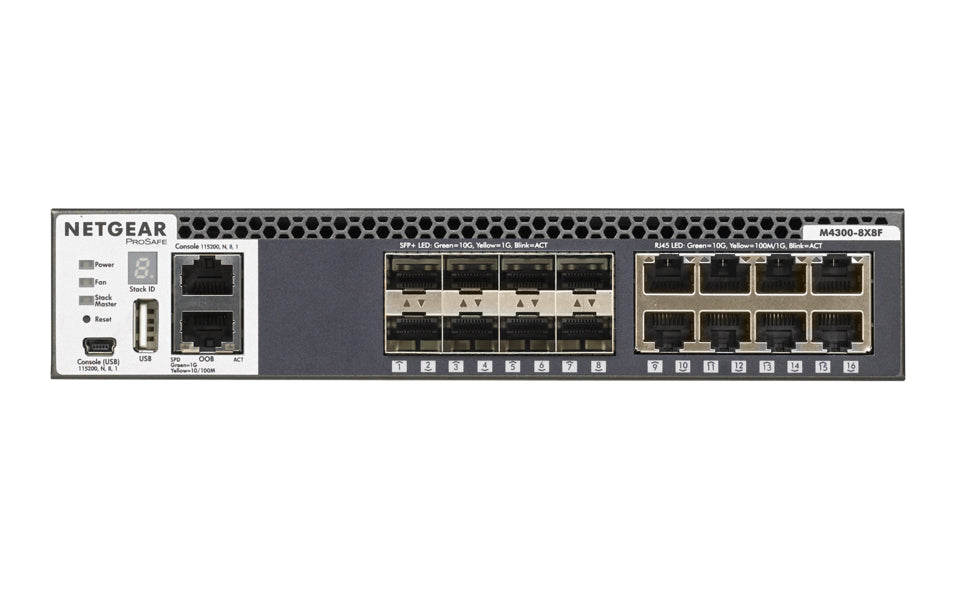

NETGEAR M4300-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Black - XSM4316S-100NES

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services

- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

• Managed L3 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45/Mini-USB
• Cat5, Cat5e, Cat6, Cat7 10G support
• MAC address table: 16000 entries Switching capacity: 320 Gbit/s
• Access Control List (ACL)
• 1U Rack mounting Stackable
• Power supply included

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
SFP+ module slots quantity	8
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Networking standards	IEEE 802.11ad,IEEE 802.11az,IEEE 802.3ad,IEEE 802.3az
10G support	Y
Cable types supported	Cat5,Cat5e,Cat6,Cat7
Port mirroring	Y
IP routing	Y
Flow control support	Y
Link aggregation	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Auto-sensing	Y
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Private VLAN
Fiber ethernet cabling technology	10GBASE-LR,10GBASE-LRM,10GBASE-SR
MAC address table	16000
Switching capacity	320
Forwarding rate	357
Store-and-forward	Y
Number of static routes	64
Jumbo frames support	Y
Jumbo frames	9000
DHCP features	DHCP server,DHCP client
Access Control List (ACL)	Y
Security algorithms	HTTPS,SNMP,SSH
SSH/SSL support	Y
BPDU filtering/protection	Y
Multicast support	Y
Number of multicast groups filtered	4000
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
LED indicators	Activity,Power,Speed
Safety	CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Built-in processor	Y
Processor frequency	800
Internal memory	1024
Flash memory	256
Noise level	36.9
Mean time between failures (MTBF)	196120
Power supply included	Y
Number of power supply units	1
AC input voltage	120 - 230
Power consumption (max)	49
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Non-operating altitude	0 - 3000
Heat dissipation	18577
Width	212
Depth	345
Height	44
Weight	3320
Cables included	AC,LAN (RJ-45),Mini-USB
User guide	Y
Rack mount kit	Y
Rubber feet	Y
Resource CD	Y
Harmonized System (HS) code	85176990
