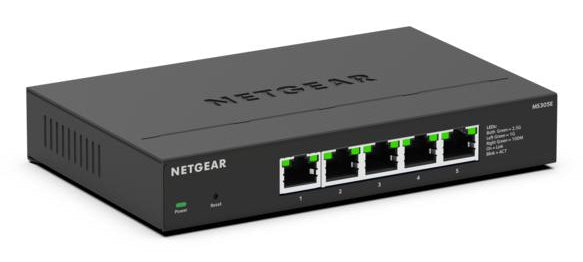

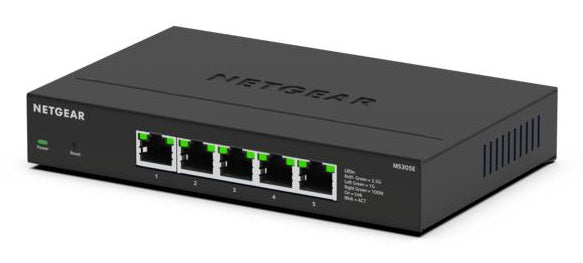

NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black - MS305E-100NAS

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch

MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

• Unmanaged
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 5
• MAC address table: 16000 entries Switching capacity: 40 Gbit/s
• DC Power supply included

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
10G support	N
Full duplex	Y
Half duplex	Y
Auto MDI/MDI-X	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	100,1000,2500
Cable length detection	Y
MAC address table	16000
Switching capacity	40
Forwarding rate	3.72
Latency (1 Gbps)	4.9
Jumbo frames support	Y
Jumbo frames	12288
Packet buffer memory	1
Rack mounting	N
Stackable	N
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Number of fans	0
Noise level	0
Fanless	Y
Mean time between failures (MTBF)	4273003
Power source	DC
Power supply included	Y
DC input voltage	12
Input current	1
Input voltage	12
Power consumption (max)	5.6
Power over Ethernet (PoE)	N
Warranty period	5
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Width	158
Depth	101
Height	27
Weight	450
Compliance certificates	CCC,Low Voltage Directive (LVD)
