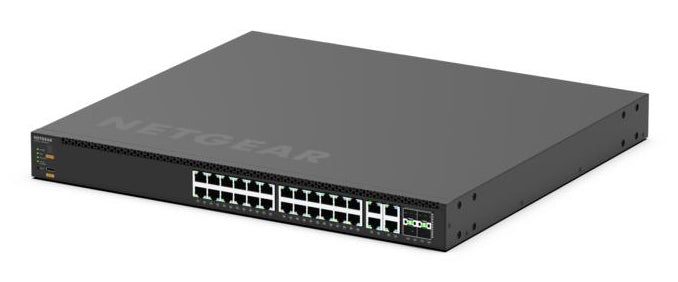

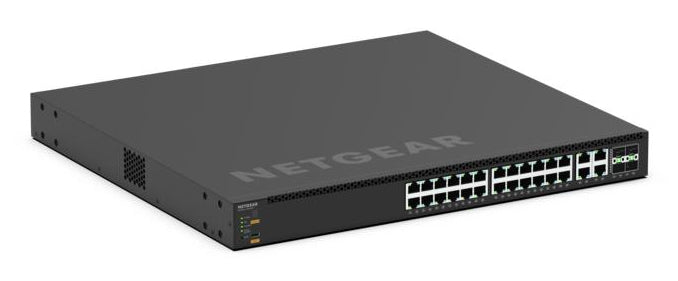

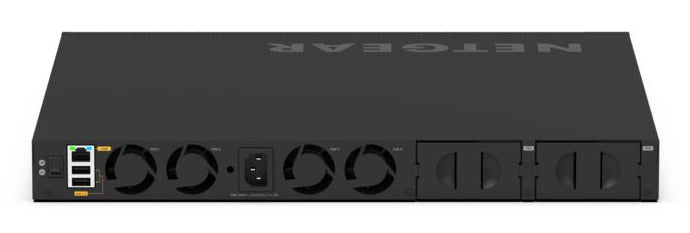

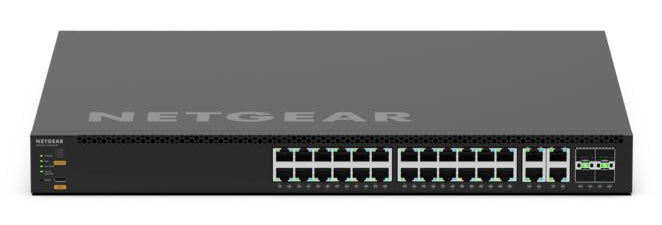

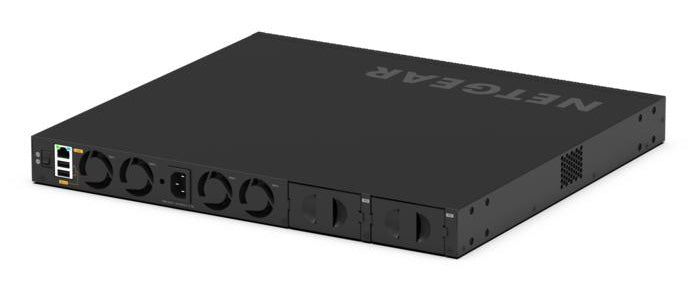

NETGEAR MSM4332 Managed L3 Power over Ethernet (PoE) 1U Black - MSM4332-100NES

POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350

FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

• 420W internal power supply.
• 1 slot for modular power supply (1+1 redundancy).
• Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
• Layer 3 feature set includes static, policy-based, and dynamic routing.
• NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
• SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
• Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.

Switch type	Managed
Switch layer	L3
Basic switching RJ-45 Ethernet ports quantity	28
Fiber ports quantity	4
Fiber optic connector	SFP28
Console port	USB
SFP28 ports quantity	4
10G support	Y
Copper ethernet cabling technology	2.5GBASE-T,10GBASE-T
Switching capacity	400
Jumbo frames support	Y
IGMP snooping	Y
IGMP proxy	Y
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
Memory type	DDR4-SDRAM
Internal memory	4000
Noise level	66
Power source	AC
Power supply included	Y
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power over Ethernet (PoE) ports quantity	28
Total Power over Ethernet (PoE) budget	2520
Width	440
Depth	400
Height	43.2
Weight	7380
Cables included	AC,USB
Manual	Y
Rack mount kit	Y
