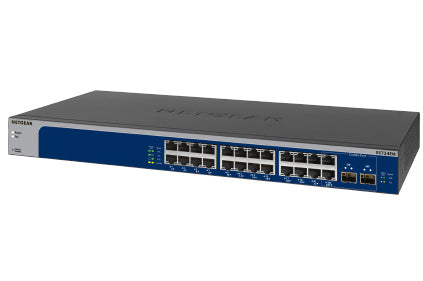

NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U Grey, Blue - XS724EM-200NAS

Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.

Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle.

• Managed L2
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 24
• 10G support
• MAC address table: 32000 entries Switching capacity: 480 Gbit/s
• 1U Rack mounting
• AC

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Power connector	DC-in jack
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3z,IEEE 802.3x,IEEE 802.3u,IEEE 802.3bz
10G support	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN
MAC address table	32000
Switching capacity	480
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	3
DHCP features	DHCP client
IGMP snooping	Y
MAC address filtering	Y
Rack mounting	Y
Form factor	1U
Product colour	Grey,Blue
LED indicators	Y
Number of fans	3
Power source	AC
AC input voltage	100 - 240
Input voltage	2
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Heat dissipation	513.88
Width	440
Depth	204
Height	43
Weight	3720
Certification	47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1
