Peerless PCM150 signage display mount 2.29 m (90") Black - PCM150

The Paramount™ Universal Ceiling Mount Kit includes everything required for mounting a flat panel display onto a variety of ceiling types. Flat, sloped, wood or concrete ceiling installations are manageable with this flexible mounting kit. The 90° cathedral ceiling plate even allows the solution to be mounted to a wall. The kit includes an adjustable extension column that allows the display to be centered 39.59" to 63.21" from the ceiling. The lockable 360° swivel ensures the perfect viewing position.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

• Accommodates 100 x 100 to 600 x 400mm VESA® mounting patterns
• Simple Hook-and-Hang™ display installation

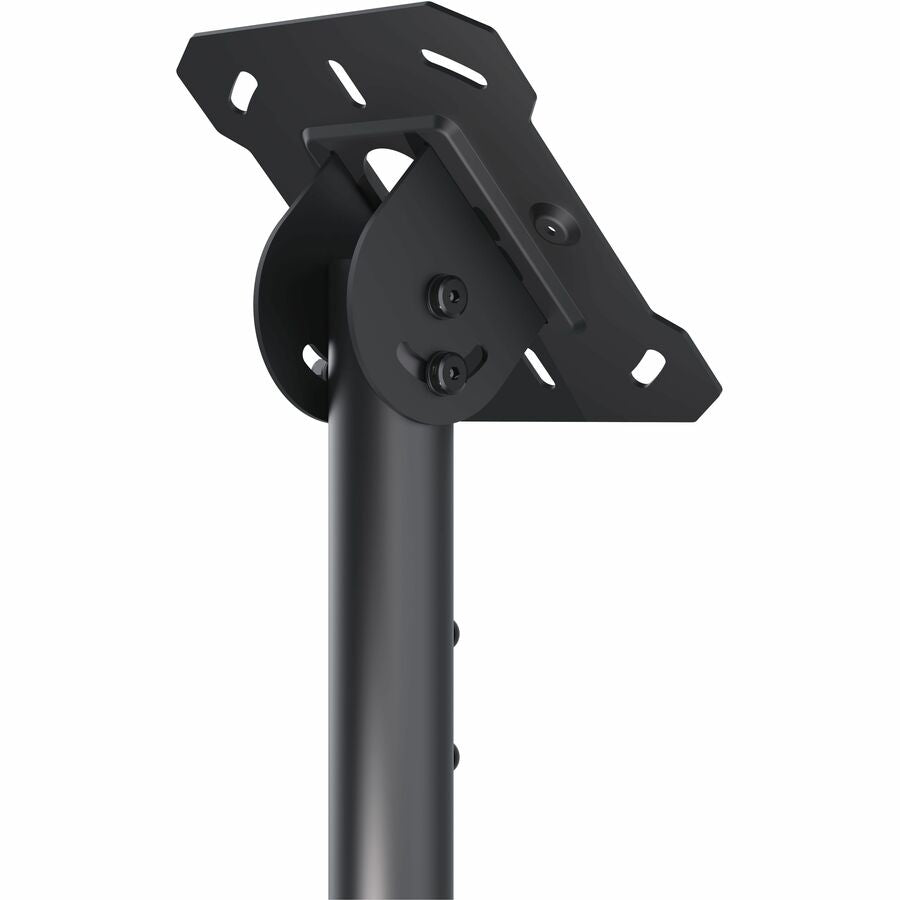

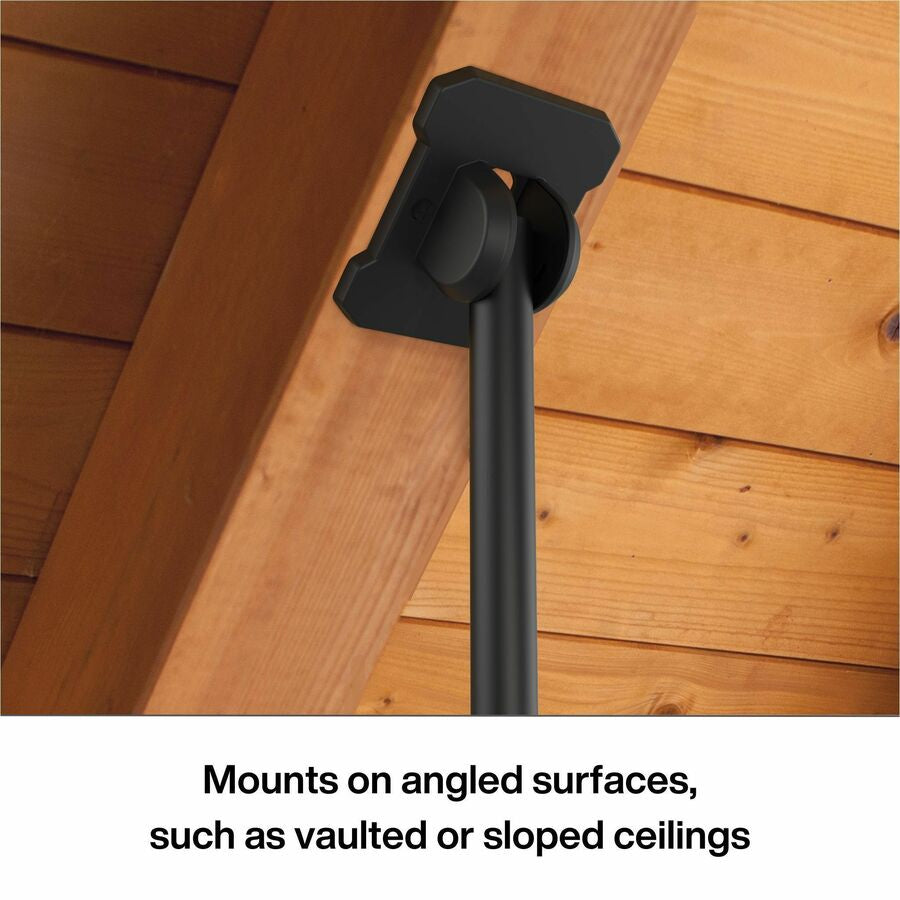

• Cathedral ceiling plate can attach to 0° to 90° angled ceiling structures
• 360° of rotation creates endless viewing possibilities from anywhere in the room

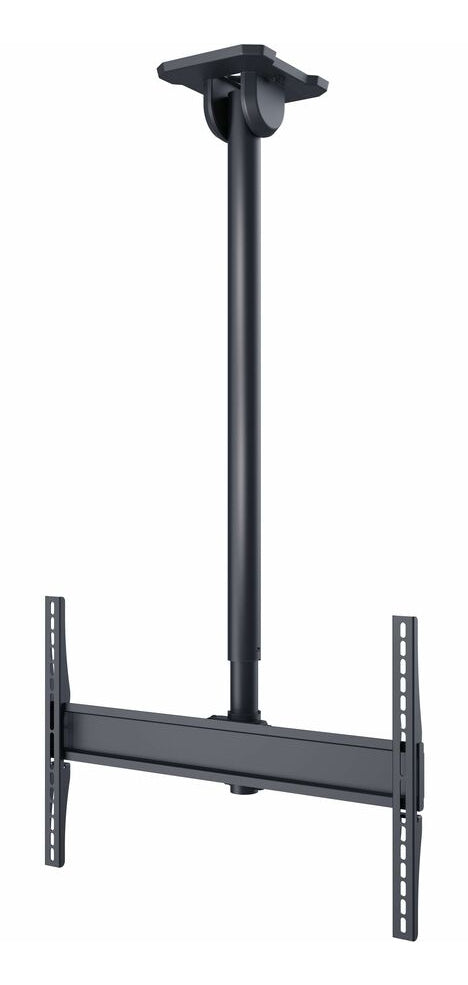

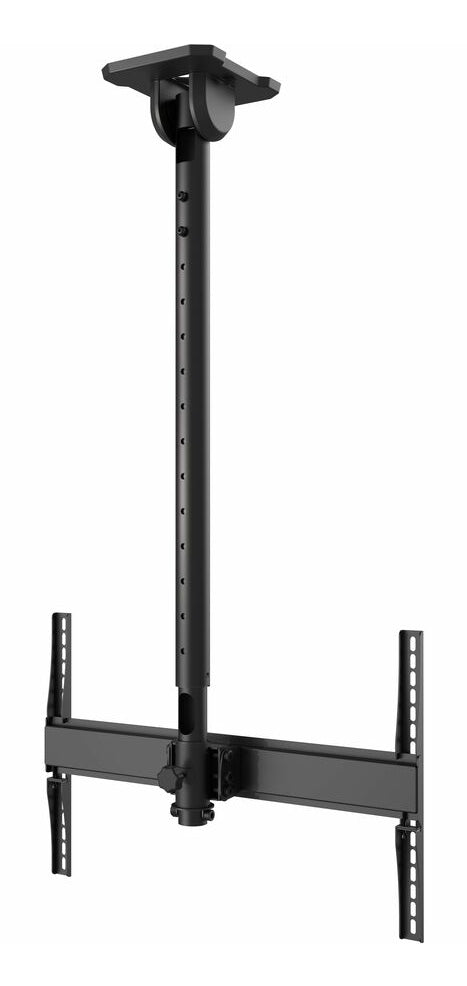

• Adjustable extension column provides 39.59" to 63.21" (1006 to 1606mm) of vertical adjustment

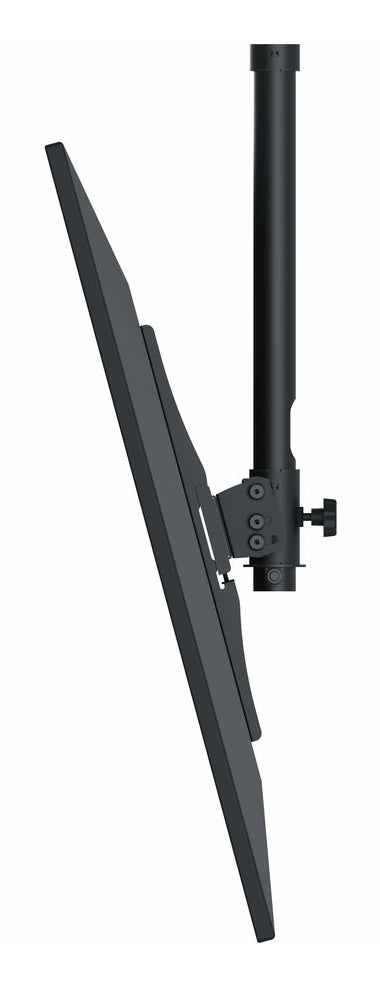

• Easily adjust your viewing angle up to +20°/-5° tilt
• Side-to-side adjustment allows for perfect display positioning
• 360° of swivel can be locked in place with included thumb screw knob
• Easily route all cabling through the extension column for a clean and neat installation
• Molded covers, molded extension column guides and a clean column face provide top-quality aesthetics
• Mounts to wood stud or concrete ceilings

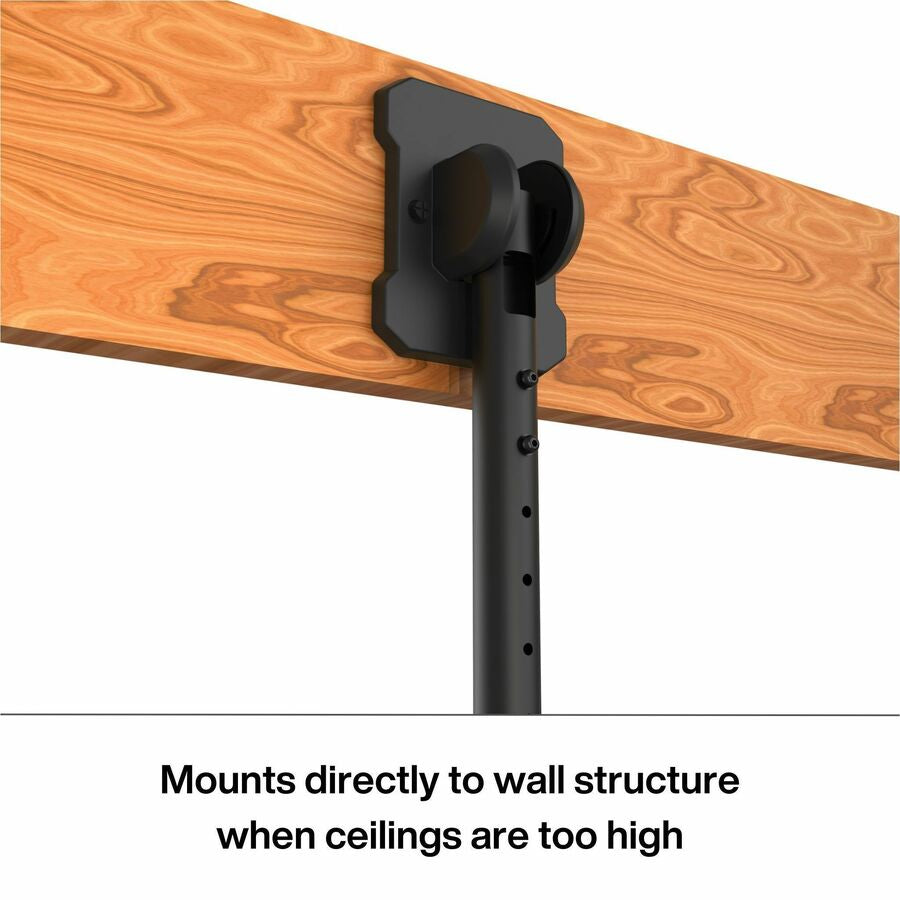

• Can be mounted at a 90° angle to wood stud, concrete or cinder block walls
• Includes all necessary ceiling mounting and display attachment hardware

Number of displays supported	1
Maximum weight capacity (per display)	68
Maximum screen size	90
Mounting type	Ceiling
Maximum weight capacity	68
Minimum VESA mount	100 x 100
Maximum VESA mount	600 x 400
Minimum screen size	43
Panel mounting interface	100 x 100,600 x 400
Height adjustment	Y
Height adjustment type	Manual
Height adjustment range	1006 - 1606
Tilt angle range	-5 - 20
Swivelling	Y
Swivel angle	360
Angle of rotation	360
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Tilt angle	25
Height adjustment	600
Product colour	Black
Width	645.9
Height	1605.5
Weight	8940
Quantity per pack	1
Mounting kit	Y
Orientation	Landscape (format)
Warranty period	5
Compliance certificates	RoHS
