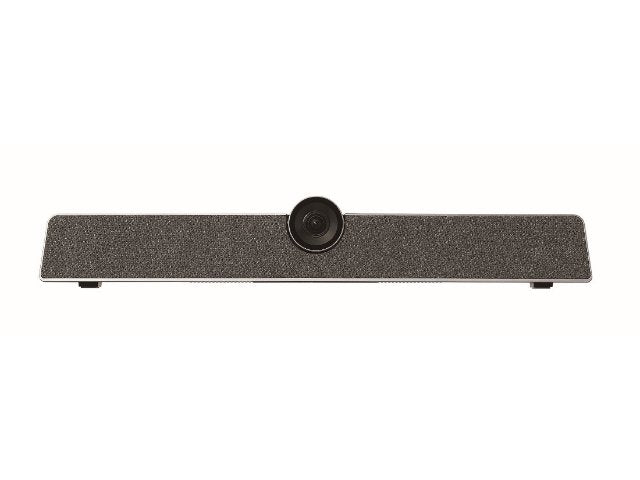

Sharp PN-ZCMS1 video conferencing camera 12 MP Black 3840 x 2160 pixels - PN-ZCMS1

Quick meeting start-up

Universal all-in-one unified communication videobar for hybrid meeting rooms.

Enabling quick and easy-to-use unified communication, enhancing almost any office, meeting room and classroom.

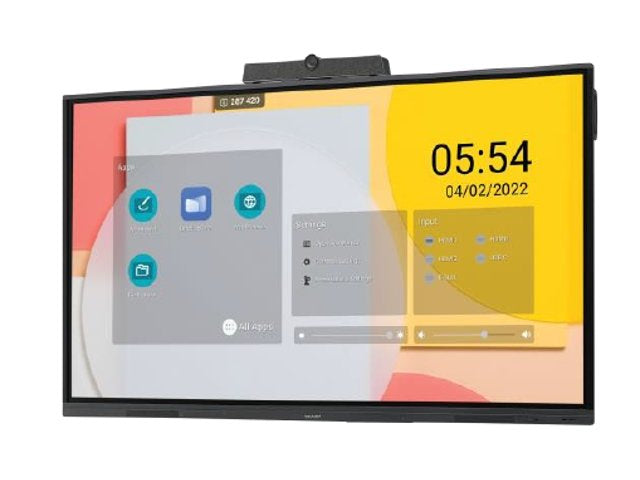

All Sharp Collaboration Displays are shipped with a bracket for easy installation of the PN-ZCMS1 videobar on top the display.

For a wide range of MultiSync® Large Format Displays optional brackets (Soundbar Bracket TOP SB-T01 and TOP SB-T02) are available to mount the PN-ZCMS1 videobar on top the displays.

• Full room coverage - with 120° field of view the 12 MP built-in camera ensures everyone is seen in the room
• High-quality sound - 6 array microphone picks up voice firmly and cancels echos to ensure clear audio even in larger rooms
• Focus on the presenter - intelligent face detection and voice localization tracks whoever is speaking and smoothly switches between presenters
• Quick meeting start-up - save up to two camera presets and switch between presets using the remote control
• 100% compatibility and enhanced feature-set - in combination with Sharp and NEC displays
• Easy installation - mount on top of your Sharp or NEC display or directly to the wall using the wall mount bracket

Megapixel (approx.)	12
Zoom capability	Y
Field of view (FOV) angle	120
Face tracking	Y
Maximum video resolution	3840 x 2160
HD type	4K Ultra HD
Video formats supported	MJPG,H.264,YUY2
Product colour	Black
USB 2.0 Type-C ports quantity	1
Power source type	AC
AC input frequency	50/60
AC input voltage	100 - 240
Power consumption (typical)	36
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 90
Built-in microphone	Y
Number of microphone arrays	6
Built-in speaker(s)	Y
Width	462
Depth	76
Height	93
Weight	950
