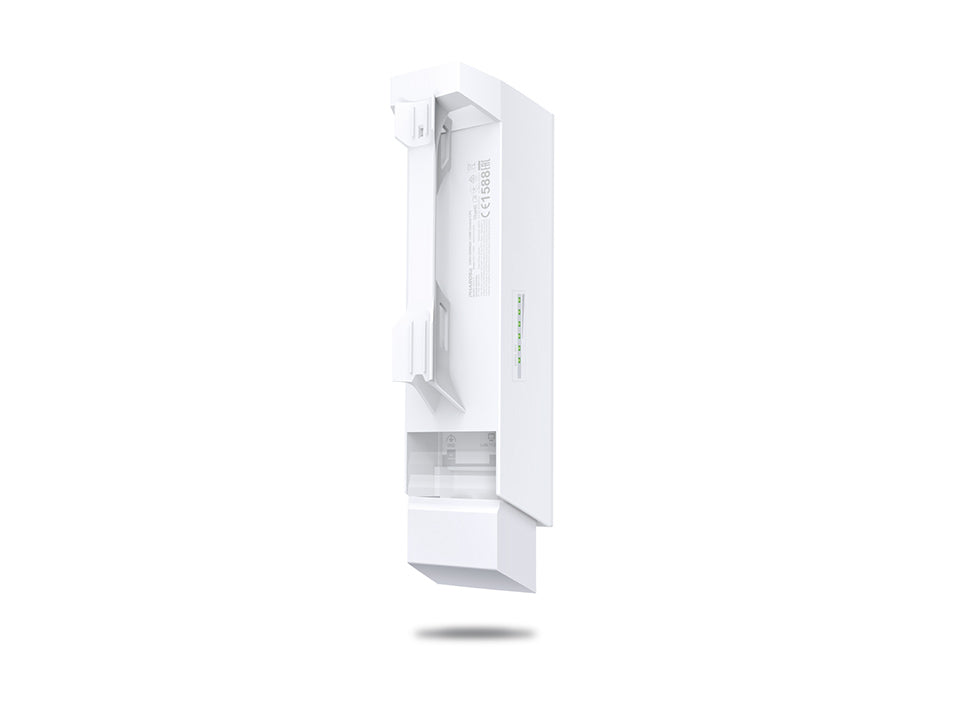

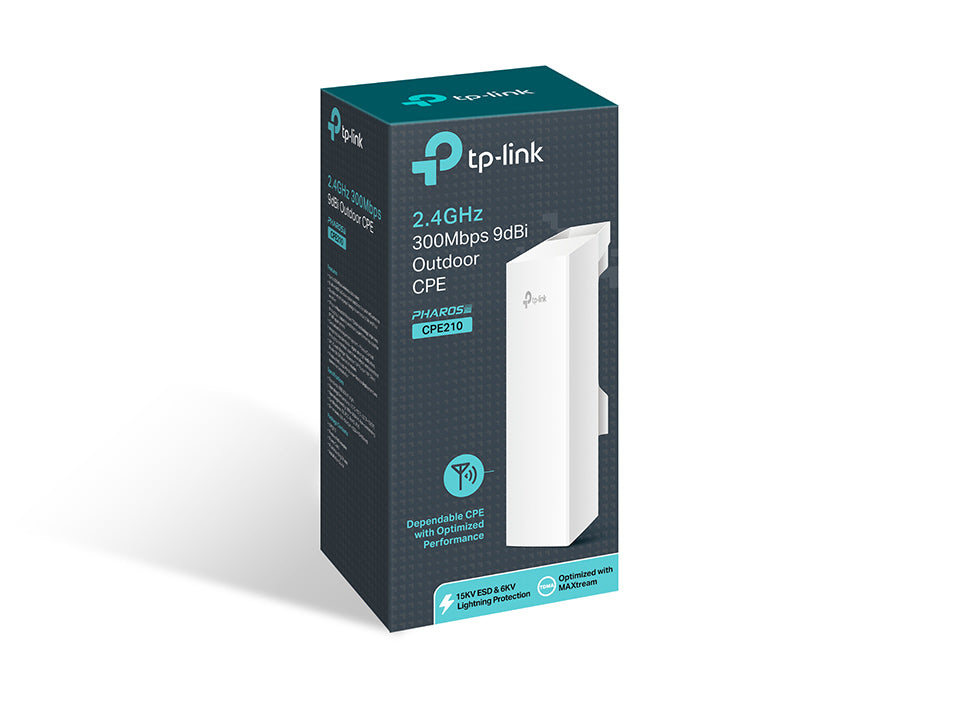

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 300 Mbit/s White Power over Ethernet (PoE) - CPE210

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 27dBm/500mw
• System-level optimizations for more than 5km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

2.4 GHz	Y
5 GHz	N
Maximum data transfer rate	300
Maximum data transfer rate (2.4 GHz)	300
Frequency band	2.4 - 2.483
Bandwidth	2.4
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
MIMO	Y
MIMO type	Multi User MIMO
Maximum outdoor range	5000
Receiver sensitivity	802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security algorithms	64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
MAC address filtering	Y
Management protocols	TDMA
Web-based management	Y
Management platform	Pharos Control
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Y
AC input voltage	100 - 240
AC input frequency	50 - 60
Input current	0.8
Output voltage	24
Output current	1
Power consumption (max)	10.5
Placement	Wall
Product colour	White
International Protection (IP) code	IPX5
Reset button	Y
LED indicators	Y
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	9
Built-in processor	Y
Processor model	Qualcomm Atheros
Processor frequency	560
Flash memory	8
Internal memory	64
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Width	224
Depth	79
Height	60
Cables included	AC
Mounting kit	Y
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	-30 - 70
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 95
Harmonized System (HS) code	85176990
