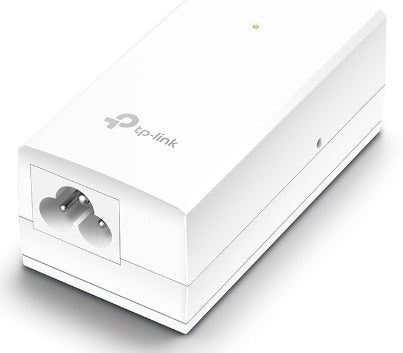

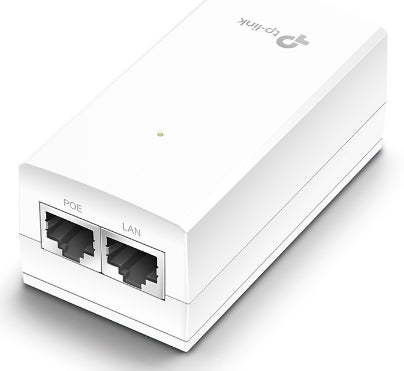

TP-Link 24V Passive PoE Adapter - POE2412G

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

• Gigabit Ethernet ports
• 24VDC passive PoE supported
• Auto-adjusted power depends on requirements
• Convenient wall-mounting design
• Plug-and-Play, no configuration required

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Y
Auto MDI/MDI-X	Y
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6
Product colour	White
Wall mountable	Y
Plug and Play	Y
Maximum operating distance	100
LED indicators	Power
Auto-negotiation	Y
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	24
Output power	12
Compliance certificates	RoHS
Certification	FCC, CE, RoHS
Operating temperature (T-T)	0 - 40
Operating temperature (T-T)	32 - 104
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Width	85.8
Depth	43.9
Height	35
Dimensions (WxDxH)	43.9 x 85.8 x 35
Number of products included	1
Wall mounting kit	Y
Power cord included	Y
Package width	60
Package depth	180
Package height	60
Package weight	290
Harmonized System (HS) code	85044095
