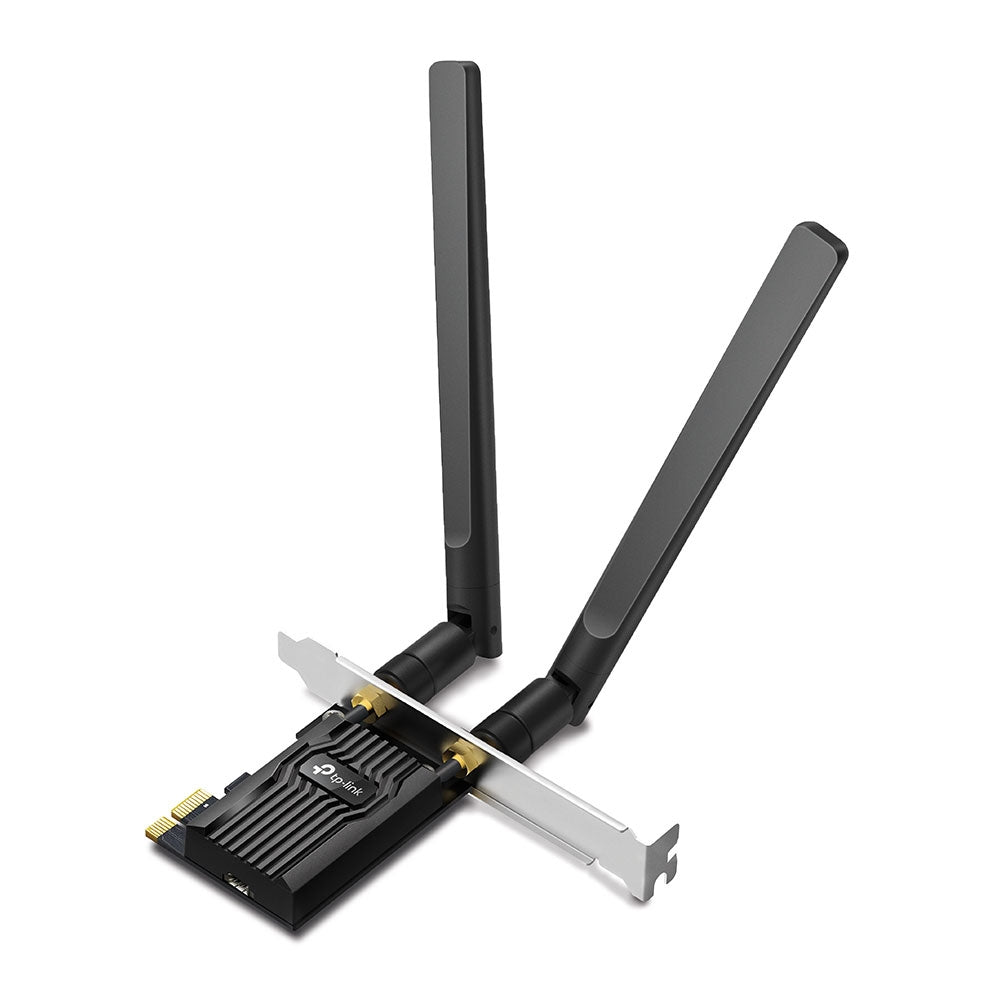

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter - ARCHER TX20E

Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security

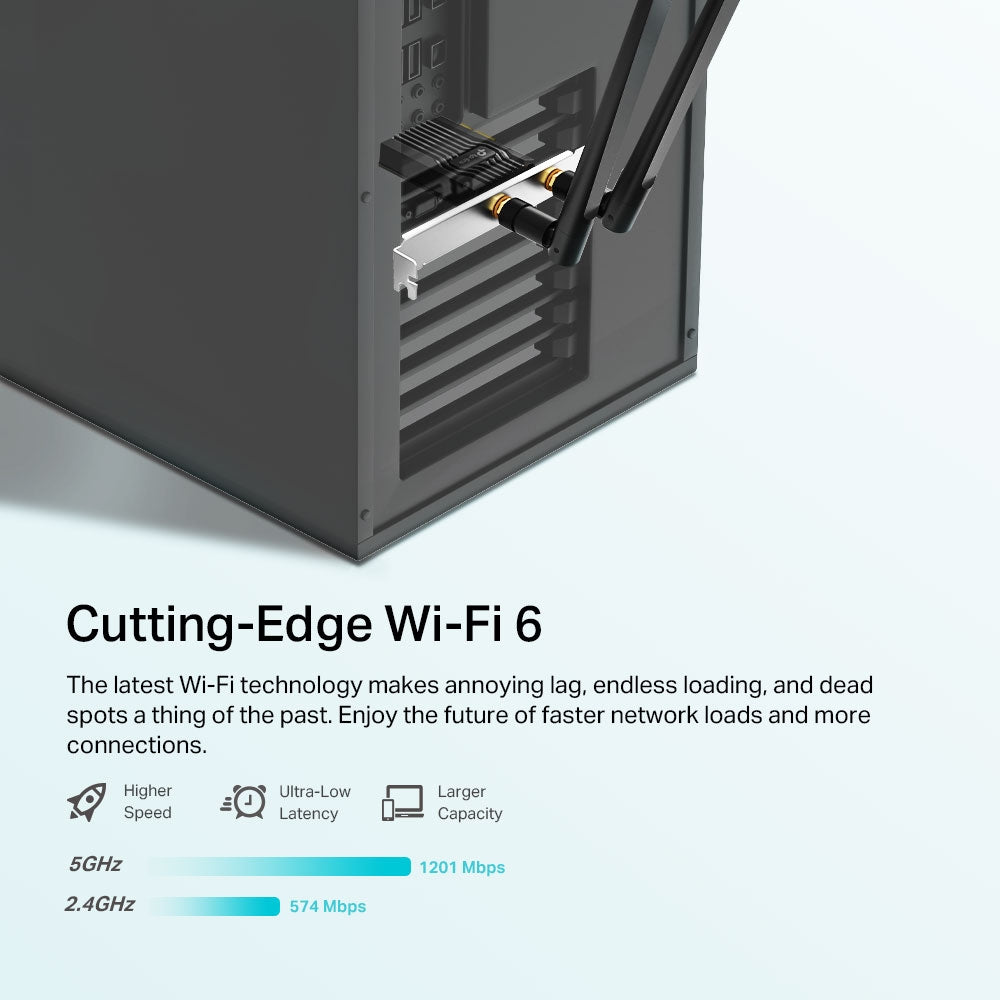

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.

More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

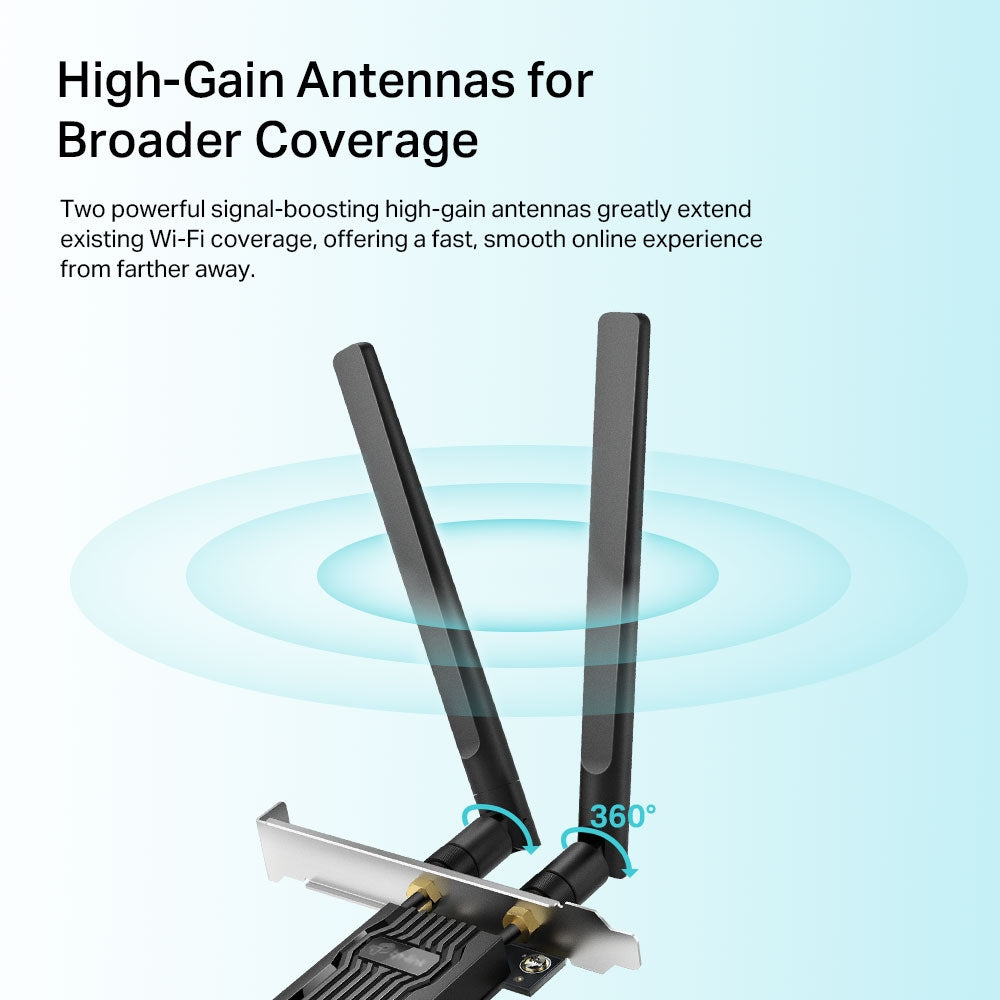

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.

• Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
• Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Maximum data transfer rate	1800
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	11,54,300,574,867,1200
Modulation	16-QAM,64-QAM,256-QAM,1024-QAM,CCK,DBPSK,DQPSK,OFDM
Security algorithms	64-bit WEP,128-bit WEP,802.1x RADIUS,WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3
Bluetooth	Y
Bluetooth version	5.2
Internal	Y
Component for	PC/Server
Product colour	Black
Antenna	Y
Antenna design	External
Transmitting power (CE)	23
Transmitting power (FCC)	27
Plug and Play	Y
Operating modes	Infrastructure mode
Windows operating systems supported	Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64,Windows 11 Enterprise x64,Windows 11 x64
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	120.8
Depth	78.5
Height	20.9
Package width	201.5
Package depth	152.5
Package height	41.5
Package weight	220
Mounting brackets included	Y
Resource CD	Y
Bluetooth header cable	Y
Quick installation guide	Y
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
Sustainability compliance	Y
