TP-Link InSight S385PI Bullet IP security camera Outdoor 3840 x 2160 pixels Wall - INSIGHT S385PI

One Shot, Huge Vision
8MP Outdoor IR Panoramic Bullet Network Camera

Cut Project Costs with 180° View and 4K (8MP) Clarity
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Red-Blue Warning Lights with
Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration

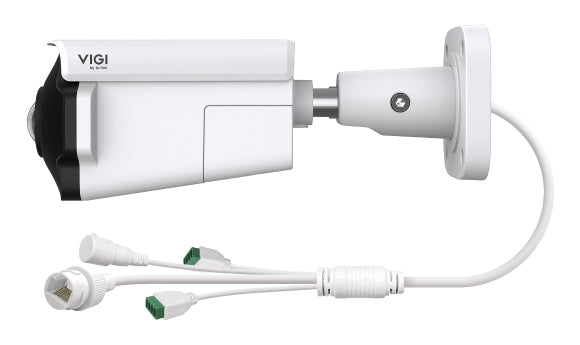

The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.*2

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1
• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics*2
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	44
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Remote viewing	Y
Dynamic range	120
Mounting type	Wall
Product colour	White
Form factor	Bullet (shape)
Housing material	Metal
Protection features	Waterproof
International Protection (IP) code	IP67
Weatherproof	Y
Minimum illumination	0
Lens viewing angle, horizontal	180
Lens viewing angle, vertical	86
Lens viewing angle, diagonal	180
Tilt angle range	0 - 90
Camera shutter speed	1/3 to 1/10000
Sensor type	CMOS
Optical sensor size	1/2.7
Progressive scan	Y
Sensor type (panoramic camera)	CMOS
Detect distance	44
Observe distance	18.33
Recognize distance	8.8
Fixed focus	Y
Maximum aperture number	2
Identify distance	4.4
Fixed focal length	1.65
Night vision	Y
LED type	IR/White
Maximum resolution	3840 x 2160
Total megapixels	8
Video compression formats	H.264,H.264+,H.265,H.265+
Supported graphics resolutions	1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1280,2304 x 1296,2560 x 1440,2688 x 1520,2880 x 1620,3840 x 2160
Video recording	Y
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
Back Light Compensation (BLC)	Y
Highlight Compensation (HLC)	Y
Digital Wide Dynamic Range (DWDR)	Y
Built-in speaker(s)	Y
Audio system	2-way
Audio input channels	1.0
Audio output channels	1.0
Audio formats supported	G.711 A-law
Sample rate	8
Built-in microphone	Y
Number of microphones	1
Bit rate range	0 - 64
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Networking standards	IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
SIM card slot	Y
SIM card type	MicroSIM
Live view	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Built-in siren	Y
Password protection	Y
Video motion detection	Y
IP address filtering	Y
HTTPS encryption	Y
Detection distance	120
Alert notification type	Push notification
Motion sensor	Y
Mirror	Y
Human and vehicle targets classification	Y
Digest authentication	Y
Cloud-managed	Y
Web-based management	Y
Web browser	Y
Reset button	Y
Power source type	DC,PoE
Power consumption (max)	18
Power consumption (Power over Ethernet (PoE))	21
DC output voltage	12
Operating temperature (T-T)	-30 - 60
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Width	100
Height	101
Length	266
Weight	1010
Number of cameras	1
Mounting kit	Y
Screws included	Y
Drilling template included	Y
Manual	Y
