TP-LINK  |  SKU: SG3428XF

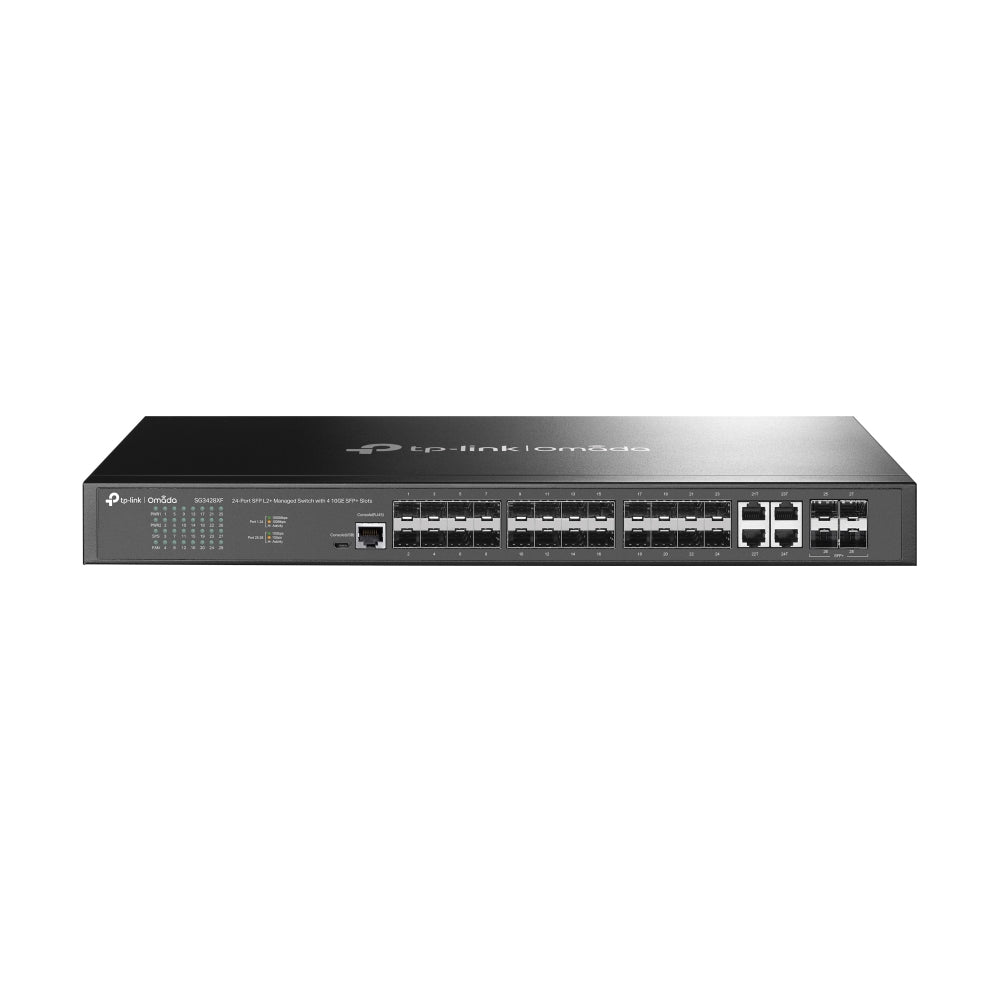

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots - SG3428XF

$539.16
Shipping calculated at checkout.

Care information

Manufacture Warranty

Delivery and Shipping

Standard Shipping: 3-5 Business days

Express Shipping: 1-2 Business days

ShareThis

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 20× Gigabit SFP slots and 4× Gigabit Combo SFP/RJ45 ports
  • 128 Gbps switching capacity
  • Two power supplies backing each other up
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Y
Web-based management Y
Cloud-managed Y
ARP inspection Y
Configuring Location Settings (CLI) Y
System event log Y
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Basic switching RJ-45 Ethernet ports quantity 0
Basic switching RJ-45 Ethernet ports type N
Combo SFP ports quantity 4
SFP+ module slots quantity 4
Fiber ports quantity 20
Fiber optic connector SFP,SFP+
Console port RJ-45/Micro-USB
Power connector AC-in jack
Networking standards IEEE 802.11d,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support Y
Port mirroring Y
IP routing Y
Policy-based routing Y
Routing entries 512
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Rate limiting Y
Spanning tree protocol Y
Head-of-line (HOL) blocking Y
Ethernet LAN data rates 10,100,1000,10000
Active link detection Y
IPv4 routes 48
IPv6 routes 48
VLAN support Y
Virtual LAN features Port-based VLAN,Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN
Number of VLANs 4000
MAC address table 16000
Switching capacity 128
Forwarding rate 95.23
Store-and-forward Y
Static route Y
Number of static routes 48
Jumbo frames support Y
Jumbo frames 9000
Packet buffer memory 12
DHCP features DHCP client,DHCP relay,DHCP server
Access Control List (ACL) Y
IGMP snooping Y
IGMP proxy Y
MAC address filtering Y
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
IP-MAC-Port binding Y
Authentication Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication
Password protection Y
Authentication type AAA,RADIUS,TACACS+
Queue scheduling algorithms SP,WRR+SP,Weighted Round Robin (WRR)
Multicast support Y
Multicast Listener Discovery (MLD) snooping Y
Management protocols SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP) Y
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert
Rack mounting Y
Form factor 1U
Product colour Black
LED indicators Y
Number of fans 1
Power source AC
Power supply included Y
Redundant power supply (RPS) support Y
Number of power supply units 2
Power consumption (max) 35.7
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 - 45
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Heat dissipation 121.81
Width 440
Depth 220
Height 44
Cables included AC
Manual Y
Rack mount kit Y
