TP-LINK  |  SKU: SX3206HPP

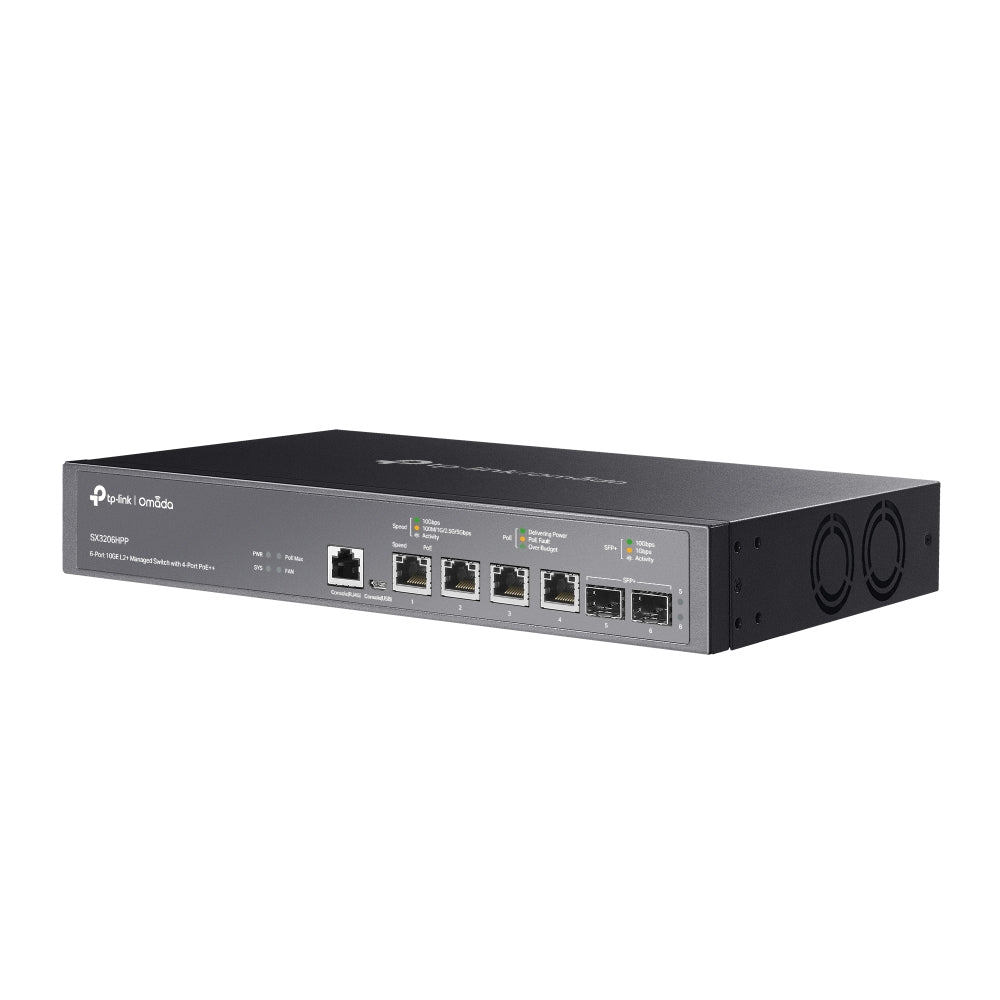

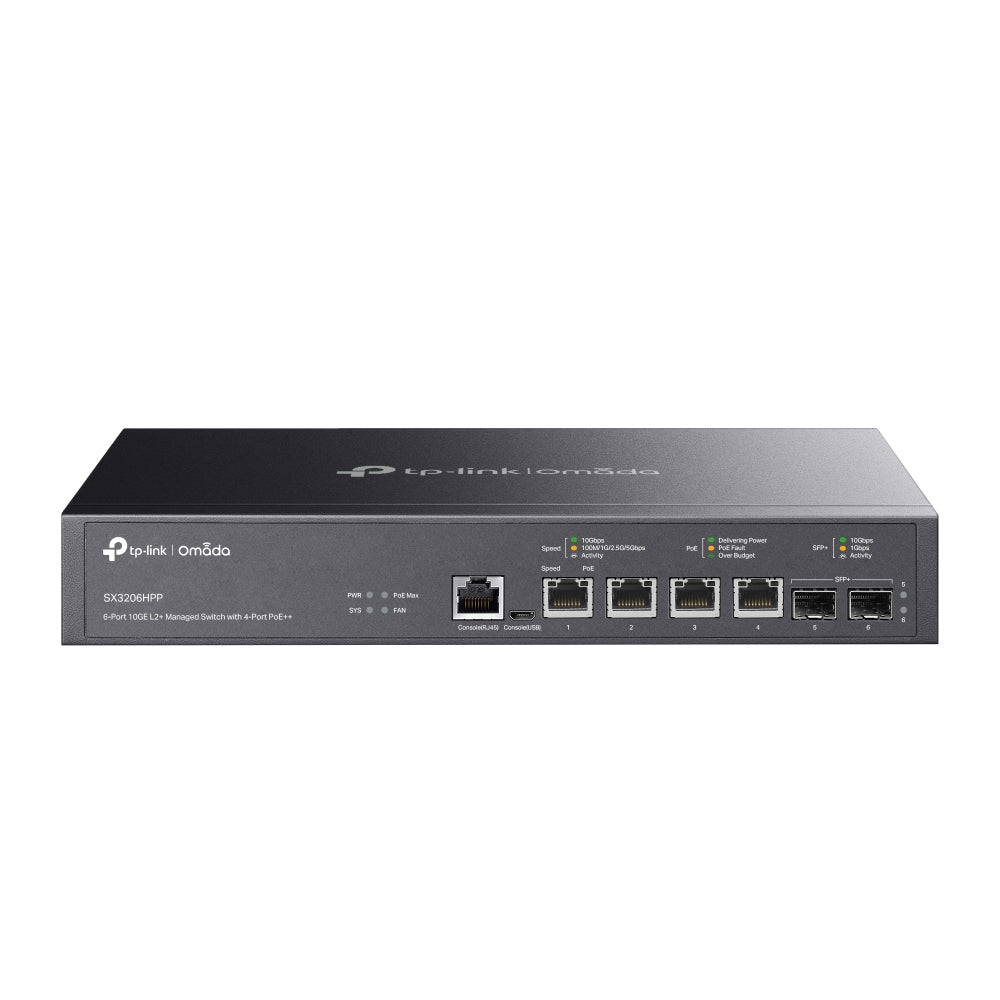

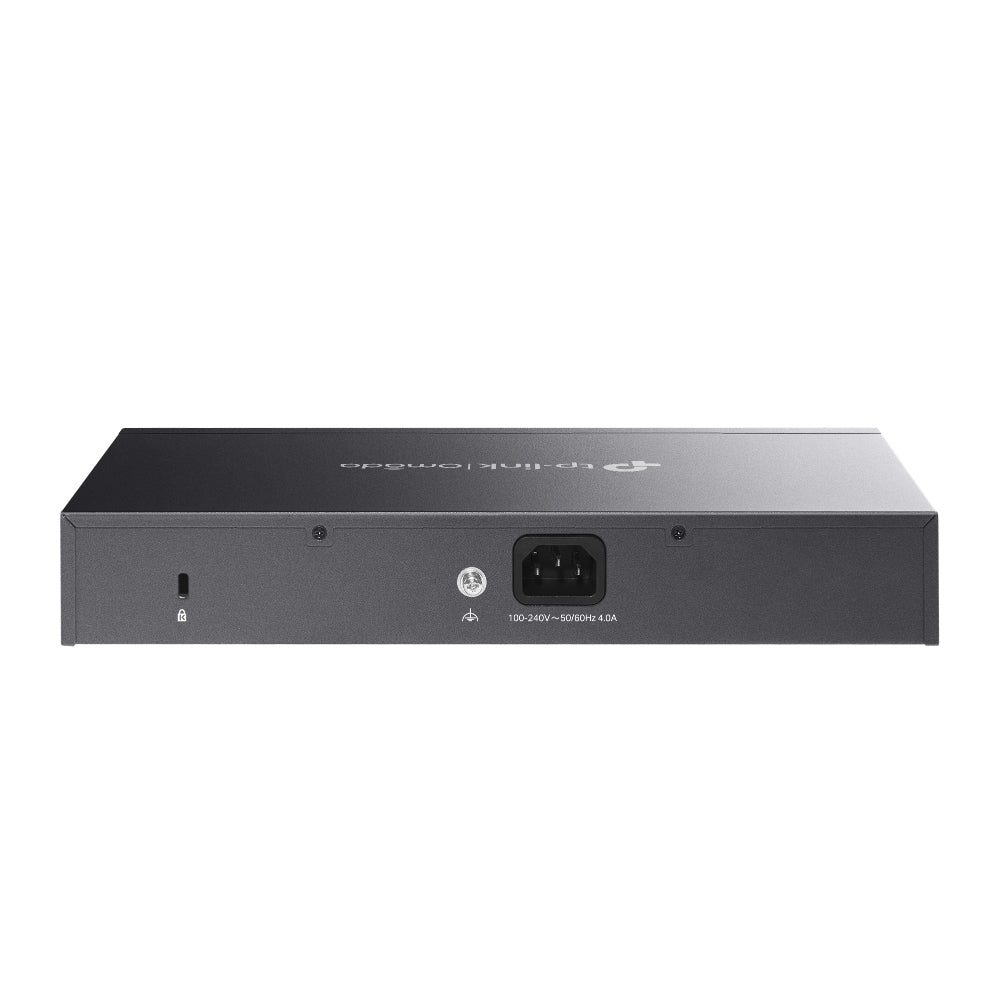

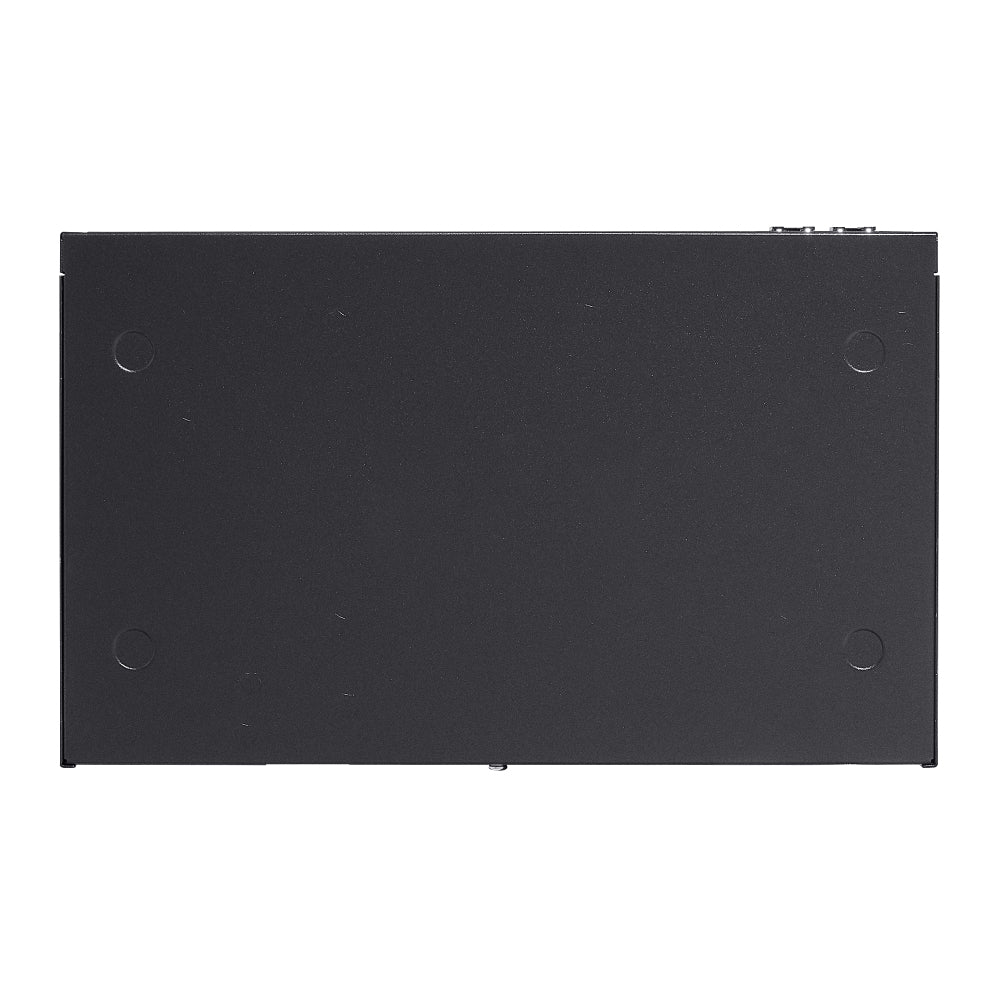

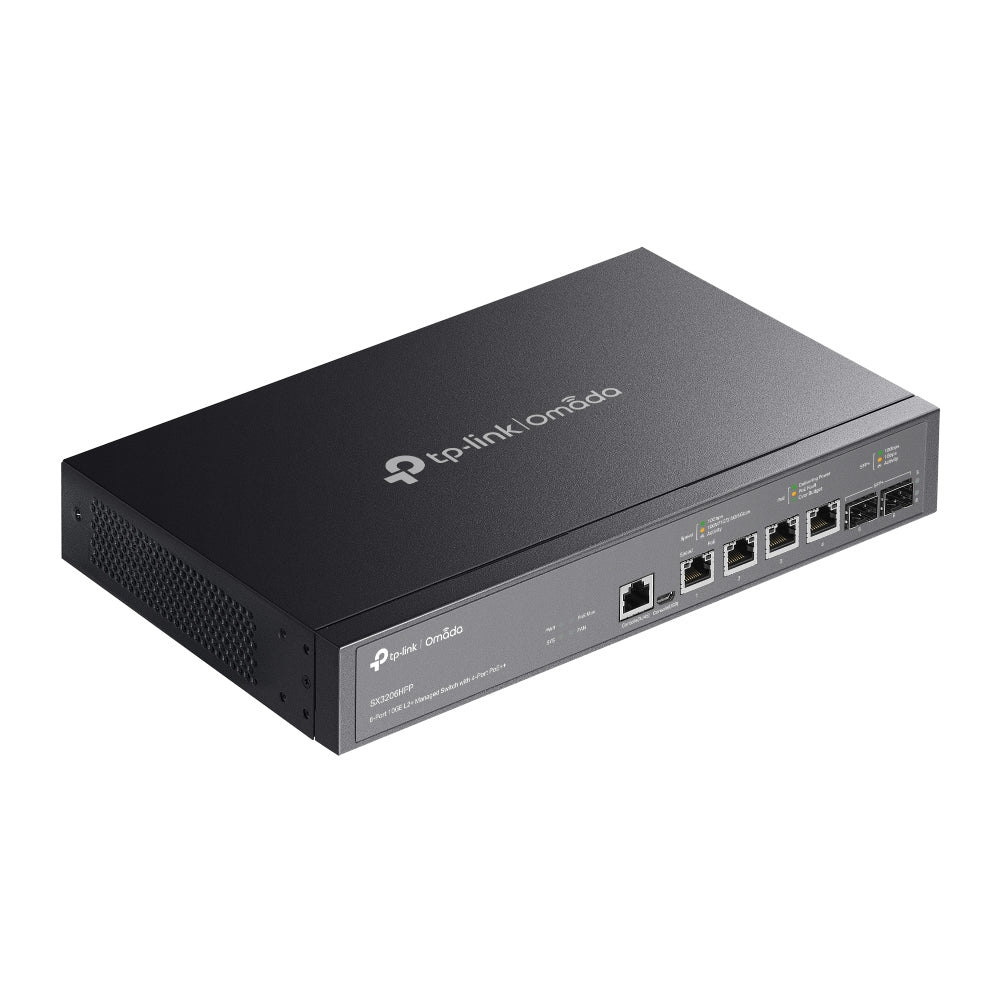

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ - SX3206HPP

$414.73
Shipping calculated at checkout.

Care information

Manufacture Warranty

Delivery and Shipping

Standard Shipping: 3-5 Business days

Express Shipping: 1-2 Business days

ShareThis

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10G PoE++ ports with up to 60 W PoE output per port**
  • 2× 10G SFP+ slots
  • 200 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Desktop / Rack Mounting
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Y
Web-based management Y
Cloud-managed Y
ARP inspection Y
Configuring Location Settings (CLI) Y
System event log Y
MIB support Yes
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
SFP+ module slots quantity 2
Console port RJ-45/Micro-USB
Power connector AC-in jack
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
10G support Y
Port mirroring Y
IP routing Y
Routing entries 512
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Rate limiting Y
Spanning tree protocol Y
Head-of-line (HOL) blocking Y
VLAN support Y
Virtual LAN features Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN
Number of VLANs 4000
MAC address table 32000
Switching capacity 120
Forwarding rate 89.28
Static route Y
Number of static routes 48
Jumbo frames support Y
Jumbo frames 9000
Packet buffer memory 16
DHCP features DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms HTTPS,SSL/TLS
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
Authentication Guest VLAN
Authentication type AAA,RADIUS,TACACS+
Multicast support Y
Multicast Listener Discovery (MLD) snooping MLD v1/v2
Management protocols SNMP v1/v2c/v3
Rack mounting Y
Product colour Black
LED indicators Y
Number of fans 2
Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power source AC
Power supply included Y
AC input voltage 100 - 240
AC input frequency 50/60
Power consumption (max) 244.9
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 60
Total Power over Ethernet (PoE) budget 200
Operating temperature (T-T) 0 - 50
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 95
Heat dissipation 835.67
Width 294
Depth 180
Height 44
Cables included AC
Quick start guide Y
Rack mount kit Y
Certification CE, FCC, RoHS
